NSN 5310-01-038-5405 NS103203SE02, NS103203SE-02, BACN10JR3CFM

Product Details | PLATE SELF-LOCKING NUT

5310-01-038-5405 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NS103203SE02, NS103203SE-02, BACN10JR3CFM, BRF200C3M, F50013BAC, F5001-3BAC, T8092C1032, VN152D102, VN152D1-02, 109F92013, 109F9201-3, 5310-01-038-5405, 01-038-5405, 5310010385405, 010385405

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 APR 1977	01-038-5405	05280 ( NUT, SELF-LOCKING, PLATE )

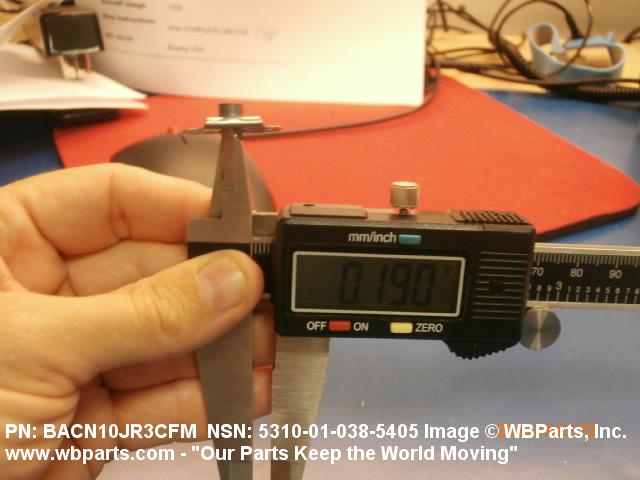

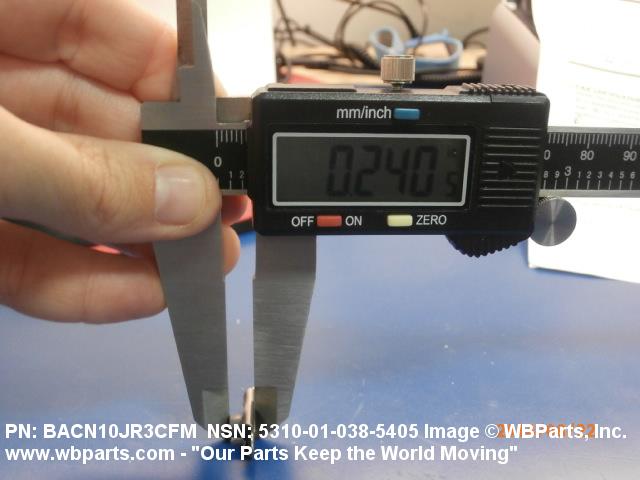

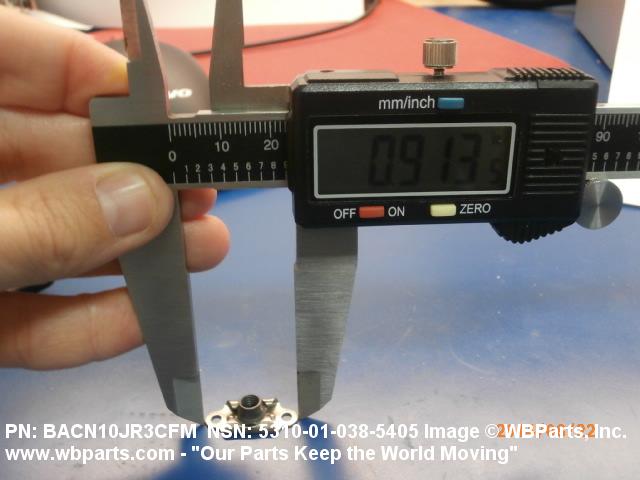

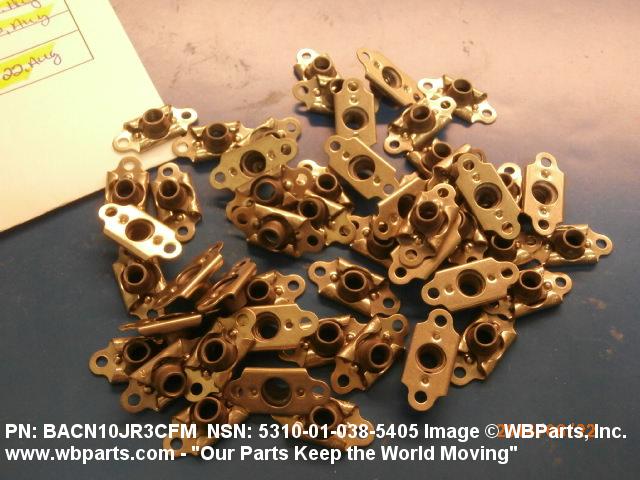

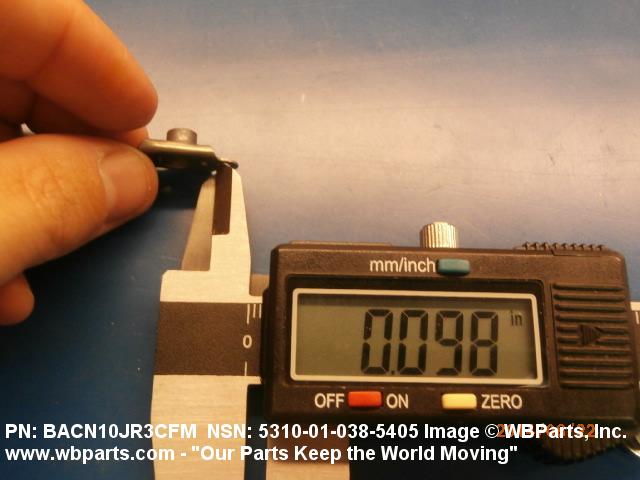

Drawings & Photos | NSN 5310-01-038-5405

Part Number	Request Date	QTY	Origin
BACN10JR3CFM	2024-07-185	36	US
BACN10JR3CFM	2022-10-290	14	US
BACN10JR3CFM	2022-04-115	2555	DIBBS
BRF200C3M	2022-04-115	2555	DIBBS
F5001-3BAC	2022-04-115	2555	DIBBS
NS103203SE-02	2022-04-115	2555	DIBBS
BACN10JR3CFM	2022-04-102	2555	DIBBS
BRF200C3M	2022-04-102	2555	DIBBS
F5001-3BAC	2022-04-102	2555	DIBBS
NS103203SE-02	2022-04-102	2555	DIBBS
BACN10JR3CFM	2021-01-10	750	DIBBS
BRF200C3M	2021-01-10	750	DIBBS
F5001-3BAC	2021-01-10	750	DIBBS
NS103203SE-02	2021-01-10	750	DIBBS
BACN10JR3CFM	2020-10-302	585	DIBBS
BRF200C3M	2020-10-302	585	DIBBS
F5001-3BAC	2020-10-302	585	DIBBS
NS103203SE-02	2020-10-302	585	DIBBS
5310-01-038-5405	2019-10-275	100	United States
BACN10JR3CFM	2019-09-253	11313	US
5310-01-038-5405	2018-11-332	654	DIBBS
5310-01-038-5405	2018-01-17	50	United States
5310-01-038-5405	2018-01-03	424	DIBBS
BACN10JR3CFM	2017-01-31	42	United States
BACN10JR3CFM	2016-01-28	3	United States
BACN10JR3CFM	2016-01-28	6	United States
BACN10JR3CFM	2016-01-28	9	United States
BACN10JR3CFM	2016-01-28	18	United States
BACN10JR3CFM	2014-08-226	50	United States
BACN10JR3CFM	2014-08-226	100	United States
BACN10JR3CFM	2014-07-212	50	United States
BACN10JR3CFM	2014-07-212	100	United States
5310-01-038-5405	2013-09-270	379	DIBBS
5310-01-038-5405	2013-09-255	379	DIBBS
BACN10JR3CFM	2012-11-331	200	United States
BACN10JR3CFM	2012-11-319	2	US
BACN10JR3CFM	2008-06-169	30000	Italy
BACN10JR3CFM	2008-02-32	4000	us
BACN10JR3CFM	2008-01-21	4000	us
BACN10JR3CFM	2007-06-169	1900	US
5310-01-038-5405	2006-08-223	5000	US
BACN10JR3CFM	2006-08-220	4430	US

Cross Reference | NSN 5310-01-038-5405

Part Number	Cage Code	Manufacturer
109F9201-3	72962	HARVARD INDUSTRIES INC
BACN10JR3CFM	81205	THE BOEING COMPANY DBA BOEING
BACN10JR3CFM	Z03F0	BOEING DEFENCE AUSTRALIA LTD
BACN10JR3CFM	Z8T75	BOEING DEFENCE AUSTRALIA LTD
BRF200C3M	52828	REPUBLIC FASTENER MFG. CORP.
F5001-3BAC	15653	ALCOA GLOBAL FASTENERS, INC.
NS103203SE-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
T8092C1032	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN152D1-02	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-038-5405

Compare

Related Products | NSN 5310-01-038-5405

5310-01-038-5406, 5310-01-038-5407, 5310-01-038-5841, 5310-01-038-5854, 5310-01-038-5855

Technical Data | NSN 5310-01-038-5405

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE
NUT LENGTH	0.948 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.032 INCHES MAXIMUM
PLATE WIDTH	0.416 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.060 INCHES NOMINAL NUT
COUNTERBORE DIAMETER	0.194 INCHES MINIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES NOMINAL
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
SPECIFICATION/STANDARD DATA	81205-BACN10JR MANUFACTURERS STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-038-5405

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-038-5405

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
