NSN 5310-01-031-5112 NAS17663, NAS1766-3, 01-031-5112
Product Details | PLATE SELF-LOCKING NUT
5310-01-031-5112 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS17663, NAS1766-3, 5310-01-031-5112, 01-031-5112, 5310010315112, 010315112
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 NOV 1976 | 01-031-5112 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

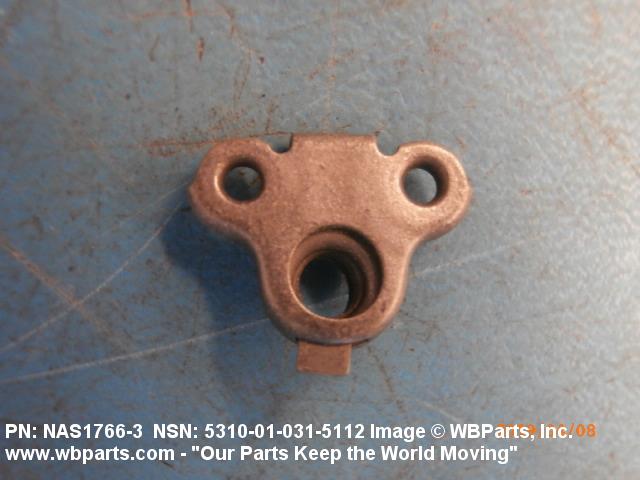

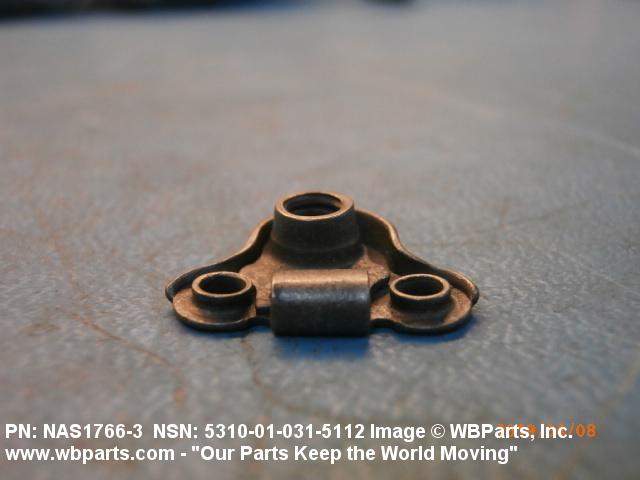

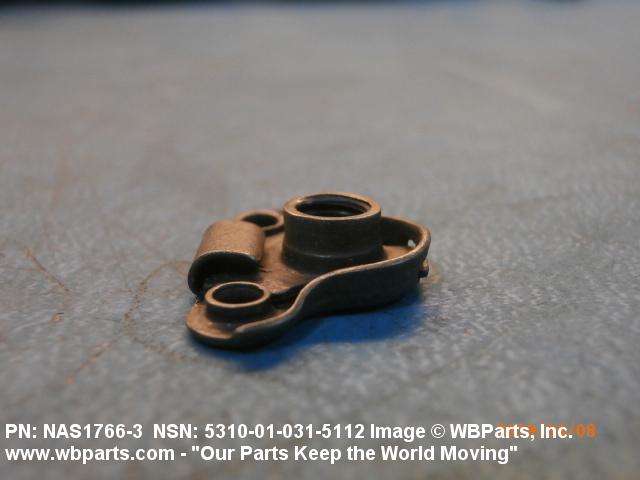

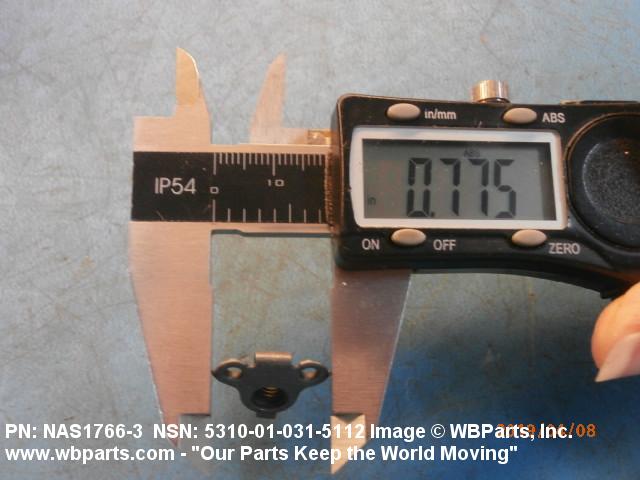

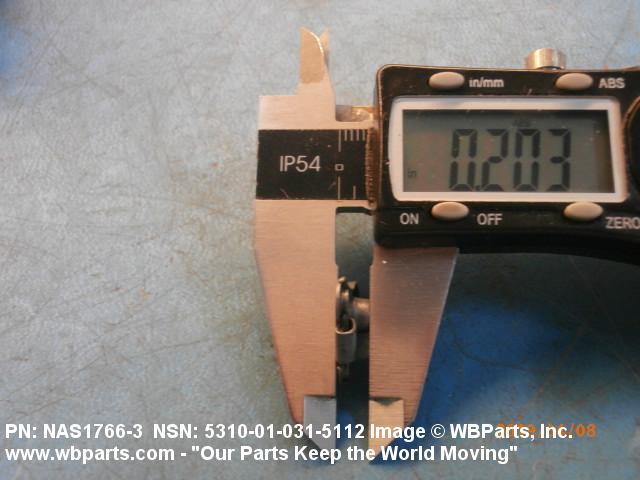

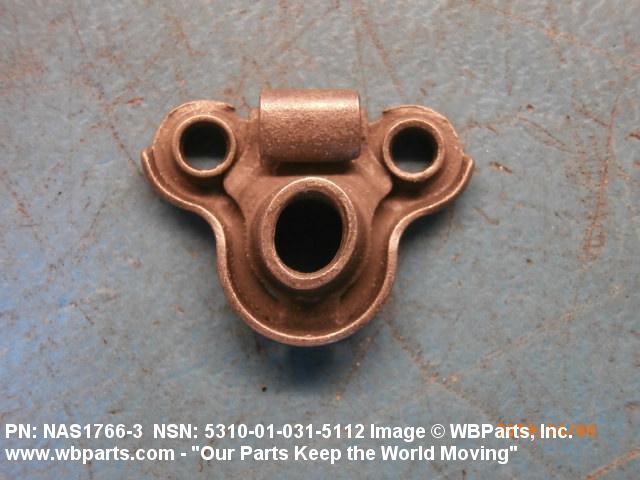

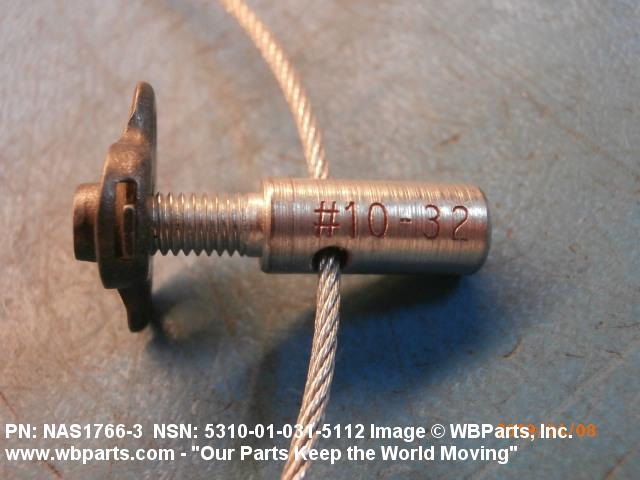

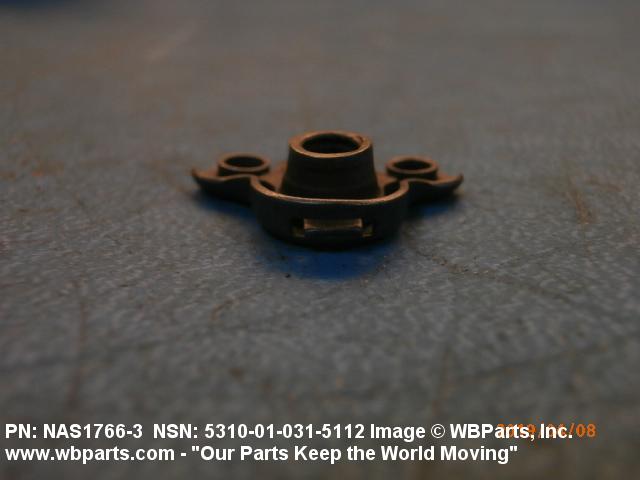

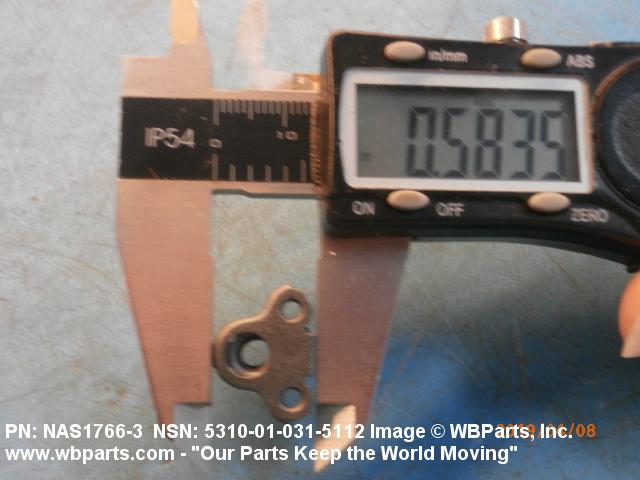

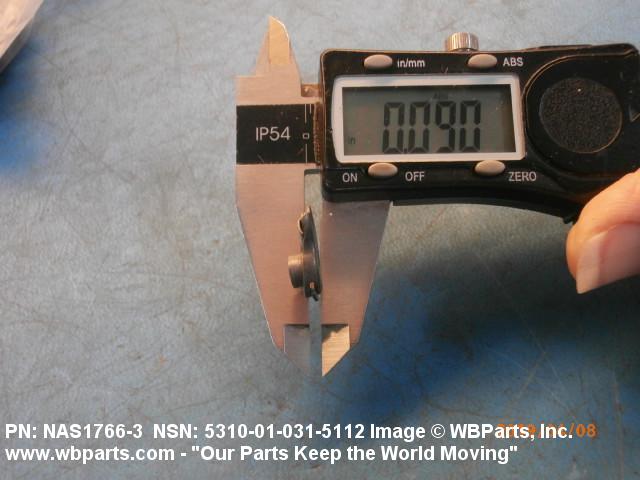

Drawings & Photos | NSN 5310-01-031-5112
Demand History | NSN 5310-01-031-5112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-031-5112 | 2024-09-269 | 453 | DIBBS |
| 5310-01-031-5112 | 2024-04-92 | 295 | DIBBS |
| NAS17663 | 2023-12-352 | 25 | United States |
| 5310-01-031-5112 | 2023-05-127 | 387 | DIBBS |
| NAS17663 | 2019-01-22 | 500 | United States |
| NAS17663 | 2015-05-132 | 12 | United States |
| NAS17663 | 2014-08-223 | 25 | Spain |
| NAS17663 | 2011-06-168 | 40 | United States |
| NAS17663 | 2009-07-211 | 8000 | US |
| NAS17663 | 2009-01-01 | 100 | US |
Cross Reference | NSN 5310-01-031-5112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1766-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-031-5112
Related Products | NSN 5310-01-031-5112
Technical Data | NSN 5310-01-031-5112
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A121 PLATE |
| NUT LENGTH | 0.680 INCHES MAXIMUM |
| NUT HEIGHT | 0.205 INCHES MAXIMUM |
| PLATE THICKNESS | 0.077 INCHES MINIMUM AND 0.082 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F53 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
