NSN 5310-01-031-1041 BACW10U , BACW10UC10P, BACW10U-C10P
Product Details | FINISHING WASHER
5310-01-031-1041 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: BACW10U , BACW10UC10P, BACW10U-C10P, 5310-01-031-1041, 01-031-1041, 5310010311041, 010311041
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 NOV 1976 | 01-031-1041 | 15932 ( WASHER, FINISHING ) |
Drawings & Photos | NSN 5310-01-031-1041
Demand History | NSN 5310-01-031-1041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACW10UC10P | 2018-07-186 | 28 | US |
| 5310-01-031-1041 | 2016-07-192 | 1563 | DIBBS |
| 5310-01-031-1041 | 2016-03-84 | 1563 | DIBBS |
| 5310-01-031-1041 | 2015-02-35 | 210 | DIBBS |
| 5310-01-031-1041 | 2014-05-125 | 206 | DIBBS |
| 5310-01-031-1041 | 2009-05-142 | 100 | DIBBS |
| BACW10UC10P | 2007-09-268 | 500 | US |
Cross Reference | NSN 5310-01-031-1041
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-031-1041

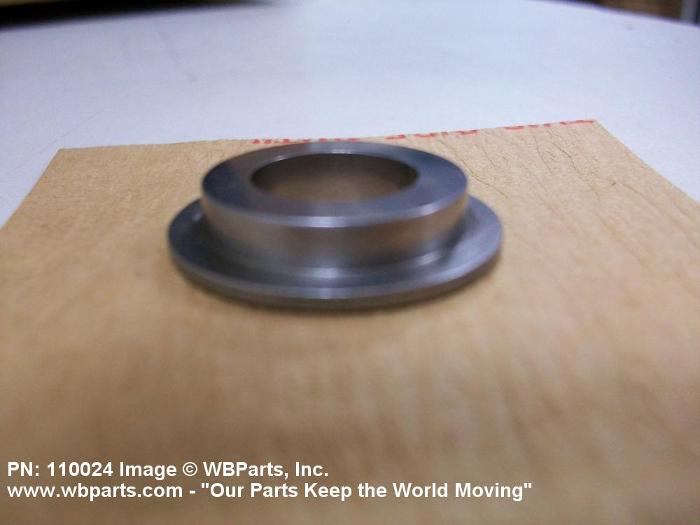

Related Products | NSN 5310-01-031-1041
Technical Data | NSN 5310-01-031-1041
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6721 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6721 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6721 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 5TH MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 6TH MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC 7TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 27 FINISHING |
| HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.573 INCHES MINIMUM AND 0.603 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.080 INCHES NOMINAL |
| RECESS DIAMETER | 0.385 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.014 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
| RECESS ANGLE | 99.0 DEGREES MINIMUM AND 103.0 DEGREES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 82918-BACW10U MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-031-1041
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-031-1041
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
