NSN 5310-01-030-1810 NS20218332, NS202183-3-2, ST3M721C3M2
Product Details | PLATE SELF-LOCKING NUT
5310-01-030-1810 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS20218332, NS202183-3-2, ST3M721C3M2, F1209223, F12092-2-3, F5040332, F50403-3-2, 10122006 , 5310-01-030-1810, 01-030-1810, 5310010301810, 010301810
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 OCT 1976 | 01-030-1810 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

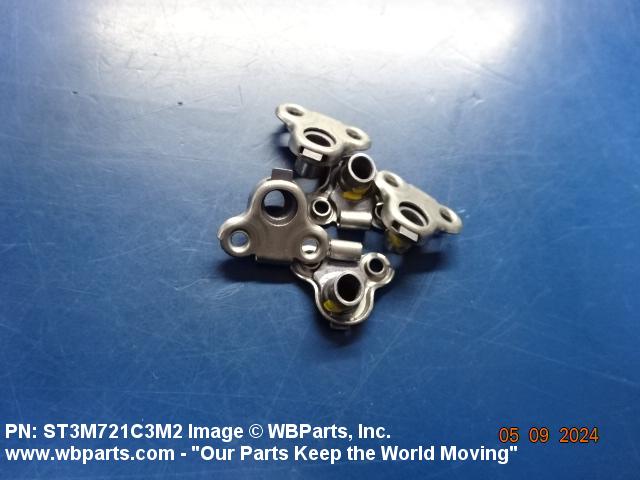

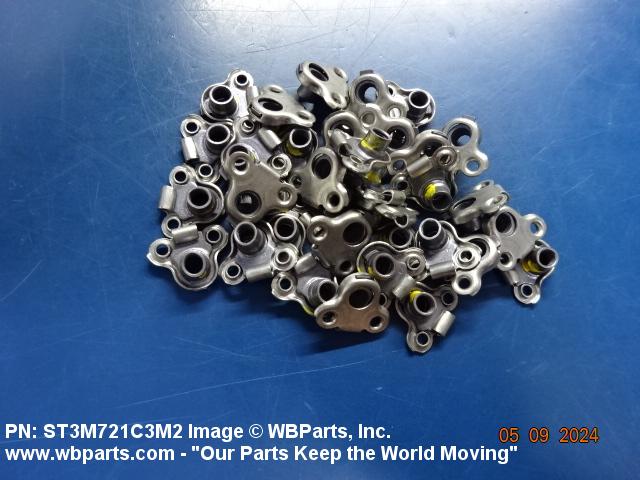

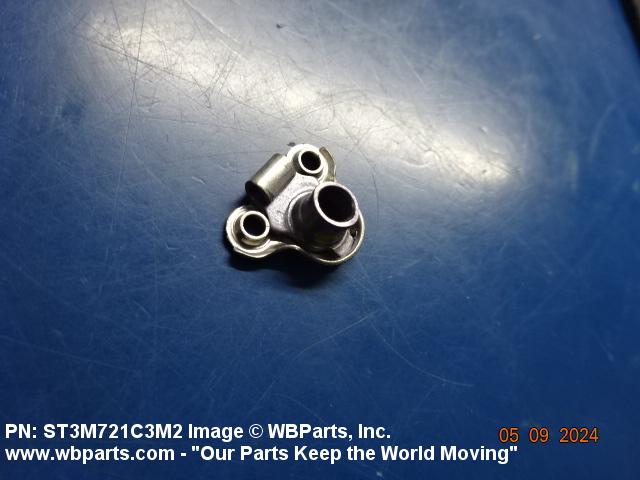

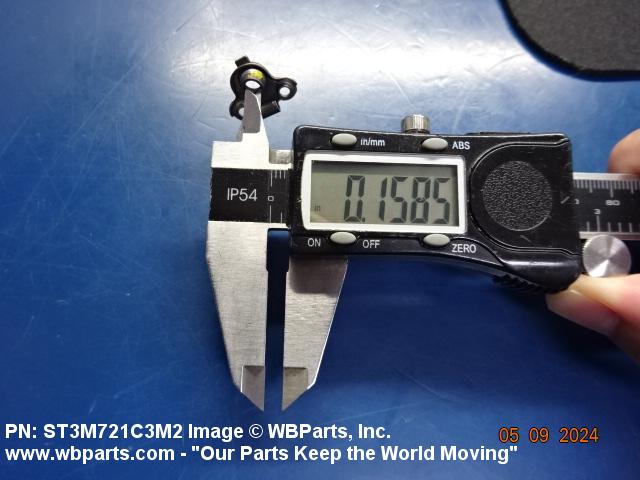

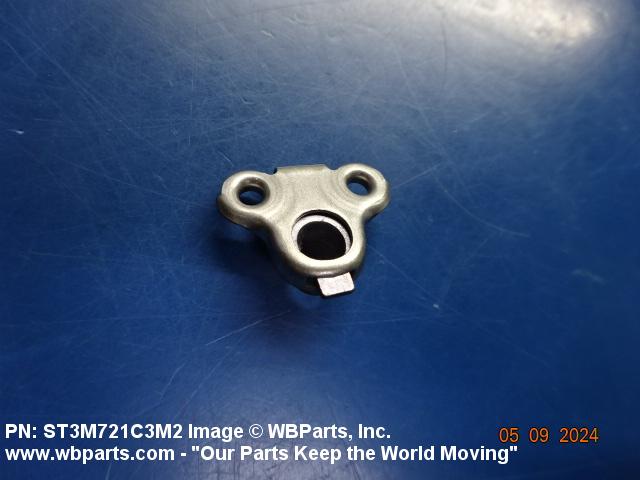

Drawings & Photos | NSN 5310-01-030-1810
Demand History | NSN 5310-01-030-1810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M721C3M2 | 2024-08-242 | 300 | United States |
| ST3M721C3M2 | 2024-08-232 | 300 | United States |
| F12092-2-3 | 2024-07-200 | 429 | DIBBS |
| F50403-3-2 | 2024-07-200 | 429 | DIBBS |
| NS202183-3-2 | 2024-07-200 | 429 | DIBBS |
| ST3M721C3M2 | 2024-04-108 | 35 | United States |
| F12092-2-3 | 2024-03-77 | 1111 | DIBBS |
| F50403-3-2 | 2024-03-77 | 1111 | DIBBS |
| NS202183-3-2 | 2024-03-77 | 1111 | DIBBS |
| F12092-2-3 | 2023-12-353 | 962 | DIBBS |
| F50403-3-2 | 2023-12-353 | 962 | DIBBS |
| NS202183-3-2 | 2023-12-353 | 962 | DIBBS |
| 5310-01-030-1810 | 2010-03-90 | 3441 | DIBBS |
| ST3M721C3M2 | 2009-10-287 | 12 | US |
| 5310-01-030-1810 | 2009-07-188 | 1811 | DIBBS |
| 5310-01-030-1810 | 2009-01-07 | 774 | DIBBS |
| 5310-01-030-1810 | 2008-07-190 | 360 | DIBBS |
Cross Reference | NSN 5310-01-030-1810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F12092-2-3 | 72962 | HARVARD INDUSTRIES INC |
| F12092-2-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F50403-3-2 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F50403-3-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NS202183-3-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M721C3M2 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-030-1810
Related Products | NSN 5310-01-030-1810
Technical Data | NSN 5310-01-030-1810
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A121 PLATE |

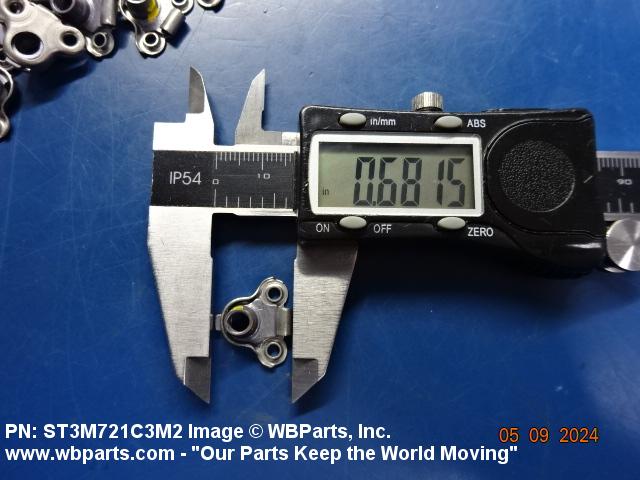

| NUT LENGTH | 0.680 INCHES MAXIMUM |

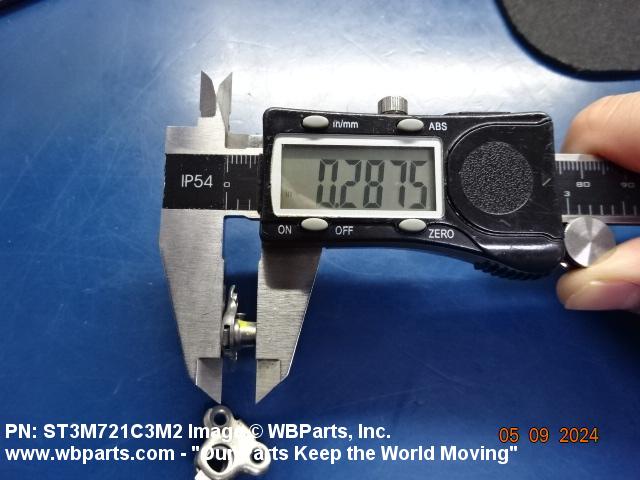

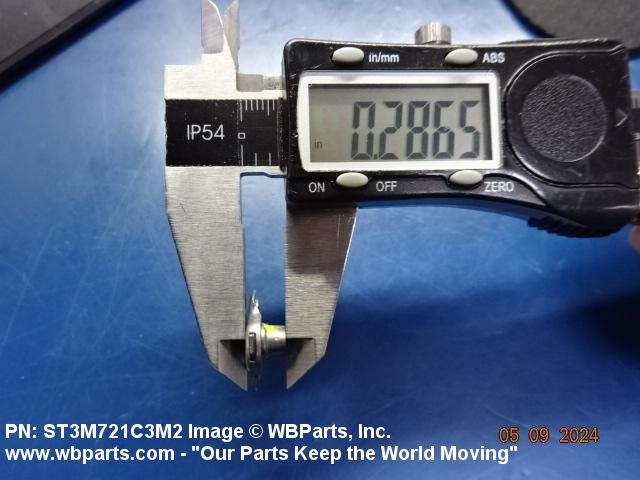

| NUT HEIGHT | 0.290 INCHES MAXIMUM |
| PLATE THICKNESS | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.125 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.238 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F45 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.484 INCHES MINIMUM AND 0.488 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | COLOR YELLOW |
| SPECIFICATION/STANDARD DATA | 76301-ST3M721 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-030-1810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-030-1810
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
