NSN 5310-01-028-3589 MCRF220C3M4 , NS2022110204, NS202211-02-04
Product Details | PLATE SELF-LOCKING NUT
5310-01-028-3589 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MCRF220C3M4 , NS2022110204, NS202211-02-04, NS202211024, NS202211-02-4, ST3M719C3M4, BFN719C3M4, F1209043, F12090-4-3, F5033934, F50339-3-4, 10122001 , 5310-01-028-3589, 01-028-3589, 5310010283589, 010283589
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1976 | 01-028-3589 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

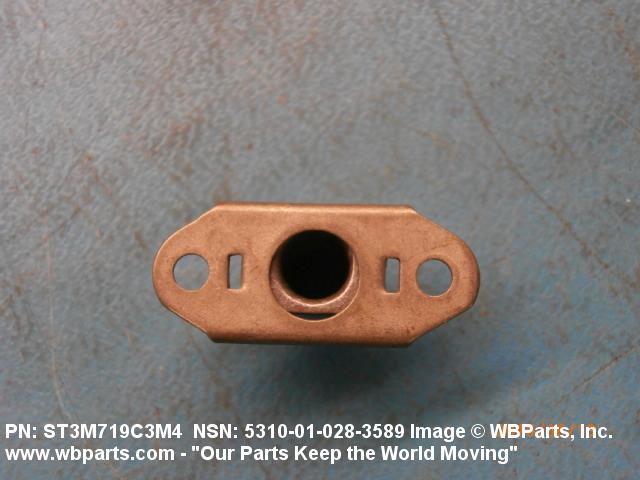

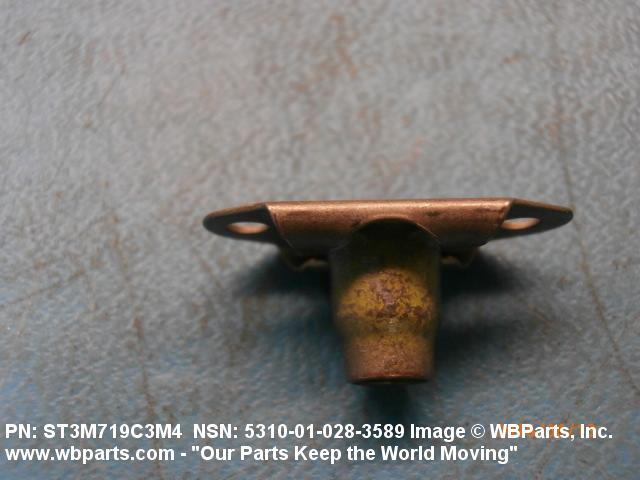

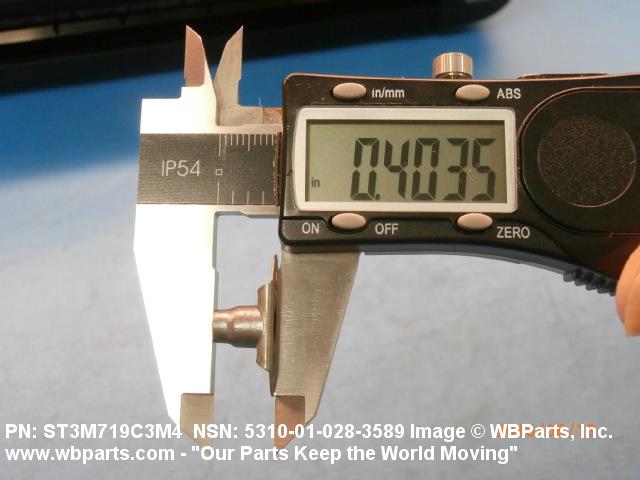

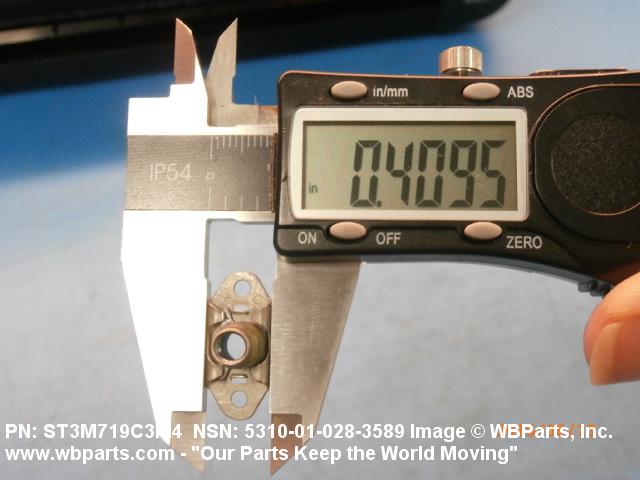

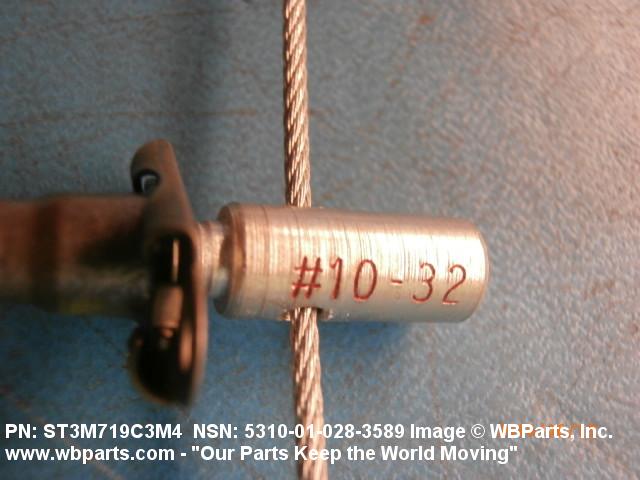

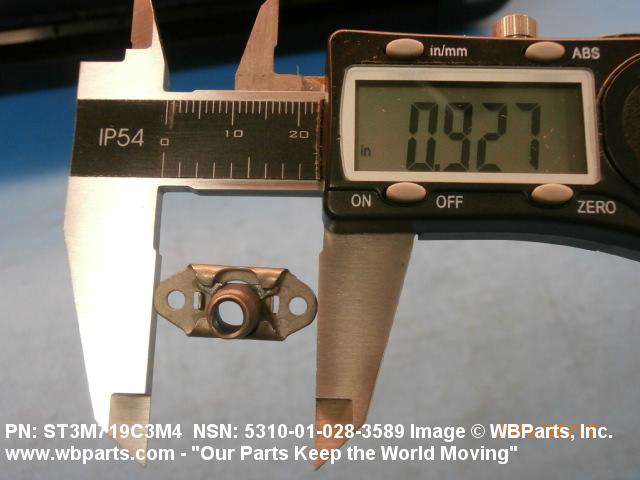

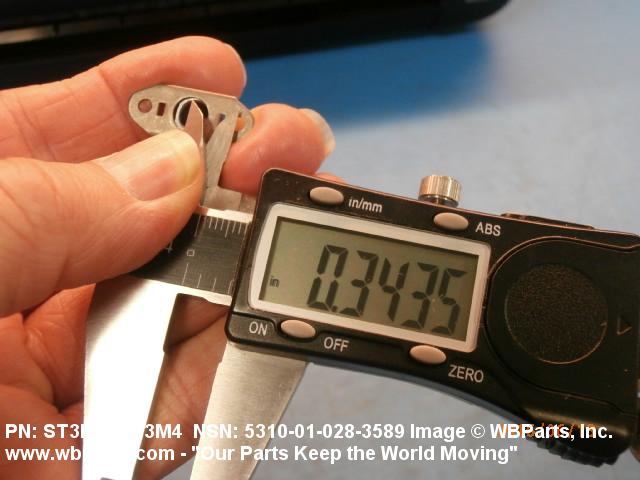

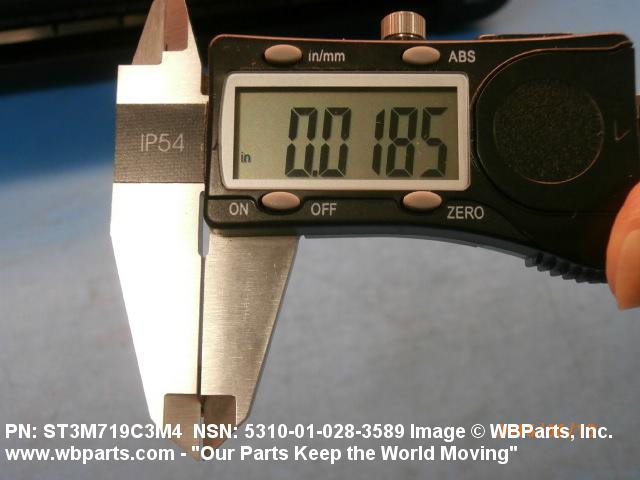

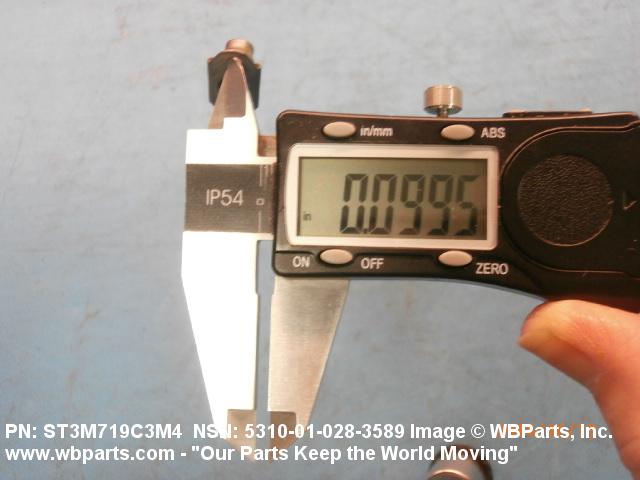

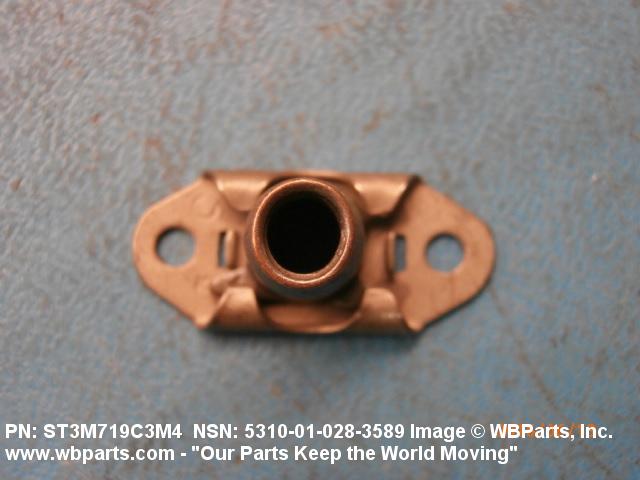

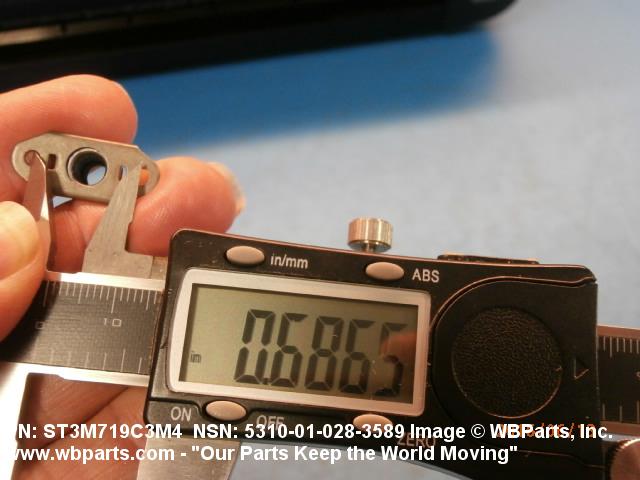

Drawings & Photos | NSN 5310-01-028-3589
Demand History | NSN 5310-01-028-3589
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BFN719C3M4 | 2024-10-291 | 864 | DIBBS |
| F50339-3-4 | 2024-10-291 | 864 | DIBBS |
| MCRF220C3M4 | 2024-10-291 | 864 | DIBBS |
| NS202211-02-4 | 2024-10-291 | 864 | DIBBS |
| ST3M719C3M4 | 2016-06-161 | 5 | United States |
| ST3M719C3M4 | 2010-10-284 | 66 | US |
Cross Reference | NSN 5310-01-028-3589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BFN719C3M4 | 27238 | BRISTOL INDUSTRIES |
| F12090-4-3 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F12090-4-3 | 72962 | HARVARD INDUSTRIES INC |
| F50339-3-4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS202211-02-04 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NS202211-02-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M719C3M4 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-028-3589
Related Products | NSN 5310-01-028-3589
Technical Data | NSN 5310-01-028-3589
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD ALL MATERIAL RESPONSES OR AMS 5732 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.970 INCHES MAXIMUM |
| NUT HEIGHT | 0.438 INCHES MAXIMUM |
| PLATE THICKNESS | 0.035 INCHES MAXIMUM |
| PLATE WIDTH | 0.421 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.250 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.343 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | COLOR YELLOW |
| SPECIFICATION/STANDARD DATA | 76301-ST3M719 MANUFACTURERS STANDARD |
