NSN 5310-01-025-9992 BACN10HR18, BACN10HR18CD, BMNN10HR18
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-025-9992 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10HR18, BACN10HR18CD, BMNN10HR18, BNMM10HR18, RMLH2218, RMLH22-18, VAL2800918, VAL28009-18, 67832-1812, 783218, 7832-18, 5310-01-025-9992, 01-025-9992, 5310010259992, 678321812, 010259992
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 AUG 1976 | 01-025-9992 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

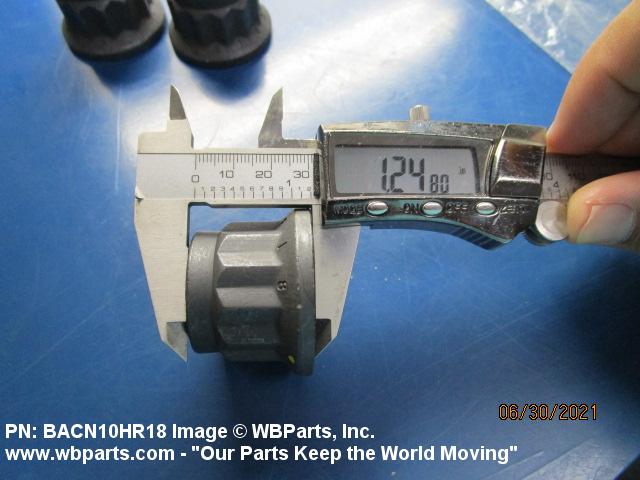

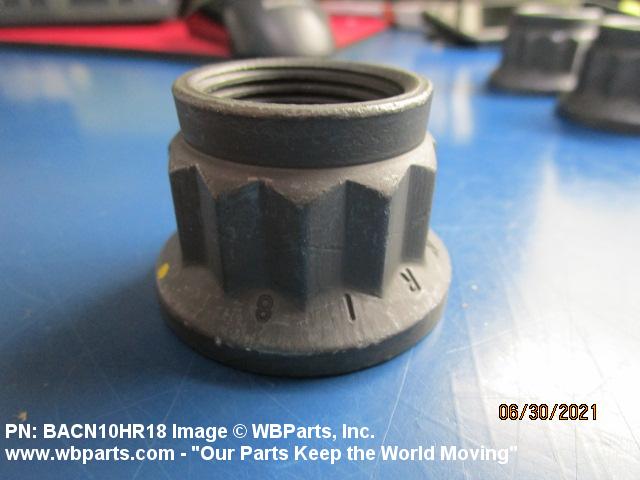

Drawings & Photos | NSN 5310-01-025-9992
Demand History | NSN 5310-01-025-9992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 67832-1812 | 2022-05-123 | 151 | DIBBS |
| BMNN10HR18 | 2022-05-123 | 151 | DIBBS |
| VAL28009-18 | 2022-05-123 | 151 | DIBBS |
| 67832-1812 | 2021-11-313 | 280 | DIBBS |
| BMNN10HR18 | 2021-11-313 | 280 | DIBBS |
| VAL28009-18 | 2021-11-313 | 280 | DIBBS |
| 67832-1812 | 2021-10-304 | 100 | DIBBS |
| BMNN10HR18 | 2021-10-304 | 100 | DIBBS |
| VAL28009-18 | 2021-10-304 | 100 | DIBBS |
| 67832-1812 | 2021-10-301 | 91 | DIBBS |
| BMNN10HR18 | 2021-10-301 | 91 | DIBBS |
| VAL28009-18 | 2021-10-301 | 91 | DIBBS |
| 5310-01-025-9992 | 2021-06-165 | 10 | US |
| BACN10HR18 | 2021-06-162 | 1 | United States |
| 67832-1812 | 2021-05-138 | 310 | DIBBS |
| BMNN10HR18 | 2021-05-138 | 310 | DIBBS |
| VAL28009-18 | 2021-05-138 | 310 | DIBBS |
| 67832-1812 | 2021-05-131 | 310 | DIBBS |
| BMNN10HR18 | 2021-05-131 | 310 | DIBBS |
| VAL28009-18 | 2021-05-131 | 310 | DIBBS |
| 67832-1812 | 2021-04-95 | 196 | DIBBS |
| BMNN10HR18 | 2021-04-95 | 196 | DIBBS |
| VAL28009-18 | 2021-04-95 | 196 | DIBBS |
| 67832-1812 | 2021-03-87 | 196 | DIBBS |
| BMNN10HR18 | 2021-03-87 | 196 | DIBBS |
| VAL28009-18 | 2021-03-87 | 196 | DIBBS |
| 67832-1812 | 2020-10-281 | 9 | DIBBS |
| BMNN10HR18 | 2020-10-281 | 9 | DIBBS |
| VAL28009-18 | 2020-10-281 | 9 | DIBBS |
| 67832-1812 | 2020-08-231 | 1 | DIBBS |
| BMNN10HR18 | 2020-08-231 | 1 | DIBBS |
| VAL28009-18 | 2020-08-231 | 1 | DIBBS |
| 67832-1812 | 2020-06-175 | 3 | DIBBS |
| BMNN10HR18 | 2020-06-175 | 3 | DIBBS |
| VAL28009-18 | 2020-06-175 | 3 | DIBBS |
| BACN10HR18 | 2020-06-168 | 58 | United States |
| 67832-1812 | 2020-06-161 | 1 | DIBBS |
| 67832-1812 | 2020-06-161 | 3 | DIBBS |
| BMNN10HR18 | 2020-06-161 | 1 | DIBBS |
| BMNN10HR18 | 2020-06-161 | 3 | DIBBS |
| VAL28009-18 | 2020-06-161 | 1 | DIBBS |
| VAL28009-18 | 2020-06-161 | 3 | DIBBS |
| 67832-1812 | 2020-03-91 | 1 | DIBBS |
| BMNN10HR18 | 2020-03-91 | 1 | DIBBS |
| VAL28009-18 | 2020-03-91 | 1 | DIBBS |
| BACN10HR18 | 2020-03-66 | 58 | United States |
| BACN10HR18CD | 2020-01-10 | 6 | US |
| BACN10HR18 | 2019-11-318 | 60 | United States |
| 67832-1812 | 2019-01-31 | 100 | DIBBS |
| BMNN10HR18 | 2019-01-31 | 100 | DIBBS |
| VAL28009-18 | 2019-01-31 | 100 | DIBBS |
| 5310-01-025-9992 | 2018-12-352 | 22 | US |
| BACN10HR18 | 2018-10-295 | 65 | United States |
| 5310-01-025-9992 | 2018-07-191 | 100 | DIBBS |
| 5310-01-025-9992 | 2018-06-155 | 100 | DIBBS |
| BACN10HR18 | 2016-07-204 | 60 | United States |
| 5310-01-025-9992 | 2015-10-280 | 88 | DIBBS |
| BACN10HR18 | 2015-04-118 | 58 | United States |
| 5310-01-025-9992 | 2010-04-95 | 4 | DIBBS |
| 5310-01-025-9992 | 2009-11-332 | 16 | DIBBS |
| BACN10HR18 | 2009-02-54 | 2 | United States |
Cross Reference | NSN 5310-01-025-9992
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 67832-1812 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 7832-18 | 56786 | ELECTROMAGNETIC RESEARCH CORP |
| BACN10HR18 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10HR18CD | 81205 | THE BOEING COMPANY DBA BOEING |
| BMNN10HR18 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BMNN10HR18 | 97928 | HUCK INTL INC |
| BNMM10HR18 | D8196 | DOERRIES SCHARMANN TECHNOLOGIE GMBH |
| RMLH22-18 | 72962 | HARVARD INDUSTRIES INC |
| VAL28009-18 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-025-9992
Related Products | NSN 5310-01-025-9992
Technical Data | NSN 5310-01-025-9992
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 1.125 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 601 OR STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6304 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6485 ASSN STD 2ND MATERIAL RESPONSE OR AMS 6487 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |

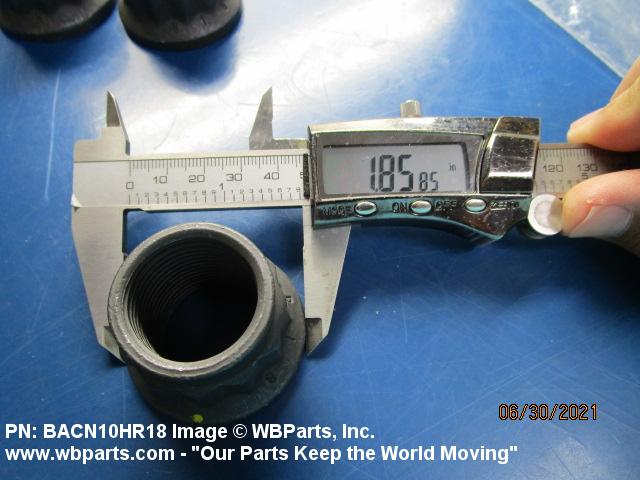

| WASHER OUTSIDE DIAMETER | 1.875 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.370 INCHES MAXIMUM |

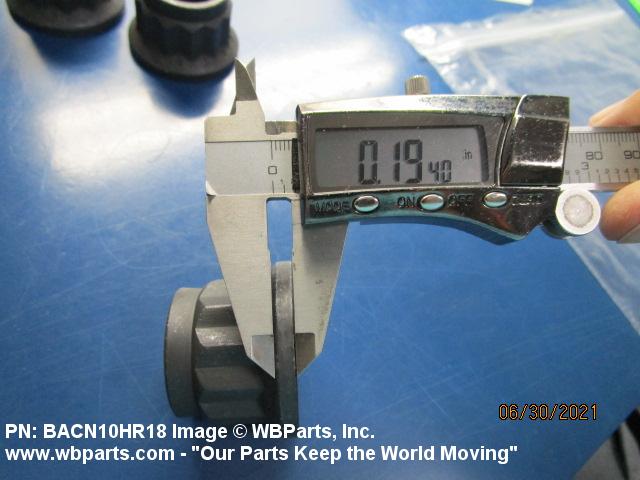

| WASHER THICKNESS | 0.170 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 1.364 INCHES MINIMUM AND 1.377 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 81205-BACN10HR MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-025-9992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-025-9992
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
