NSN 5310-01-023-8130 NS103522024, NS103522-02-4, 01-023-8130

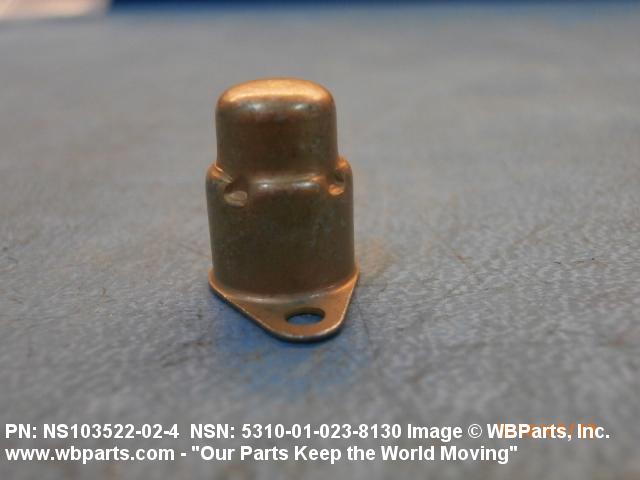

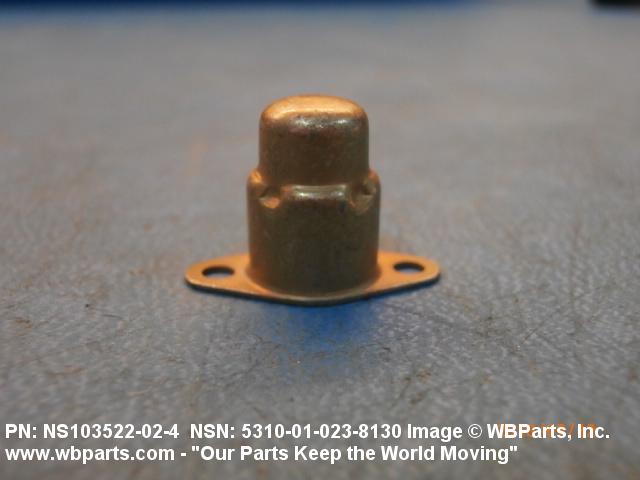

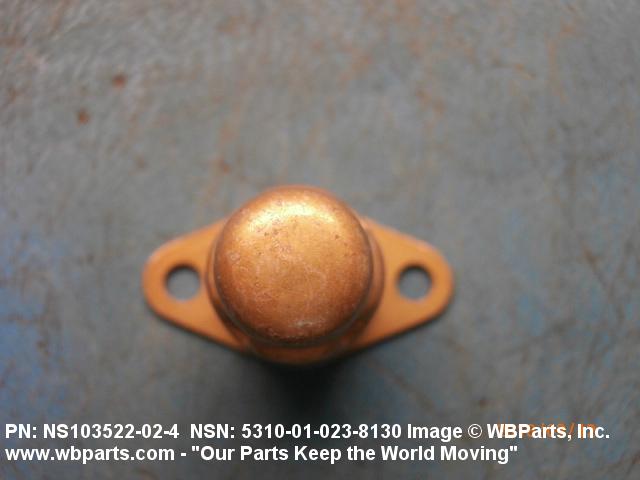

5310-01-023-8130 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding, intergral prongs or by bonding.

Part Alternates: NS103522024, NS103522-02-4, 5310-01-023-8130, 01-023-8130, 5310010238130, 010238130

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 JUN 1976	01-023-8130	01872 ( NUT, PLAIN, PLATE )

Part Number	Request Date	QTY	Origin
5310-01-023-8130	2018-03-60	4	United States
5310-01-023-8130	2011-03-73	125	DIBBS
5310-01-023-8130	2011-02-49	50	DIBBS
5310-01-023-8130	2010-10-301	23	DIBBS

Part Number	Cage Code	Manufacturer
NS103522-02-4	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5310-01-023-8130

Compare

5310-01-023-8141, 5310-01-023-8142, 5310-01-023-8237, 5310-01-023-8238, 5310-01-023-8239

Characteristic	Specifications

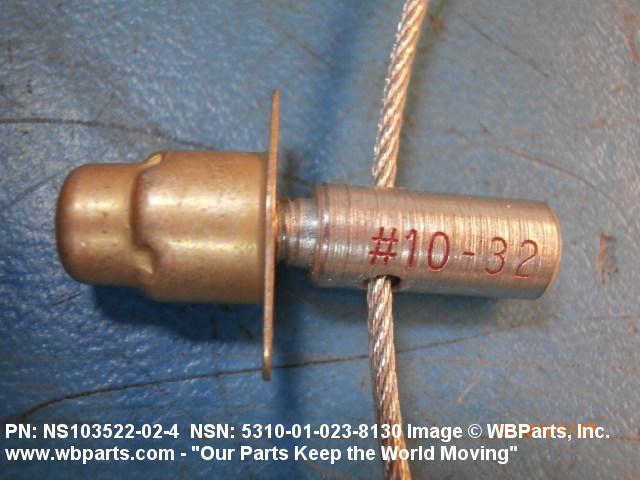

THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL BASE STEEL NUT STEEL SHELL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE

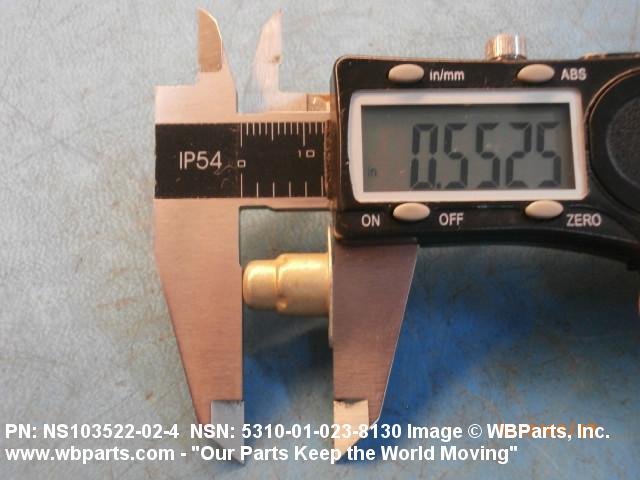

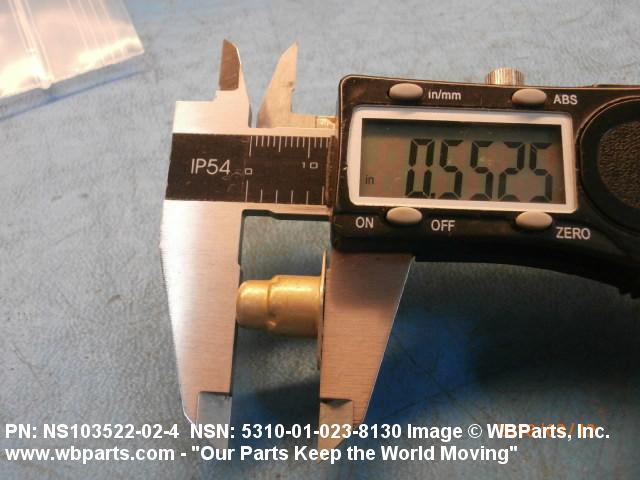

OVERALL HEIGHT	0.561 INCHES NOMINAL
NUT LENGTH	0.812 INCHES NOMINAL
NUT HEIGHT	0.561 INCHES NOMINAL

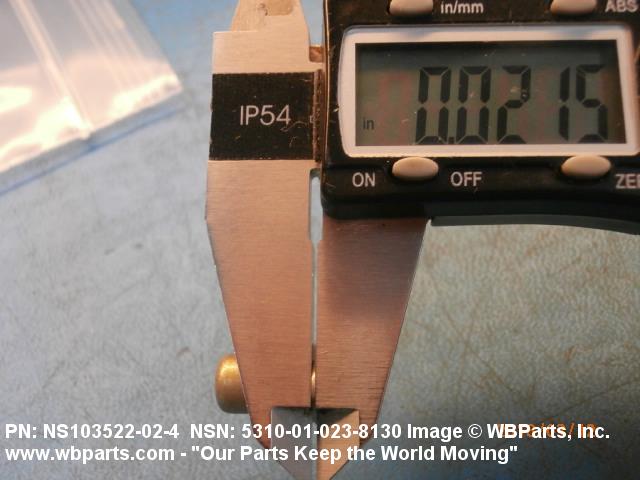

PLATE THICKNESS	0.025 INCHES NOMINAL

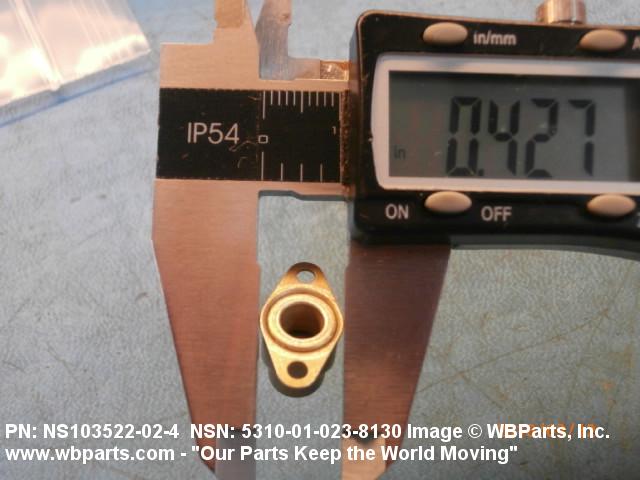

PLATE WIDTH	0.432 INCHES NOMINAL
NUT MOUNTING PROVISION	STRAIGHT HOLES

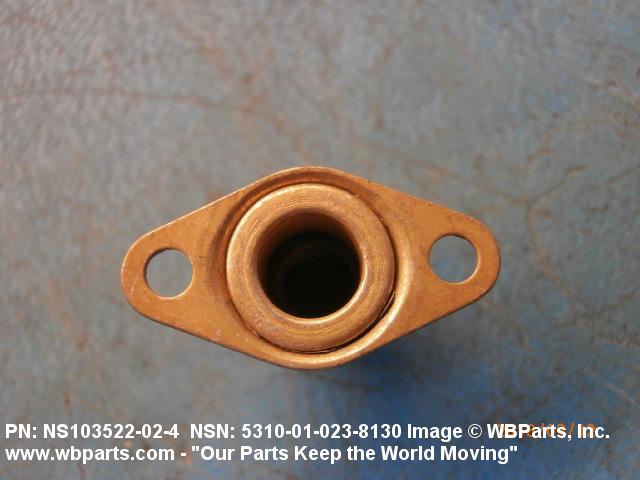

MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

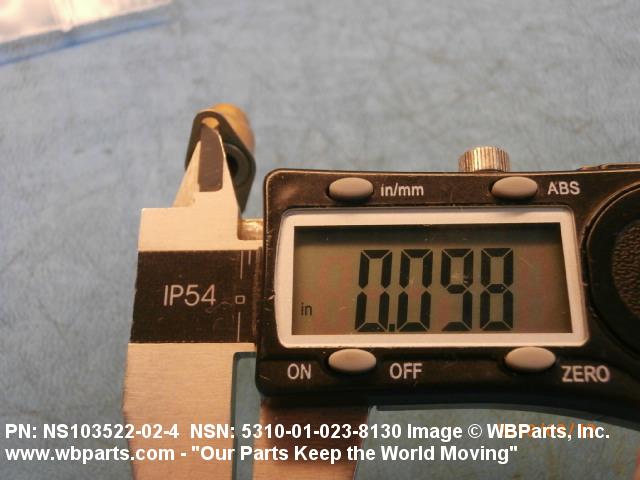

MOUNTING HOLE DIAMETER	0.093 INCHES NOMINAL

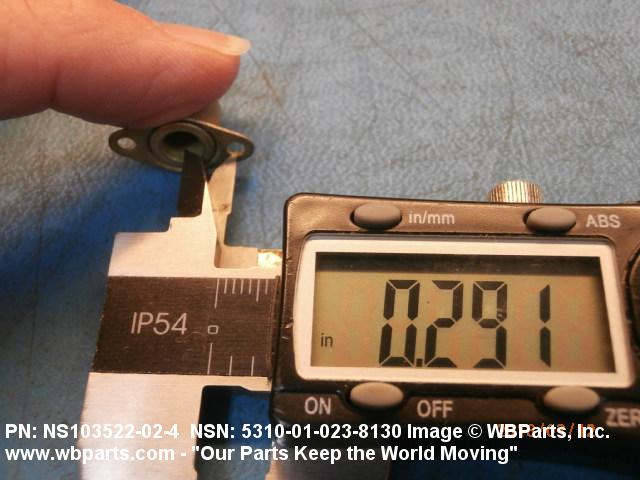

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.296 INCHES NOMINAL

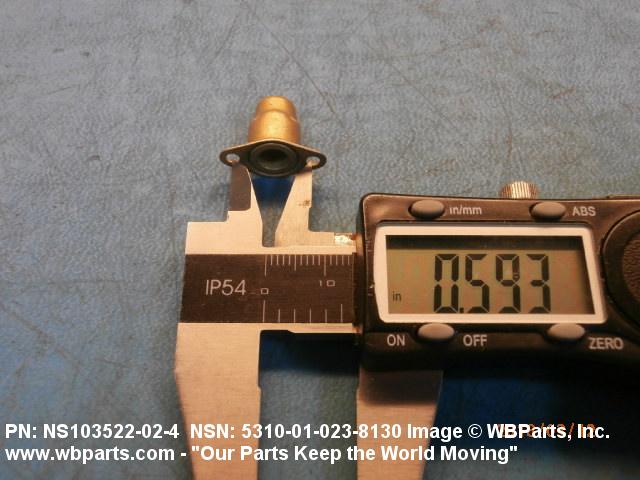

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.593 INCHES NOMINAL
TEMP RATING	NOT RATED
MANUFACTURERS CODE	80539
DESIGN CONTROL REFERENCE	NS103522-02-4

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013540	ALUM NUTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
