Product Details | FLAT WASHER

5310-01-017-6523 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: NAS1515K6, 7090P00101 PIECE 45, 7090P00101PIECE45, 5310-01-017-6523, 01-017-6523, 5310010176523, 010176523

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 12 MAR 1976 01-017-6523

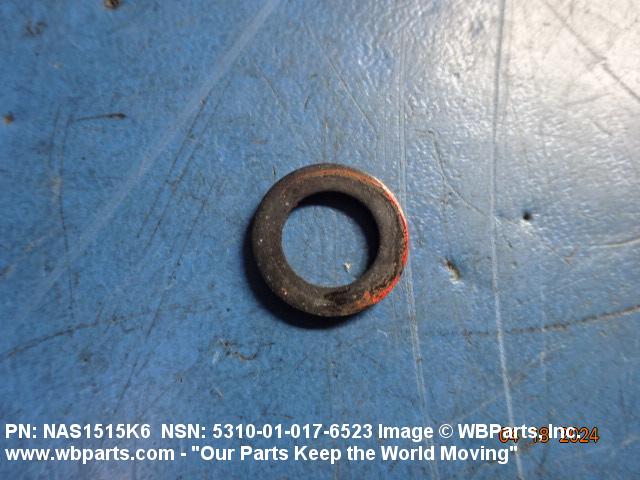

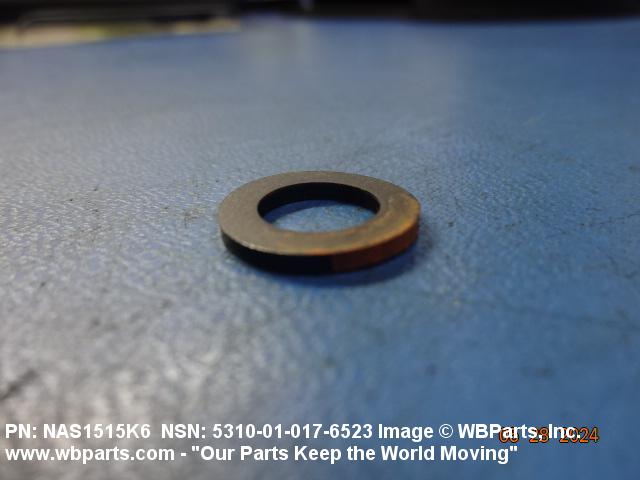

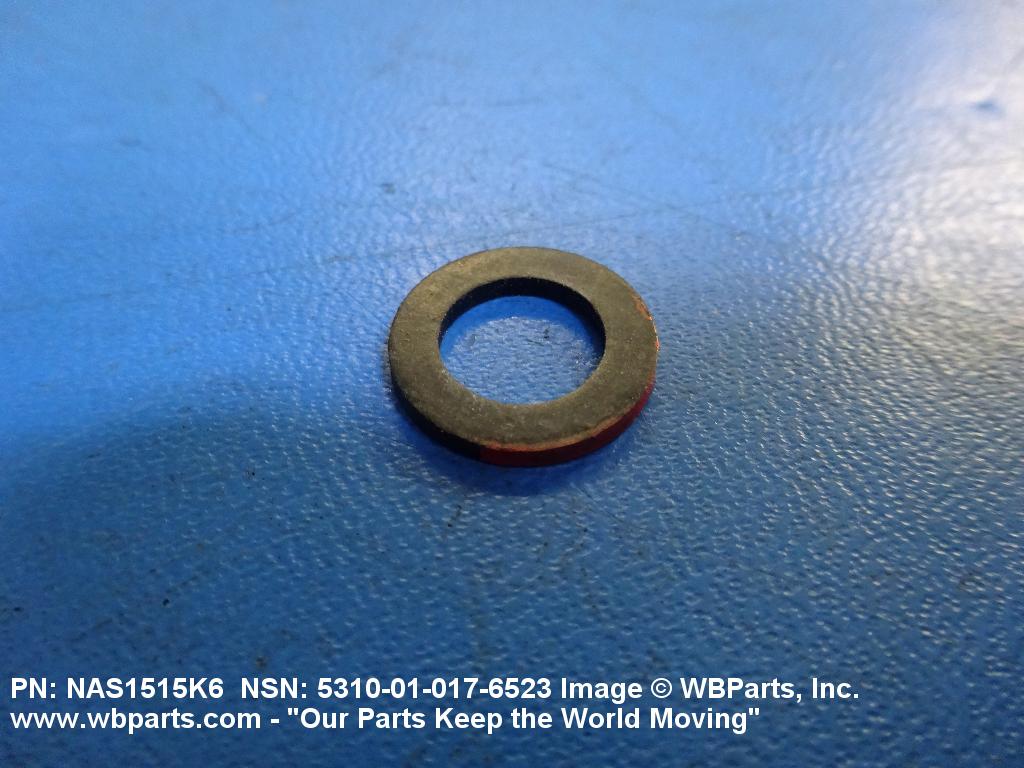

Drawings & Photos | NSN 5310-01-017-6523


Demand History | NSN 5310-01-017-6523

Part Number Request Date QTY Origin
5310-01-017-6523 2024-05-127 10 DIBBS
5310-01-017-6523 2024-04-95 500 United States
5310-01-017-6523 2024-03-61 50 United States
NAS1515K6 2022-02-40 500 United States
NAS1515K6 2018-10-284 20 United States
NAS1515K6 2015-11-309 24 US
NAS1515K6 2012-10-292 16 US
NAS1515K6 2012-10-286 16 US

Cross Reference | NSN 5310-01-017-6523

Part Number Cage Code Manufacturer
7090P00101 PIECE 45 23905 L-3 COMMUNICATIONS WESTWOOD CORPORATION
NAS1515K6 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-017-6523

Technical Data | NSN 5310-01-017-6523

Characteristic Specifications
MATERIAL RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 3238 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING 65.0 SHORE DUROMETER A MINIMUM AND 75.0 SHORE DUROMETER A MAXIMUM

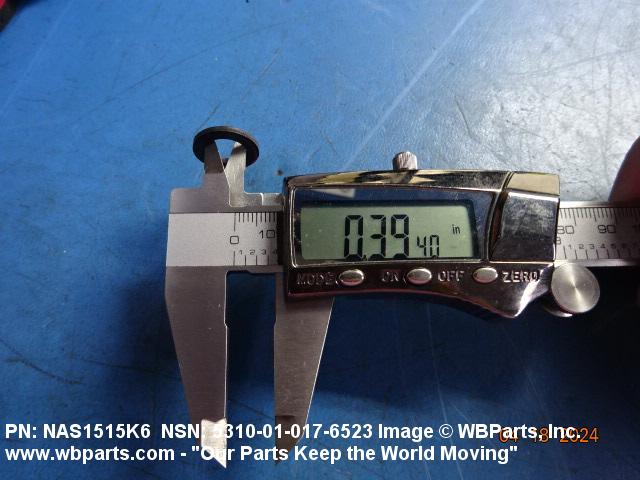

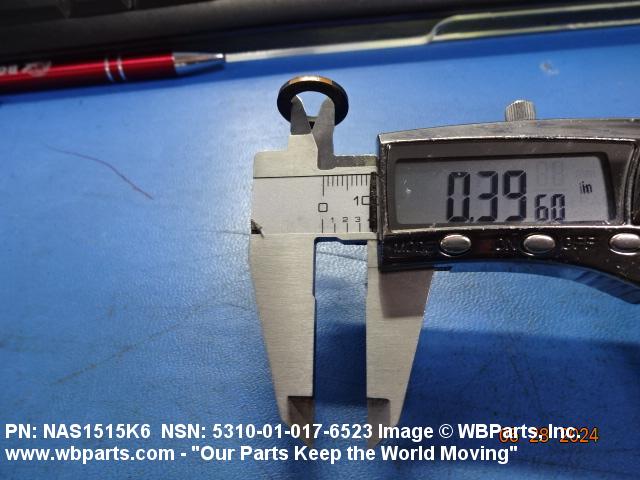

HOLE DIAMETER 0.380 INCHES MINIMUM AND 0.400 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE 1 ROUND

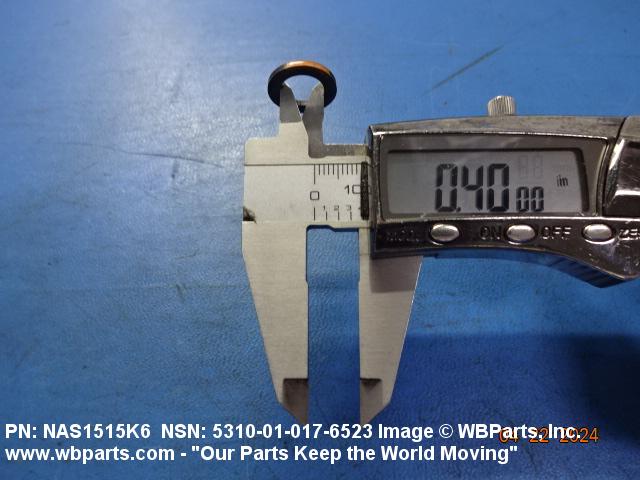

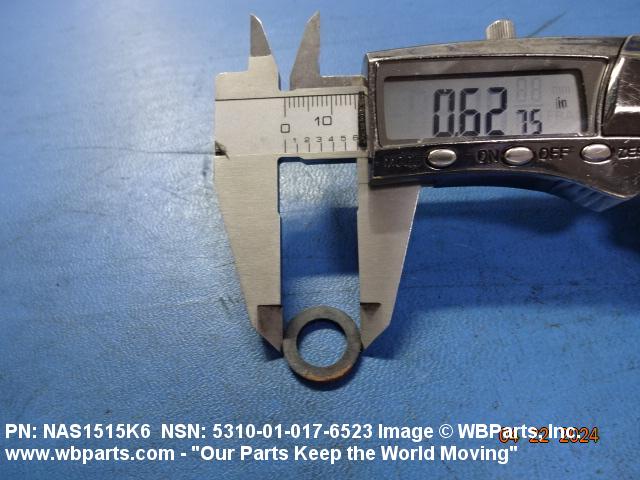

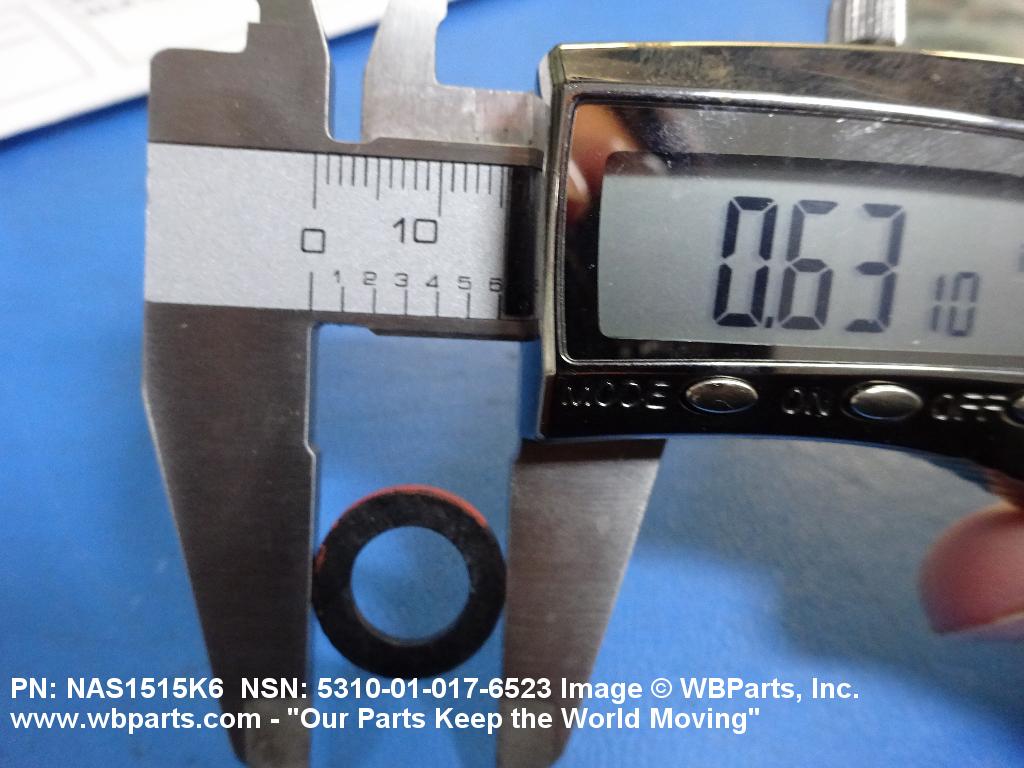

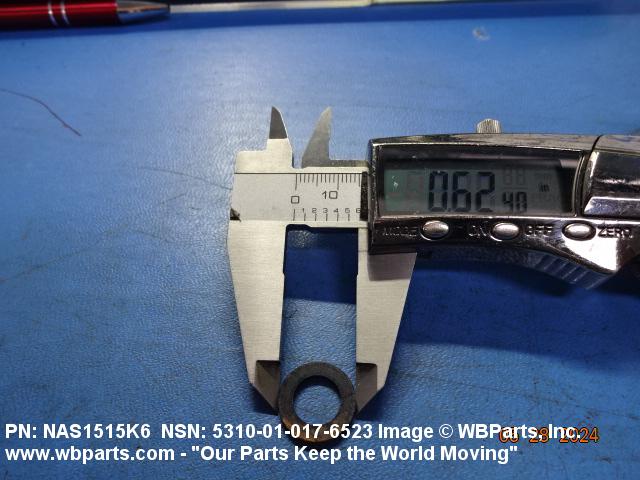

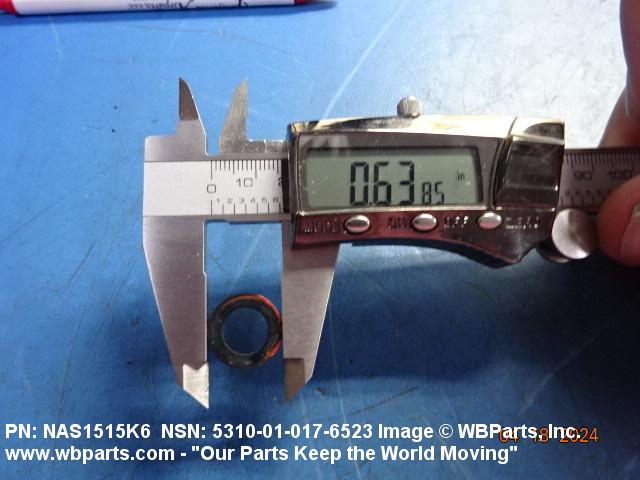

OVERALL DIAMETER 0.620 INCHES MINIMUM AND 0.645 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE 1 ROUND
CROSS-SECTIONAL SHAPE STYLE 1 RECTANGULAR

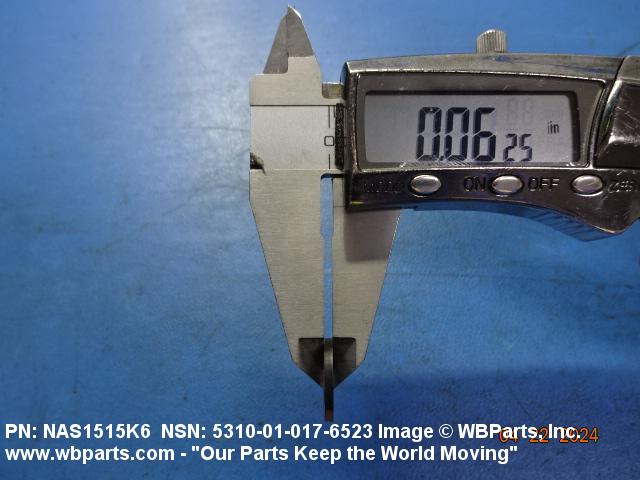

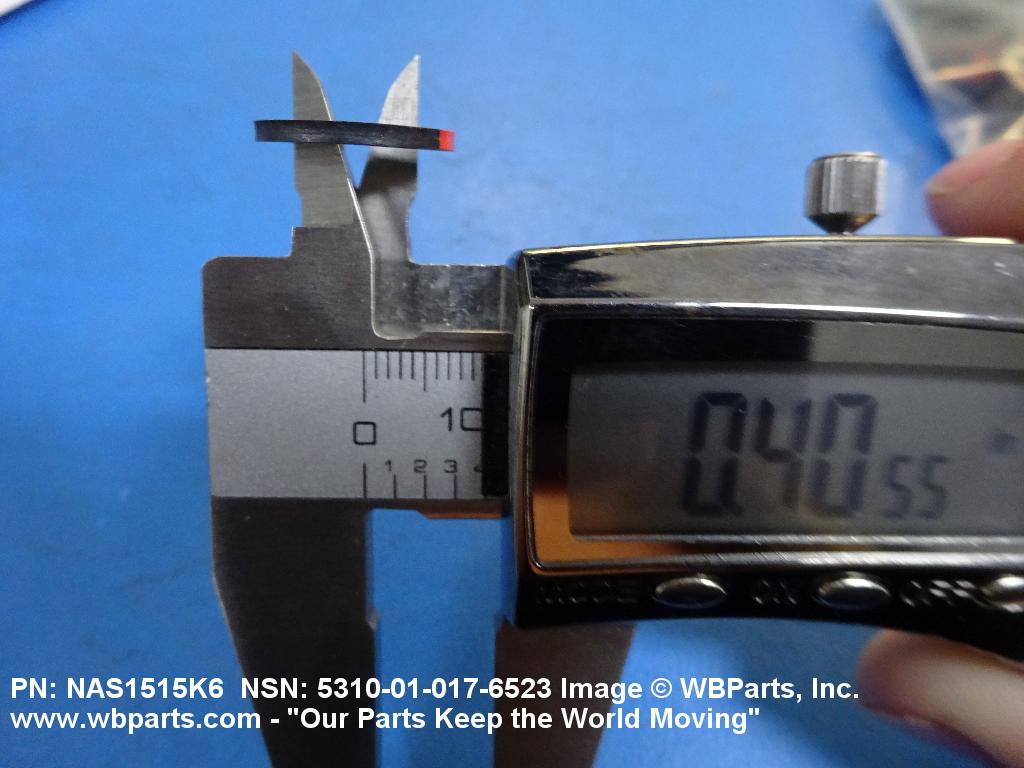

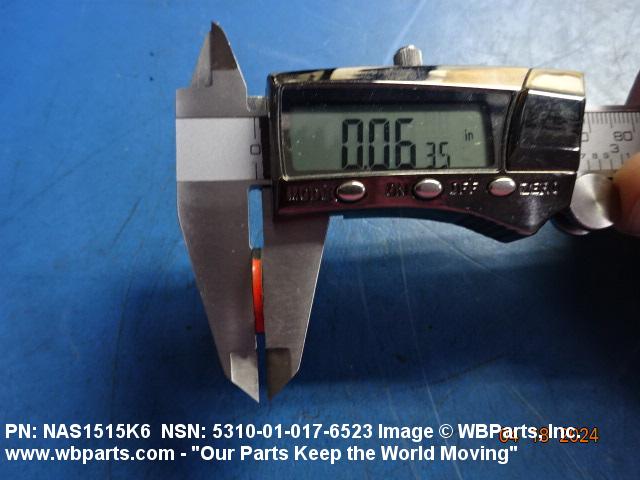

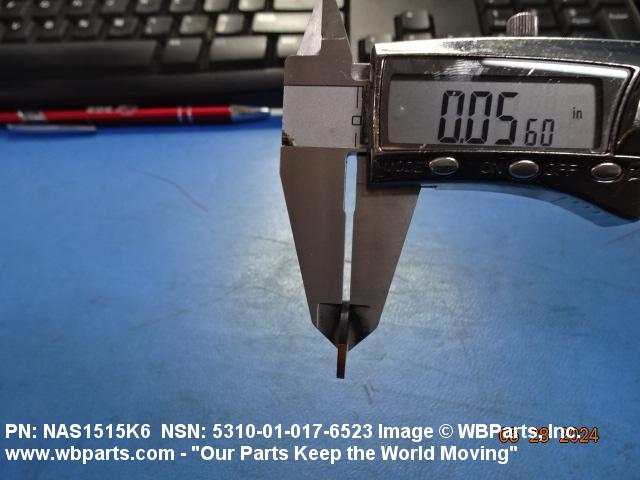

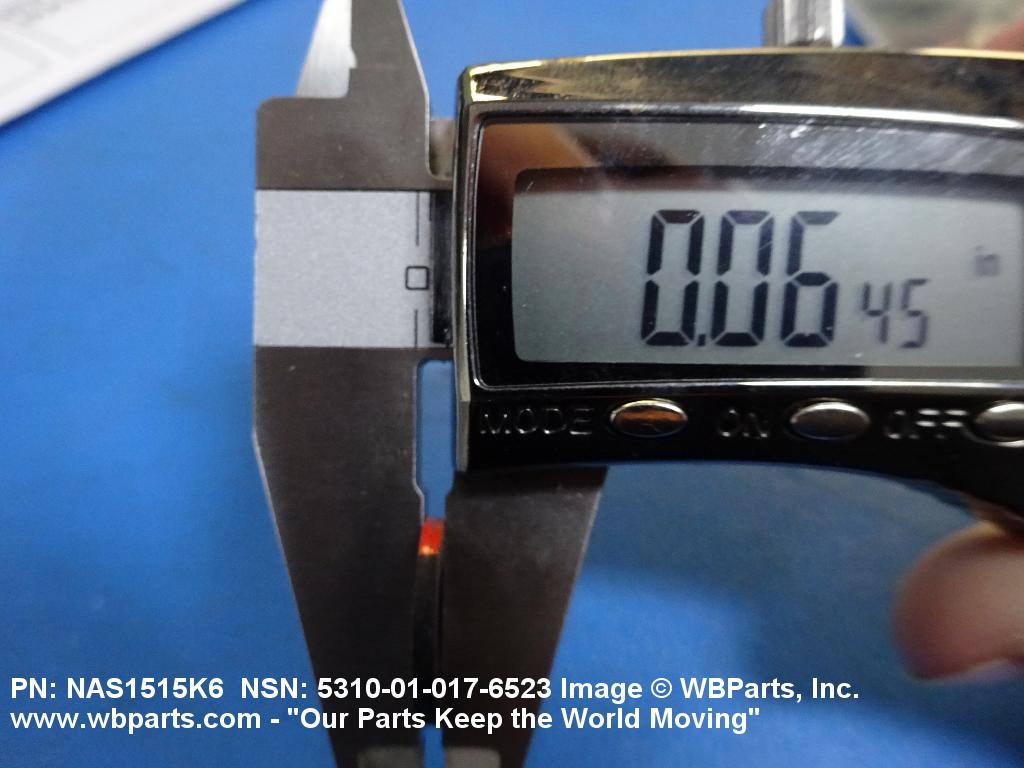

THICKNESS 0.048 INCHES MINIMUM AND 0.078 INCHES MAXIMUM
SPECIAL FEATURES COLOR ORANGE
SPECIFICATION/STANDARD DATA 80205-NAS1515 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
