NSN 5310-01-016-4871 AN 960-616, AN960616, AN960-616

Product Details | FLAT WASHER

5310-01-016-4871 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: AN 960-616, AN960616, AN960-616, NAS1454C040014, NAS1454C04-0014 , 3950185, 395-0185, 6057018, 900-0041-20 , 5310-01-016-4871, 01-016-4871, 5310010164871, 010164871, 900004120

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 FEB 1976	01-016-4871	13393 ( WASHER, FLAT )

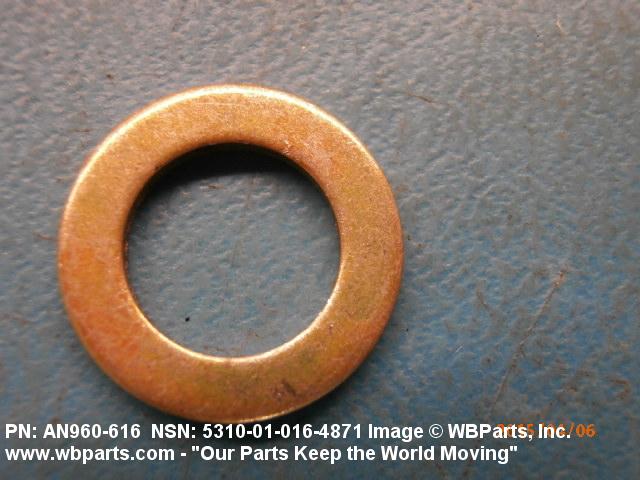

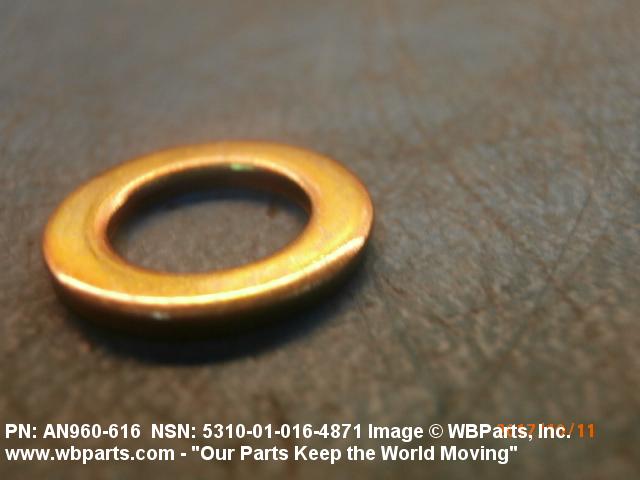

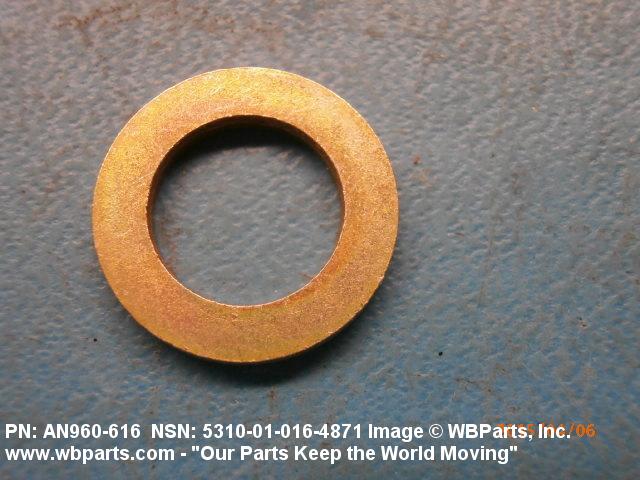

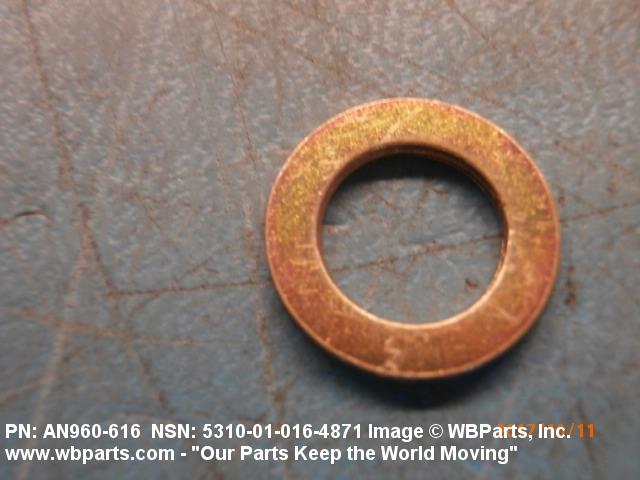

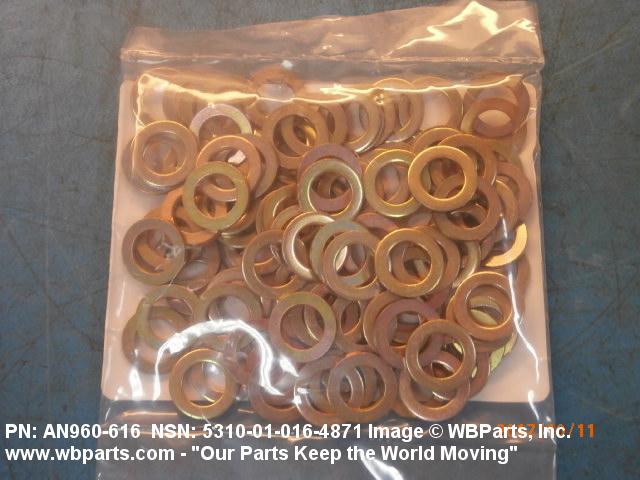

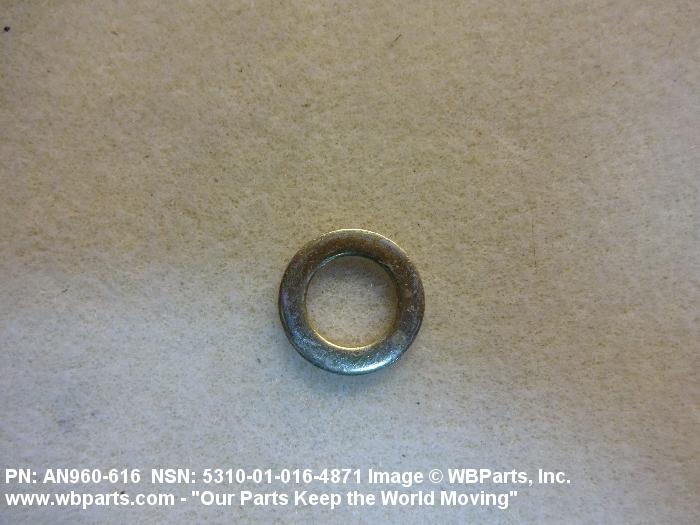

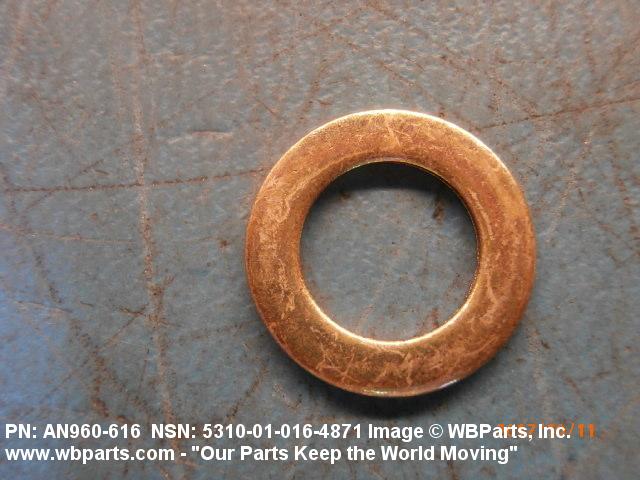

Drawings & Photos | NSN 5310-01-016-4871

Part Number	Request Date	QTY	Origin
5310-01-016-4871	2025-05-140	3050	KR
AN960616	2025-04-101	100	Hong Kong
AN960616	2025-04-101	100	Hong Kong
AN960616	2025-03-79	200	US
AN960616	2024-10-298	9	ZA
AN960616	2024-10-296	295	TW
5310-01-016-4871	2024-10-296	295	TW
AN960616	2024-09-256	100	AU
AN960616	2024-08-234	2	Japan
AN960616	2024-07-195	500	United States
AN960616	2024-03-71	2	US
AN960616	2024-02-36	10	us
AN960616	2024-01-29	2	US
AN960616	2024-01-25	400	United States
AN960616	2023-12-345	20	ZA
AN960616	2023-12-345	20	ZA
AN960616	2023-02-48	1835	US
AN960616	2022-04-102	14	US
AN960616	2021-11-333	108	United States
AN960616	2021-07-195	1	US
AN960616	2020-11-314	1	Mexico
AN960-616	2020-10-291	10	US
AN960616	2020-08-231	20	AT
AN960-616	2020-08-227	28	IN
AN960616	2019-09-248	4050	United States
AN960616	2019-07-207	8	United States
AN960616	2018-06-171	396	United States
AN960616	2018-03-65	20	us
AN960616	2018-02-57	32	United States
AN960616	2017-12-338	4	United States
AN960616	2017-10-297	50	United Arab Emirates
AN960616	2017-08-233	50	US
5310-01-016-4871	2017-08-228	20	Malaysia
5310-01-016-4871	2017-08-228	20	Malaysia
AN960616	2017-03-89	8	Singapore
AN960616	2017-03-88	36	US
AN960616	2017-02-44	2	US
AN960616	2016-10-285	1	United States
AN960616	2016-06-180	20	South Korea
5310-01-016-4871	2016-05-137	2020	MANUAL
AN960-616	2016-05-137	2020	United States
AN960616	2016-05-131	288	US
AN960-616	2016-04-118	100	UY
AN960616	2016-04-102	4	Singapore
AN960616	2016-04-96	25	CA
AN960616	2016-02-41	6	US
AN960616	2016-01-29	20	United States
AN960616	2015-10-302	1	United States
AN960616	2015-09-259	1000	United States
AN960-616	2015-05-138	8	United States
AN960-616	2015-05-138	4	United States
AN960-616	2015-05-138	4	United States
AN960-616	2015-05-138	2	United States
AN960-616	2015-05-138	8	United States
AN960-616	2015-05-138	34	United States
AN960-616	2015-05-138	8	United States
AN960-616	2015-05-138	4	United States
AN960-616	2015-05-138	4	United States
AN960-616	2015-05-138	2	United States
AN960-616	2015-05-138	8	United States
AN960-616	2015-05-138	34	United States
AN960616	2015-03-79	480	United States
AN960616	2015-03-79	20	United States
AN960-616	2015-03-76	100	TH
AN960616	2014-08-227	1	United States
AN960616	2014-08-223	24	US
AN960616	2014-05-125	115	US
AN960-616	2014-03-71	1070	United States
AN960-616	2013-09-253	1	Malaysia
AN960616	2013-08-240	25	US
AN960616	2013-04-120	32	United States
AN960-616	2013-02-38	1540	United States
AN960-616	2013-01-30	154000	United States
5310-01-016-4871	2013-01-18	24	United States
AN960-616	2012-11-310	50
AN960616	2012-03-83	1	US
AN960616	2011-12-362	250	United Kingdom
AN960616	2011-12-355	500	US
AN960616	2011-10-298	1	United States
5310-01-016-4871	2011-09-259	1	US
5310-01-016-4871	2011-03-87	36	US
5310-01-016-4871	2010-12-344	16	US
AN960616	2010-10-277	8	Netherlands
AN960616	2009-08-233	20	US
AN960616	2009-08-233	20	US
AN960616	2009-08-233	20	US
AN960616	2009-07-205	50	US
5310-01-016-4871	2009-07-183	16	Philippines
AN960616	2009-06-166	99	United States
5310-01-016-4871	2009-04-114	21317	DIBBS
5310-01-016-4871	2009-03-85	21000	DIBBS
AN960616	2009-02-33	100	United Kingdom
AN960616	2008-08-231	4	United States
5310-01-016-4871	2008-07-213	2	Turkey
AN960616	2008-03-88	50	United States
5310-01-016-4871	2007-07-211	6	US
5310-01-016-4871	2006-10-293	20	us
AN960616	2006-04-120	100	Australia

Cross Reference | NSN 5310-01-016-4871

Part Number	Cage Code	Manufacturer
395-0185	25500	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
6057018	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN 960-616	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN960-616	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-016-4871

Compare

Related Products | NSN 5310-01-016-4871

5310-01-016-4872, 5310-01-016-4873, 5310-01-016-4874, 5310-01-016-4875, 5310-01-016-5059

Technical Data | NSN 5310-01-016-4871

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7952 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-S-698,COND CR,TEMPER 1 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-698,COND CR,TEMPER 2 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

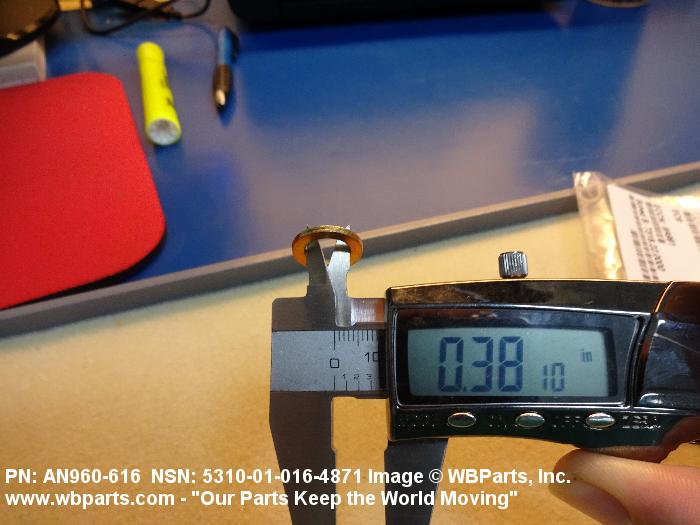

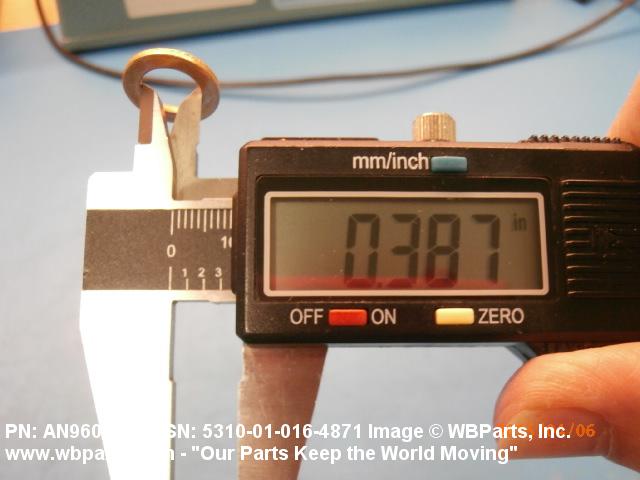

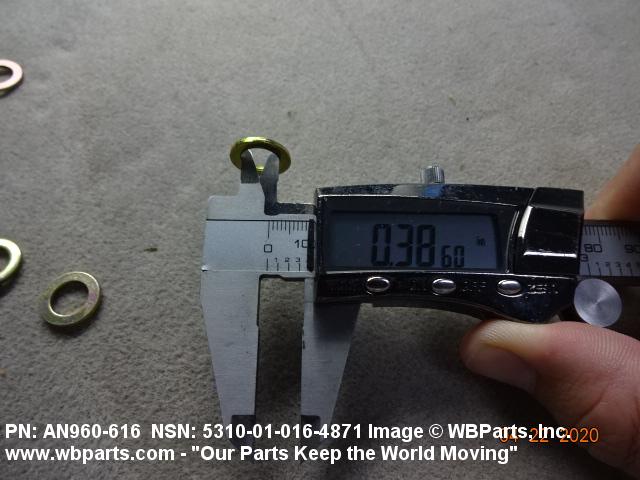

HOLE DIAMETER	0.380 INCHES MINIMUM AND 0.400 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

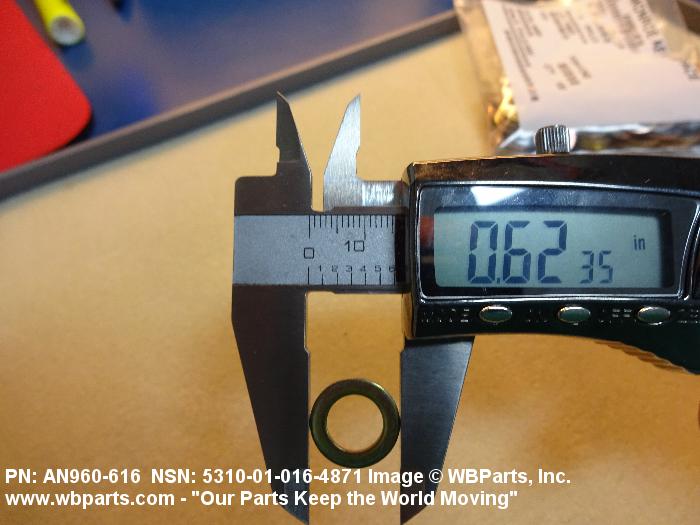

OVERALL DIAMETER	0.620 INCHES MINIMUM AND 0.645 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

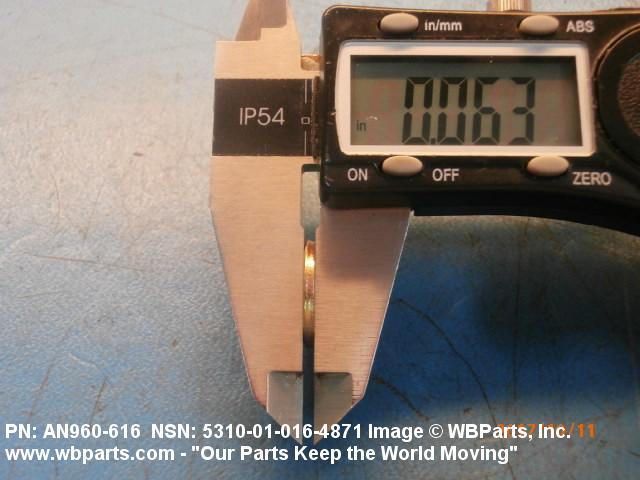

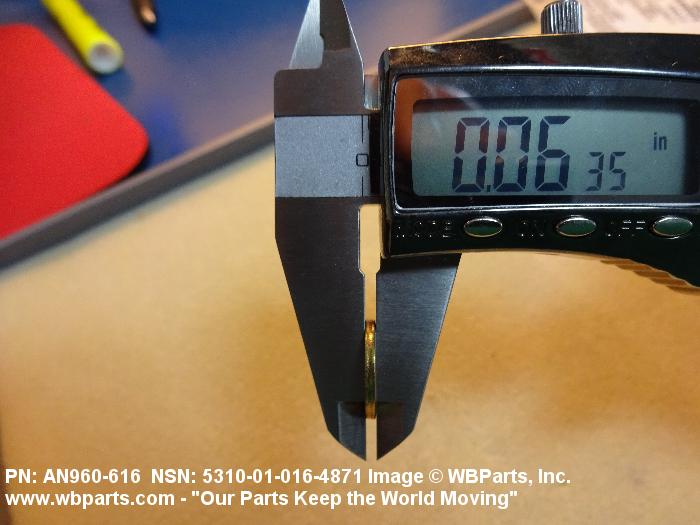

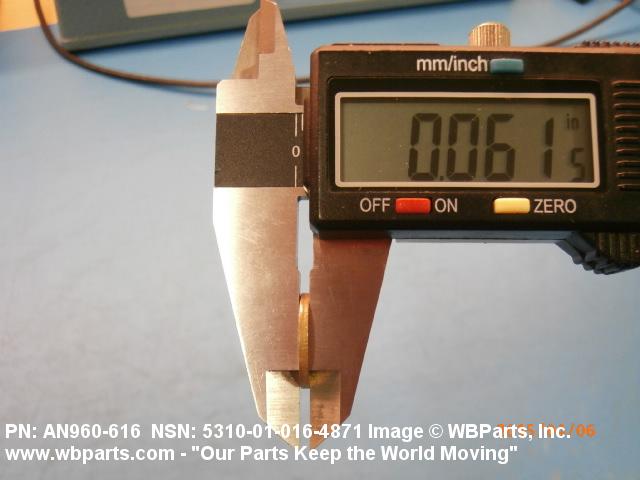

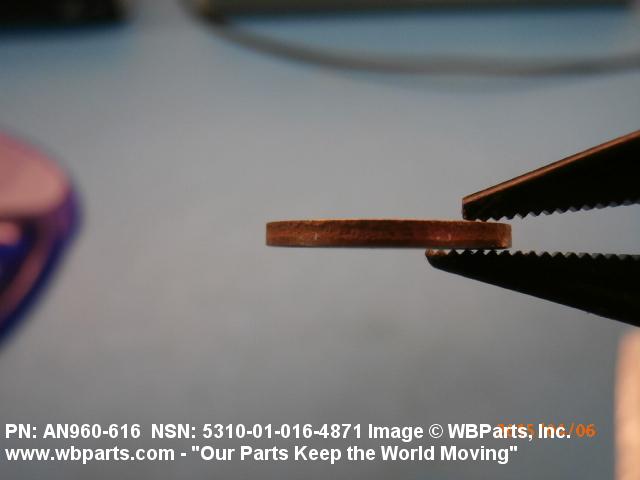

THICKNESS	0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM
TEST DATA DOCUMENT	81349-MIL-P-23199 SPECIFICATION
MANUFACTURERS CODE	88044
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN960-616

Restrictions/Controls & Freight Information | NSN 5310-01-016-4871

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-016-4871

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
