NSN 5310-00-984-6757 MS927609, MS9276-09, 00-984-6757

Product Details | KEY WASHER

5310-00-984-6757 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.

Part Alternates: MS927609, MS9276-09, 5310-00-984-6757, 00-984-6757, 5310009846757, 009846757

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 OCT 1966	00-984-6757	01869 ( WASHER, KEY )

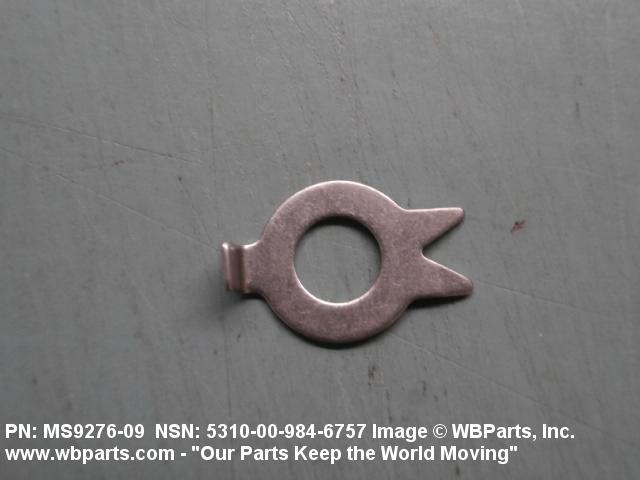

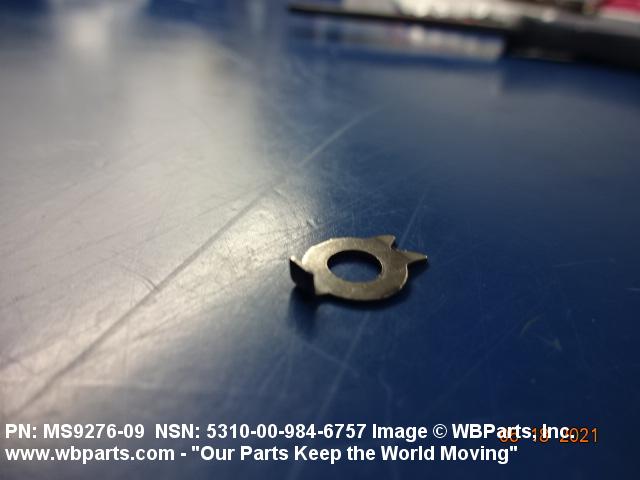

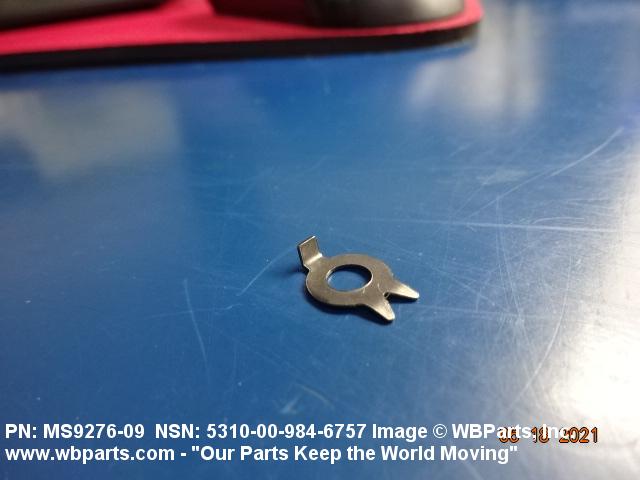

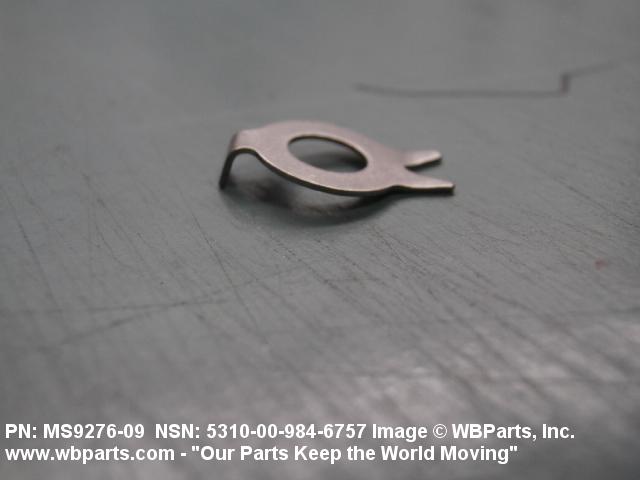

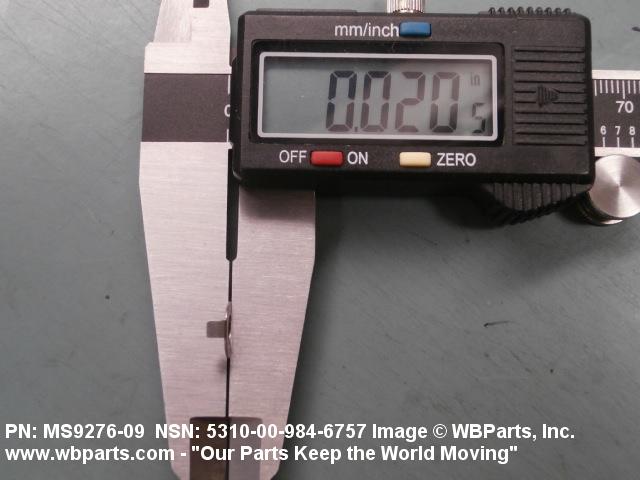

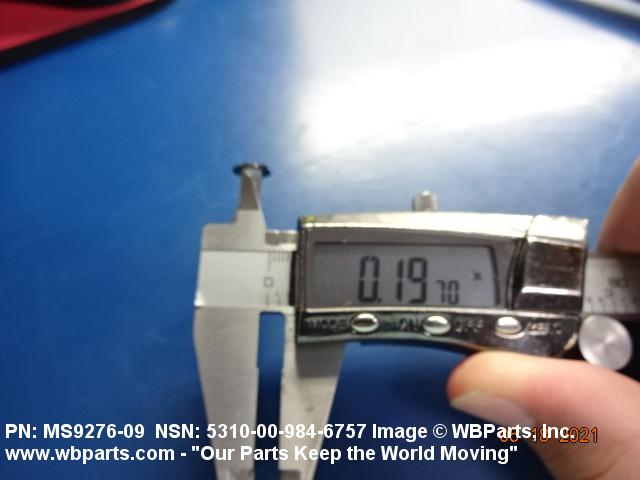

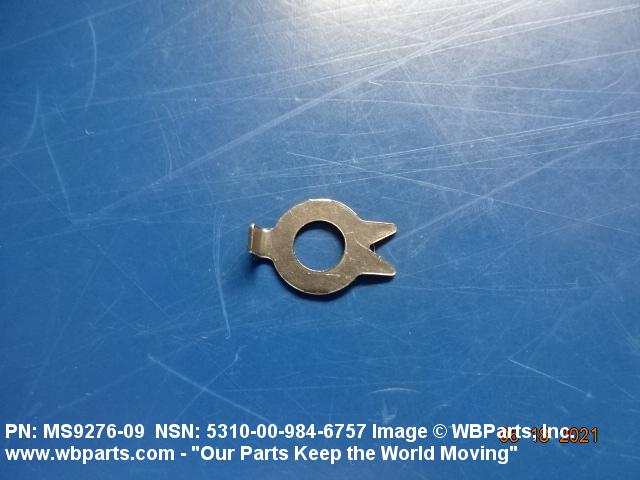

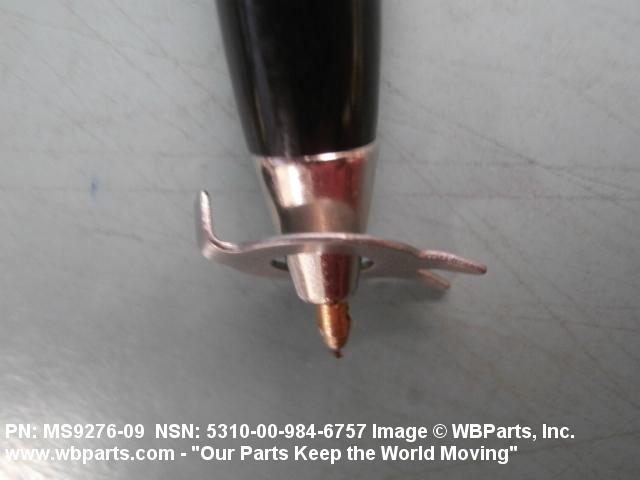

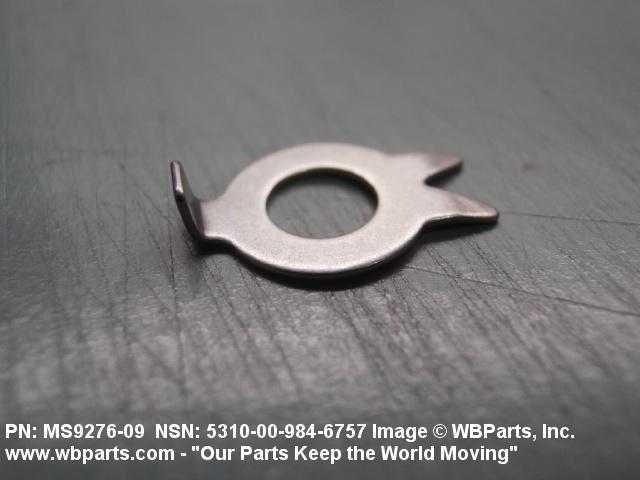

Drawings & Photos | NSN 5310-00-984-6757

Part Number	Request Date	QTY	Origin
MS927609	2025-05-132	20	United States
5310-00-984-6757	2023-06-166	48	TH
5310-00-984-6757	2020-01-16	48	us
MS927609	2020-01-14	48	us
5310-00-984-6757	2019-08-216	272	DIBBS
5310-00-984-6757	2019-07-188	124	DIBBS
MS927609	2019-01-04	2	US
5310-00-984-6757	2018-12-346	268	DIBBS
5310-00-984-6757	2018-12-338	268	DIBBS
MS927609	2017-02-37	100	Egypt
MS927609	2016-03-63	20	AE
MS9276-09	2015-03-76	32	TH
MS927609	2014-09-273	150	United States
MS927609	2014-06-160	12	United States
MS927609	2014-01-28	60	Ecuador
5310-00-984-6757	2013-05-140	154	DIBBS
5310-00-984-6757	2013-05-128	158	DIBBS
5310-00-984-6757	2013-03-68	0	DIBBS
MS9276-09	2012-04-100	2	BH
5310-00-984-6757	2011-08-241	300	UK
5310-00-984-6757	2011-08-213	134	DIBBS
5310-00-984-6757	2011-04-96	3360	TW
5310-00-984-6757	2009-12-351	100	US
5310-00-984-6757	2009-09-266	4	Australia
MS927609	2009-06-170	200	Hong Kong
MS927609	2009-03-70	20	United States
5310-00-984-6757	2009-02-58	194	DIBBS
5310-00-984-6757	2008-10-289	128	DIBBS

Cross Reference | NSN 5310-00-984-6757

Part Number	Cage Code	Manufacturer
MS9276-09	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS9276-09	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-984-6757

Compare

Related Products | NSN 5310-00-984-6757

5310-00-984-6838, 5310-00-984-6844, 5310-00-984-6851, 5310-00-984-6867, 5310-00-984-6896

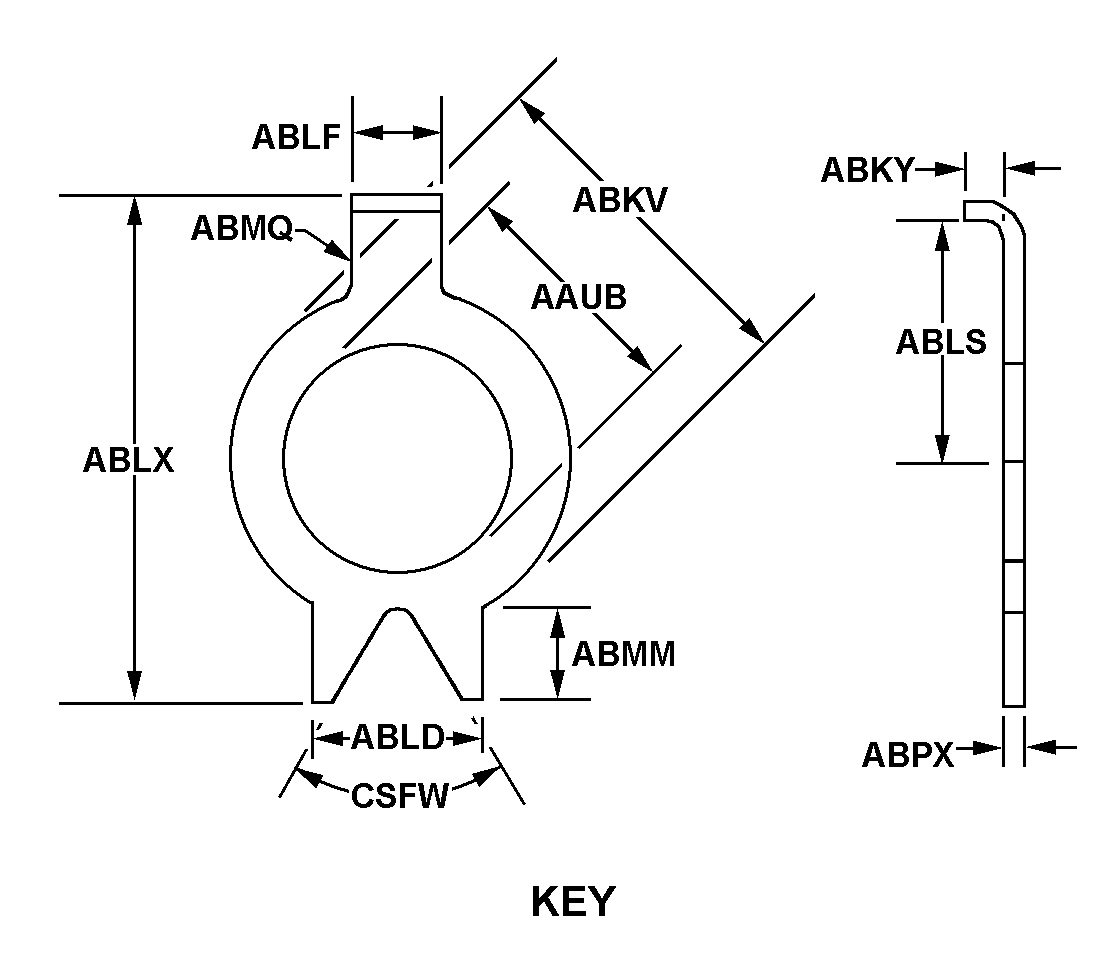

Technical Data | NSN 5310-00-984-6757

Characteristic	Specifications
MATERIAL	STEEL COMP 321 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5576 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	165 KEY
EXTERNAL KEY QUANTITY	3
HOLE DIAMETER	0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM

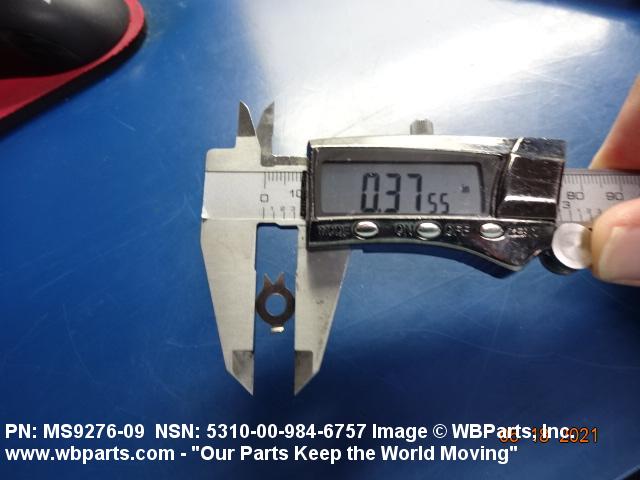

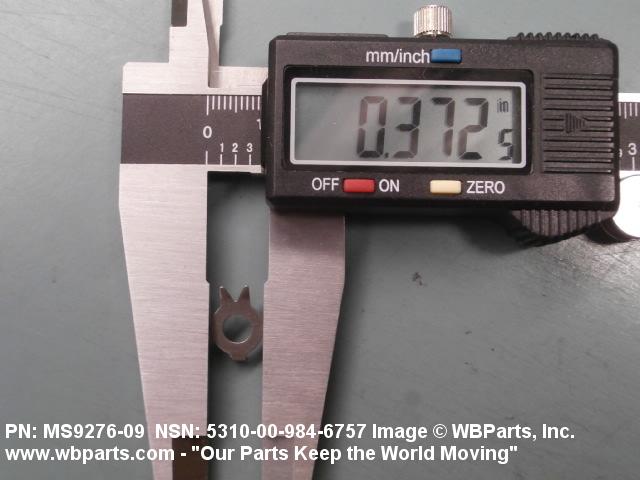

OUTSIDE DIAMETER	0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM
EXTERNAL PREBENT KEY LENGTH	0.095 INCHES MINIMUM AND 0.105 INCHES MAXIMUM
EXTERNAL TAPERED KEY WIDTH	0.200 INCHES MINIMUM AND 0.210 INCHES MAXIMUM

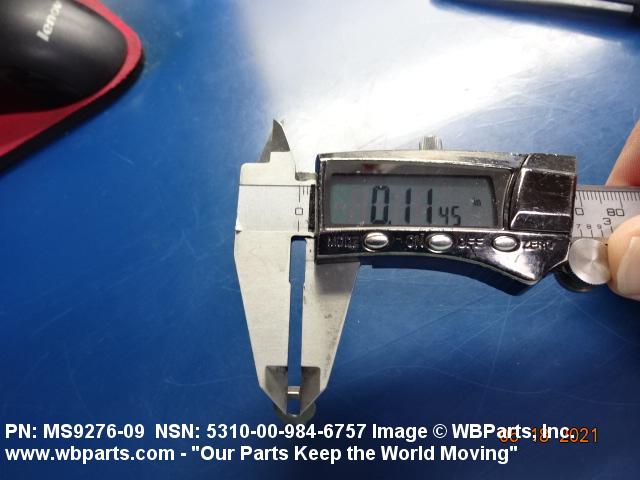

EXTERNAL PREBENT KEY WIDTH	0.110 INCHES MINIMUM AND 0.115 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY	0.221 INCHES MINIMUM AND 0.231 INCHES MAXIMUM
OVERALL DISTANCE INCLUDING KEYS	0.530 INCHES MINIMUM AND 0.561 INCHES MAXIMUM
SPLIT KEY LENGTH	0.105 INCHES NOMINAL
MATERIAL THICKNESS	0.019 INCHES MINIMUM AND 0.025 INCHES MAXIMUM
ANGLE BETWEEN EXTERNAL KEYS	58.0 DEGREES MINIMUM AND 62.0 DEGREES MAXIMUM
SPECIAL FEATURES	BOTH ANGULAR KEYS BENT 15 DEG IN OPPOSITE DIRECTION OF PRE-BENT KEY
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS9276-09

Restrictions/Controls & Freight Information | NSN 5310-00-984-6757

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-984-6757

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
