NSN 5310-00-982-6816 MS178305F, MS17830-5F, MS21044C5

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-982-6816 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS178305F, MS17830-5F, MS21044C5, M24129/3-5F, M2412935F, 002003645006, 002-003645-006, 12874259, 1287425-9, 79NE054, 79NE-054, 5310-00-982-6816, 00-982-6816, 5310009826816 , 009826816

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-982-6816	05277 ( NUT, SELF-LOCKING, HEXAGON )

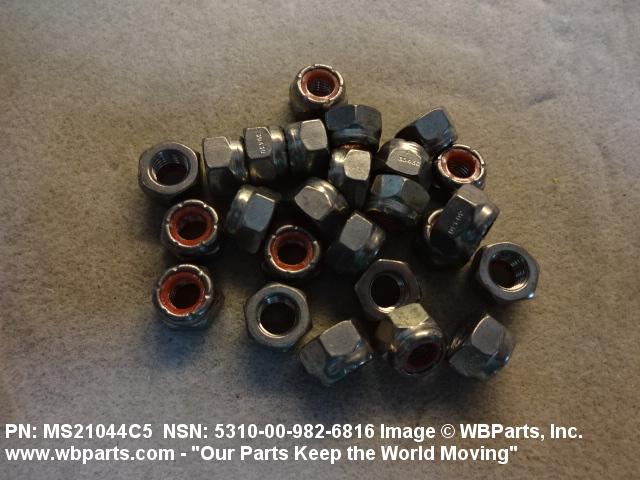

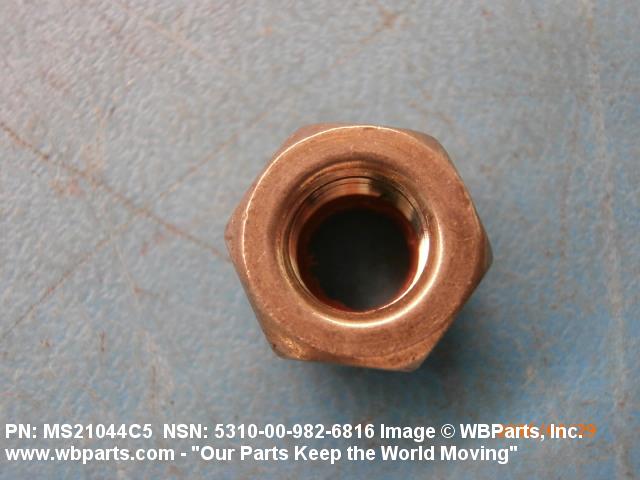

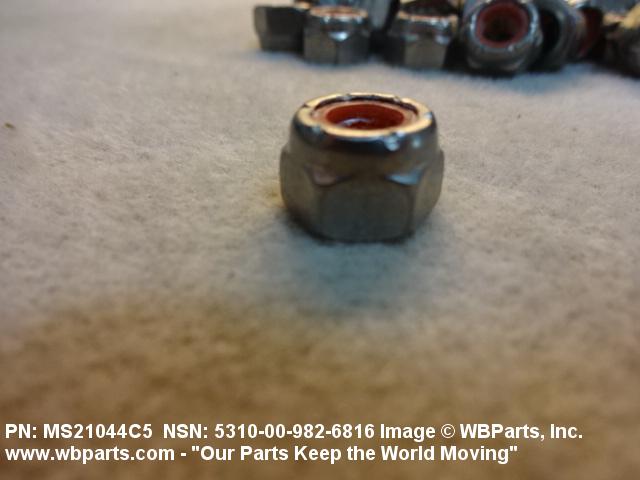

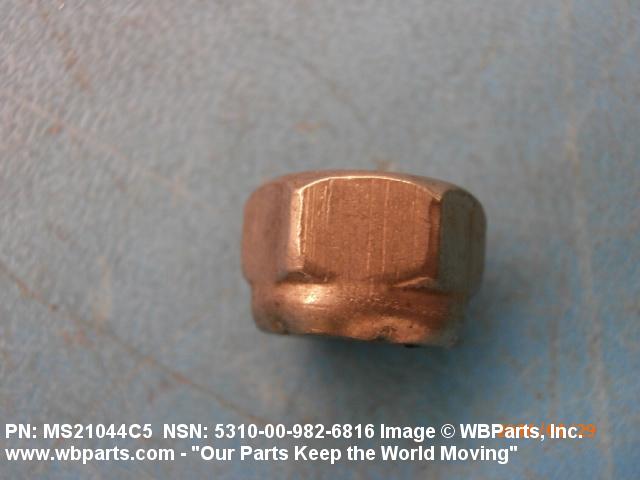

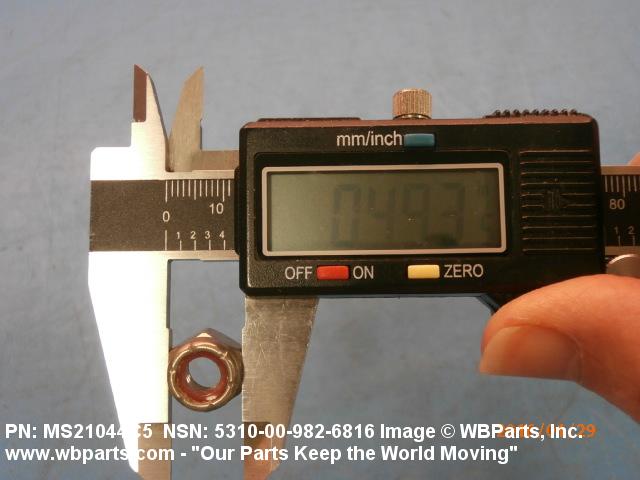

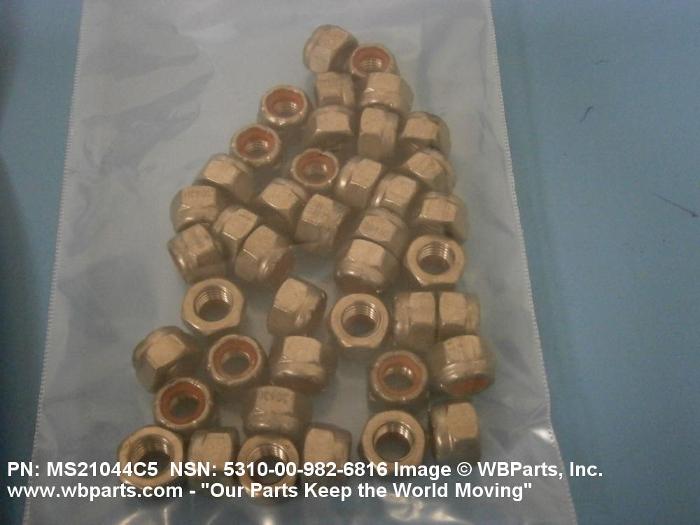

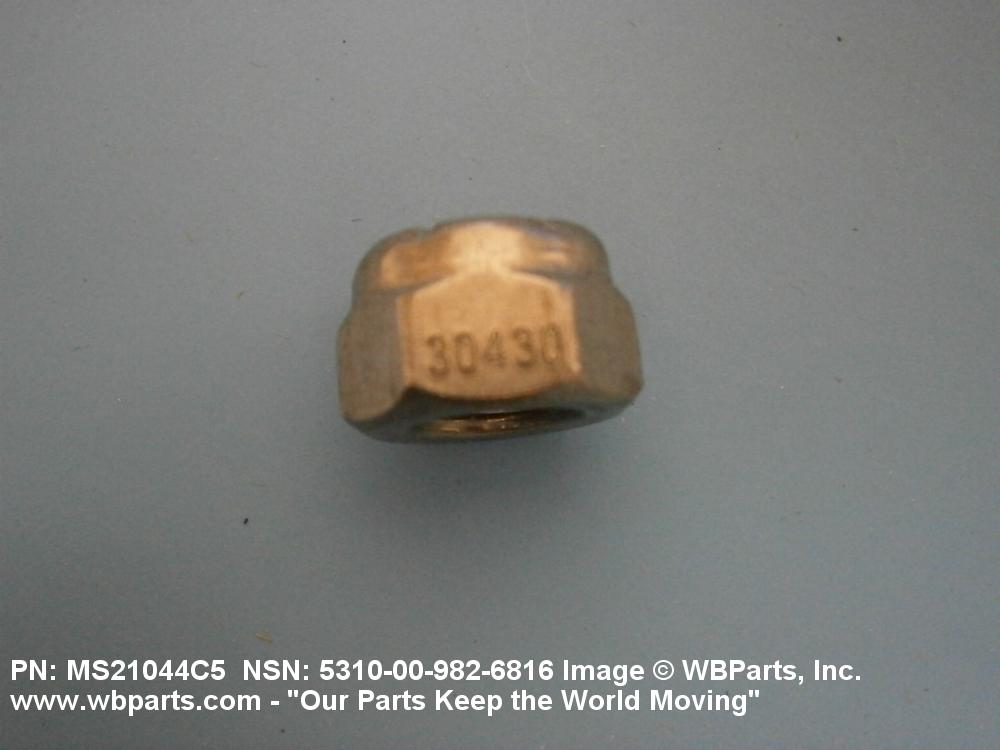

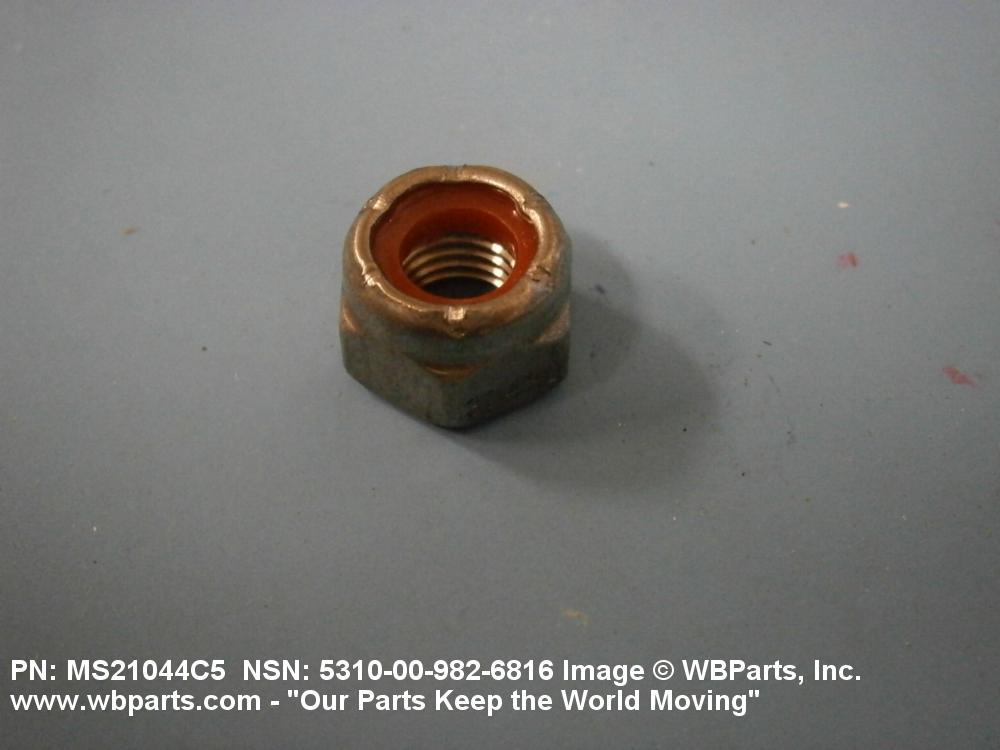

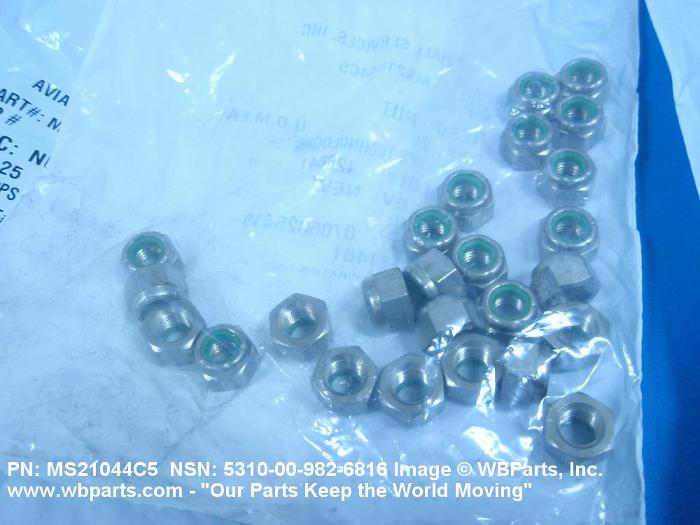

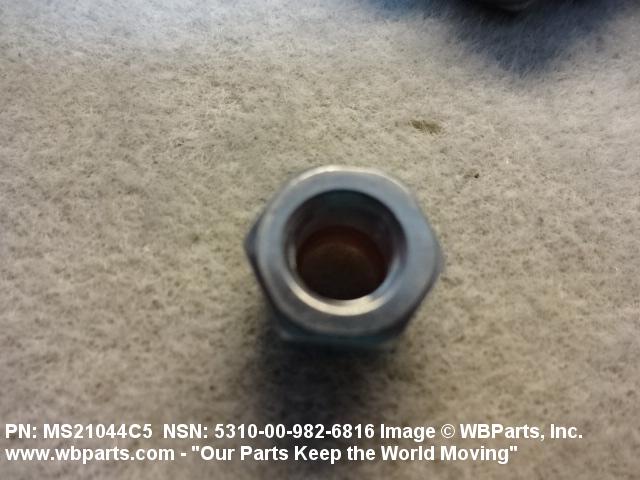

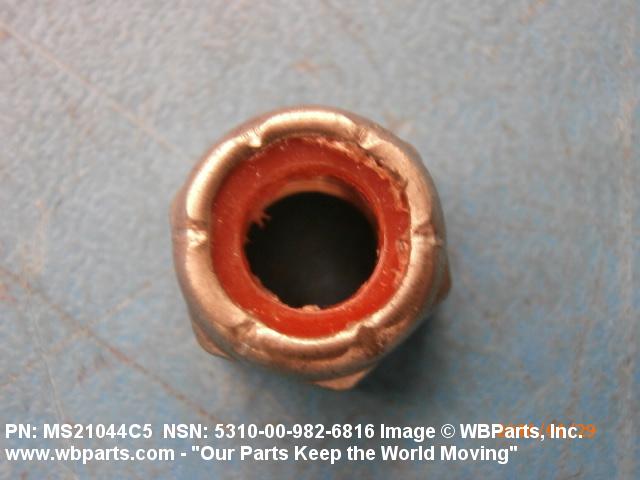

Drawings & Photos | NSN 5310-00-982-6816

Part Number	Request Date	QTY	Origin
MS21044C5	2024-10-291	12	SK
M2412935F	2024-06-170	29	United Kingdom
MS21044C5	2023-10-292	4	United Arab Emirates
MS21044C5	2022-12-355	16	United States
5310-00-982-6816	2022-09-270	17189	DIBBS
MS21044C5	2022-09-244	100	Croatia
5310-00-982-6816	2022-08-224	2	United States
5310-00-982-6816	2022-07-210	4	United States
5310-00-982-6816	2022-05-143	20	US
5310-00-982-6816	2021-06-152	400	US
MS21044C5	2021-01-06	4	Canada
MS21044C5	2020-11-329	4	US
MS178305F	2020-08-220	2	United States
5310-00-982-6816	2019-09-270	4	US
5310-00-982-6816	2019-02-53	4	US
MS21044C5	2019-01-30	8	United States
5310-00-982-6816	2018-09-247	4	United States
5310-00-982-6816	2017-10-290	1	DIBBS-KIT
MS21044C5	2017-10-290	1
5310-00-982-6816	2016-08-237	12654	DIBBS
5310-00-982-6816	2016-03-90	10800	DIBBS
MS21044C5	2016-01-21	25	United States
5310-00-982-6816	2015-12-342	25	United States
MS21044C5	2015-10-296	100	United States
MS178305F	2015-10-280	10	United States
5310-00-982-6816	2015-09-250	12356	DIBBS
5310-00-982-6816	2014-10-280	13079	DIBBS
5310-00-982-6816	2014-08-233	500	US
5310-00-982-6816	2013-07-189	30437	DIBBS
MS178305F	2012-08-227	210	US
MS21044C5	2012-07-191	336	Canada
MS21044C5	2011-10-279	42	United Kingdom
5310-00-982-6816	2011-09-256	200	United States
MS21044C5	2011-09-252	0	United Kingdom
MS21044C5	2011-08-243	4	US
5310-00-982-6816	2011-08-221	250	US
MS21044C5	2011-07-210	14	US
MS21044C5	2011-07-206	14	US
5310-00-982-6816	2011-06-178	250	United States
MS21044C5	2010-12-356	1	Italy
MS21044C5	2010-11-326	8	United States
MS21044C5	2010-11-326	100	United States
5310-00-982-6816	2010-05-145	28010	DIBBS
5310-00-982-6816	2009-12-338	29	Italy
MS21044C5	2009-10-274	250	Taiwan
MS21044C5	2009-06-169	4	US
5310-00-982-6816	2008-12-346	4	Canada
5310-00-982-6816	2008-10-301	64	us
5310-00-982-6816	2008-10-291	10	Seychelles
MS21044C5	2008-08-234	100	Seychelles
5310-00-982-6816	2007-02-59	10	US
MS21044C5	2006-11-332	80	us

Cross Reference | NSN 5310-00-982-6816

Part Number	Cage Code	Manufacturer
002-003645-006	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
1287425-9	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
5310009826816	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
79NE-054	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M24129/3-5F	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS17830-5F	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21044C5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21044C5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21044C5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-982-6816

Compare

Related Products | NSN 5310-00-982-6816

5310-00-982-6817, 5310-00-982-6825, 5310-00-982-6826, 5310-00-982-6827, 5310-00-982-6828

Technical Data | NSN 5310-00-982-6816

Characteristic	Specifications

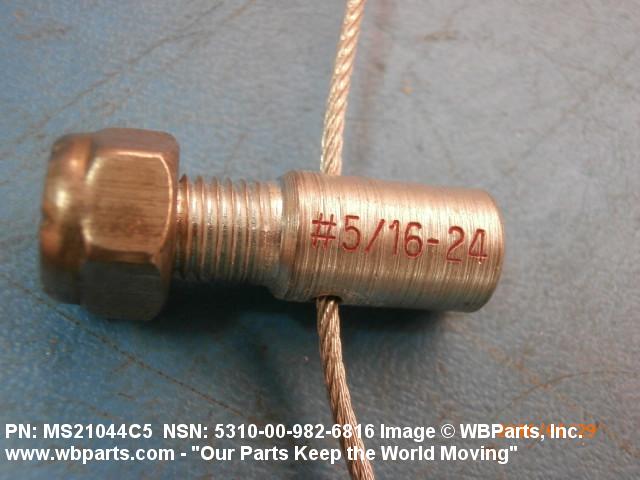

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 NUT
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5688 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5640 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5647 ASSN STD 3RD MATERIAL RESPONSE NUT
SURFACE TREATMENT	PASSIVATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

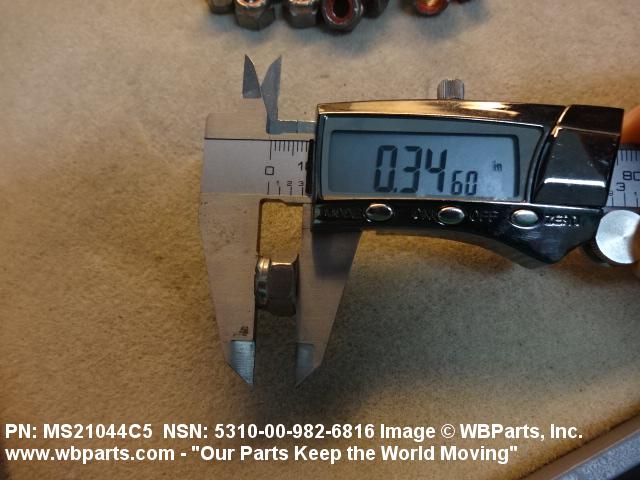

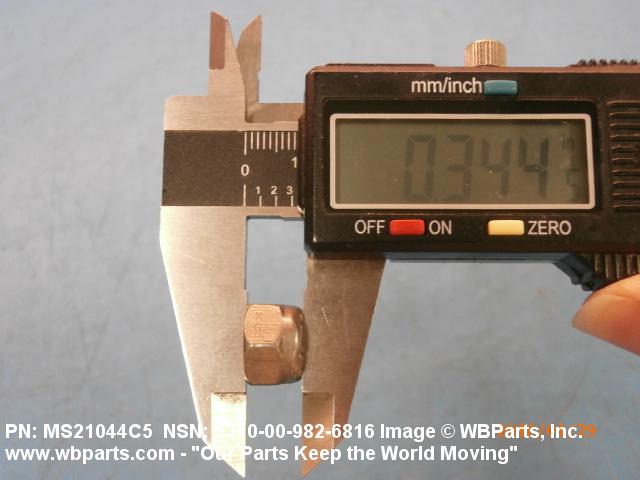

NUT HEIGHT	0.271 INCHES MINIMUM AND 0.360 INCHES MAXIMUM

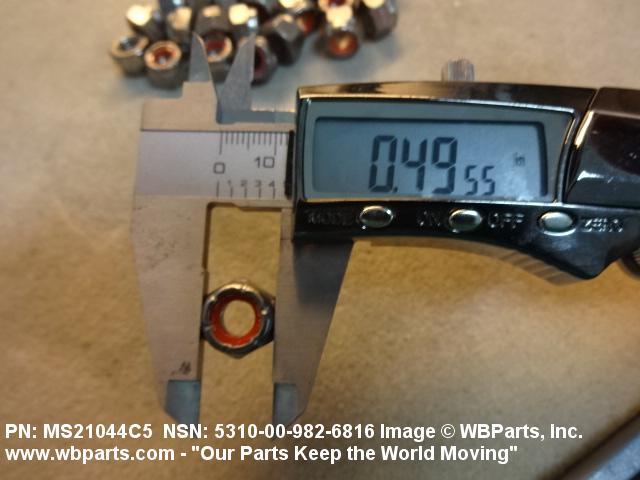

WIDTH ACROSS FLATS	0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED

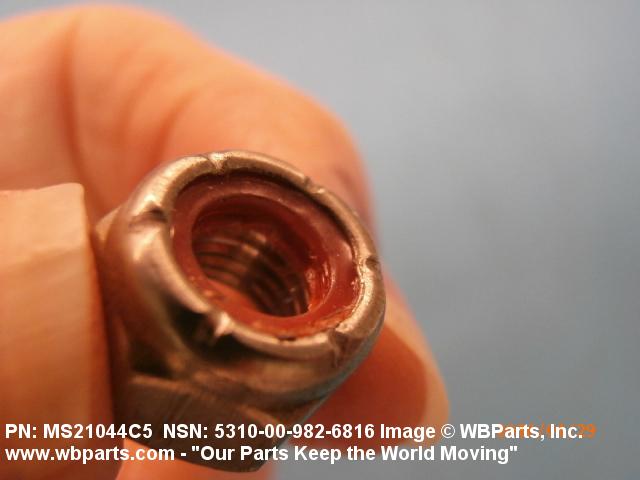

LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-982-6816

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-982-6816

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
