NSN 5310-00-982-5003 MS21045C04, MS21045C06, SM181362
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-982-5003 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS21045C04, MS21045C06, SM181362, SM1813-62, H5706, H57-06, 58FH632, 1506M44P04, 5310-00-982-5003, 00-982-5003, 5310009825003, 009825003
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-982-5003 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

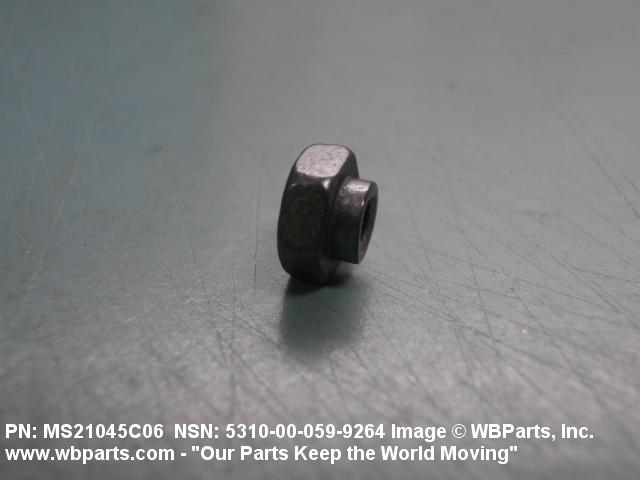

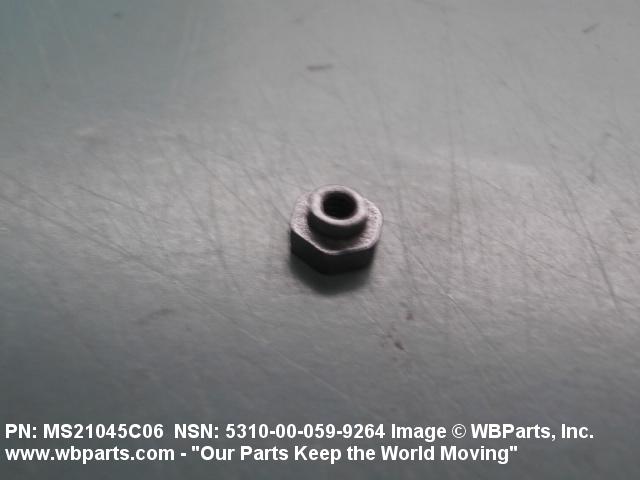

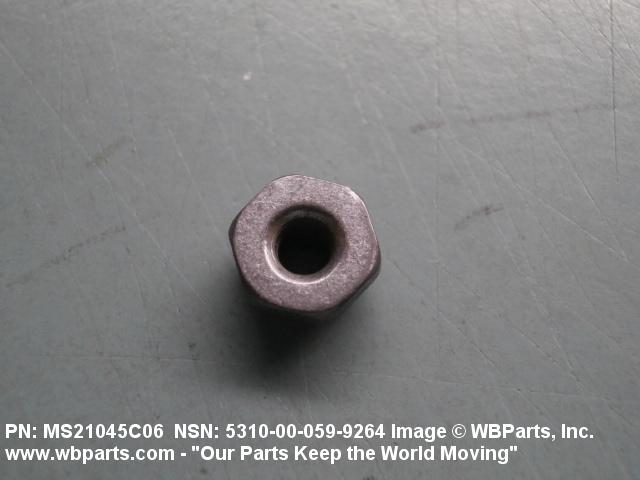

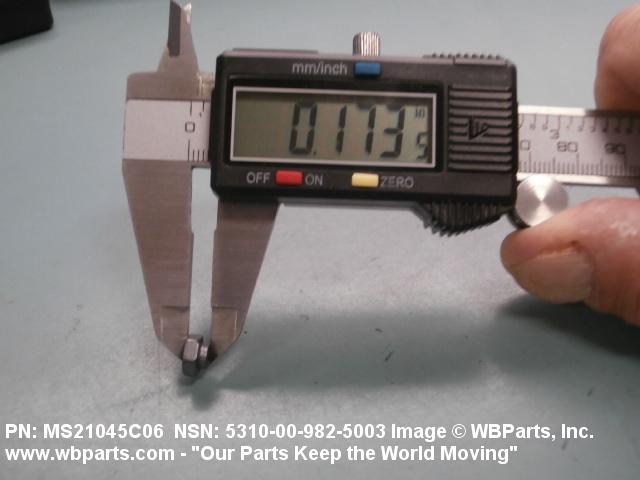

Drawings & Photos | NSN 5310-00-982-5003
Demand History | NSN 5310-00-982-5003
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21045C04 | 2024-07-207 | 100 | United States |
| MS21045C04 | 2023-05-122 | 50 | US |
| MS21045C04 | 2022-04-95 | 2 | |
| 5310-00-982-5003 | 2021-02-32 | 50 | United States |
| 5310-00-982-5003 | 2016-03-90 | 540 | DIBBS |
| 5310-00-982-5003 | 2016-01-13 | 50 | IT |
| 5310-00-982-5003 | 2015-07-182 | 8431 | DIBBS |
| 5310-00-982-5003 | 2015-03-64 | 6931 | DIBBS |
| MS21045C04 | 2014-05-129 | 1 | US |
| MS21045C04 | 2014-05-129 | 1 | US |
| MS21045C06 | 2013-10-289 | 14 | China |
| MS21045C06 | 2012-01-02 | 155 | IN |
Cross Reference | NSN 5310-00-982-5003
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1506M44P04 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 58FH632 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| H57-06 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H57-06 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| H57-06 | R1120 | SATAIR A/S |
| MS21045C04 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21045C06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21045C06 | 8K112 | FREUNDLICH SUPPLY COMPANY, INC. |
| MS21045C06 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SM1813-62 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| SM1813-62 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-982-5003
Related Products | NSN 5310-00-982-5003
Technical Data | NSN 5310-00-982-5003
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.160 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |

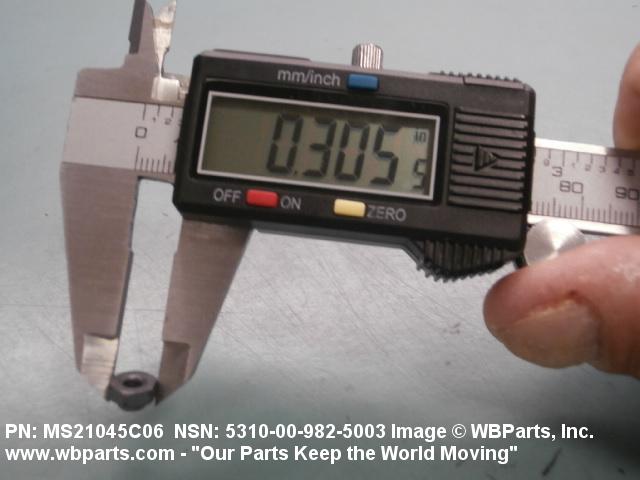

| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | 88.0 DEGREES NOMINAL NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21045C06 |
Restrictions/Controls & Freight Information | NSN 5310-00-982-5003
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-982-5003
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
