NSN 5310-00-982-4912 MS20365524C, MS20365-524C, MS210455

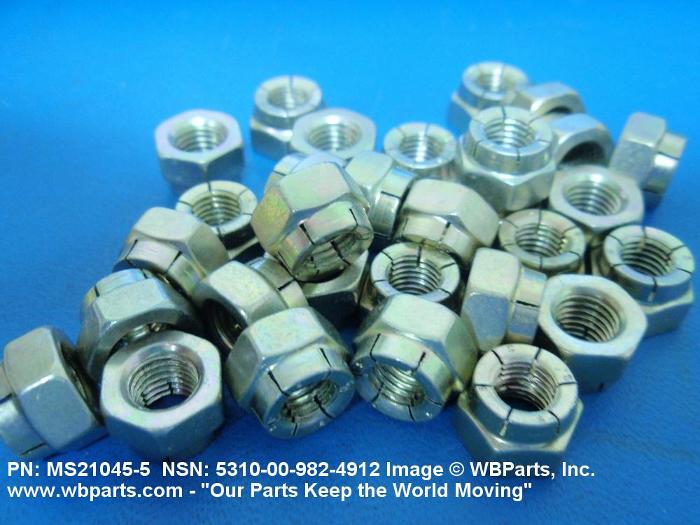

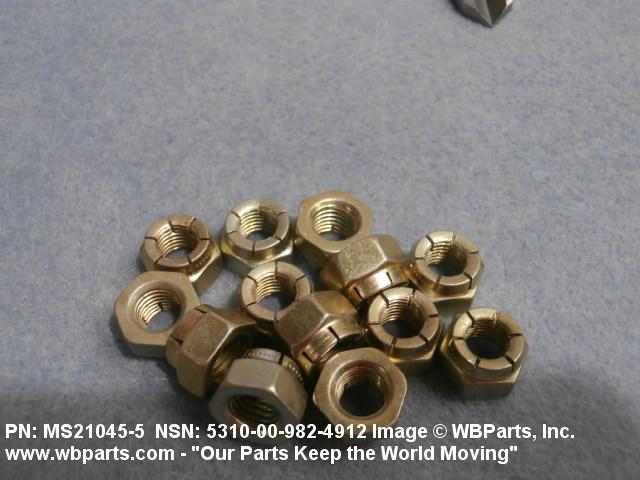

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-982-4912 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS20365524C, MS20365-524C, MS210455, MS21045-5, AN363524, AN363-524, AN365524C, AN365-524C, H555CW, H55-5CW, ERN215, F1801054, F1801-054, YE3181, 27FH524, 27FH-524, 442826, 55746, 85384800, 853848-00, 903386C1, 5310-00-982-4912, 00-982-4912, 5310009824912, 009824912

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-982-4912	05277 ( NUT, SELF-LOCKING, HEXAGON )

Drawings & Photos | NSN 5310-00-982-4912

Part Number	Request Date	QTY	Origin
MS210455	2024-04-115	320	US
AN365524C	2023-05-122	8	South Korea
5310-00-982-4912	2022-07-210	4	United States
5310-00-982-4912	2020-12-356	100	Taiwan
MS21045-5	2020-10-291	16	US
5310-00-982-4912	2020-09-261	5	US
5310-00-982-4912	2019-12-354	20	US
5310-00-982-4912	2017-11-311	612	DIBBS
AN363524	2017-11-307	6	US
MS210455	2017-11-307	6	US
5310-00-982-4912	2017-09-263	5303	DIBBS
5310-00-982-4912	2017-06-163	5303	DIBBS
5310-00-982-4912	2017-04-120	1125	DIBBS
MS210455	2016-10-302	100	United States
AN365524C	2016-10-302	24	South Korea
5310-00-982-4912	2016-06-181	140	DIBBS
5310-00-982-4912	2016-04-118	928	DIBBS
5310-00-982-4912	2016-04-101	852	DIBBS
AN365-524C	2015-05-138	4	United States
AN365-524C	2015-05-138	3	United States
AN365-524C	2015-05-138	4	United States
AN365-524C	2015-05-138	4	United States
AN365-524C	2015-05-138	3	United States
AN365-524C	2015-05-138	4	United States
MS21045-5	2014-11-308	5000	United States
MS210455	2014-09-245	40	Ukraine
5310-00-982-4912	2014-06-168	880	DIBBS
5310-00-982-4912	2014-05-132	1271	DIBBS
5310-00-982-4912	2014-04-93	1271	DIBBS
5310-00-982-4912	2013-11-315	633	DIBBS
5310-00-982-4912	2013-03-65	4	US
MS210455	2013-01-21	120	United States
MS210455	2011-12-364	8	IN
MS210455	2011-04-117	30	United States
5310-00-982-4912	2011-04-97	200	us
MS20365-524C	2011-03-84	200
MS210455	2011-03-77	40	BR
MS20365524C	2010-10-295	25	CA
MS20365524C	2010-10-287	20	AW
MS20365524C	2010-10-287	20	AW
5310-00-982-4912	2010-04-92	1	US
5310-00-982-4912	2009-12-365	6	US
MS20365524C	2009-08-236	60	Canada
MS20365524C	2009-07-211	208	US
5310-00-982-4912	2008-11-310	300	KP
5310-00-982-4912	2008-11-310	600	KP
5310-00-982-4912	2008-08-233	4	HU
MS20365524C	2008-07-209	4	US
MS20365524C	2007-09-249	100	Australia
MS210455	2006-07-200	500	US

Cross Reference | NSN 5310-00-982-4912

Part Number	Cage Code	Manufacturer
27FH-524	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
442826	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5310009824912	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
55746	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
853848-00	32345	DEFENSE REDUCTION AGENCY
903386C1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN363-524	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN365-524C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
ERN215	02978	L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS
ERN215	81336	CHIEF OF ENGINEERS DEPT OF ARMY
ERN215	R1120	SATAIR A/S
F1801-054	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F1801-054	72962	HARVARD INDUSTRIES INC
H55-5CW	15653	ALCOA GLOBAL FASTENERS, INC.
H55-5CW	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H55-5CW	R1120	SATAIR A/S
MS20365-524C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21045-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
YE3181	75497	LAMSON AND SESSIONS CO THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-982-4912

Compare

Related Products | NSN 5310-00-982-4912

5310-00-982-4925, 5310-00-982-4933, 5310-00-982-4935, 5310-00-982-4936, 5310-00-982-4937

Technical Data | NSN 5310-00-982-4912

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

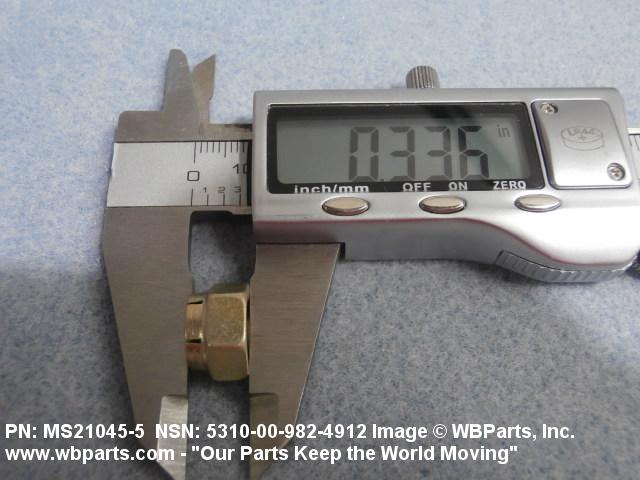

NUT HEIGHT	0.271 INCHES MINIMUM AND 0.360 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21045-5

Restrictions/Controls & Freight Information | NSN 5310-00-982-4912

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-982-4912

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
