NSN 5310-00-962-1476 ZL2808402, ZL2808-4-02, 100453
Product Details | WELDING SELF-LOCKING NUT
5310-00-962-1476 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the item is mounted. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: ZL2808402, ZL2808-4-02, 100453 , 327B496P2, 5310-00-962-1476, 00-962-1476, 5310009621476, 009621476
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-962-1476 | 16948 ( NUT, SELF-LOCKING, WELDING ) |

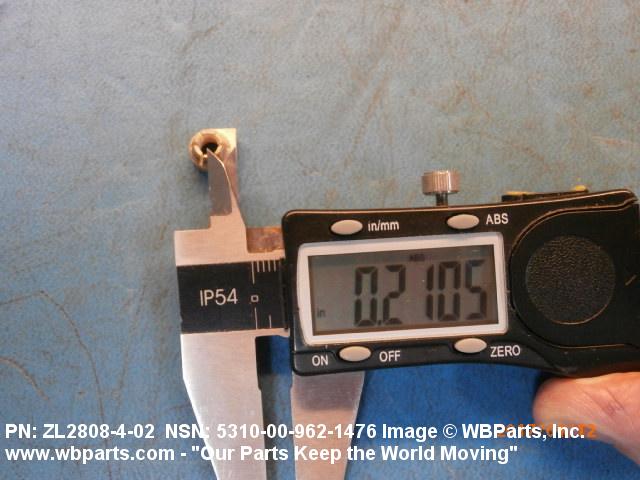

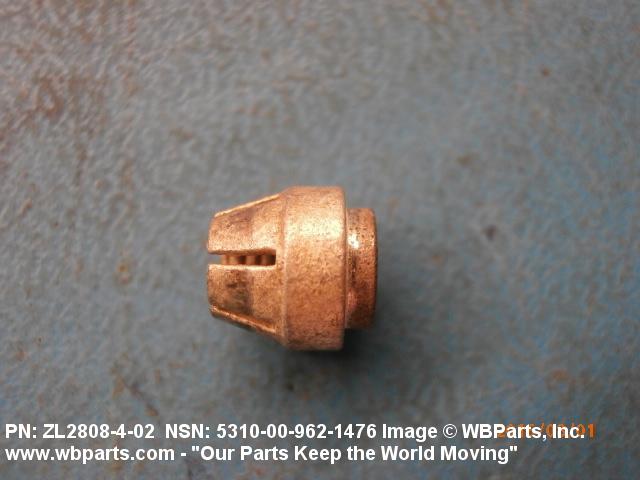

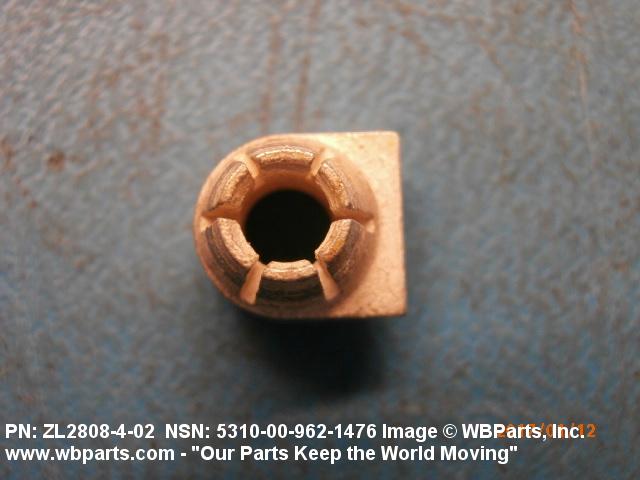

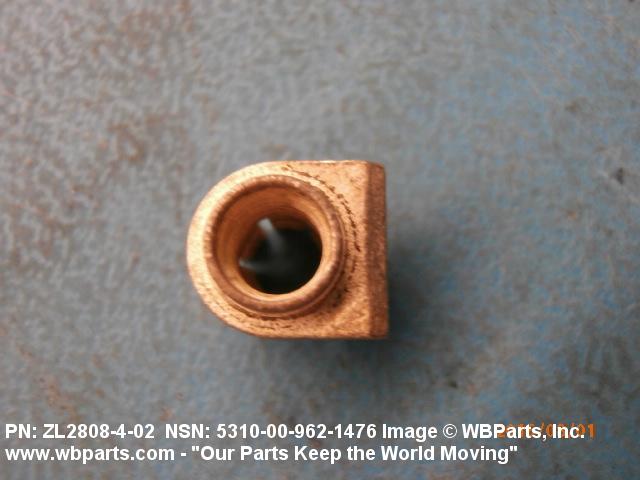

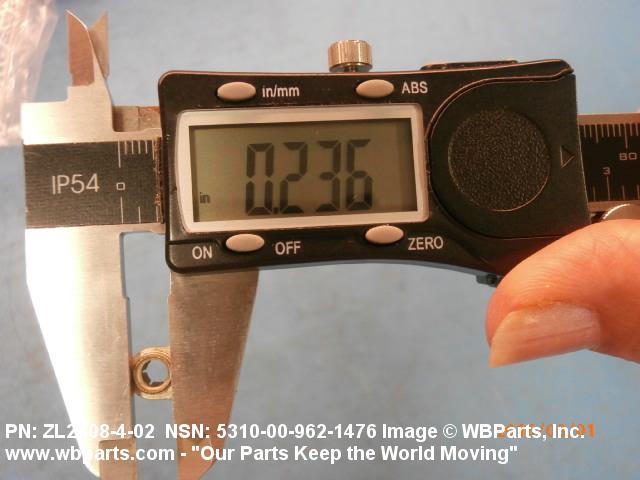

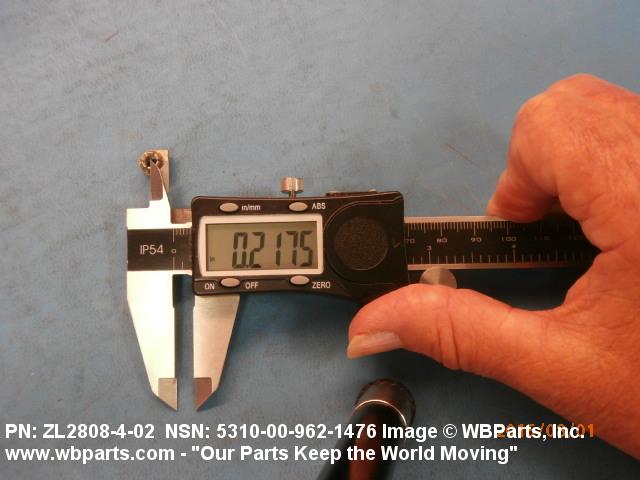

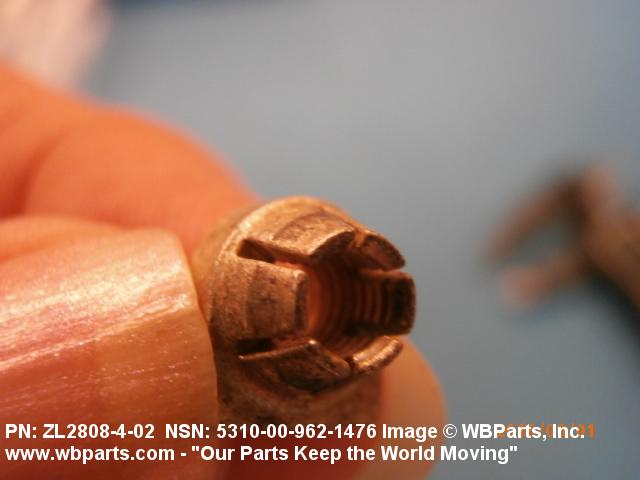

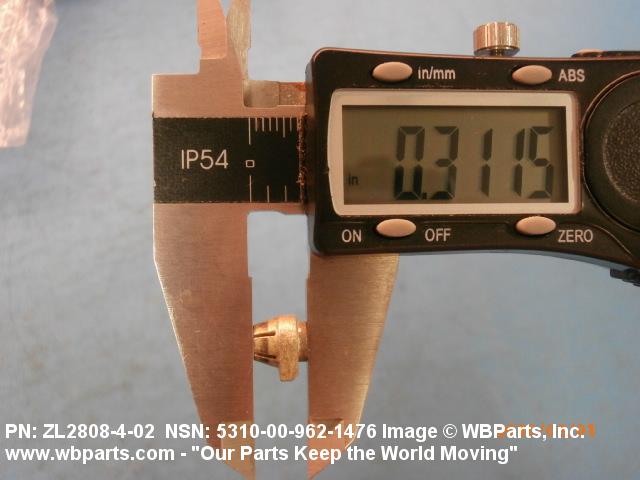

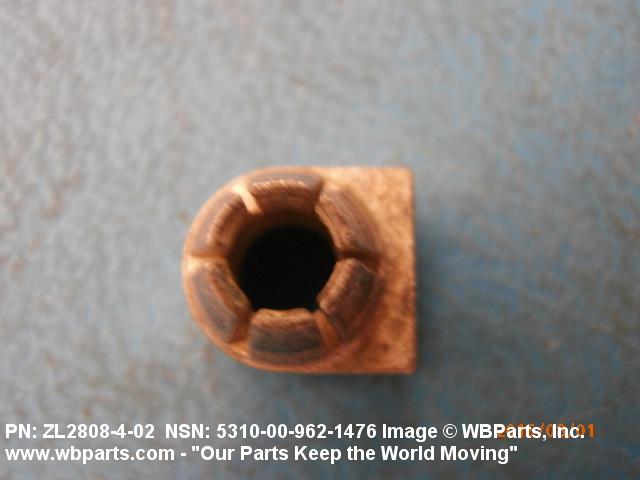

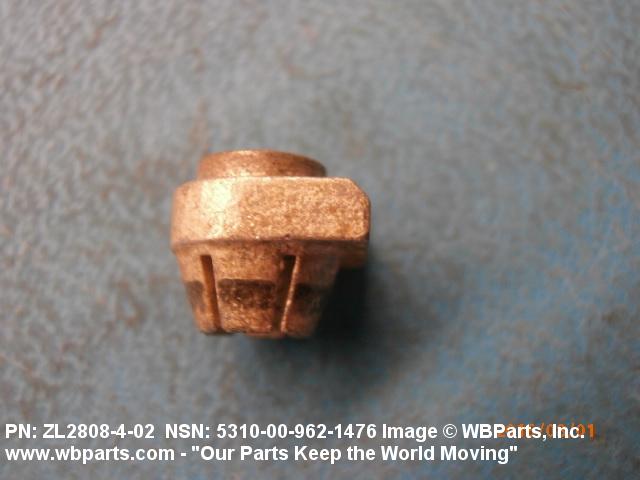

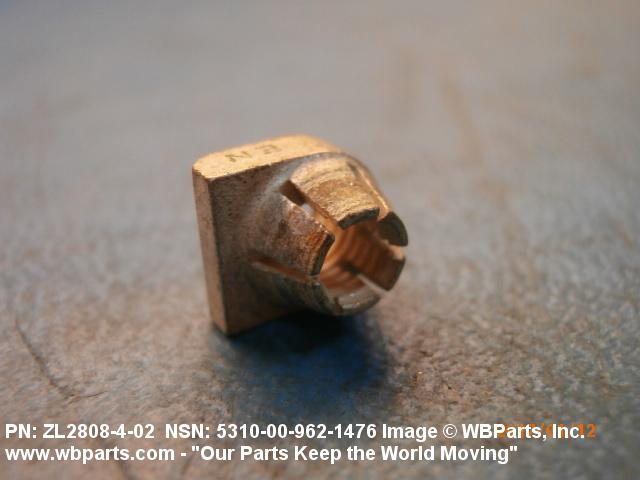

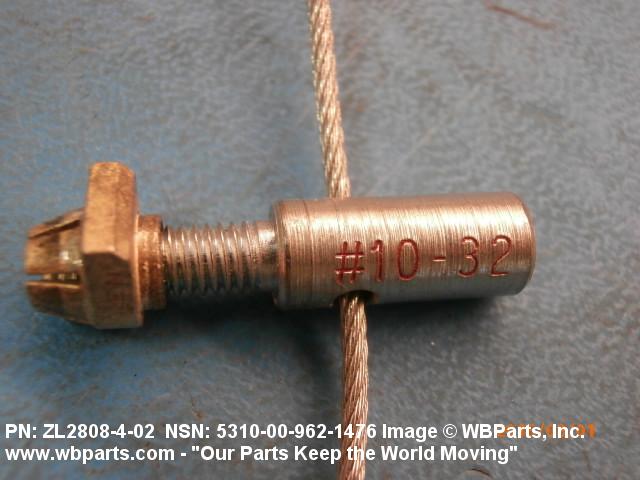

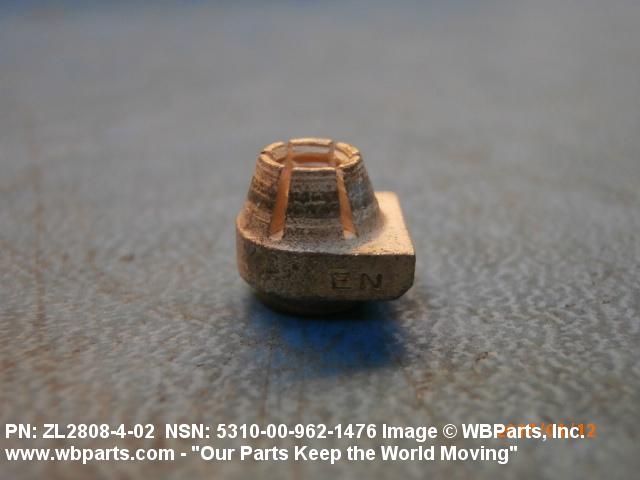

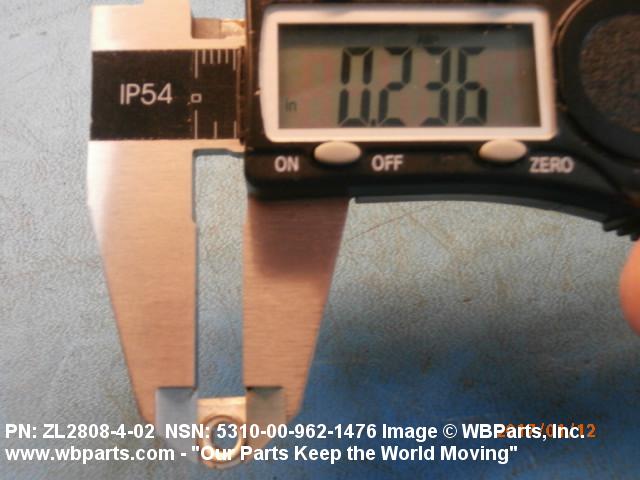

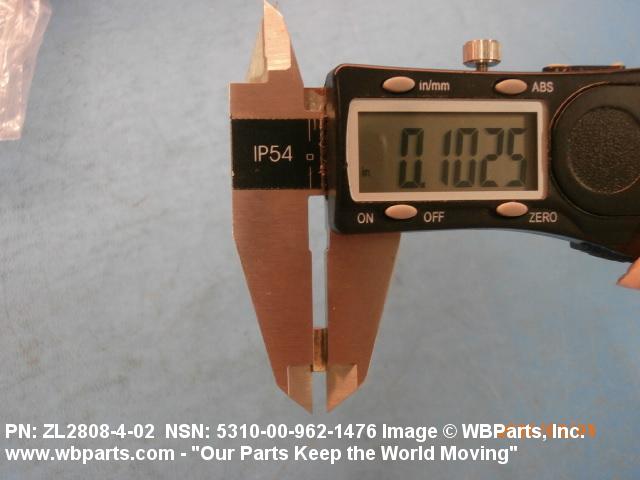

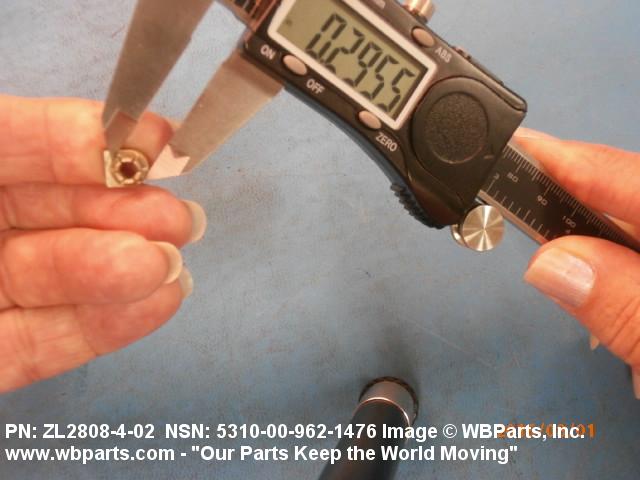

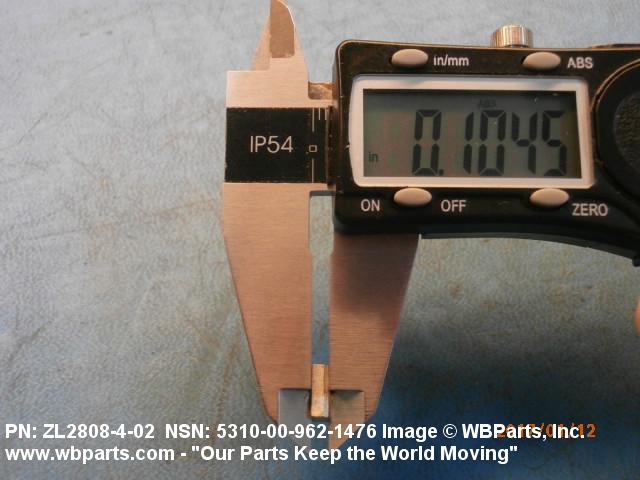

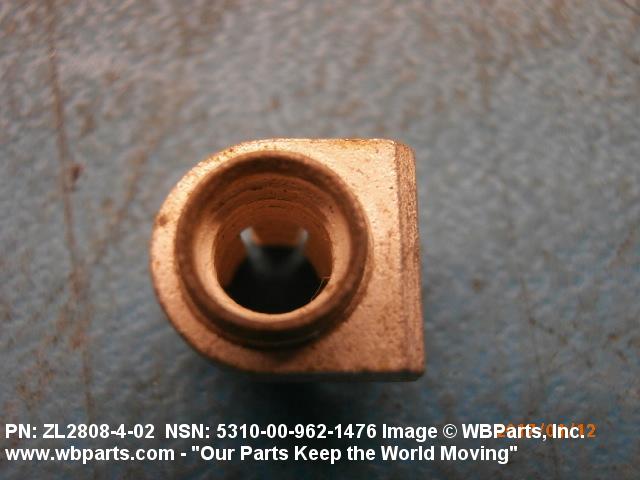

Drawings & Photos | NSN 5310-00-962-1476
Demand History | NSN 5310-00-962-1476
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-962-1476 | 2023-04-96 | 3000 | us |
| 5310-00-962-1476 | 2016-08-218 | 300 | us |
| 5310-00-962-1476 | 2016-07-200 | 50 | us |
| 5310-00-962-1476 | 2016-02-33 | 300 | us |
| 5310-00-962-1476 | 2011-12-342 | 300 | us |
Cross Reference | NSN 5310-00-962-1476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 327B496P2 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 327B496P2 | 72962 | HARVARD INDUSTRIES INC |
| ZL2808-4-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| ZL2808-4-02 | 03350 | GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV |
| ZL2808-4-02 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-962-1476
Related Products | NSN 5310-00-962-1476
Technical Data | NSN 5310-00-962-1476
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 303 PLUS X OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OR AMS 2411 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A255 SELF-LOCKING WELDING |

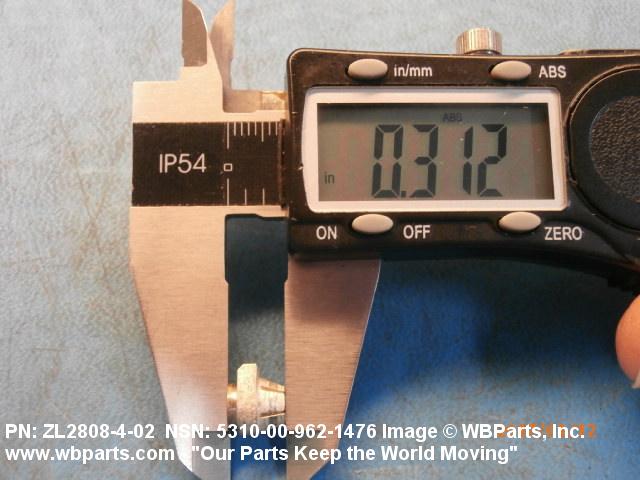

| OVERALL HEIGHT | 0.310 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| BODY DIAMETER | 0.255 INCHES NOMINAL |
| BASE THICKNESS | 0.092 INCHES NOMINAL |
| CUTOFF EDGE TO CENTER DISTANCE | 0.217 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.295 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | OVERALL SILVER |
| MANUFACTURERS CODE | 03350 |
| DESIGN CONTROL REFERENCE | ZL2808-4-02 |
Restrictions/Controls & Freight Information | NSN 5310-00-962-1476
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-962-1476
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
