NSN 5310-00-958-9927 NAS14237, NAS1423-7, LS59907
Product Details | HEXAGON PLAIN NUT
5310-00-958-9927 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: NAS14237, NAS1423-7, LS59907, LS5990-7, 10121887 , 5310-00-958-9927, 00-958-9927, 5310009589927, 009589927
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAY 1966 | 00-958-9927 | 01857 ( NUT, PLAIN, HEXAGON ) |

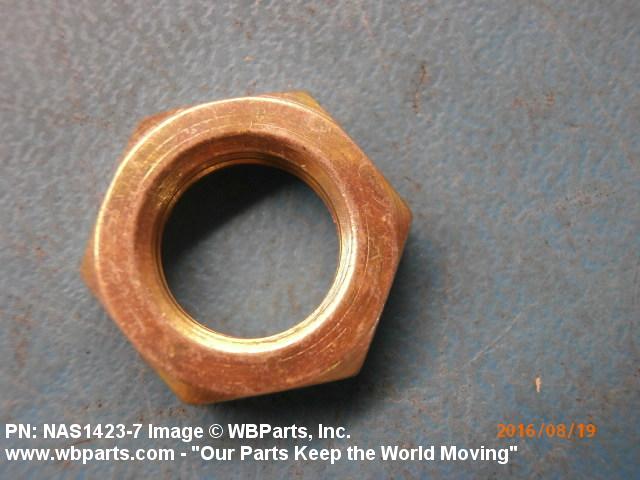

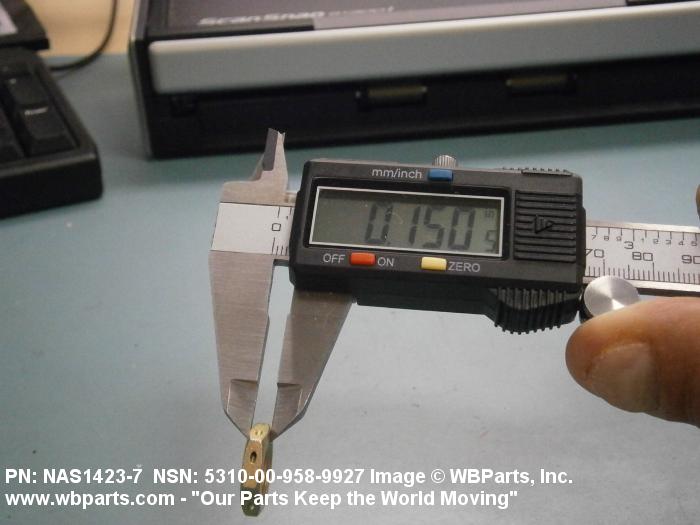

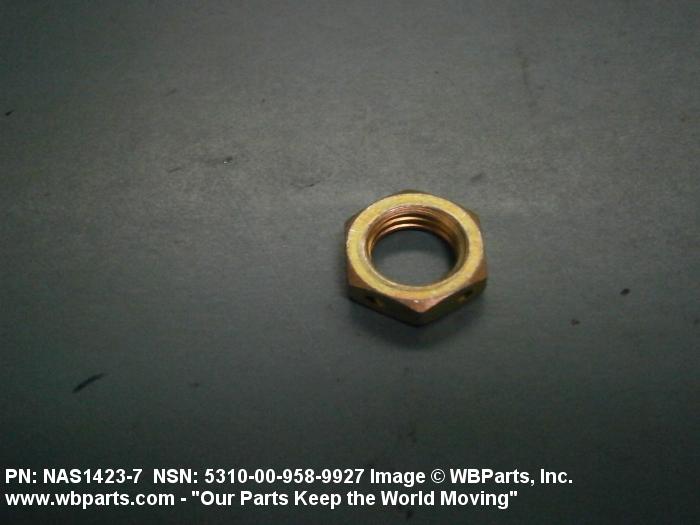

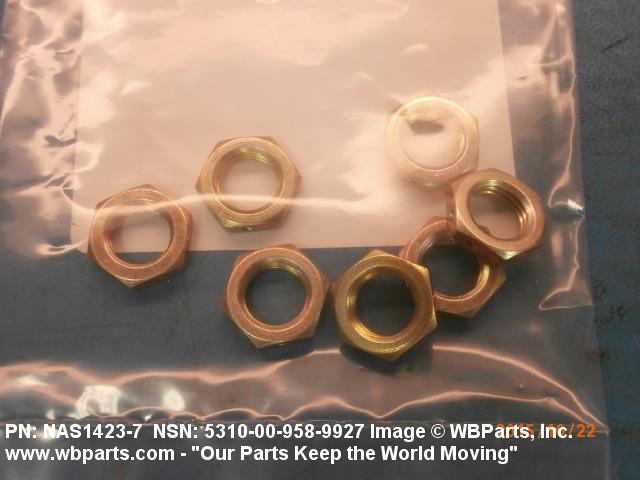

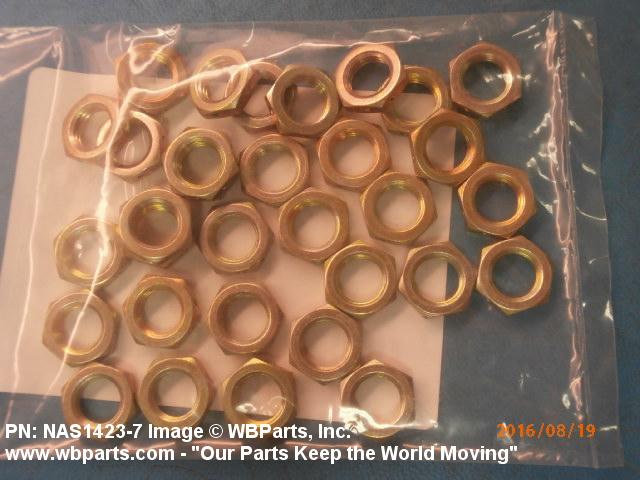

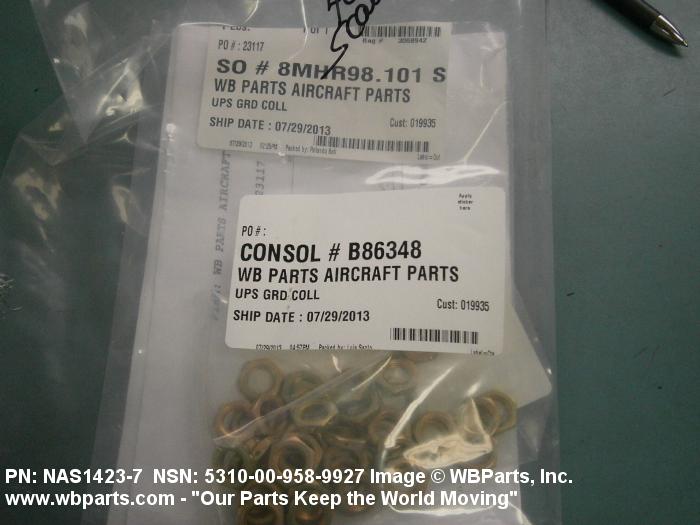

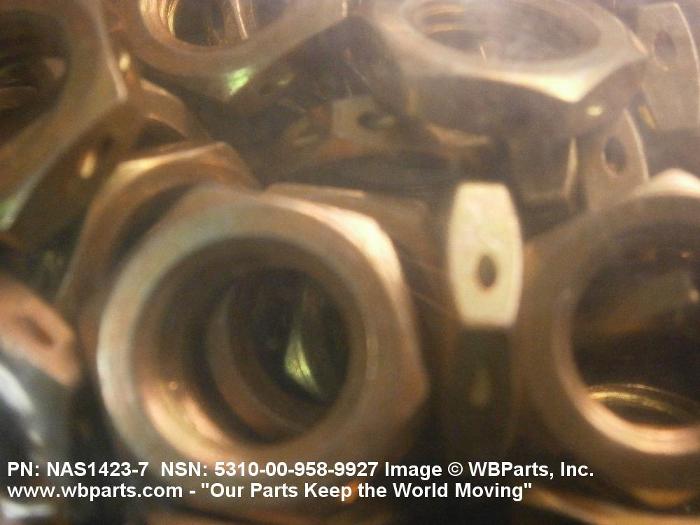

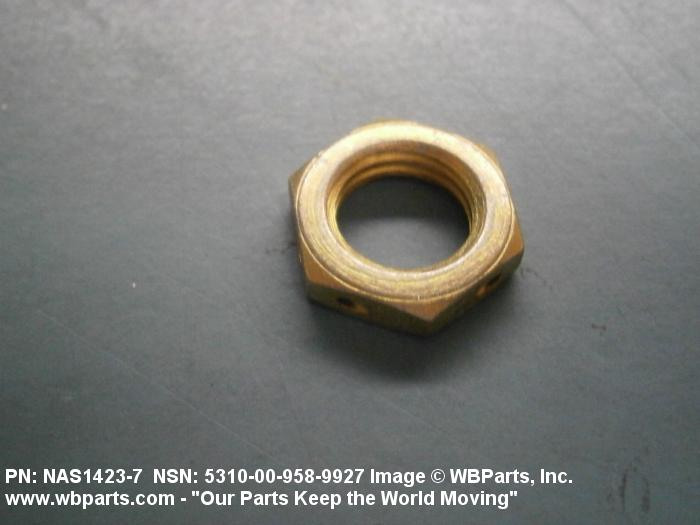

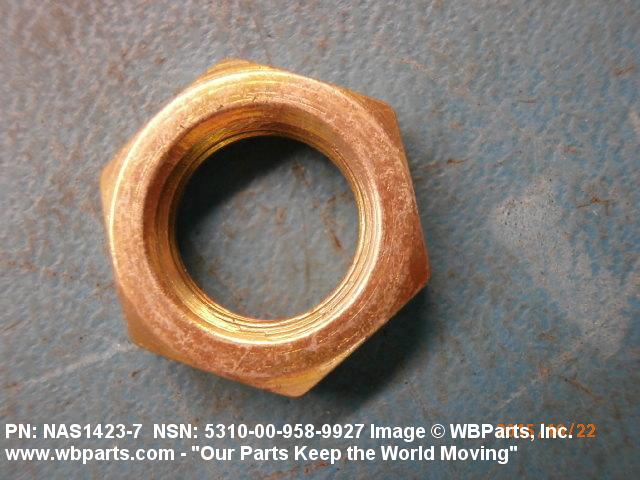

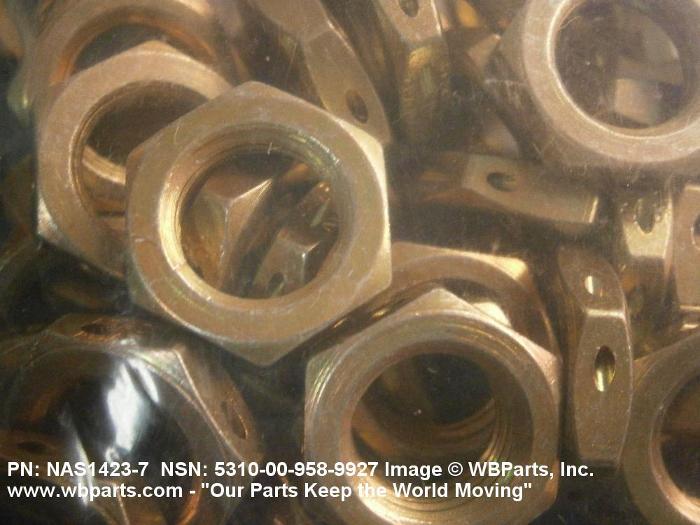

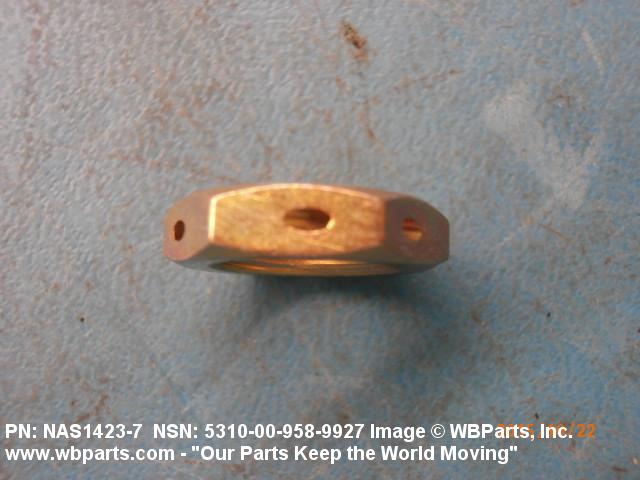

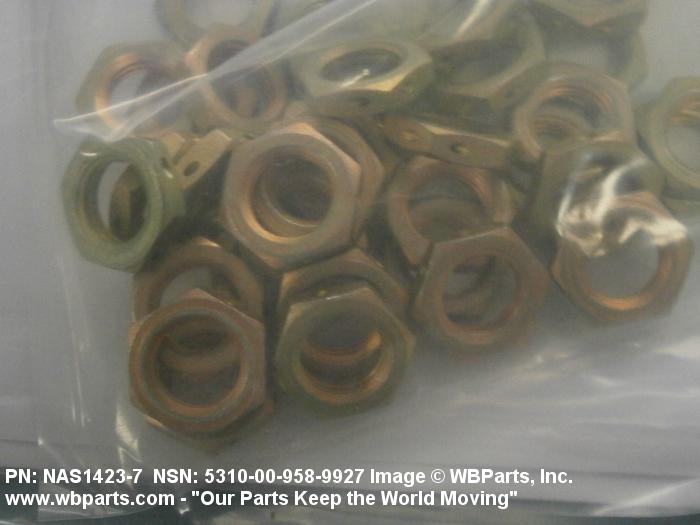

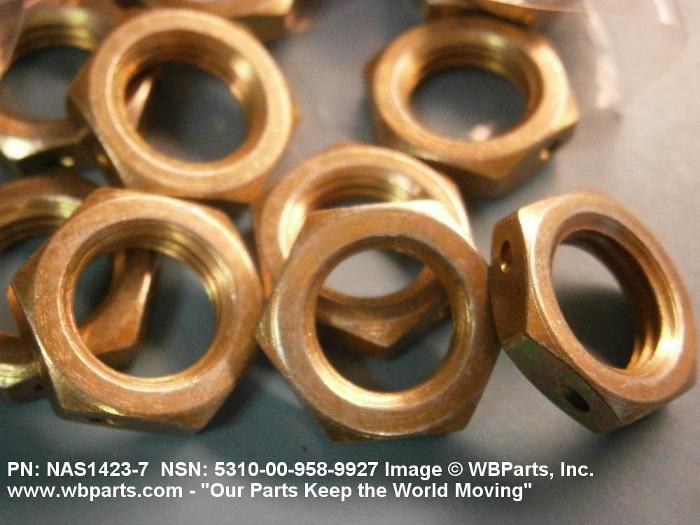

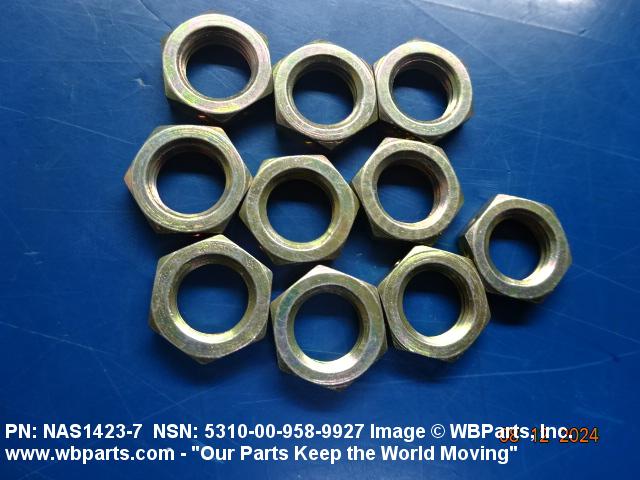

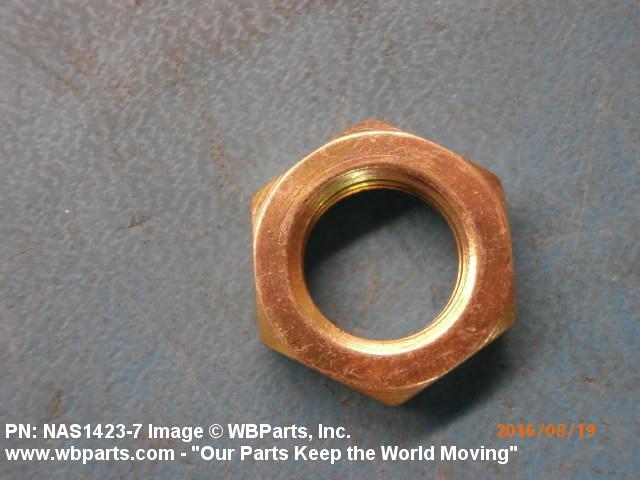

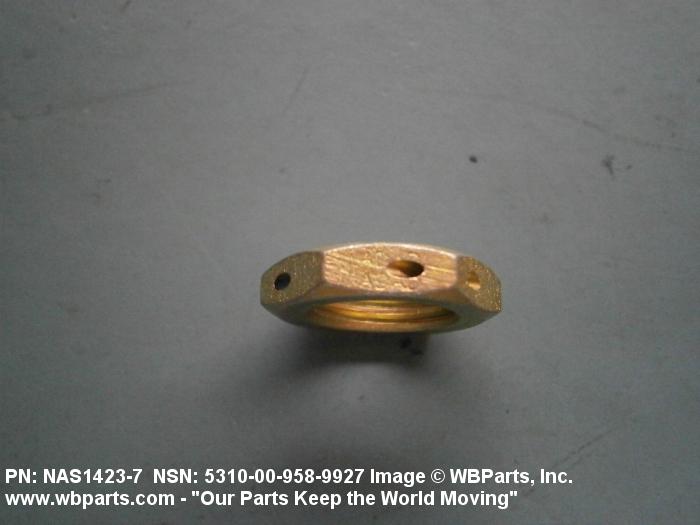

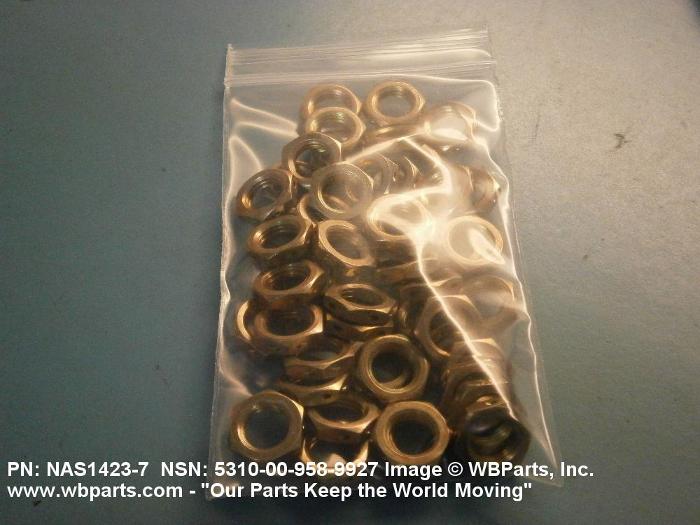

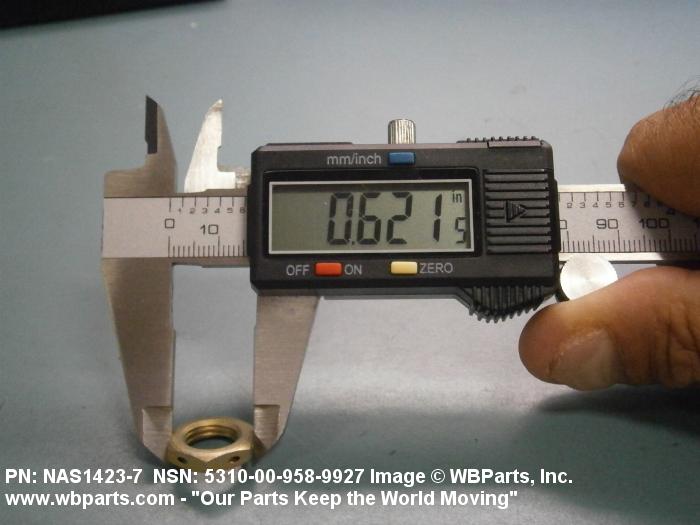

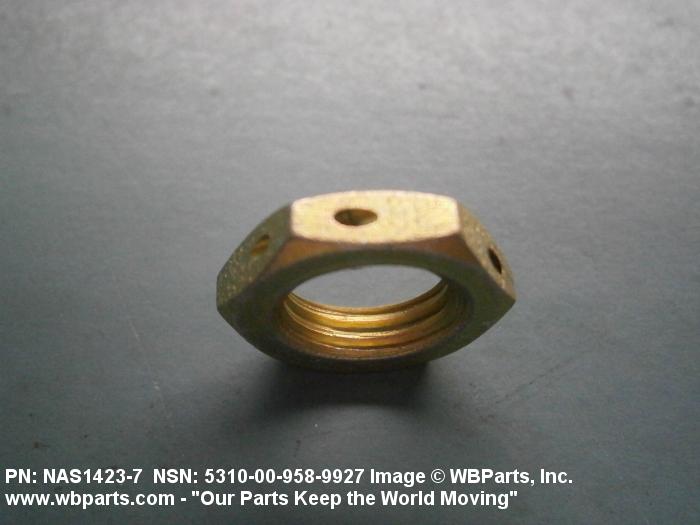

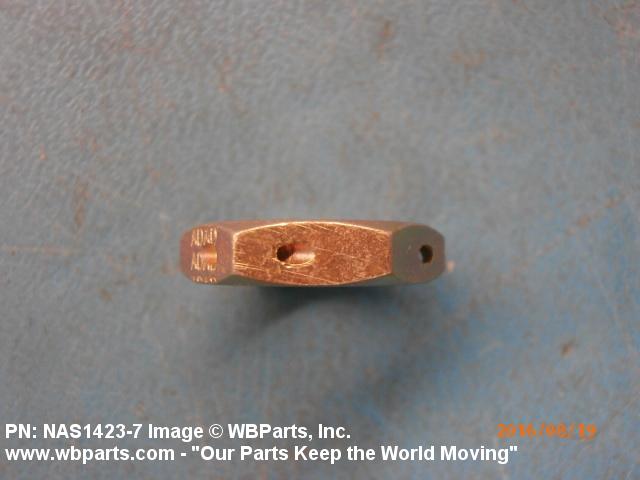

Drawings & Photos | NSN 5310-00-958-9927
Demand History | NSN 5310-00-958-9927
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-958-9927 | 2024-10-305 | 306 | DIBBS |
| 5310-00-958-9927 | 2024-08-224 | 82 | DIBBS |
| NAS14237 | 2024-07-213 | 30 | United States |
| 5310-00-958-9927 | 2024-03-73 | 206 | DIBBS |
| 5310-00-958-9927 | 2023-12-351 | 1089 | DIBBS |
| 5310-00-958-9927 | 2023-12-351 | 407 | DIBBS |
| 5310-00-958-9927 | 2023-11-309 | 407 | DIBBS |
| 5310-00-958-9927 | 2023-11-305 | 947 | DIBBS |
| NAS14237 | 2023-08-236 | 30 | United States |
| 5310-00-958-9927 | 2023-08-213 | 407 | DIBBS |
| NAS14237 | 2023-04-95 | 60 | United States |
| NAS14237 | 2022-09-255 | 20 | United States |
| NAS14237 | 2021-09-258 | 5 | United States |
| NAS14237 | 2021-09-258 | 10 | United States |
| NAS14237 | 2021-09-258 | 25 | United States |
| NAS14237 | 2021-05-146 | 25 | United States |
| NAS14237 | 2019-05-135 | 36 | United States |
| NAS14237 | 2018-09-269 | 1 | United States |
| NAS14237 | 2018-09-269 | 2 | United States |
| NAS14237 | 2018-09-269 | 6 | United States |
| NAS14237 | 2018-09-269 | 10 | United States |
| NAS14237 | 2018-07-207 | 2 | US |
| NAS14237 | 2018-04-102 | 12 | United States |
| NAS14237 | 2018-04-102 | 30 | United States |
| NAS14237 | 2017-11-307 | 12 | United States |
| NAS14237 | 2017-10-284 | 12 | United States |
| NAS14237 | 2017-10-284 | 12 | United States |
| NAS14237 | 2016-08-243 | 12 | United States |
| NAS14237 | 2016-07-210 | 20 | United States |
| NAS14237 | 2016-07-210 | 30 | United States |
| NAS14237 | 2016-07-210 | 40 | United States |
| NAS14237 | 2016-07-210 | 50 | United States |
| NAS14237 | 2015-08-231 | 4 | United States |
| 5310-00-958-9927 | 2015-06-160 | 829 | DIBBS |
| NAS14237 | 2013-07-190 | 40 | United States |
| NAS14237 | 2012-06-171 | 50 | United States |
| NAS14237 | 2012-03-90 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-958-9927
Related Products | NSN 5310-00-958-9927
Technical Data | NSN 5310-00-958-9927
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4130 OR STEEL COMP E4340 OR STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.615 INCHES MINIMUM AND 0.627 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | H2 CONFIGURATION B |
| HOLE TYPE AND QUANTITY | 3 DRILLED |
| DRILLED HOLE DIAMETER | 0.046 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| COUNTERSINK ANGLE | 110.0 DEGREES NOMINAL NUT |
| TEMP RATING | NOT RATED |
| III BEARING SURFACE FINISH | 250.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-00-958-9927
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-958-9927
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
