NSN 5310-00-947-1380 MS21083C8, MRS0020P03BN000 , L79NTE820
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-947-1380 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS21083C8, MRS0020P03BN000 , L79NTE820, L79NTE-820, 4158071-18, 803-5001003-X4X X-10, 8035001003X4XX10, 80359593063XX025, 803-5959306-3XX-025, 10652612 , 11040707-3 , 21333 FIND 46, 21333FIND46, 5310-00-947-1380, 00-947-1380, 5310009471380, 009471380, 110407073, 415807118
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAR 1966 | 00-947-1380 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

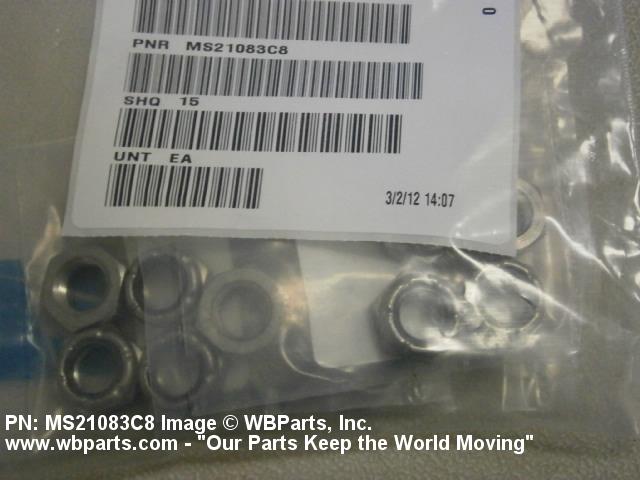

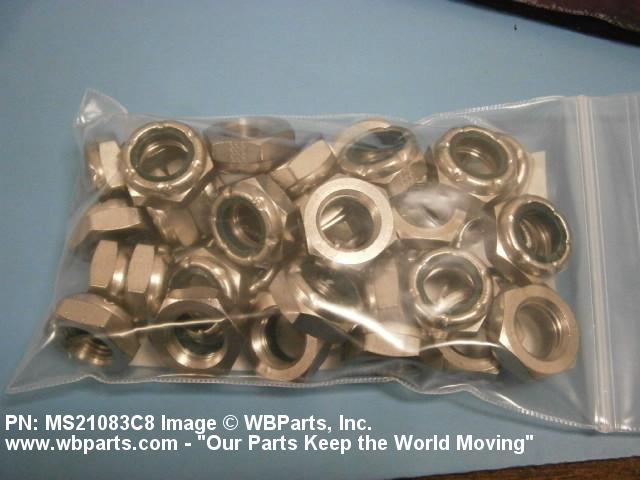

Drawings & Photos | NSN 5310-00-947-1380
Demand History | NSN 5310-00-947-1380
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-947-1380 | 2021-09-252 | 200 | IL |
| 5310-00-947-1380 | 2021-02-33 | 25000 | DIBBS |
| 5310-00-947-1380 | 2021-01-25 | 25000 | DIBBS |
| 5310-00-947-1380 | 2020-10-302 | 9390 | DIBBS |
| 5310-00-947-1380 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-00-947-1380 | 2017-02-53 | 72 | MANUAL |
| MS21083C8 | 2016-11-333 | 56 | US |
| 5310-00-947-1380 | 2016-06-159 | 6872 | DIBBS |
| MS21083C8 | 2015-07-182 | 105 | UK |
| 5310-00-947-1380 | 2015-04-111 | 7702 | DIBBS |
| 5310-00-947-1380 | 2015-02-55 | 5996 | DIBBS |
| MS21083C8 | 2015-02-41 | 100 | United States |
| MS21083C8 | 2014-05-127 | 2000 | US |
| MS21083C8 | 2013-07-198 | 20 | US |
| 5310-00-947-1380 | 2013-07-182 | 8 | United States |
| MS21083C8 | 2012-08-214 | 3 | US |
| MS21083C8 | 2012-07-202 | 210 | United States |
| MS21083C8 | 2012-03-61 | 12 | United Kingdom |
| 5310-00-947-1380 | 2011-12-355 | 100 | United States |
| MS21083C8 | 2011-11-326 | 35 | United States |
| 5310-00-947-1380 | 2011-01-25 | 29 | US |
| 5310-00-947-1380 | 2009-12-338 | 100 | US |
| 5310-00-947-1380 | 2007-08-221 | 173 | US |
Cross Reference | NSN 5310-00-947-1380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21333 FIND 46 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 4158071-18 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5310009471380 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 803-5001003-X4X X-10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 803-5959306-3XX-025 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| L79NTE-820 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| L79NTE-820 | 72962 | HARVARD INDUSTRIES INC |
| MS21083C8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21083C8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-947-1380
Related Products | NSN 5310-00-947-1380
Technical Data | NSN 5310-00-947-1380
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL CORROSION RESISTING NUT |
| SURFACE TREATMENT | PASSIVATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.328 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES MINIMUM NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21083C8 |
Restrictions/Controls & Freight Information | NSN 5310-00-947-1380
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-947-1380
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
