NSN 5310-00-939-0849 MS21083004, MS21083-004, MS21083C04

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-939-0849 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS21083004, MS21083-004, MS21083C04, MS21083C08, MS21083C8 , MS5195749, MS51957-49 , C15013007, C15013-007 , E2134103, E21341-03 , 364792, 36479-2, 0313769, 0740701, 10121860 , 10501, 1140576001, 114-0576-001, 1140576003, 114-0576-003 , 1287741, 15013007, 15013-007 , 150137, 15013-7 , 16335202, 1V006400, 1V0064-00 , 203688C7 , 20529076, 2052907-6 , 218174 , 21C159922, 21C1599-22 , 272.394.003, 001004480A, 001-00448-0A , 002004048001, 002-004048-001, 002004048003, 002-004048-003 , 002004161001, 002-004161-001, 0073562P1, 0073-562P1, 57A5A282, 57A5A28-2, 62225PM50G, 622-25PM50G, 6259163001, 6259163-001 , 714990026551, 714-990026-551, 75NTM82 , 79NTM82, 5310-00-939-0849, 00-939-0849, 5310009390849 , 009390849, 272394003

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	16 NOV 1965	00-939-0849	05277 ( NUT, SELF-LOCKING, HEXAGON )

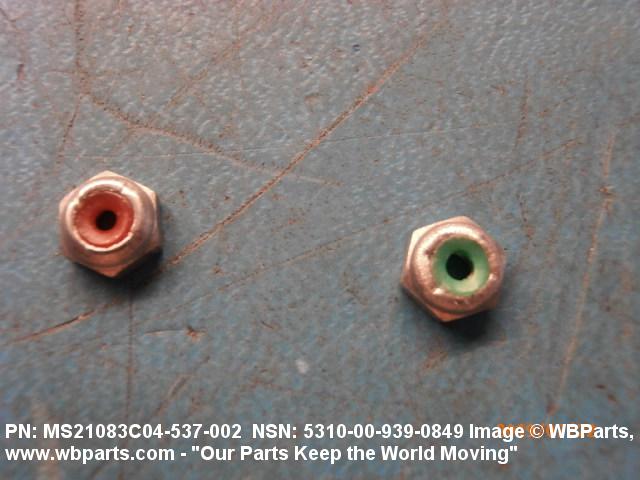

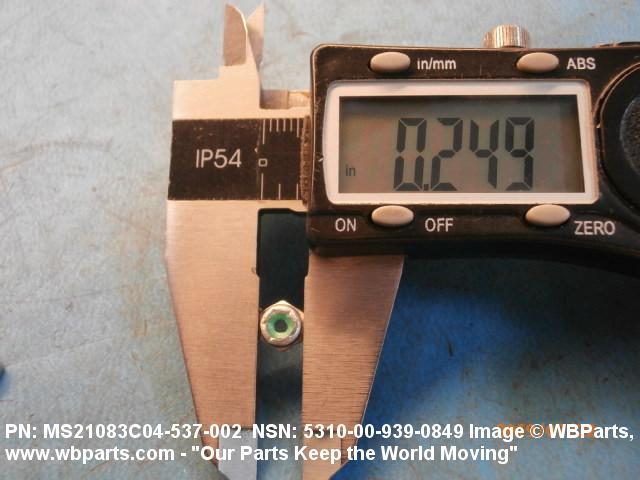

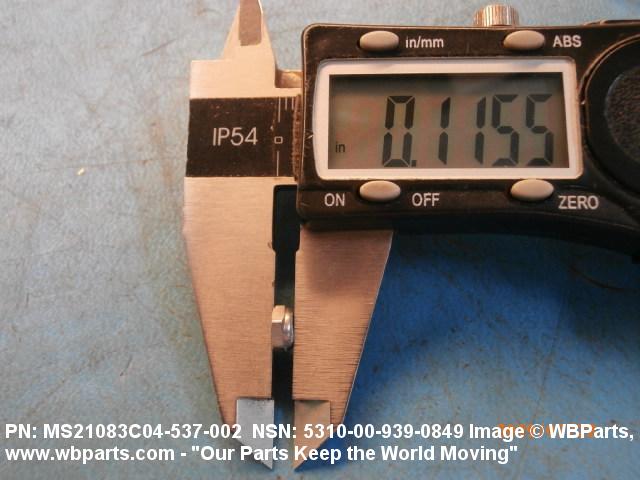

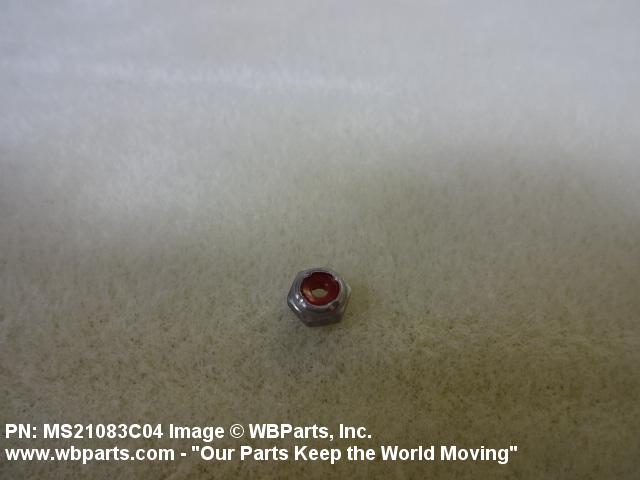

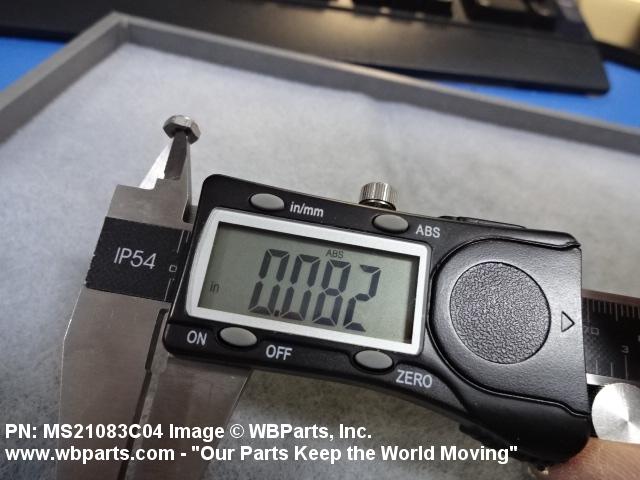

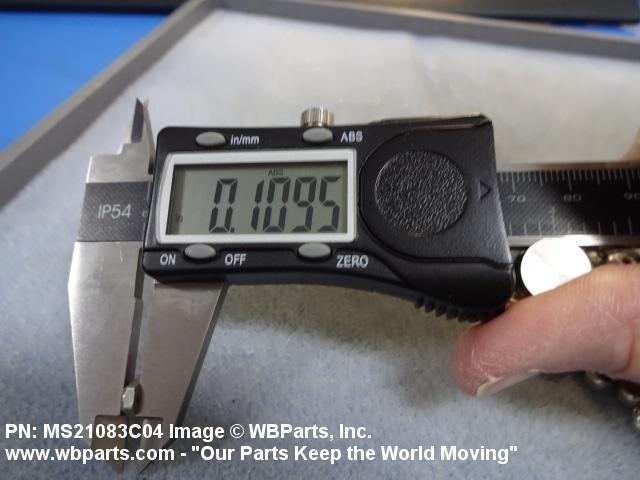

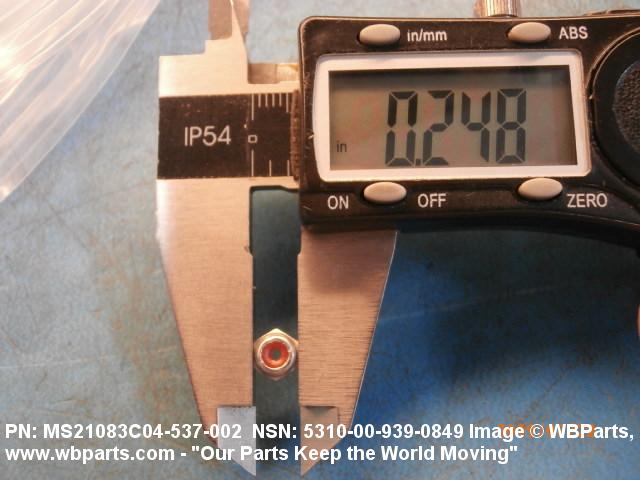

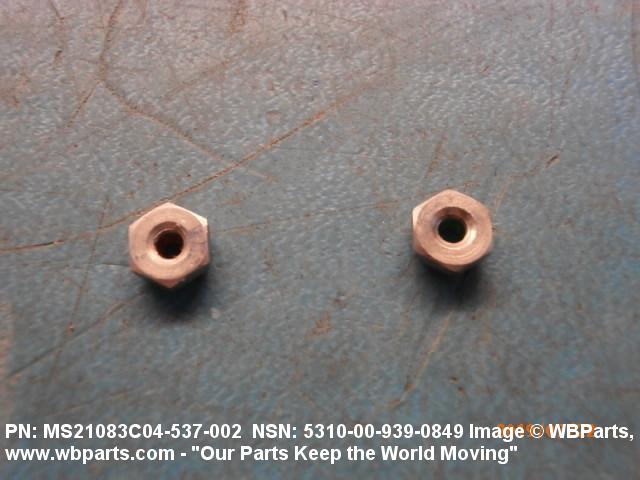

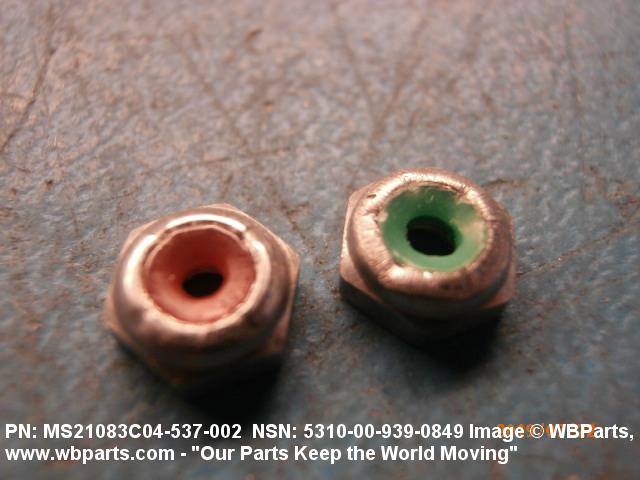

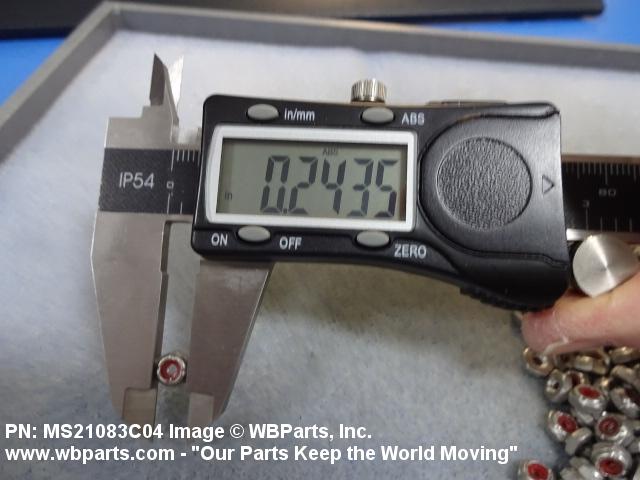

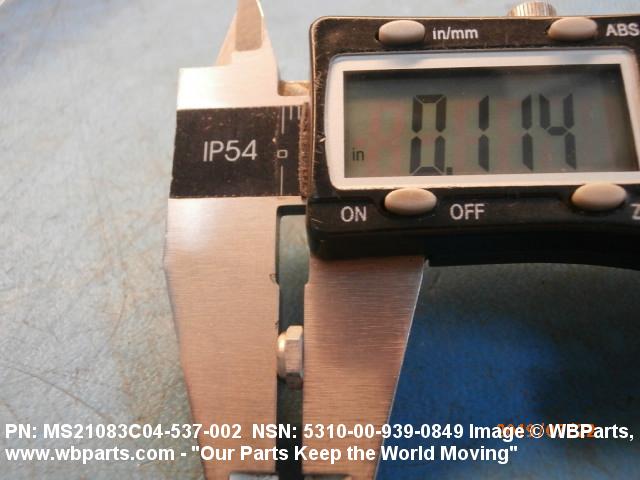

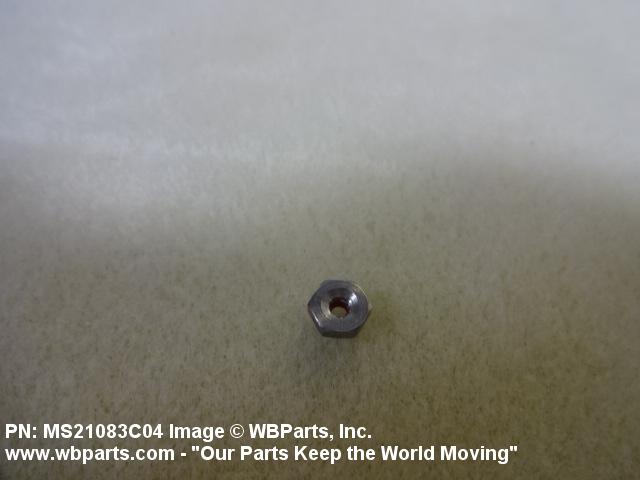

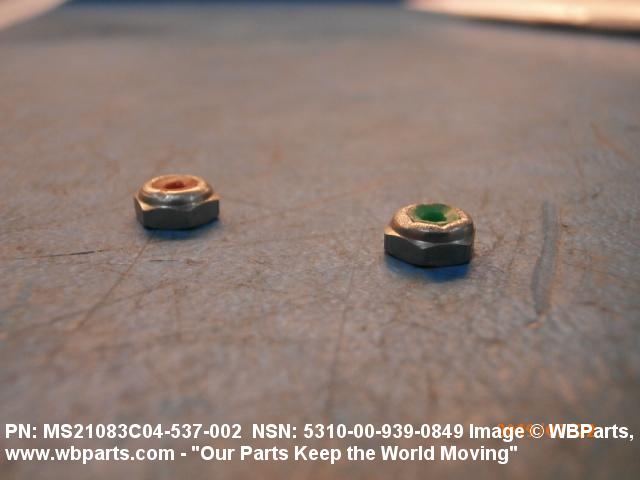

Drawings & Photos | NSN 5310-00-939-0849

Part Number	Request Date	QTY	Origin
MS21083C04	2023-12-340	9	United States
MS21083C04	2023-11-320	100	United States
10501	2022-12-355	30	US
MS5195749	2022-11-319	25	PK
MS21083C04	2022-09-250	12	US
MS21083C04	2022-08-234	500	United States
MS21083C08	2022-02-35	64	United States
MS21083C08	2021-06-161	12000	DE
MS21083C08	2021-02-57	50	DE
MS21083C04	2020-12-365	38	United States
MS21083C04	2020-12-356	400	BR
MS21083C08	2020-01-28	250	CA
MS21083004	2019-09-260	10	US
MS21083C04	2019-08-233	18	United States
MS21083C08	2019-08-233	48	United States
MS21083C04	2019-07-198	500	United States
MS21083C08	2019-07-198	600	United States
10501	2019-07-194	5
MS5195749	2019-04-101	100	United States
MS5195749	2019-02-45	14	us
5310-00-939-0849	2018-12-353	14000	US
MS5195749	2018-06-156	2	United States
MS21083C04	2017-03-87	100	United States
MS21083C08	2017-03-87	200	United States
MS21083C08	2017-03-82	100	United States
MS21083C04	2017-02-34	1000	United States
MS21083C8	2016-11-333	56	US
5310-00-939-0849	2016-09-272	48559	DIBBS
5310-00-939-0849	2016-01-10	38035	DIBBS
MS21083C8	2015-07-182	105	UK
MS21083C08	2015-06-159	200	United States
5310-00-939-0849	2015-05-121	20	United States
MS21083C8	2015-02-41	100	United States
MS21083C08	2014-09-246	12	China
MS5195749	2014-07-212	225	US
MS21083C8	2014-05-127	2000	US
MS5195749	2014-02-43	1	United States
MS21083C08	2014-02-36	100	United States
MS21083C08	2014-01-27	50	United States
MS21083C08	2014-01-27	100	United States
MS21083C08	2014-01-23	210	United States
MS21083C08	2014-01-09	210	United States
MS21083C04	2013-11-319	1000	US
MS21083C04	2013-11-319	500	US
MS21083C04	2013-11-319	200	US
MS21083C8	2013-07-198	20	US
MS21083C08	2013-06-168	180	US
MS21083C04	2013-01-31	1	US
MS21083C8	2012-08-214	3	US
MS21083C8	2012-07-202	210	United States
MS21083C04	2012-04-114	1	United States
MS21083C04	2012-04-96	30	United States
MS21083C08	2012-04-96	90	United States
MS21083C08	2012-03-89	25	United States
MS21083C08	2012-03-81	4	United States
MS21083C8	2012-03-61	12	United Kingdom
MS21083C08	2011-12-361	6	United States
MS21083C8	2011-11-326	35	United States
MS21083C04	2011-08-236	100	United States
MS21083C08	2011-06-165	100	US
MS5195749	2011-01-17	100	India
5310-00-939-0849	2010-03-83	50	United Arab Emirates
5310-00-939-0849	2010-03-83	1	United Arab Emirates
5310-00-939-0849	2010-03-83	1	United Arab Emirates
MS21083C04	2010-02-43	360	United States
5310-00-939-0849	2009-08-217	2	SE
MS21083C08	2009-04-92	120	Australia
5310-00-939-0849	2008-12-360	10	Turkey
MS21083C04	2008-09-260	15	India
MS21083C08	2008-09-260	50	India
5310-00-939-0849	2008-09-250	25	India
5310-00-939-0849	2008-08-242	20	India
MS21083C08	2008-06-178	1000	US
MS21083C08	2008-06-178	1000	France
MS21083C08	2008-05-129	100	US

Cross Reference | NSN 5310-00-939-0849

Part Number	Cage Code	Manufacturer
002-004048-001	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
002-004161-001	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
0073-562P1	06351	MICROWAVE ENGINEERING CORPORATION
0073-562P1	99380	SIERRA NETWORKS INC SIERRACOM DIV
0313769	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
114-0576-001	94756	BOEING COMPANY, THE DBA BOEING
1287741	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
1287741	53711	NAVAL SEA SYSTEMS COMMAND
16335202	27963	GENERAL DYNAMICS INFORMATION SYSTEMS INC.
16335202	3CYA2	GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS, INC.
272.394.003	D3683	ESW GMBH DIV JENOPTIK DEFENSE AND CIVIL
36479-2	06351	MICROWAVE ENGINEERING CORPORATION
36479-2	99380	SIERRA NETWORKS INC SIERRACOM DIV
5310009390849	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
57A5A28-2	53711	NAVAL SEA SYSTEMS COMMAND
57A5A28-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
622-25PM50G	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
714-990026-551	3AF83	GENERAL DYNAMICS CANADA
MS21083-004	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21083C04	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21083C04	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-939-0849

Compare

Related Products | NSN 5310-00-939-0849

5310-00-939-0850, 5310-00-939-0851, 5310-00-939-0853, 5310-00-939-0856, 5310-00-939-0882

Technical Data | NSN 5310-00-939-0849

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL CORROSION RESISTING OVERALL EXCEPT INSERT
SURFACE TREATMENT	PASSIVATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.125 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-939-0849

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-939-0849

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
