NSN 5310-00-934-9727 MS3569159, MS35691-59, NUTS032232
Product Details | HEXAGON PLAIN NUT
5310-00-934-9727 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: MS3569159, MS35691-59, NUTS032232, NUT-S-032232, E-1932 PIECE 85, E1932PIECE85, FFN836, FF-N-836, 506007, 596-6391395 FIND 23, 5966391395FIND23, 6391395, 5310-00-934-9727, 00-934-9727, 5310009349727, 009349727
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAR 1967 | 00-934-9727 | 01857 ( NUT, PLAIN, HEXAGON ) |

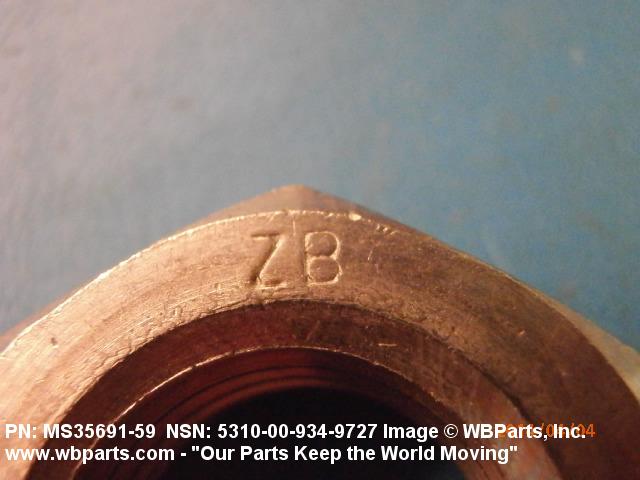

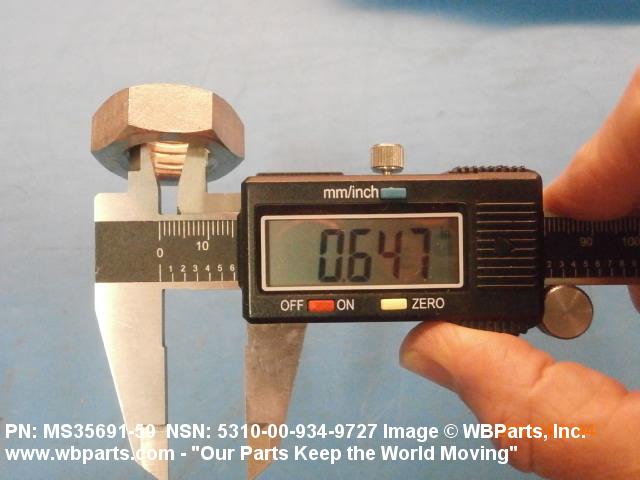

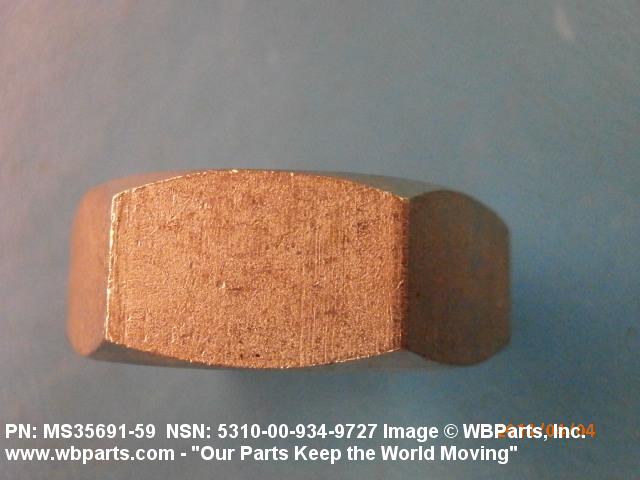

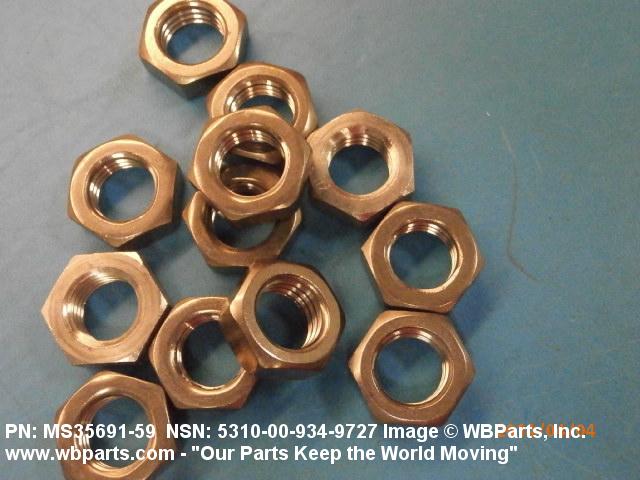

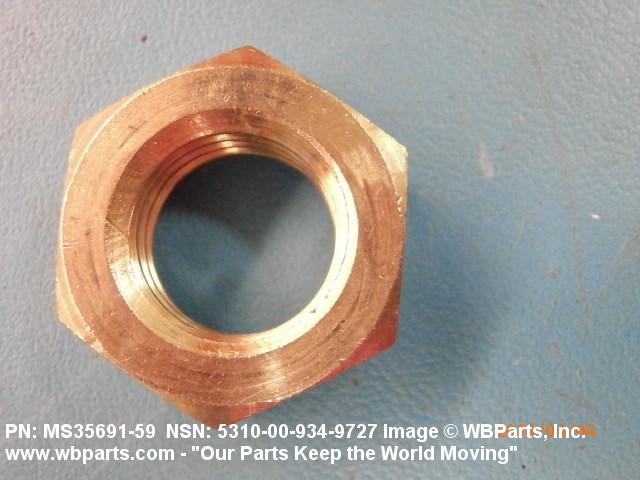

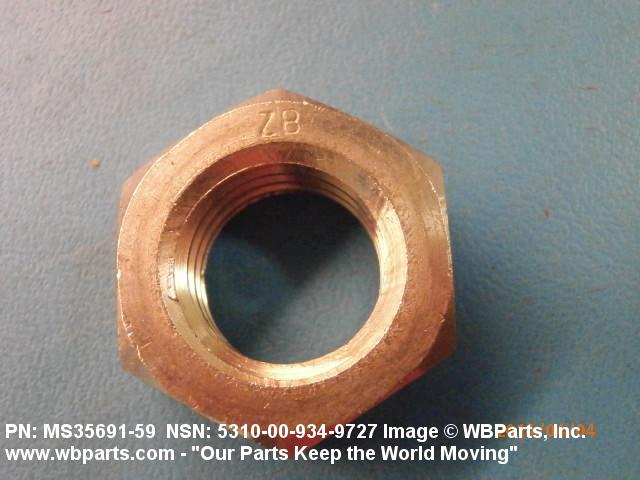

Drawings & Photos | NSN 5310-00-934-9727
Demand History | NSN 5310-00-934-9727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2024-10-291 | 190 | US |
| 5310-00-934-9727 | 2024-02-47 | 50 | US |
| FFN836 | 2023-09-258 | 100 | TR |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| 5310-00-934-9727 | 2021-05-134 | 15 | United States |
| MS3569159 | 2020-02-56 | 2 | United States |
| FFN836 | 2019-02-44 | 288 | US |
| MS3569159 | 2018-04-92 | 500 | us |
| 5310-00-934-9727 | 2018-03-74 | 15 | United States |
| FFN836 | 2018-02-32 | 2 | US |
| FFN836 | 2017-05-123 | 25 | United States |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| MS3569159 | 2015-04-91 | 1 | US |
| 5310-00-934-9727 | 2014-04-91 | 12 | United States |
| FFN836 | 2012-12-341 | 1 | US |
| MS3569159 | 2011-01-11 | 22 | US |
| MS3569159 | 2011-01-05 | 22 | US |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| MS3569159 | 2010-10-284 | 1 | UK |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-03-90 | 4 | us |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| 5310-00-934-9727 | 2009-10-288 | 18 | United States |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
Cross Reference | NSN 5310-00-934-9727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 506007 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 596-6391395 FIND 23 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6391395 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| E-1932 PIECE 85 | 07524 | DOVER FLUID MANAGEMENT, INC. DBA BLACKMER |
| FF-N-836 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35691-59 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NUT-S-032232 | 55316 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-934-9727
Technical Data | NSN 5310-00-934-9727
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 347 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 00-S-763 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

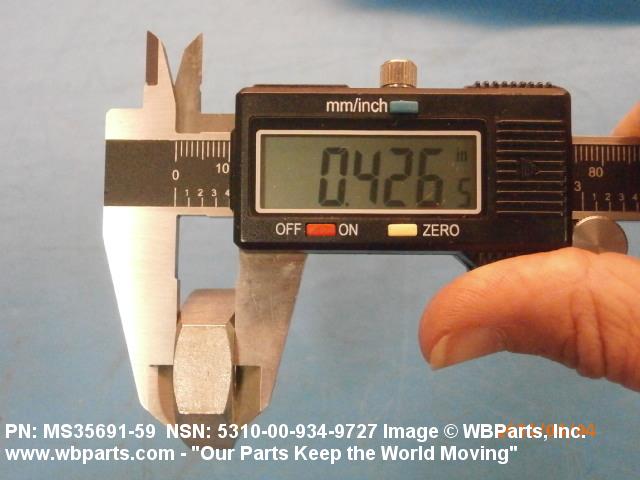

| NUT HEIGHT | 0.398 INCHES MINIMUM AND 0.446 INCHES MAXIMUM |

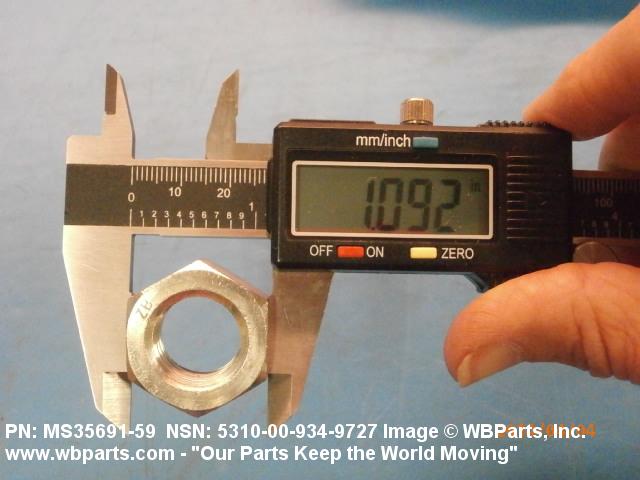

| WIDTH ACROSS FLATS | 1.0880 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35691-59 |
Restrictions/Controls & Freight Information | NSN 5310-00-934-9727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
