NSN 5310-00-922-9081 MS20364D428, MS21083D4, 68NTE048
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-922-9081 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20364D428, MS21083D4, 68NTE048, 5310-00-922-9081, 00-922-9081, 5310009229081, 009229081
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JAN 1966 | 00-922-9081 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

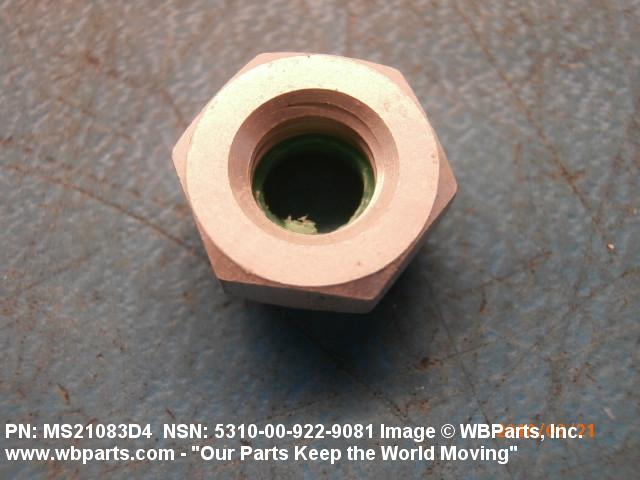

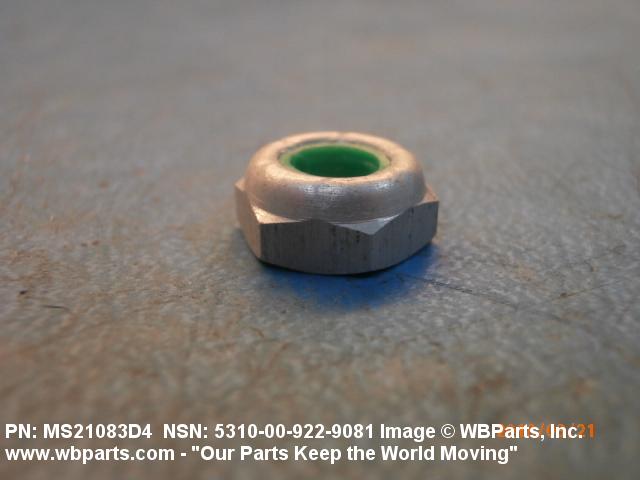

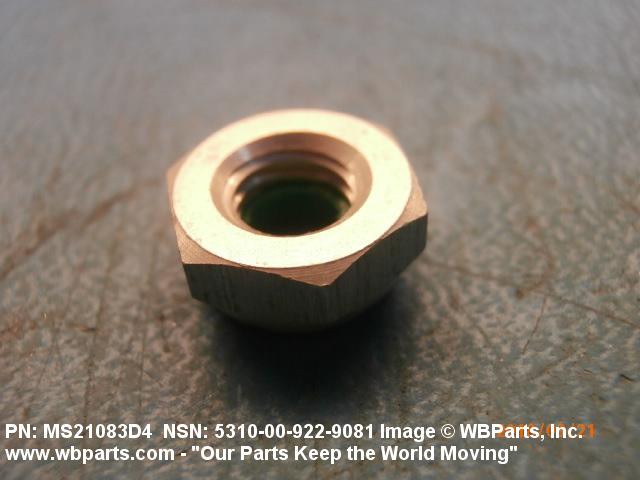

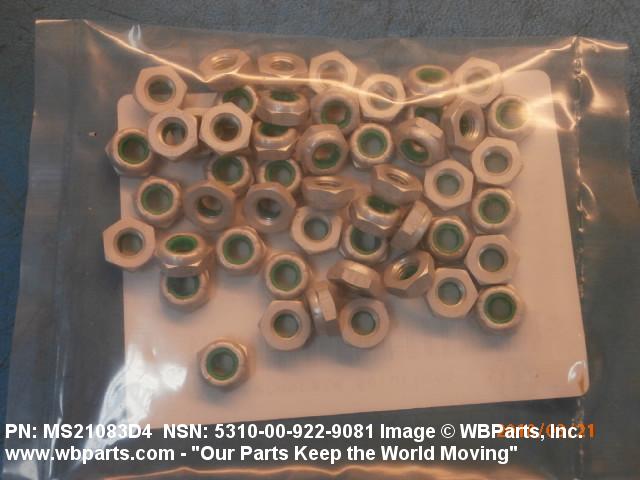

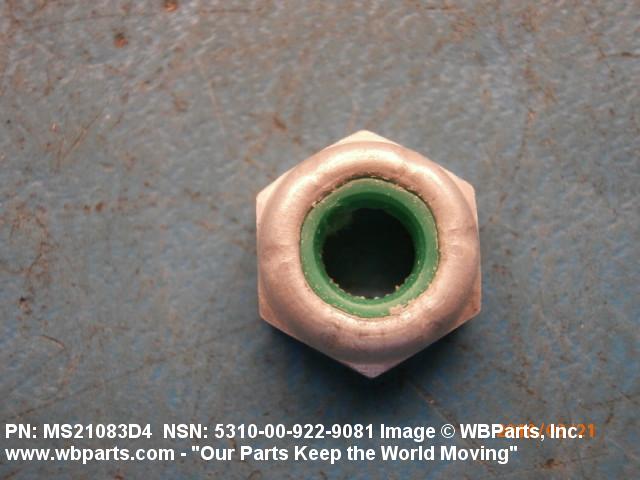

Drawings & Photos | NSN 5310-00-922-9081
Demand History | NSN 5310-00-922-9081
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-922-9081 | 2024-07-199 | 15 | us |
| MS21083D4 | 2018-02-57 | 1 | United States |
| 5310-00-922-9081 | 2016-06-154 | 4500 | DIBBS |
| 5310-00-922-9081 | 2014-09-258 | 4400 | DIBBS |
| 5310-00-922-9081 | 2014-09-245 | 4400 | DIBBS |
| 5310-00-922-9081 | 2009-05-132 | 120 | US |
| MS20364D428 | 2009-03-84 | 2 | China |
| MS20364D428 | 2009-03-84 | 7 | China |
Cross Reference | NSN 5310-00-922-9081
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-922-9081
Related Products | NSN 5310-00-922-9081
Technical Data | NSN 5310-00-922-9081
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

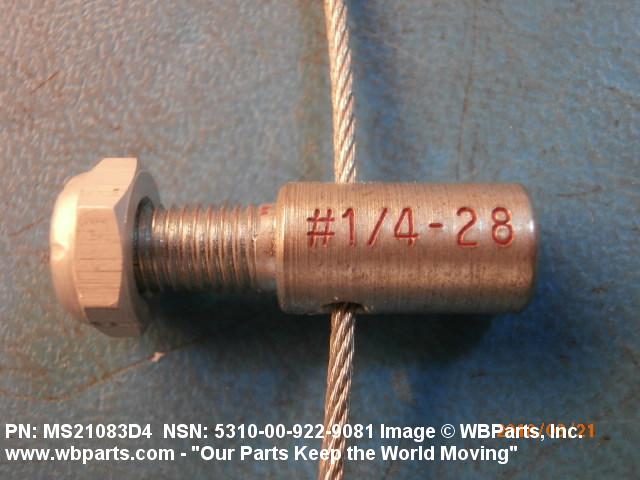

| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT ALUMINUM ALLOY NUT |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

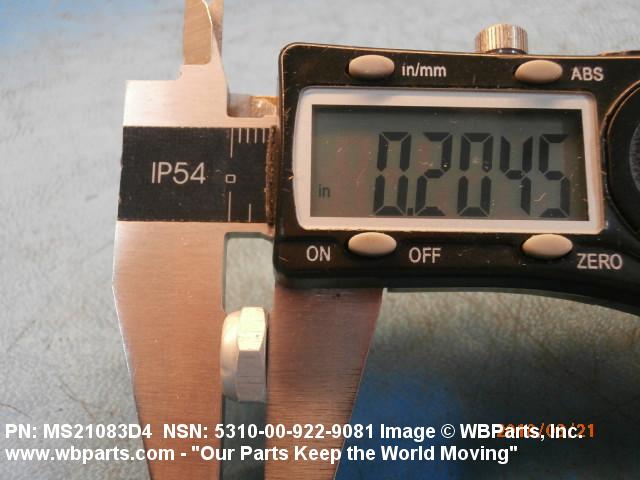

| NUT HEIGHT | 0.219 INCHES MAXIMUM |

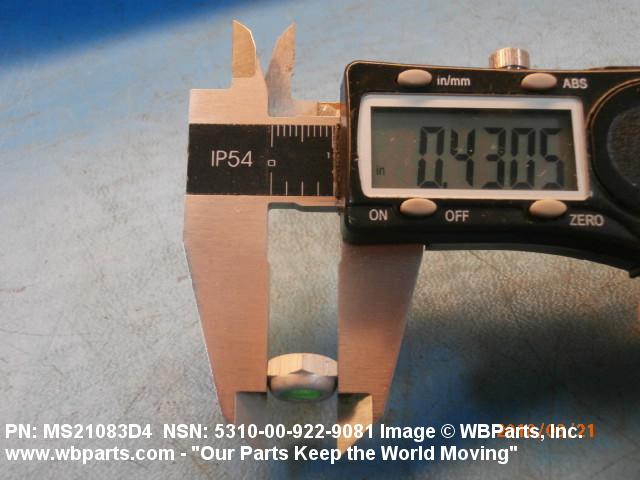

| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |

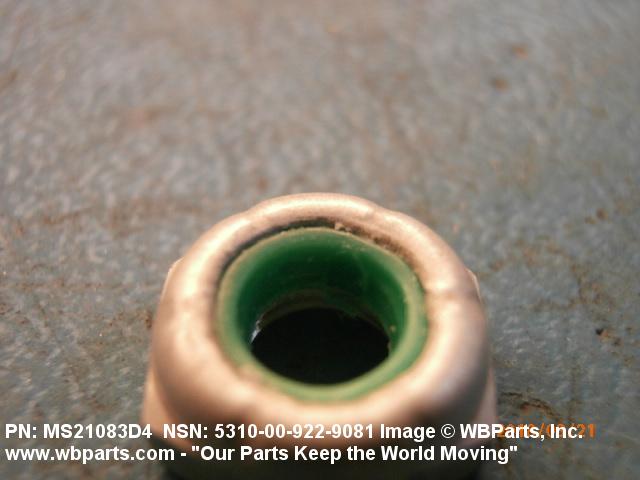

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES MINIMUM NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| III END ITEM IDENTIFICATION | SONAR SETS, AN/BQS-14A/15;ARLEIGH BURKE CLASS DDG;AIRCRAFT (AC-130H, MC-130H, EC-130E, HC-130);AIRCRAFT, OSPREY V-22A, MARINE CORPS;AIRCRAFT, AIRLIFTER C-17A;SURFACE MINESWEEPING SYSTEMS;LOS ANGELES CLASS SSN (688);ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B);AIRCRAFT, OSPREY V-22A, AIR FORCE;AH-64-D LONGBOW; TICONDEROGA CLASS CG (47);FMS - BUILD FRIGATES CLASS SHIPS |
Restrictions/Controls & Freight Information | NSN 5310-00-922-9081
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
