NSN 5310-00-904-5786 BACN10B10L, BH00451 10A, BH0045110A
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

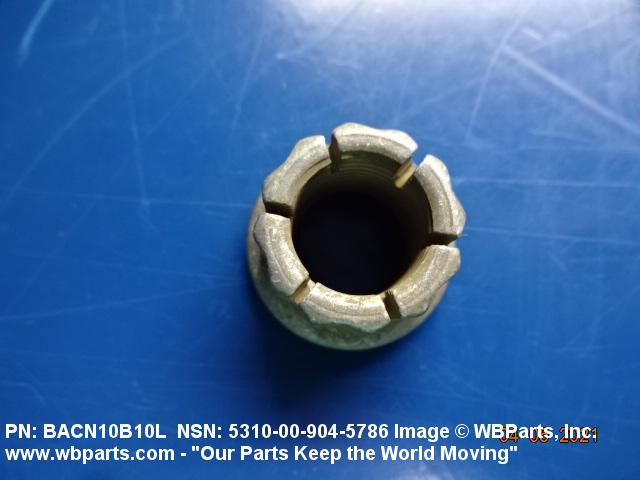

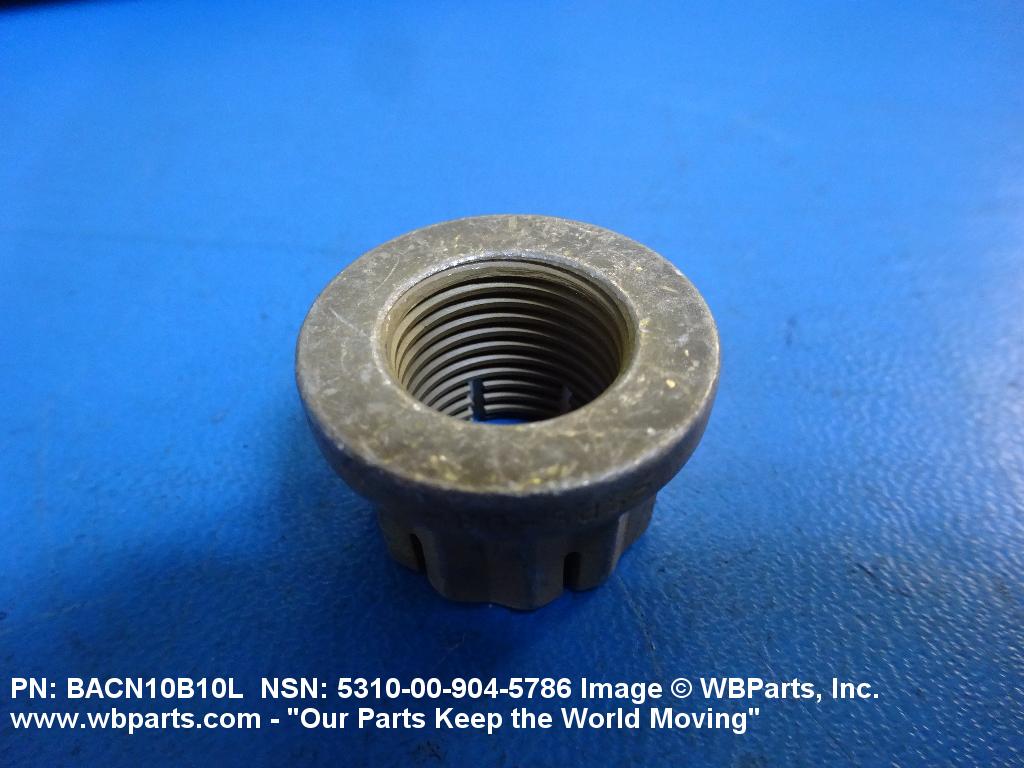

5310-00-904-5786 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10B10L, BH00451 10A, BH0045110A, LHEB220108, LHEB220-108, 11070247, 57585-1018, 5310-00-904-5786, 00-904-5786, 5310009045786, 009045786, 575851018
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-904-5786 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

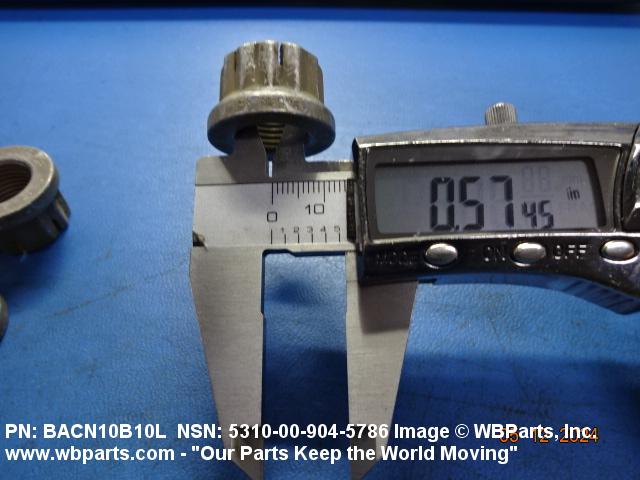

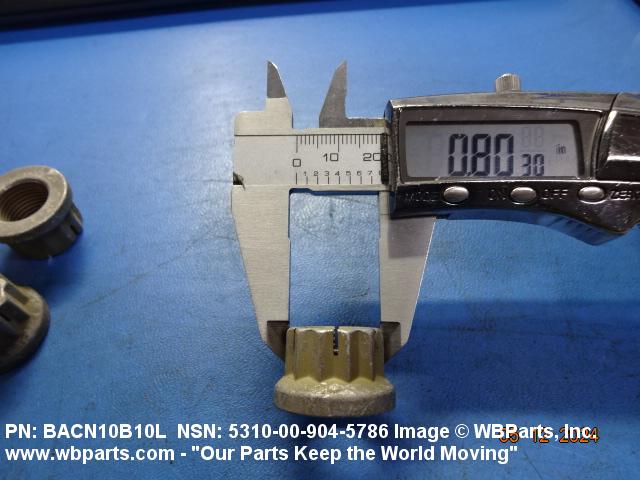

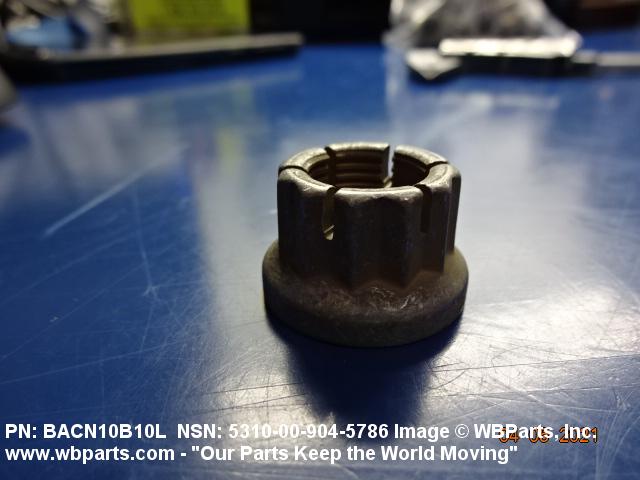

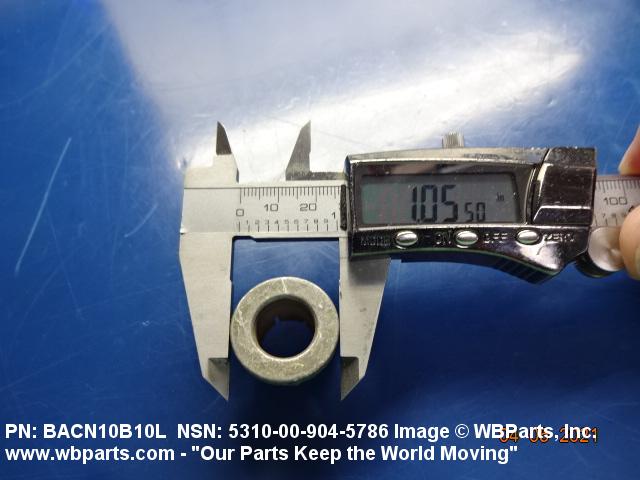

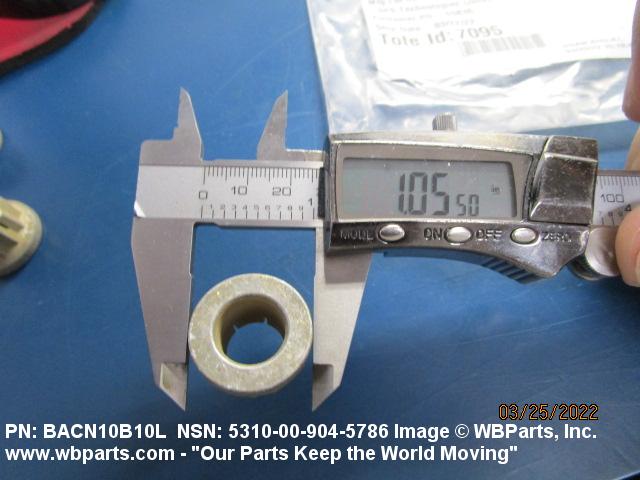

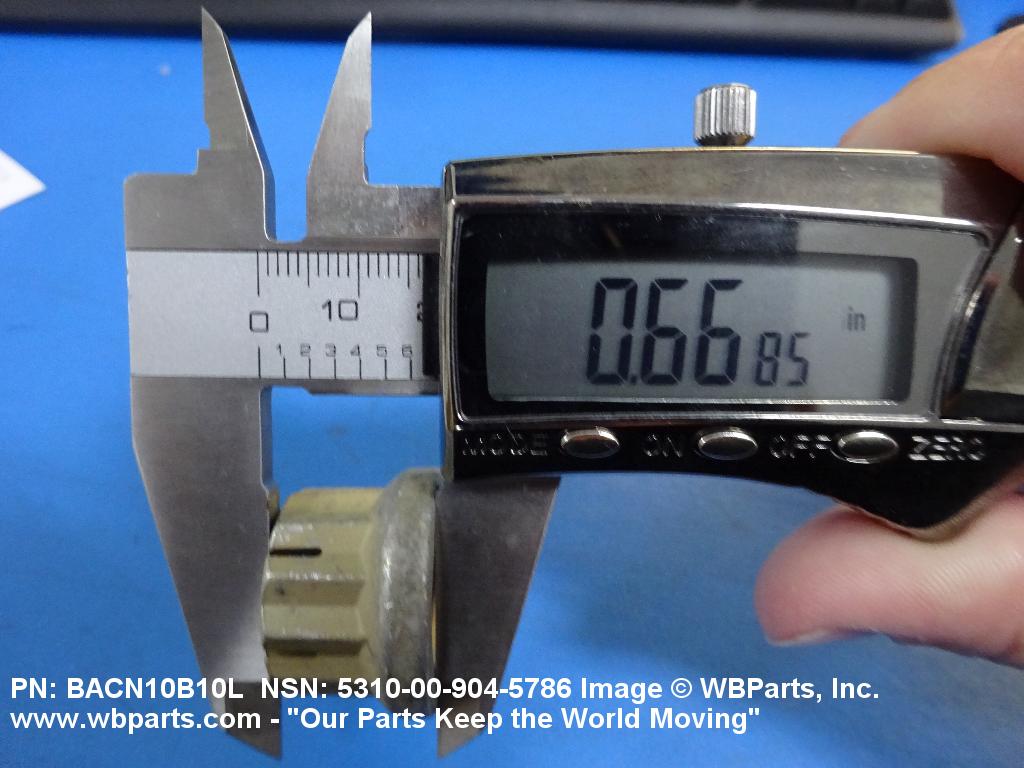

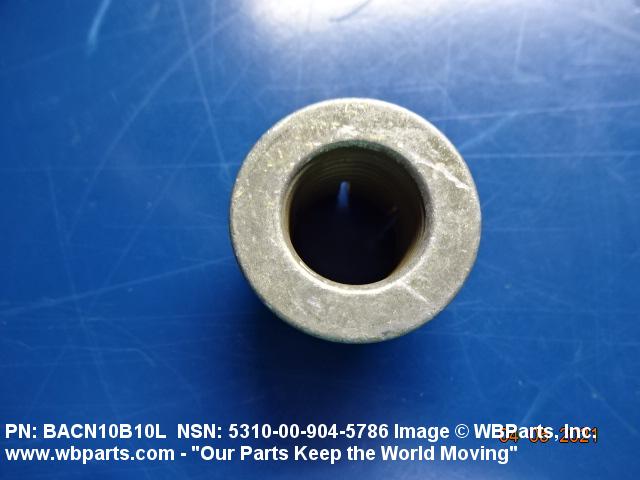

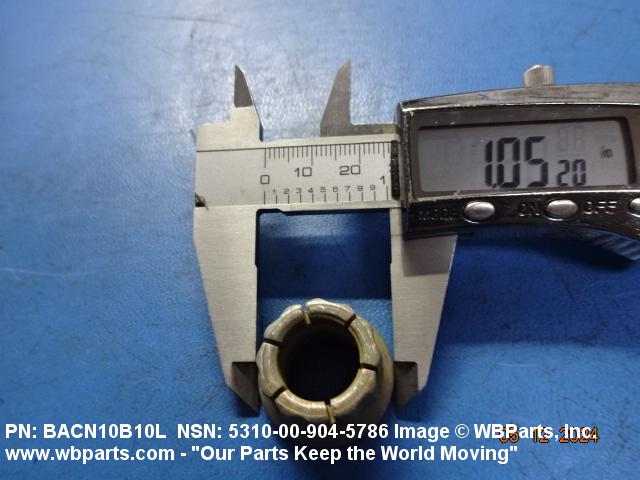

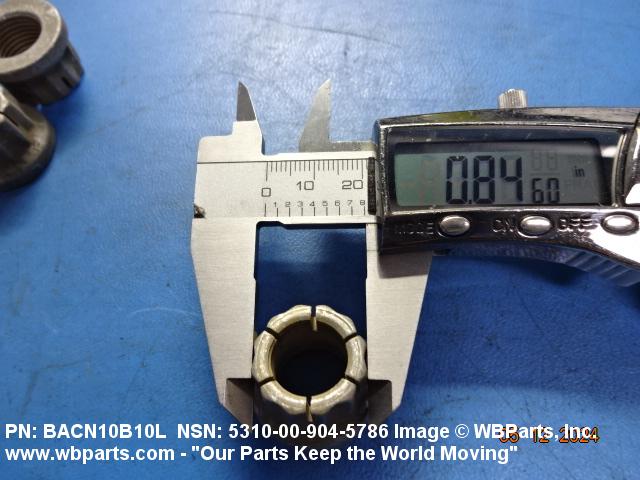

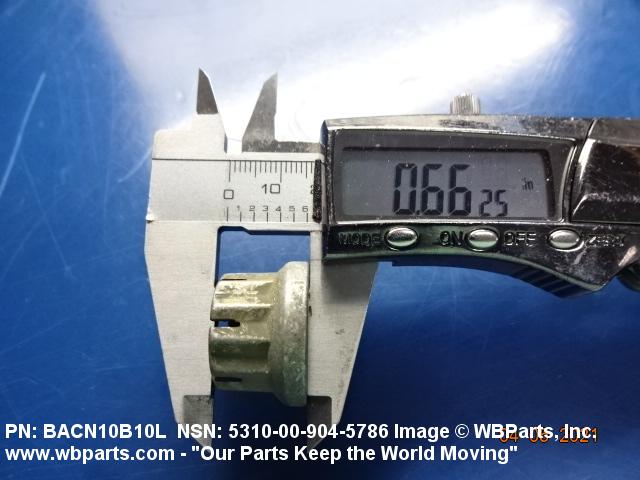

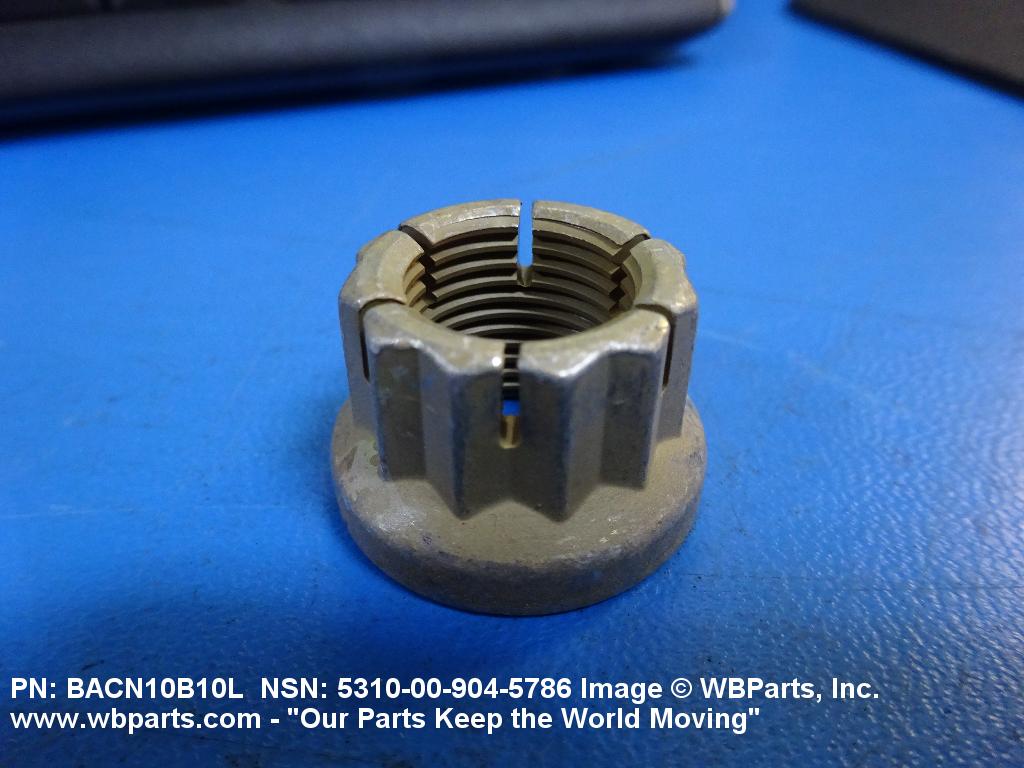

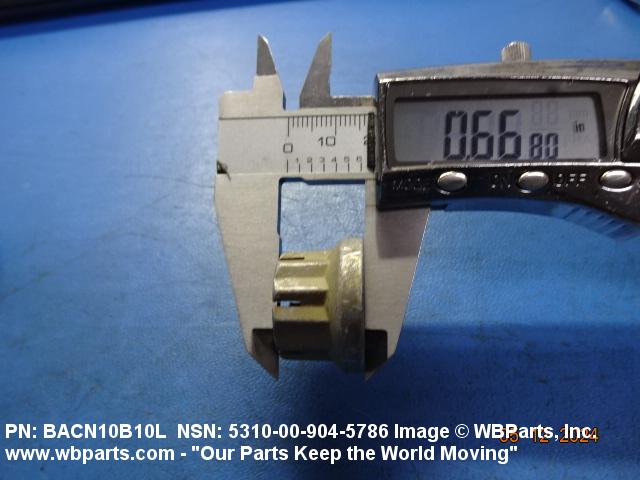

Drawings & Photos | NSN 5310-00-904-5786
Demand History | NSN 5310-00-904-5786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-904-5786 | 2024-11-317 | 10 | United States |
| 5310-00-904-5786 | 2024-04-114 | 10 | NG |
| 5310-00-904-5786 | 2024-04-103 | 20 | United States |
| 5310-00-904-5786 | 2023-11-319 | 1 | United States |
| 5310-00-904-5786 | 2023-11-314 | 1 | US |
| 575851018 | 2022-11-311 | 2 | United States |
| 5310-00-904-5786 | 2022-08-231 | 4 | United States |
| 5310-00-904-5786 | 2022-03-80 | 20 | United States |
| 5310-00-904-5786 | 2022-02-54 | 30 | United States |
| 5310-00-904-5786 | 2021-03-84 | 22 | United States |
| 5310-00-904-5786 | 2018-12-345 | 9529 | DIBBS |
| 5310-00-904-5786 | 2018-09-246 | 9529 | DIBBS |
| 5310-00-904-5786 | 2018-07-190 | 12700 | DIBBS |
| 5310-00-904-5786 | 2018-06-178 | 2100 | DIBBS |
| 5310-00-904-5786 | 2018-06-163 | 4815 | DIBBS |
| 5310-00-904-5786 | 2018-05-150 | 2100 | DIBBS |
| 5310-00-904-5786 | 2018-05-149 | 4815 | DIBBS |
| 5310-00-904-5786 | 2018-01-26 | 3870 | DIBBS |
| 5310-00-904-5786 | 2018-01-18 | 3870 | US |
| 5310-00-904-5786 | 2018-01-18 | 3870 | DIBBS |
| 5310-00-904-5786 | 2017-12-345 | 1612 | DIBBS |
| 5310-00-904-5786 | 2017-12-337 | 1612 | DIBBS |
| 5310-00-904-5786 | 2010-06-167 | 200 | Canada |
| 5310-00-904-5786 | 2006-10-295 | 3 | Turkey |
| 5310-00-904-5786 | 2006-10-294 | 3 | Turkey |
| 5310-00-904-5786 | 2006-10-294 | 3 | Turkey |
Cross Reference | NSN 5310-00-904-5786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11070247 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11070247 | 27238 | BRISTOL INDUSTRIES |
| 57585-1018 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 57585-1018 | 72962 | HARVARD INDUSTRIES INC |
| BACN10B10L | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| BACN10B10L | 72962 | HARVARD INDUSTRIES INC |
| BH00451 10A | 27238 | BRISTOL INDUSTRIES |
| LHEB220-108 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| LHEB220-108 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-904-5786
Related Products | NSN 5310-00-904-5786
Technical Data | NSN 5310-00-904-5786
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A293 DOUBLE HEXAGON |

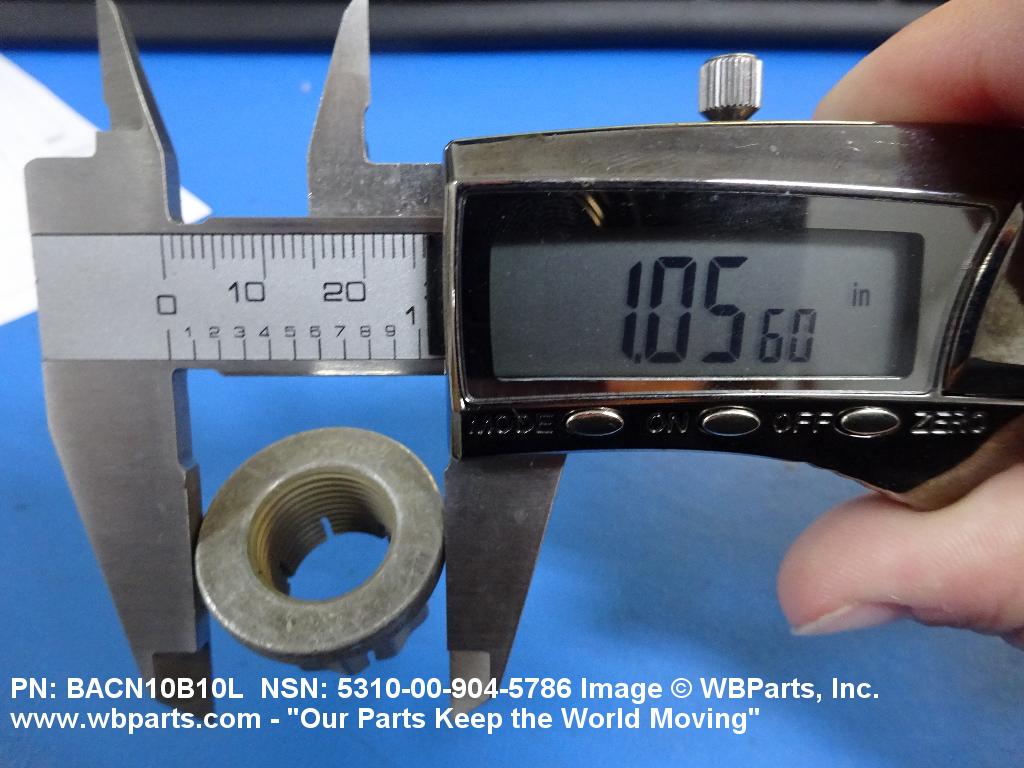

| WASHER OUTSIDE DIAMETER | 1.062 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.692 INCHES MAXIMUM |

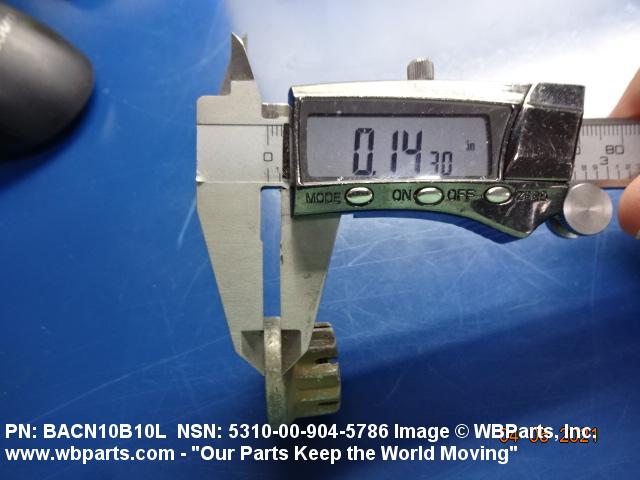

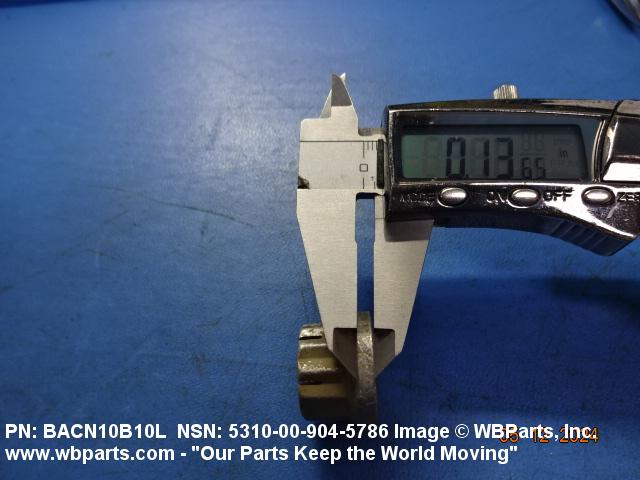

| WASHER THICKNESS | 0.132 INCHES NOMINAL |

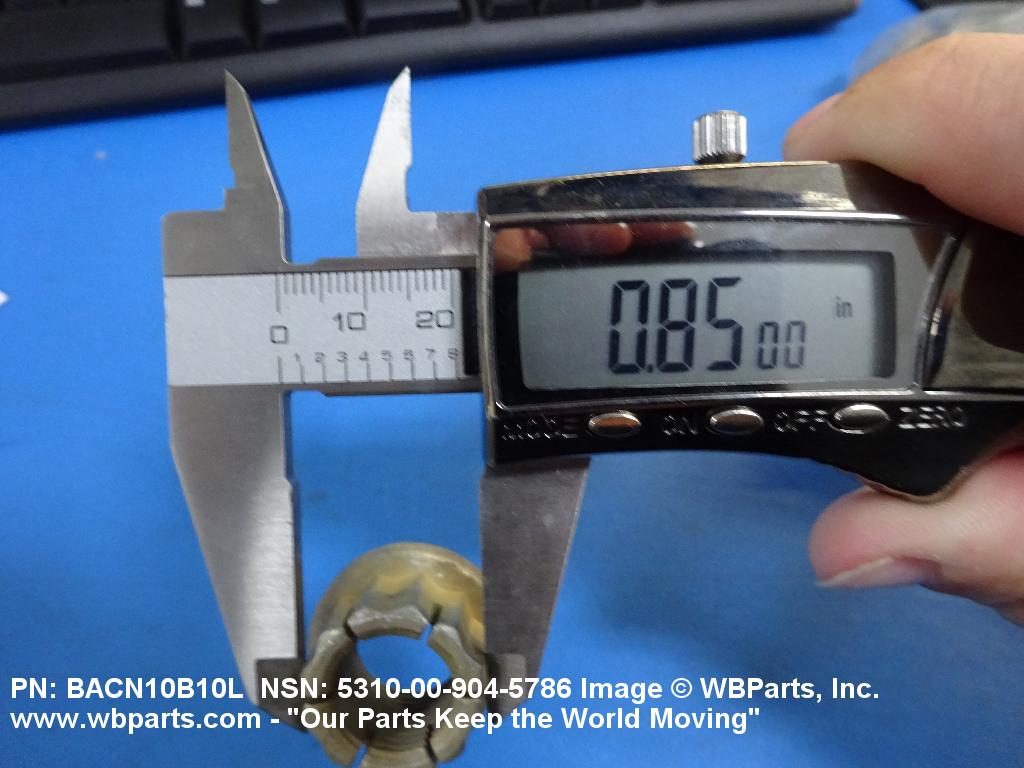

| WIDTH ACROSS FLATS | 0.772 INCHES MINIMUM AND 0.783 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 56878 |
| DESIGN CONTROL REFERENCE | 57585-1018 |
Restrictions/Controls & Freight Information | NSN 5310-00-904-5786
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
