NSN 5310-00-902-9369 MS20364820C, MS20364-820C, MS21083N8
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-902-9369 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS20364820C, MS20364-820C, MS21083N8, NAS1022N8, F52NTE080, F52NTE-080, 80336600, 803366-00, 923AS159 PC 16, 923AS159PC16, 01012, 010-12 , 21110 FIND 35, 21110FIND35, 5009044460, 500904-4460 , 52NTE080, 52NTE-080, 5310-00-902-9369, 00-902-9369, 5310009029369, 009029369
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-902-9369 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

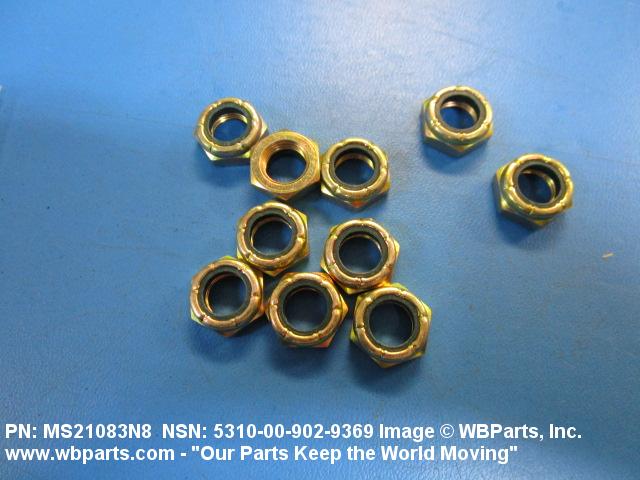

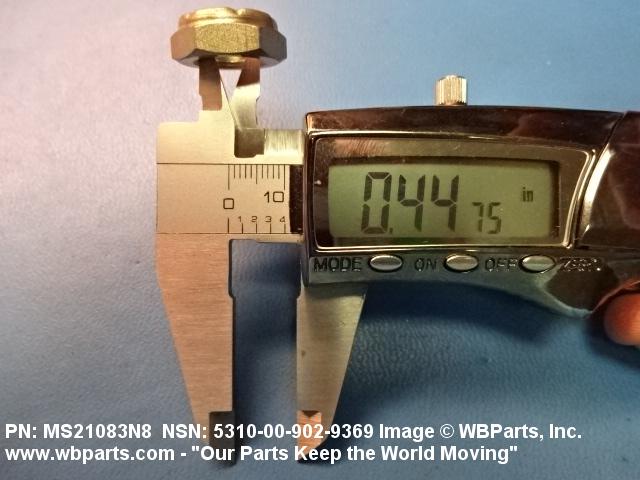

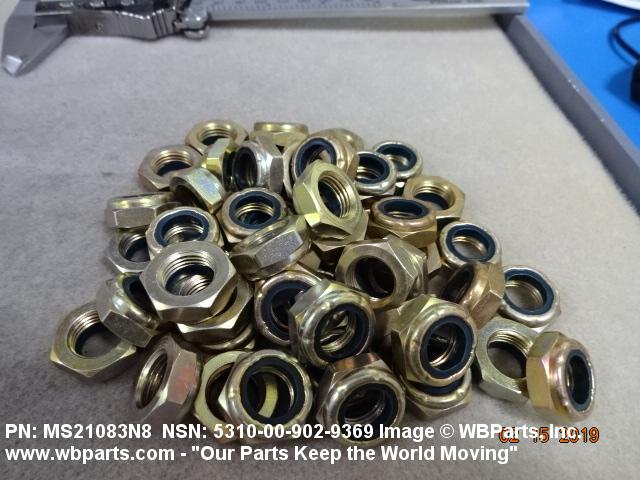

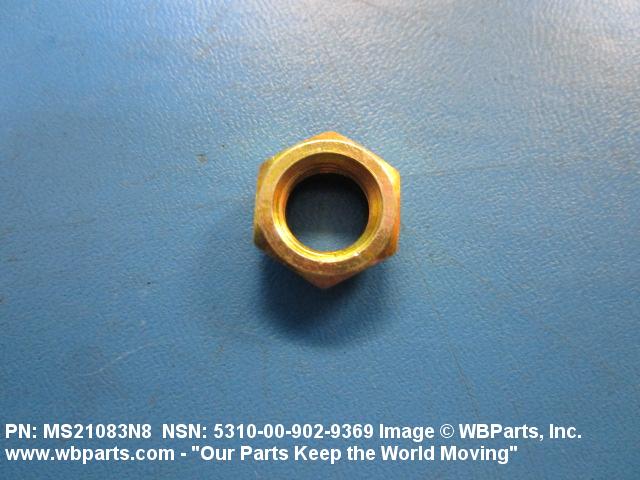

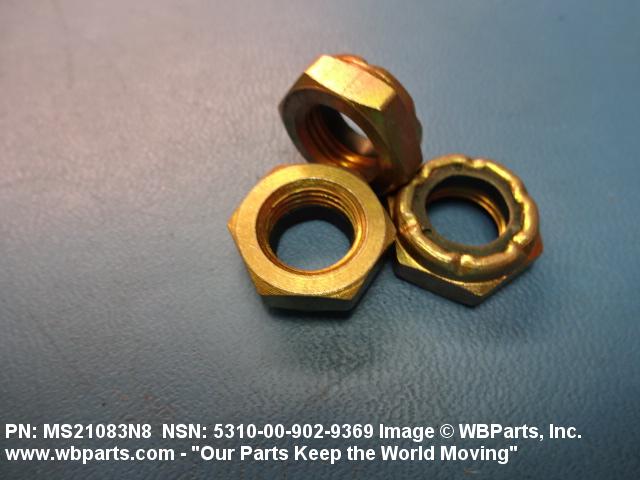

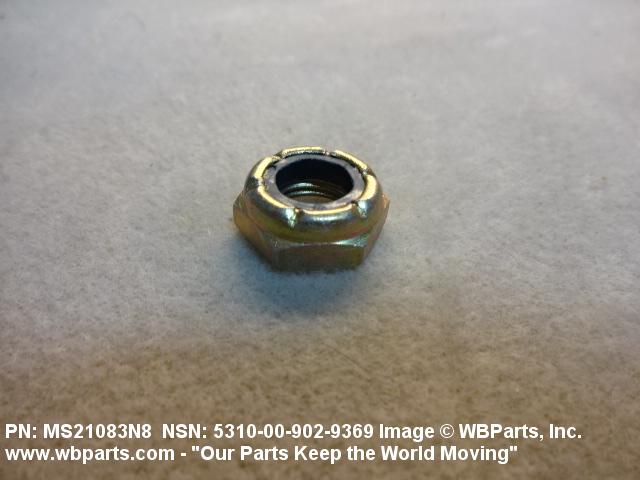

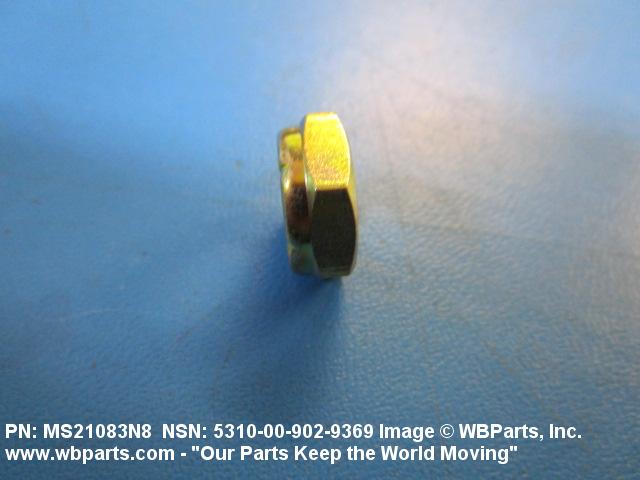

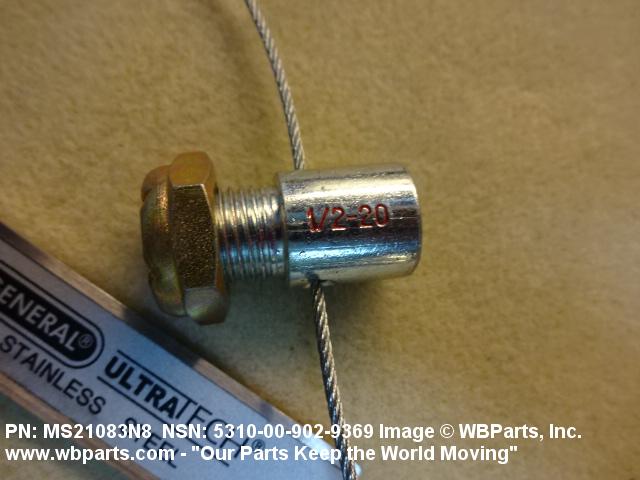

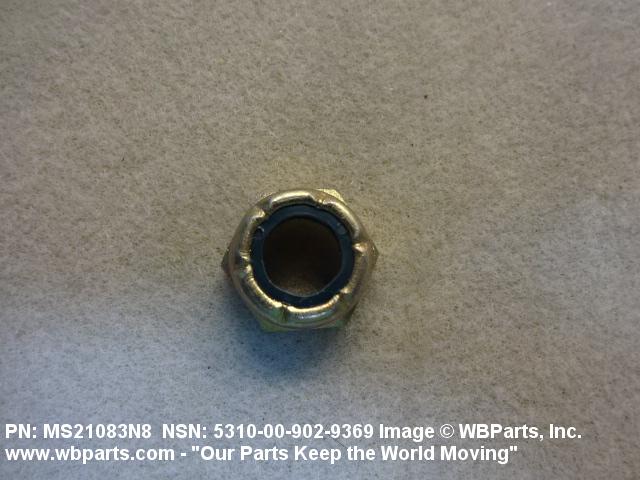

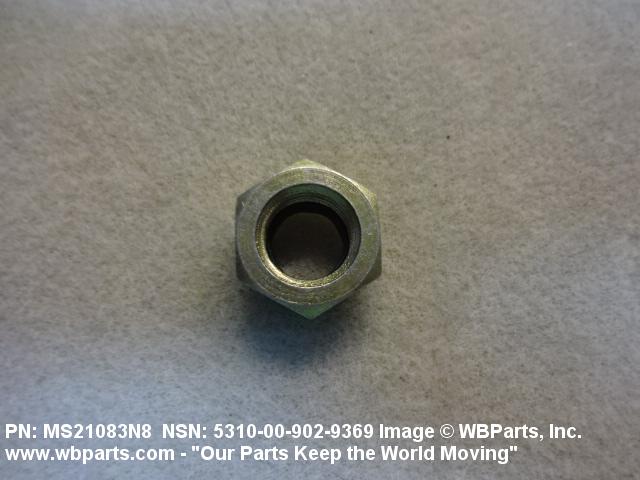

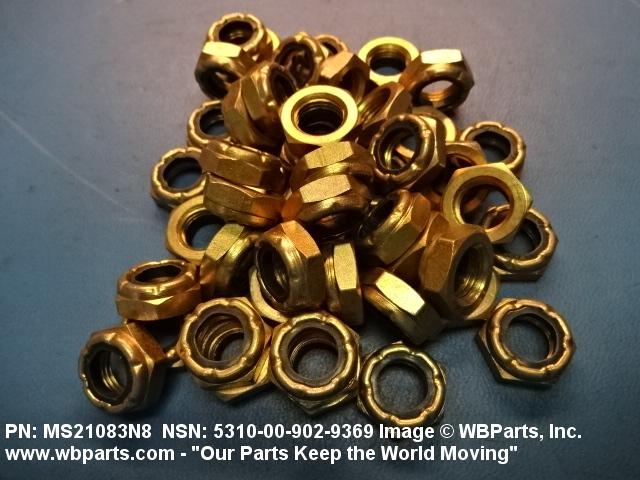

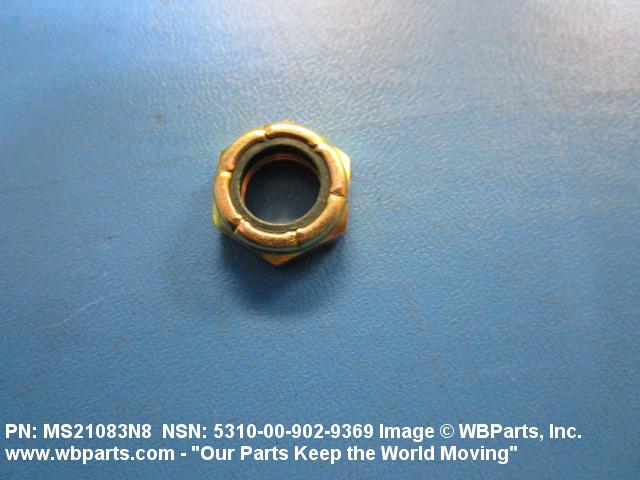

Drawings & Photos | NSN 5310-00-902-9369
Demand History | NSN 5310-00-902-9369
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-902-9369 | 2021-07-187 | 20 | Turkey |
| 5310-00-902-9369 | 2021-04-97 | 2 | US |
| 52NTE080 | 2021-02-55 | 1000 | US |
| MS21083N8 | 2020-03-71 | 4 | US |
| 5310-00-902-9369 | 2019-01-13 | 192 | DIBBS |
| 5310-00-902-9369 | 2018-11-311 | 15 | MANUAL |
| 5310-00-902-9369 | 2018-10-290 | 26 | DIBBS |
| 5310-00-902-9369 | 2018-10-282 | 26 | DIBBS |
| 5310-00-902-9369 | 2018-09-260 | 10 | DIBBS |
| MS21083N8 | 2018-04-120 | 4 | US |
| 5310-00-902-9369 | 2018-01-01 | 414 | DIBBS |
| 5310-00-902-9369 | 2017-12-353 | 10 | DIBBS |
| 5310-00-902-9369 | 2017-11-325 | 20 | EG |
| 5310-00-902-9369 | 2017-11-323 | 25 | EG |
| 5310-00-902-9369 | 2017-06-177 | 598 | DIBBS |
| MS21083N8 | 2016-07-201 | 50 | United States |
| MS20364820C | 2016-07-201 | 100 | AU |
| 5310-00-902-9369 | 2016-07-200 | 25 | DIBBS |
| 5310-00-902-9369 | 2016-06-181 | 108 | DIBBS |
| MS21083N8 | 2016-05-131 | 10 | Egypt |
| 5310-00-902-9369 | 2014-04-120 | 331 | DIBBS |
| 5310-00-902-9369 | 2014-01-06 | 1010 | DIBBS |
| 5310-00-902-9369 | 2013-12-356 | 1010 | DIBBS |
| MS20364820C | 2012-08-242 | 6 | AE |
| NAS1022N8 | 2012-08-229 | 50 | |
| 5310-00-902-9369 | 2012-07-205 | 359 | DIBBS |
| MS20364-820C | 2012-02-54 | 53 | China |
| MS21083N8 | 2011-10-304 | 18 | United States |
| MS21083N8 | 2011-09-251 | 2 | US |
| 5310-00-902-9369 | 2011-08-223 | 20 | UK |
| 5310-00-902-9369 | 2011-06-160 | 200 | United States |
| MS21083N8 | 2011-06-159 | 200 | United States |
| MS21083N8 | 2010-09-264 | 100 | US |
| 5310-00-902-9369 | 2010-06-168 | 128 | US |
| 5310-00-902-9369 | 2010-03-90 | 10000 | United States |
| MS21083N8 | 2009-07-205 | 500 | US |
| MS21083N8 | 2009-07-205 | 1000 | US |
| MS21083N8 | 2009-07-205 | 1500 | US |
| 5310-00-902-9369 | 2009-04-119 | 3000 | US |
Cross Reference | NSN 5310-00-902-9369
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21110 FIND 35 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 52NTE-080 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5310009029369 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 803366-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 923AS159 PC 16 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| F52NTE-080 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52NTE-080 | 72962 | HARVARD INDUSTRIES INC |
| MS20364-820C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21083N8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21083N8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21083N8 | A9271 | GORIZIANE GROUP SPA |
| MS21083N8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1022N8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-902-9369
Related Products | NSN 5310-00-902-9369
Technical Data | NSN 5310-00-902-9369
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES NUT |
| HARDNESS RATING | 35.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A12 HEXAGON |

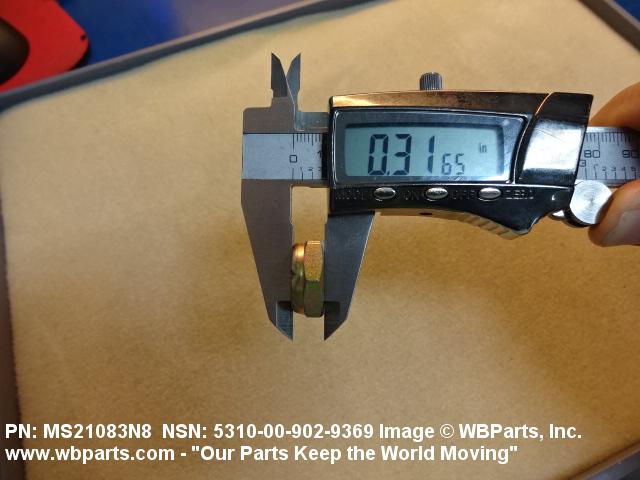

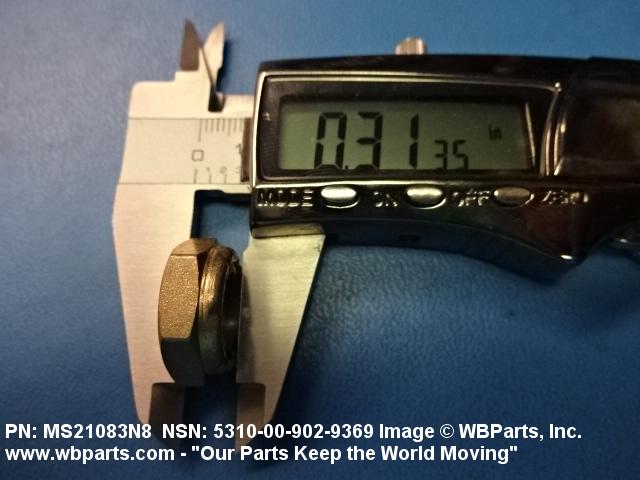

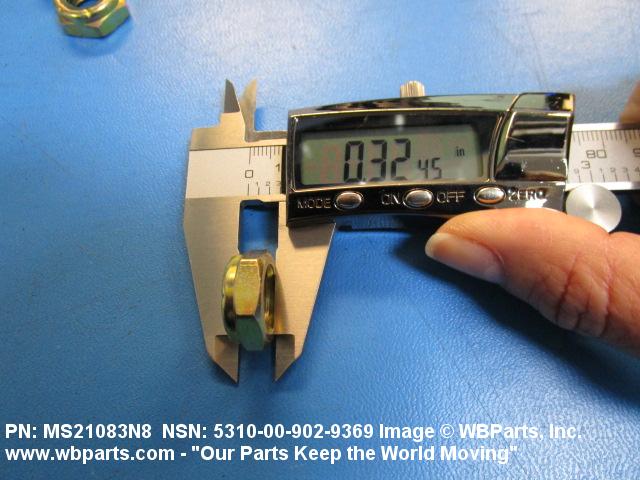

| NUT HEIGHT | 0.328 INCHES MAXIMUM |

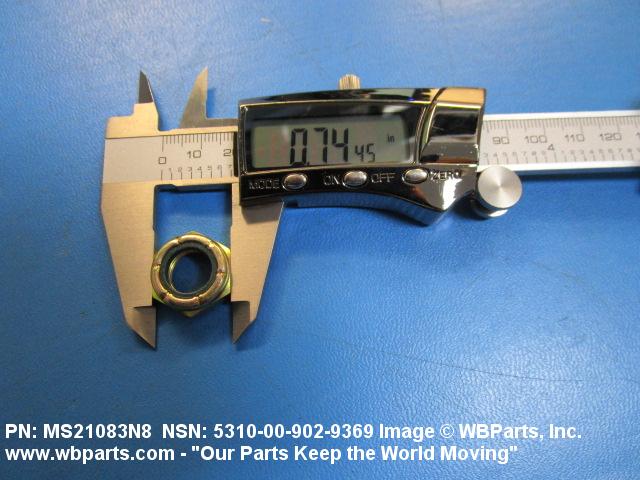

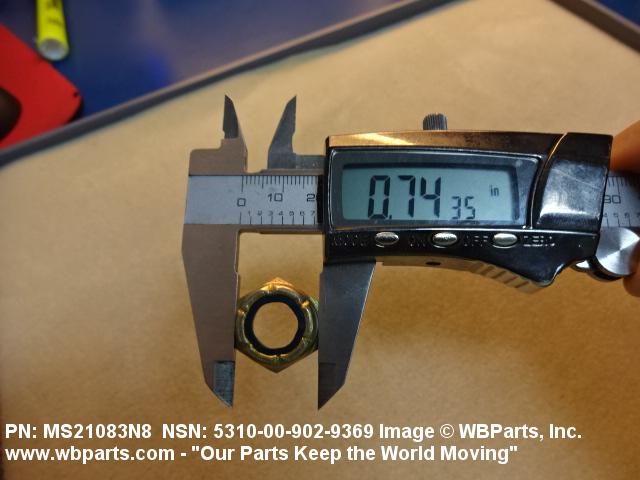

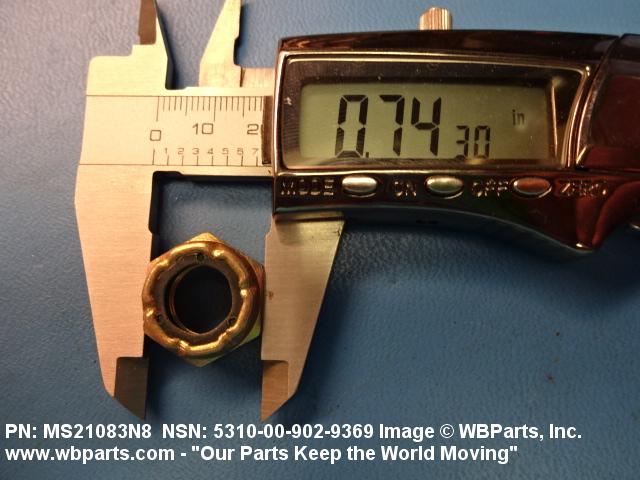

| WIDTH ACROSS FLATS | 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES MINIMUM NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-00-902-9369
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-902-9369
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
