NSN 5310-00-899-0194 00433, 114D30441, 114D3044-1
Product Details | FLAT WASHER
5310-00-899-0194 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 00433, 114D30441, 114D3044-1, 5310-00-899-0194, 00-899-0194, 5310008990194, 008990194
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-899-0194 | 13393 ( WASHER, FLAT ) |

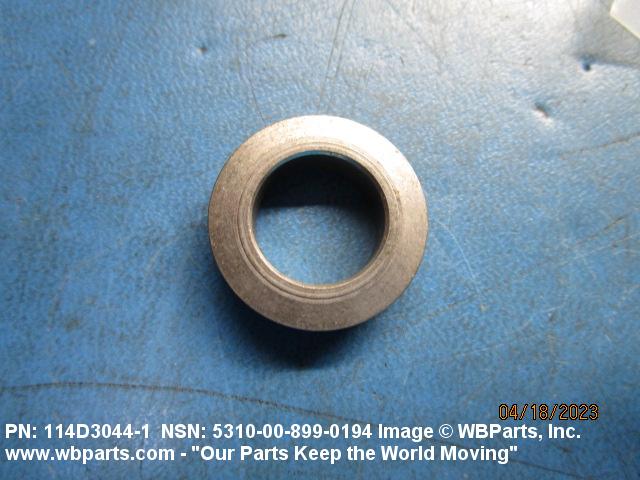

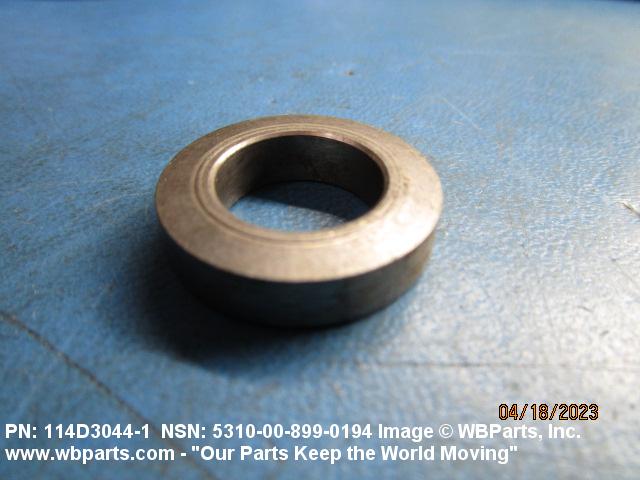

Drawings & Photos | NSN 5310-00-899-0194
Demand History | NSN 5310-00-899-0194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114D30441 | 2023-03-83 | 18 | United States |
| 114D3044-1 | 2019-12-339 | 42 | DIBBS |
| 114D3044-1 | 2019-09-272 | 2055 | DIBBS |
| 5310-00-899-0194 | 2019-07-211 | 2000 | Singapore |
| 114D3044-1 | 2019-06-169 | 4543 | DIBBS |
| 5310-00-899-0194 | 2017-09-251 | 3298 | DIBBS |
| 5310-00-899-0194 | 2017-09-250 | 3298 | DIBBS |
| 5310-00-899-0194 | 2017-08-241 | 3298 | DIBBS |
| 5310-00-899-0194 | 2015-10-286 | 6033 | DIBBS |
| 5310-00-899-0194 | 2015-09-258 | 3891 | DIBBS |
| 5310-00-899-0194 | 2015-08-235 | 3891 | DIBBS |
| 5310-00-899-0194 | 2015-04-103 | 4347 | DIBBS |
| 5310-00-899-0194 | 2015-04-92 | 4347 | DIBBS |
| 5310-00-899-0194 | 2015-02-53 | 1551 | DIBBS |
| 5310-00-899-0194 | 2014-02-56 | 2246 | DIBBS |
| 5310-00-899-0194 | 2014-02-41 | 2246 | DIBBS |
| 114D3044-1 | 2012-05-146 | 1389 | US |
| 114D3044-1 | 2012-05-144 | 1389 | US |
| 5310-00-899-0194 | 2009-07-197 | 400 | United Arab Emirates |
| 5310-00-899-0194 | 2006-08-235 | 24 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-899-0194
Related Products | NSN 5310-00-899-0194
Technical Data | NSN 5310-00-899-0194
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND H FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

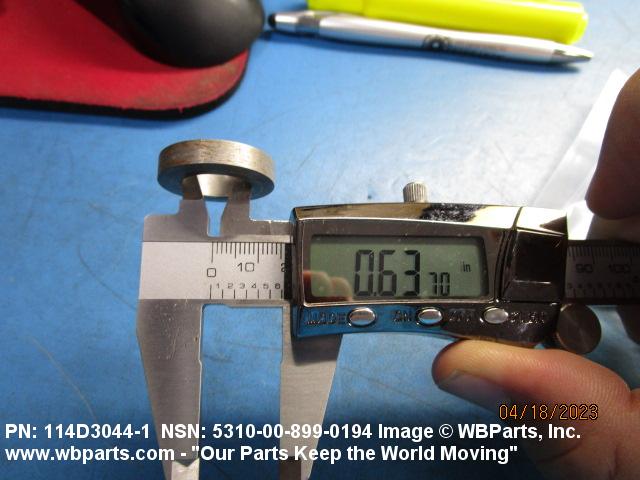

| HOLE DIAMETER | 0.630 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

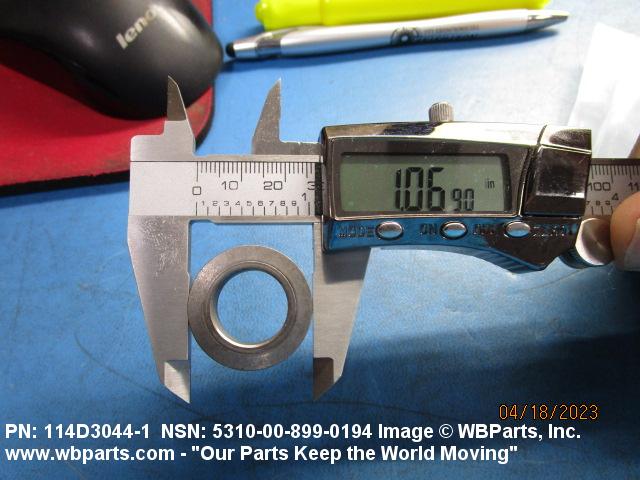

| OVERALL DIAMETER | 1.060 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 4 RECTANGULAR |

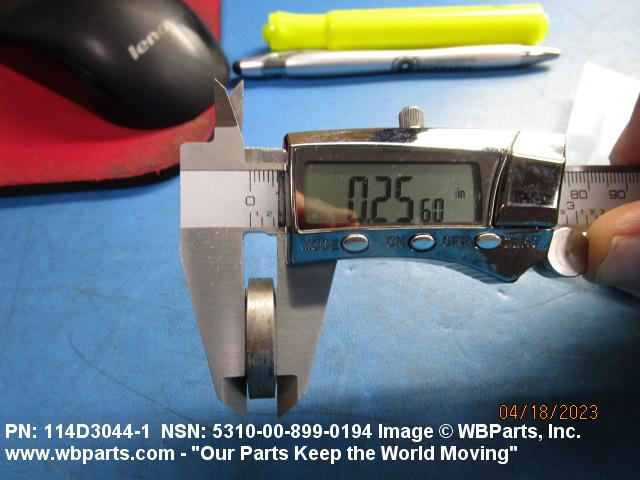

| THICKNESS | 0.250 INCHES NOMINAL |
