NSN 5310-00-893-2734 MS356441, MS35644-1 , MF600008

Product Details | PLATE SELF-LOCKING NUT

5310-00-893-2734 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS356441, MS35644-1 , MF600008, MF6000-08, MF600008T2, MF6000-08T2, AAL2162 , AAL2264, HE114-0015 -000, HE1140015000, STBN10RC8, RM52LHA22782, RM52LHA227-82, JHP420231, JHP42-023-1 , FDN0125003, FD-N0125-003, 7902143-02, 9501323, 950132-3, 04150-0139 , 1063003121, 10630031-21, 1140144004, 114-0144-004, 21612087, 2161-2087 , 4129333, 412933-3, 575R784H07, 7071016002, 7071016-002, 5310-00-893-2734, 00-893-2734, 5310008932734, 2910008932592 , 041500139, 790214302, 008932734

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-893-2734	05280 ( NUT, SELF-LOCKING, PLATE )

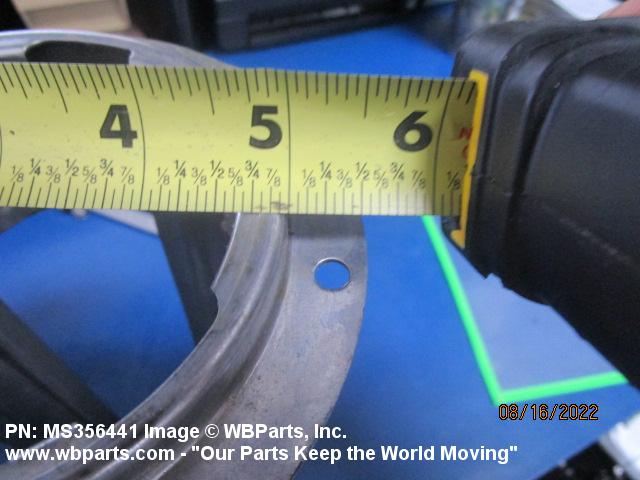

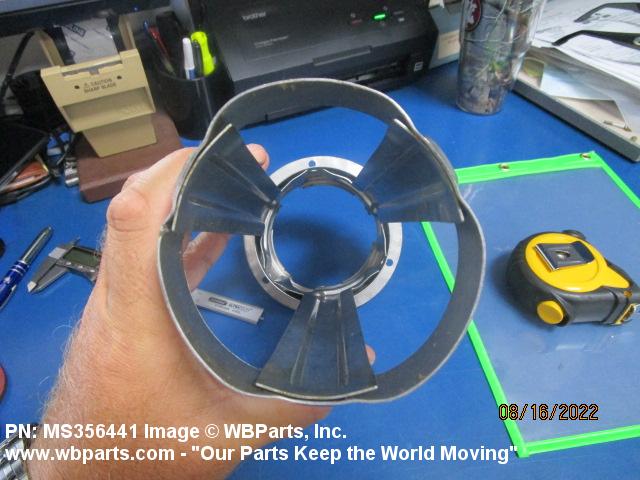

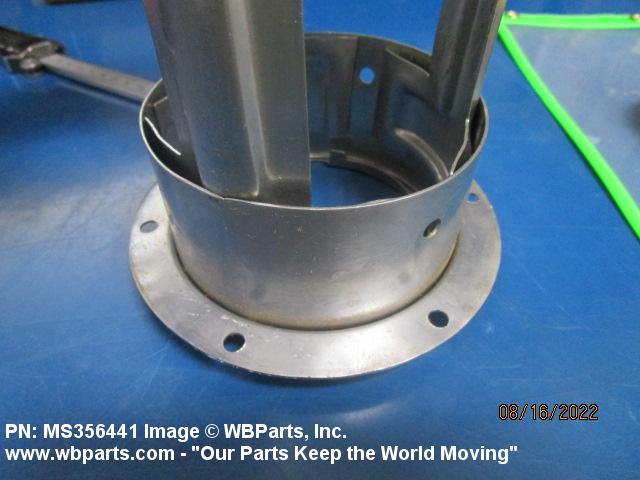

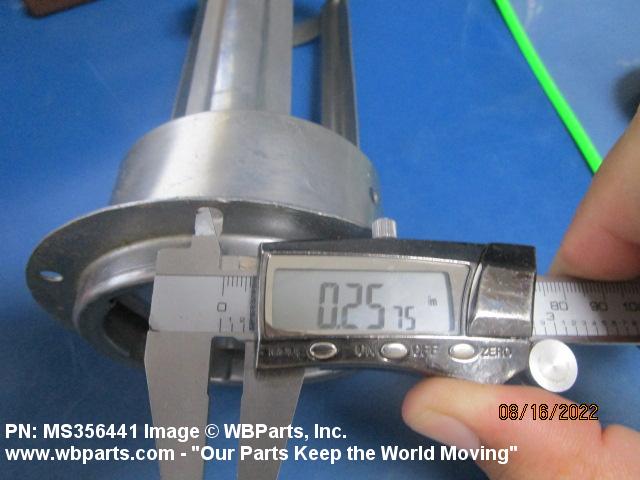

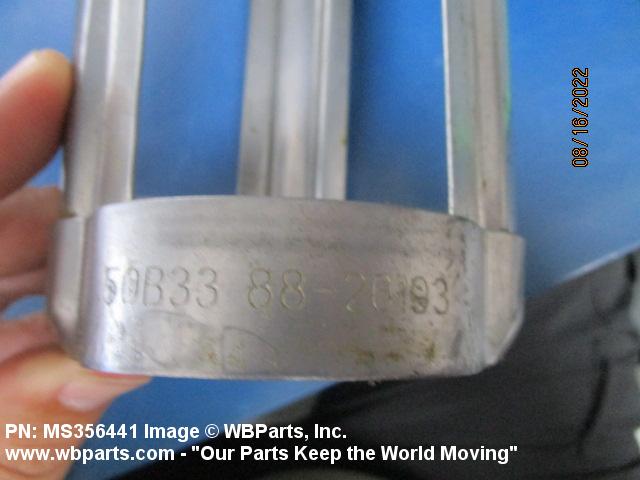

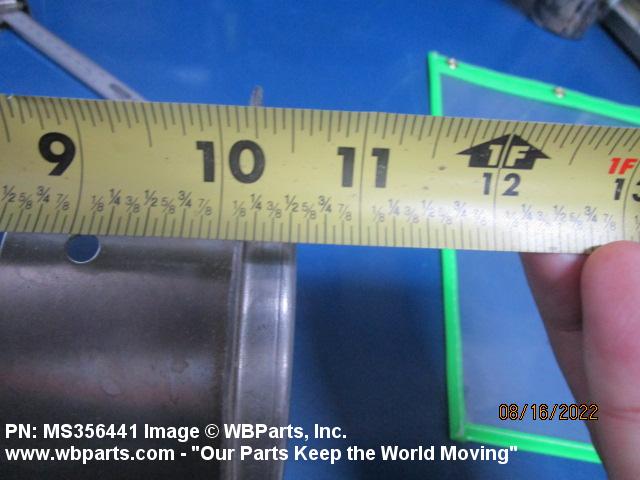

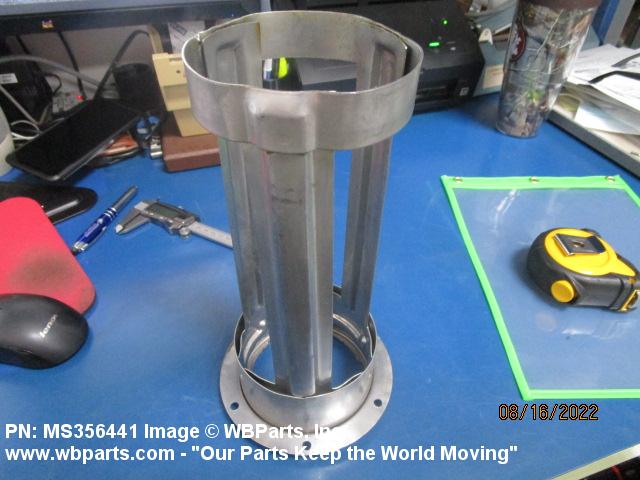

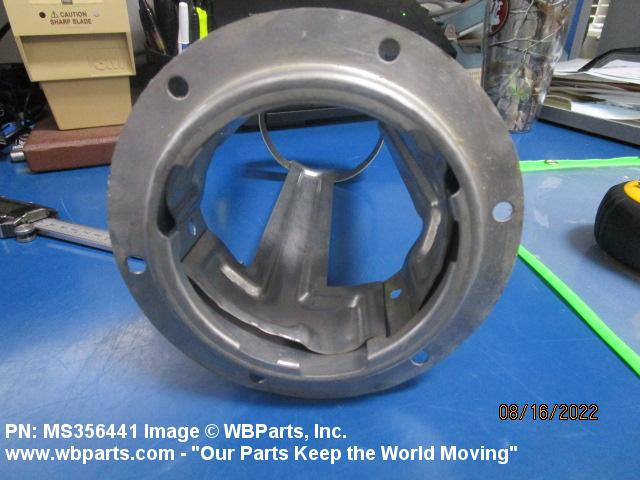

Drawings & Photos | NSN 5310-00-893-2734

Part Number	Request Date	QTY	Origin
MS356441	2022-10-284	6	United States
MS356441	2022-08-222	6	United States
MS356441	2022-02-48	2	United States
MS356441	2016-02-34	10	United States
MS356441	2014-01-21	1	United States
MF600008	2013-10-277	24	US
MS356441	2013-06-157	3	Greece
MS356441	2011-02-54	4	US
MS356441	2011-02-39	43	US
MS356441	2011-02-37	3	US
MS356441	2010-09-263	2000	US
MS356441	2010-07-204	900	US
MS356441	2010-05-124	360	US
MS356441	2009-09-266	5	United States
MS356441	2009-08-225	5	US
MS356441	2008-09-273	4	US
MS356441	2008-02-35	25	US
MS356441	2008-01-11	180	US
MS356441	2007-04-108	18	US
MS356441	2006-12-335	230	US

Cross Reference | NSN 5310-00-893-2734

Part Number	Cage Code	Manufacturer
10630031-21	18876	U S ARMY AVIATION AND MISSILE COMMAND
114-0144-004	94756	BOEING COMPANY, THE DBA BOEING
412933-3	96214	RAYTHEON COMPANY DBA RAYTHEON
575R784H07	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
7071016-002	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7902143-02	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
950132-3	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
950132-3	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
FD-N0125-003	33875	RAYTHEON E-SYSTEMS INC
HE114-0015 -000	89372	ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS
MF6000-08	15653	ALCOA GLOBAL FASTENERS, INC.
MF6000-08	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MF6000-08	R1120	SATAIR A/S
MF6000-08T2	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
RM52LHA227-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LHA227-82	72962	HARVARD INDUSTRIES INC
STBN10RC8	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-893-2734

Compare

Related Products | NSN 5310-00-893-2734

5310-00-893-2864, 5310-00-893-3146, 5310-00-893-3175, 5310-00-893-3212, 5310-00-893-3286

Technical Data | NSN 5310-00-893-2734

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A122 PLATE
NUT LENGTH	0.734 INCHES MAXIMUM
DISTANCE FROM BASE TO CENTER OF APERTURE	0.205 INCHES MINIMUM AND 0.215 INCHES MAXIMUM
NUT HEIGHT	0.205 INCHES MAXIMUM
PLATE THICKNESS	0.032 INCHES NOMINAL
PLATE WIDTH	0.415 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.062 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.168 INCHES MINIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F3 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM MOUNTING HOLE CENTER TO BASE	0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
TEMP RATING	500.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-893-2734

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	019100	AUTOMOBILS:PARTS,NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	586	unknown
Originating Activity Code	AJ	U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-893-2734

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
