NSN 5310-00-889-2589 MS21044C4, MS21044-C4, MS3574338

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-889-2589 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS21044C4, MS21044-C4, MS3574338, MS35743-38 , 4912794-01, 002003645005, 002-003645-005, 2168510142, 21685-10142, 4158067007, 4158067-007, 41580677, 4158067-7, 60076423, 60-07-6423, 9240-032-31, 5310-00-889-2589, 00-889-2589, 5320008892632 , 5310008892589, 211024766, 008892589, 491279401, 924003231

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-889-2589	05277 ( NUT, SELF-LOCKING, HEXAGON )

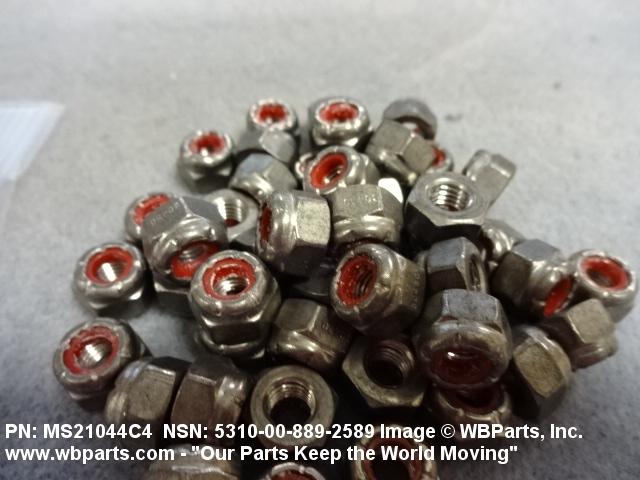

Drawings & Photos | NSN 5310-00-889-2589

Part Number	Request Date	QTY	Origin
MS21044C4	2024-06-162	100	us
MS21044C4	2024-05-129	2	US
MS21044C4	2023-09-268	200	Croatia
MS21044C4	2023-07-193	1	United States
MS21044C4	2023-02-48	250	US
MS21044C4	2022-10-291	20	United States
5310-00-889-2589	2022-04-115	1182	TW
5310-00-889-2589	2021-04-103	2	United States
MS21044-C4	2020-12-365	8	United States
5310-00-889-2589	2020-03-83	9	US
MS21044C4	2019-06-179	6	Turkey
5310-00-889-2589	2018-11-305	80	United States
5310-00-889-2589	2018-11-305	112	United States
MS21044C4	2018-10-282	23	United States
MS21044C4	2018-10-276	1500	United States
MS21044C4	2018-10-276	2002	United States
MS21044C4	2018-10-276	2502	United States
5310-00-889-2589	2018-10-276	90720	DIBBS
5310-00-889-2589	2018-05-130	1	DIBBS-RFPs
5310-00-889-2589	2018-01-11	208	US
5310-00-889-2589	2017-12-344	43045	DIBBS
5310-00-889-2589	2017-04-103	50	us
5310-00-889-2589	2016-07-202	25586	DIBBS
MS21044C4	2016-04-105	8	Canada
MS21044C4	2015-11-334	144	US
5310-00-889-2589	2015-09-267	17760	DIBBS
MS21044C4	2015-07-195	10	United States
MS21044C4	2014-11-328	4	US
5310-00-889-2589	2014-09-269	8	US
MS21044C4	2014-04-106	6	United States
MS21044C4	2014-04-100	8	United States
MS21044C4	2014-02-50	100	US
5310-00-889-2589	2013-08-231	4	US
5310-00-889-2589	2013-08-219	4	US
5310-00-889-2589	2013-07-200	8	US
MS21044C4	2013-05-140	10	United States
MS21044C4	2013-03-64	18	United Kingdom
MS21044C4	2012-10-295	4	United States
MS21044C4	2012-10-295	4	United States
MS21044C4	2012-04-93	104	US
MS21044C4	2012-03-65	4	US
5310-00-889-2589	2011-07-210	5272	DIBBS
MS21044C4	2011-06-178	48	United States
MS21044C4	2010-12-356	1	Italy
MS21044C4	2010-10-299	25	United States
5310-00-889-2589	2010-09-259	130	RO
MS21044C4	2009-12-356	50	US
5310-00-889-2589	2009-12-338	4075	Italy
MS21044C4	2009-11-313	100	Czech Republic
5310-00-889-2589	2008-05-134	90420	US
5310-00-889-2589	2008-04-121	90416	DIBBS
5310-00-889-2589	2008-04-93	125000	DIBBS
MS21044C4	2007-09-262	100	United States
5310-00-889-2589	2007-02-59	40	US

Cross Reference | NSN 5310-00-889-2589

Part Number	Cage Code	Manufacturer
002-003645-005	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
002-003645-005	8R709	FASTBOLT CORP DBA FASTBOLT CANADA
211024766	53711	NAVAL SEA SYSTEMS COMMAND
21685-10142	K0662	SELEX ES LTD
4158067-007	05869	RAYTHEON COMPANY DBA RAYTHEON
4158067-7	05869	RAYTHEON COMPANY DBA RAYTHEON
4912794-01	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
4912794-01	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
60-07-6423	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
9240-032-31	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21044-C4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21044C4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21044C4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-889-2589

Compare

Related Products | NSN 5310-00-889-2589

5310-00-889-2590, 5310-00-889-2606, 5310-00-889-2611, 5310-00-889-2612, 5310-00-889-2614

Technical Data | NSN 5310-00-889-2589

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 NUT
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5688 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5640 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5647 ASSN STD 3RD MATERIAL RESPONSE NUT
SURFACE TREATMENT	PASSIVATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.240 INCHES MINIMUM AND 0.360 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-889-2589

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-889-2589

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
