NSN 5310-00-881-0715 MS21059L6, NAS686A6, RF200A6

Product Details | PLATE SELF-LOCKING NUT

5310-00-881-0715 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21059L6, NAS686A6, RF200A6, RM52LHTA521064, RM52LHTA521-064, T65S624S, F500010624, F5000-10-624, F50006, F5000-6, 13605064, 13605-064, 8830092, 5310-00-881-0715, 00-881-0715, 5310008810715, 008810715

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-881-0715	05280 ( NUT, SELF-LOCKING, PLATE )

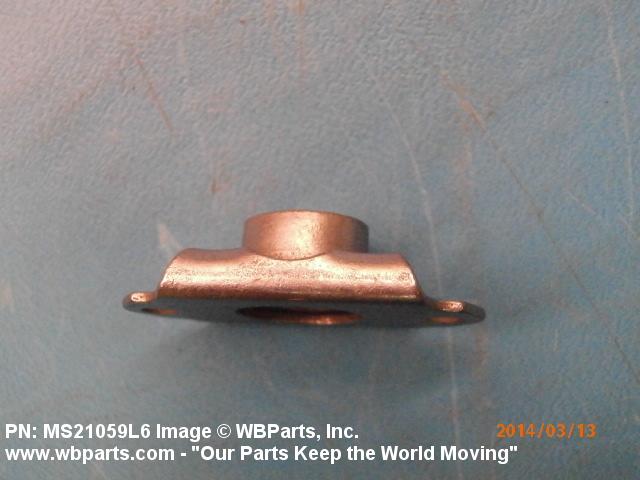

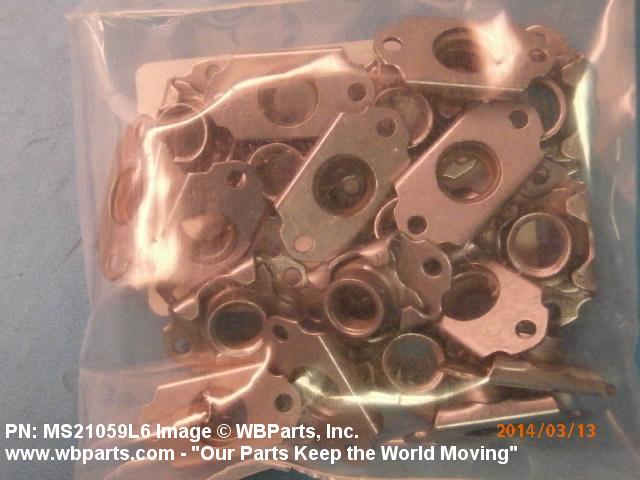

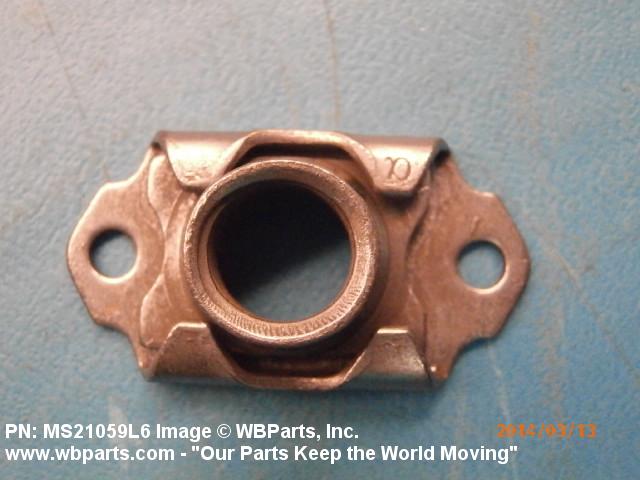

Drawings & Photos | NSN 5310-00-881-0715

Part Number	Request Date	QTY	Origin
MS21059L6	2024-03-82	980	us
MS21059L6	2023-04-115	30	United States
MS21059L6	2022-03-63	30	United States
NAS686A6	2022-03-63	30	United States
5310-00-881-0715	2019-01-30	20	India
MS21059L6	2018-09-260	200	United States
NAS686A6	2018-09-260	200	United States
MS21059L6	2017-04-108	250	Canada
5310-00-881-0715	2017-03-64	15	India
MS21059L6	2016-05-145	2000	us
MS21059L6	2016-05-137	61	United States
F50006	2016-05-124	20	United Arab Emirates
MS21059L6	2016-02-41	30	US
MS21059L6	2014-08-232	56	Australia
MS21059L6	2014-08-232	56	United States
MS21059L6	2014-08-232	56	United States
MS21059L6	2014-08-227	56	Australia
MS21059L6	2014-07-211	20	Australia
MS21059L6	2014-02-51	20	AE
MS21059L6	2014-02-45	16	Australia
MS21059L6	2014-01-30	600	United States
MS21059L6	2014-01-17	20	United States
MS21059L6	2012-07-200	50	Italy
MS21059L6	2011-12-349	20	US
MS21059L6	2011-01-04	20	US
MS21059L6	2010-06-173	2	US
5310-00-881-0715	2010-06-160	2	US
MS21059L6	2010-03-64	1500	Taiwan
5310-00-881-0715	2009-09-247	40	US
5310-00-881-0715	2009-03-82	150	United States
MS21059L6	2008-10-283	5500	us
MS21059L6	2008-10-283	11000	us
5310-00-881-0715	2008-10-281	500	US
MS21059L6	2008-08-241	100	PA
MS21059L6	2008-07-212	16	United States

Cross Reference | NSN 5310-00-881-0715

Part Number	Cage Code	Manufacturer
13605-064	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13605-064	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
8830092	19203	PICATINNY ARSENAL
F5000-10-624	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
F5000-6	15653	ALCOA GLOBAL FASTENERS, INC.
F5000-6	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
F5000-6	8K112	FREUNDLICH SUPPLY COMPANY, INC.
F5000-6	F6033	TECNOTEC SARL
F5000-6	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
F5000-6	R1120	SATAIR A/S
MS21059L6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21059L6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS686A6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RF200A6	52828	REPUBLIC FASTENER MFG. CORP.
RM52LHTA521-064	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LHTA521-064	72962	HARVARD INDUSTRIES INC
T65S624S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-881-0715

Compare

Related Products | NSN 5310-00-881-0715

5310-00-881-0720, 5310-00-881-0861, 5310-00-881-0862, 5310-00-881-0943, 5310-00-881-0944

Technical Data | NSN 5310-00-881-0715

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	1.292 INCHES MAXIMUM
NUT HEIGHT	0.344 INCHES MAXIMUM
PLATE THICKNESS	0.055 INCHES MAXIMUM
PLATE WIDTH	0.475 INCHES MINIMUM AND 0.680 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-881-0715

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-881-0715

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
