NSN 5310-00-879-0669 AS8650J, NAS1291A6M, NAS1291C06M2

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-879-0669 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: AS8650J, NAS1291A6M, NAS1291C06M2, NAS1291C6M, H42-6, P32800, RMLH3858064, RMLH3858-064, H426, 4575590, 457-5590 , 568424347006, 568-4-24347-006, 839636L, 83963-6L, 8602920010, 860292-0010, 86029210, 860292-10, 9575893, 95-75893, 5310-00-879-0669, 00-879-0669, 5310008790669 , 008790669

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-879-0669	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

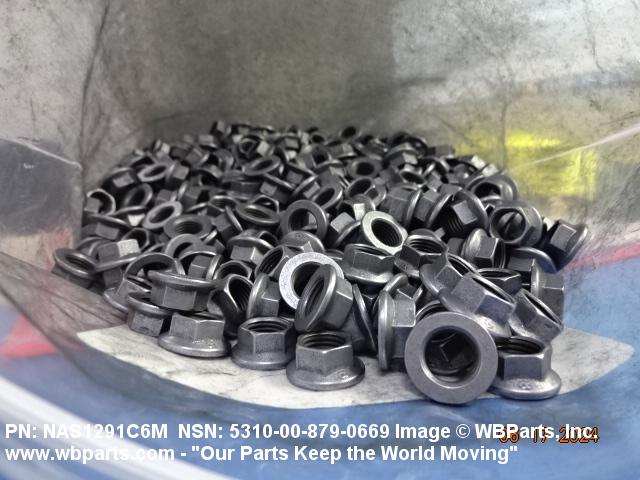

Drawings & Photos | NSN 5310-00-879-0669

Part Number	Request Date	QTY	Origin
NAS1291C6M	2024-02-44	60960	us
NAS1291C6M	2023-12-348	1000	United States
NAS1291C6M	2023-10-276	1000	United States
NAS1291C6M	2023-07-184	500	United States
NAS1291C6M	2023-07-184	1000	United States
5310-00-879-0669	2022-09-257	6772	DIBBS
5310-00-879-0669	2021-12-337	50	US
5310-00-879-0669	2021-08-213	19522	DIBBS
NAS1291C6M	2021-03-69	250	United States
NAS1291C6M	2021-03-69	500	United States
NAS1291C6M	2021-03-69	750	United States
NAS1291C6M	2021-02-47	500	United States
NAS1291C6M	2021-02-47	1000	United States
5310-00-879-0669	2020-12-344	8622	DIBBS
NAS1291C6M	2020-10-281	265	United States
NAS1291C6M	2020-06-156	500	United States
NAS1291C6M	2020-06-156	1000	United States
5310-00-879-0669	2020-02-37	5085	DIBBS
NAS1291C6M	2020-01-29	5	United States
NAS1291C6M	2019-12-347	1210	United States
NAS1291C6M	2019-10-277	2	United States
NAS1291C6M	2019-07-198	175	United States
NAS1291C6M	2019-07-198	705	United States
NAS1291C6M	2019-03-77	1000	United States
NAS1291C6M	2019-03-77	2000	United States
NAS1291C6M	2018-12-346	1830	United States
NAS1291C6M	2018-11-310	48	Israel
NAS1291C6M	2018-09-261	1200	United States
5310-00-879-0669	2018-09-261	7014	DIBBS
5310-00-879-0669	2018-07-212	7168	DIBBS
NAS1291C6M	2018-06-172	300	United States
NAS1291C6M	2018-06-172	600	United States
NAS1291C6M	2018-06-172	900	United States
5310-00-879-0669	2018-06-156	9210	DIBBS
NAS1291C6M	2018-02-50	625	United States
5310-00-879-0669	2018-02-44	6593	United States
5310-00-879-0669	2017-12-340	6593	DIBBS
5310-00-879-0669	2017-11-331	210	US
5310-00-879-0669	2017-07-187	3800	DIBBS
5310-00-879-0669	2017-06-172	40	India
NAS1291C6M	2017-05-129	52	United States
5310-00-879-0669	2017-02-43	3901	DIBBS
5310-00-879-0669	2016-12-346	3746	DIBBS
5310-00-879-0669	2016-10-302	16	India
NAS1291C6M	2016-03-64	100	US
NAS1291C6M	2016-02-54	80	United States
NAS1291C6M	2016-01-18	16	Australia
5310-00-879-0669	2015-09-258	14	United States
5310-00-879-0669	2015-06-173	100	United States
5310-00-879-0669	2015-06-173	100	United States
NAS1291C6M	2015-01-13	100	HK
NAS1291C6M	2015-01-13	200	HK
NAS1291C6M	2014-11-314	13	IN
NAS1291C6M	2014-10-286	590	US
NAS1291C6M	2014-03-78	16	United States
5310-00-879-0669	2014-01-06	14534	DIBBS
NAS1291C6M	2013-04-102	160	United States
5310-00-879-0669	2012-08-221	21099	DIBBS
NAS1291C6M	2012-02-44	4	United States
NAS1291C6M	2011-11-311	4	US
5310-00-879-0669	2011-09-250	13117	DIBBS
5310-00-879-0669	2011-02-42	4	US
NAS1291C6M	2011-01-28	960	US
NAS1291C6M	2010-07-208	72	United States
5310-00-879-0669	2010-06-165	15034	DIBBS
5310-00-879-0669	2010-05-126	16	US
5310-00-879-0669	2010-05-126	16	US
NAS1291C6M	2010-03-85	1	United States
NAS1291C6M	2010-03-62	10	us
5310-00-879-0669	2010-02-47	25	US
NAS1291C06M2	2009-10-288	100	DE
NAS1291C6M	2009-08-219	100	us
NAS1291C6M	2009-08-219	200	us
NAS1291C6M	2009-07-194	100	US
NAS1291C6M	2009-07-194	200	US
5310-00-879-0669	2009-03-89	14848	DIBBS
NAS1291C6M	2008-11-308	400	US
NAS1291C6M	2008-11-308	1000	US
5310-00-879-0669	2008-06-154	10	US
5310-00-879-0669	2008-04-115	20	United States
5310-00-879-0669	2008-04-94	20	US
5310-00-879-0669	2007-02-59	65	US

Cross Reference | NSN 5310-00-879-0669

Part Number	Cage Code	Manufacturer
5310008790669	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
568-4-24347-006	K2523	EATON AEROSPACE LTD
83963-6L	52828	REPUBLIC FASTENER MFG. CORP.
860292-0010	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
860292-0010	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
860292-10	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
860292-10	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
95-75893	D2469	BHS GETRIEBE GMBH
AS8650J	K7766	BRITISH STANDARDS INSTITUTION
H42-6	15653	ALCOA GLOBAL FASTENERS, INC.
H42-6	F6033	TECNOTEC SARL
H42-6	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H42-6	R1120	SATAIR A/S
NAS1291A6M	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1291C06M2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1291C6M	59027	MEGGITT DEFENSE SYSTEMS, INC. DBA MEGGITT WESTERN DESIGN
NAS1291C6M	62228	MEGGITT DEFENSE SYSTEMS, INC.
NAS1291C6M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
P32800	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
RMLH3858-064	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMLH3858-064	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-879-0669

Compare

Related Products | NSN 5310-00-879-0669

5310-00-879-0670, 5310-00-879-0671, 5310-00-879-0696, 5310-00-879-0928, 5310-00-879-0998

Technical Data | NSN 5310-00-879-0669

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON

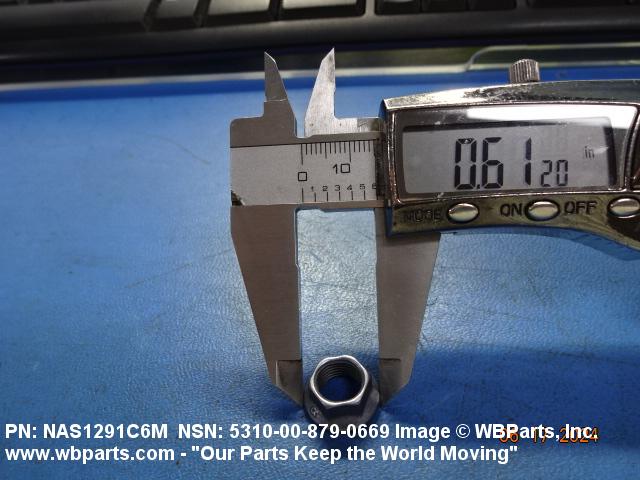

WASHER OUTSIDE DIAMETER	0.620 INCHES NOMINAL

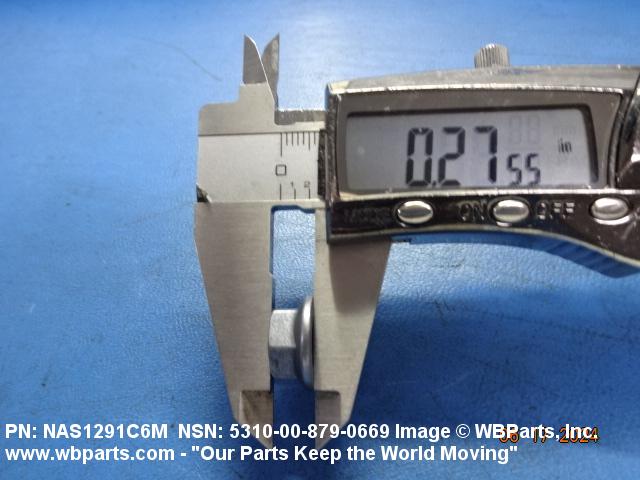

OVERALL HEIGHT	0.269 INCHES MINIMUM AND 0.282 INCHES MAXIMUM
WASHER THICKNESS	0.030 INCHES NOMINAL
WIDTH ACROSS FLATS	0.430 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING	550.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-879-0669

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-879-0669

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	FX	TG:F-15 EAGLE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
