NSN 5310-00-878-7196 MS2104308, MS21043-08, MS21043L08

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-878-7196 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS2104308, MS21043-08, MS21043L08, MN1908, MN19-08, NAS1291C08, H41L08, LH385882, LH3858-82, T99C832, FN1014832, FN1014-832, 10121788 , 2637150, 503/4/06633/003, 503406633003, 5436K72018, 5436K72-018, 64540308, 645403-08, 7383858PL70878256, 7383858-PL708782-56 , 74443136003, 7550480PL70878256, 7550480-PL708782-56 , 938.07.68.403, 9380768403, 961C4603, 961C460-3, 5310-00-878-7196, 00-878-7196, 5310008787196, 008787196

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-878-7196	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

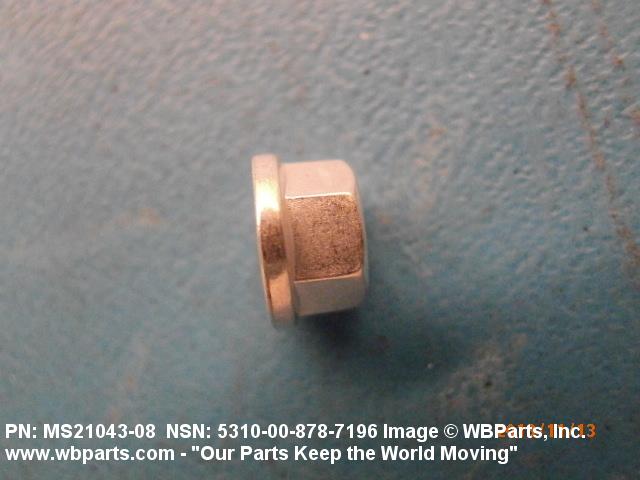

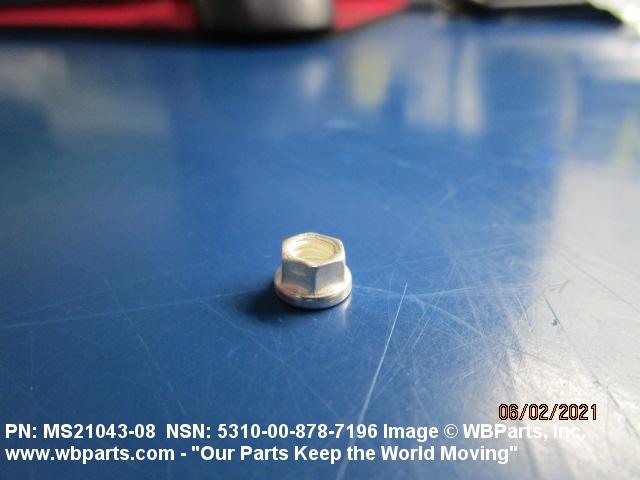

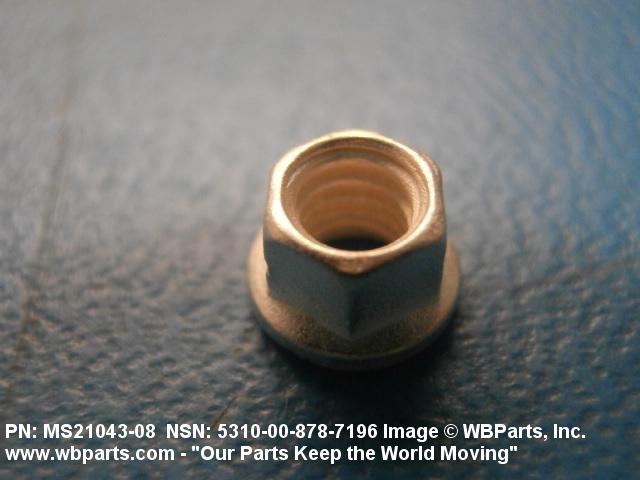

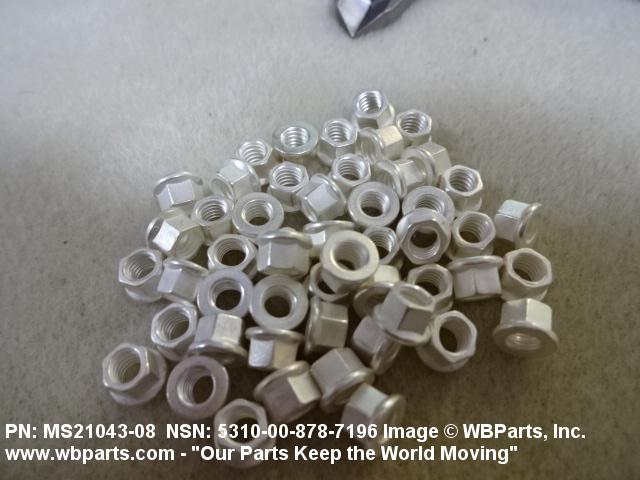

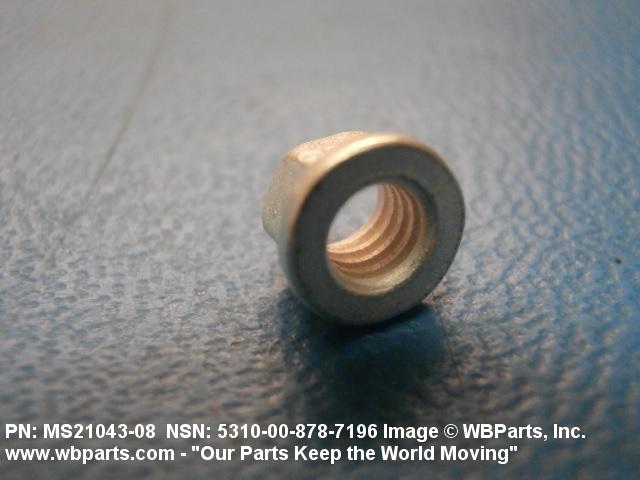

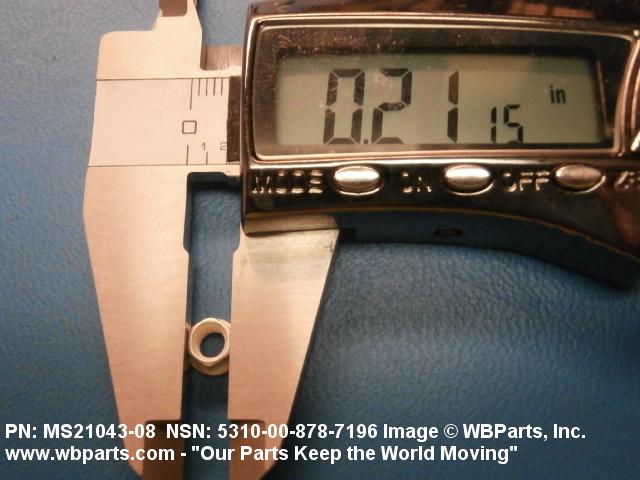

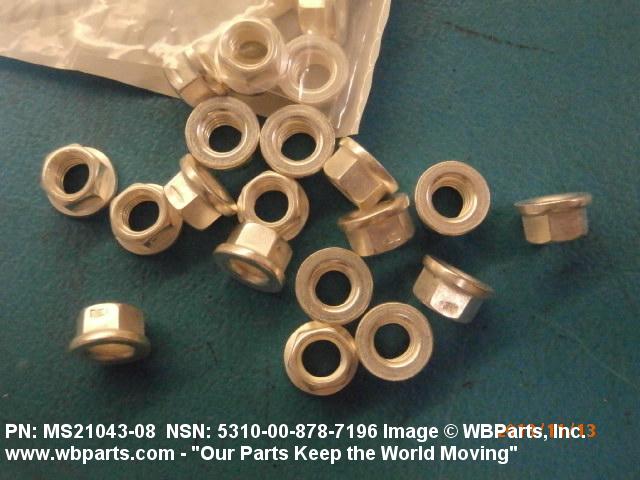

Drawings & Photos | NSN 5310-00-878-7196

Part Number	Request Date	QTY	Origin
MS2104308	2024-11-320	300	Japan
MS21043-08	2024-07-211	10199	DIBBS
MS21043-08	2024-04-106	30681	DIBBS
MS2104308	2023-12-339	1000	Czech Republic
MS21043-08	2023-10-298	7519	DIBBS
MS2104308	2023-10-278	5000	us
MS2104308	2022-12-336	200	US
5310-00-878-7196	2022-07-196	500	Malaysia
MS2104308	2022-03-80	200	United States
MS2104308	2022-01-28	500	United States
MS2104308	2022-01-10	1000	United States
MS2104308	2021-10-300	100	United States
MS2104308	2021-05-138	4	US
MS2104308	2019-03-74	250	US
MS2104308	2019-03-74	500	US
MS2104308	2019-03-74	1000	US
5310-00-878-7196	2018-09-260	20385	DIBBS
5310-00-878-7196	2018-06-170	8264	DIBBS
5310-00-878-7196	2018-03-87	8400	Portugal
5310-00-878-7196	2018-02-50	4325	DIBBS
MS2104308	2018-01-23	180	United States
5310-00-878-7196	2017-12-354	28198	DIBBS
5310-00-878-7196	2017-11-320	6535	DIBBS
5310-00-878-7196	2017-10-284	8753	DIBBS
5310-00-878-7196	2017-02-53	180	MANUAL
5310-00-878-7196	2016-12-339	11652	DIBBS
5310-00-878-7196	2016-10-284	6479	DIBBS
MS2104308	2016-05-125	1	United States
MS2104308	2016-01-05	1	Indonesia
5310-00-878-7196	2015-11-313	160	Malaysia
MS2104308	2015-07-211	30	United States
MS2104308	2015-06-153	4	NL
MS2104308	2015-05-133	30	Indonesia
MS21043-08	2015-03-85	10	US
MS21043-08	2015-03-69	500	US
5310-00-878-7196	2014-12-348	27797	DIBBS
5310-00-878-7196	2014-11-313	24406	DIBBS
MS2104308	2014-10-304	120	United States
5310-00-878-7196	2014-06-152	80000	DIBBS
MS21043-08	2014-03-71	249	United States
5310-00-878-7196	2013-11-311	50	United States
5310-00-878-7196	2013-09-253	200	Canada
MS21043-08	2013-05-134	50	CZ
MS2104308	2013-02-46	25	United States
5310-00-878-7196	2013-02-42	50	us
MS21043-08	2012-11-310	27
MS2104308	2012-10-298	195	US
5310-00-878-7196	2012-09-263	135319	DIBBS
MS21043-08	2012-07-208	100	United States
MS2104308	2012-06-157	6	US
MS21043-08	2012-04-115	50	IN
MS2104308	2012-04-110	8	United States
MS2104308	2012-02-46	12000	US
MS2104308	2011-10-299	11	United States
MS2104308	2011-07-201	1000	TR
MS2104308	2011-05-151	20	US
MS2104308	2011-05-146	1200	United States
MS2104308	2011-05-145	30	us
5310-00-878-7196	2010-09-265	15198	DIBBS
5310-00-878-7196	2010-08-238	33983	DIBBS
5310-00-878-7196	2010-07-195	32623	DIBBS
5310-00-878-7196	2009-02-37	5000	Czech Republic
MS2104308	2008-06-175	10000	US
5310-00-878-7196	2008-06-157	300	South Korea
5310-00-878-7196	2008-04-99	1000	United States
5310-00-878-7196	2008-04-99	3000	United States

Cross Reference | NSN 5310-00-878-7196

Part Number	Cage Code	Manufacturer
2637150	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
503/4/06633/003	K2523	EATON AEROSPACE LTD
5436K72-018	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
645403-08	99551	GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
7383858-PL708782-56	53711	NAVAL SEA SYSTEMS COMMAND
74443136003	89944	KOLLSMAN, INC.
7550480-PL708782-56	53711	NAVAL SEA SYSTEMS COMMAND
938.07.68.403	S4080	PILATUS AIRCRAFT LTD
961C460-3	83843	SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
961C460-3	99167	HAMILTON SUNDSTRAND CORPORATION
FN1014-832	50392	SPS TECHNOLOGIES INC
FN1014-832	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H41L08	15653	ALCOA GLOBAL FASTENERS, INC.
H41L08	F6033	TECNOTEC SARL
H41L08	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H41L08	R1120	SATAIR A/S
LH3858-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LH3858-82	72962	HARVARD INDUSTRIES INC
MN19-08	73197	HI-SHEAR CORPORATION
MN19-08	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
MN19-08	R1120	SATAIR A/S
MS21043-08	3G1W3	HERNDON PRODUCTS, INC.
MS21043-08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21043-08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21043L08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1291C08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1291C08	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
T99C832	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T99C832	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-878-7196

Compare

Related Products | NSN 5310-00-878-7196

5310-00-878-7199, 5310-00-878-7315, 5310-00-878-7385, 5310-00-878-7386, 5310-00-878-7387

Technical Data | NSN 5310-00-878-7196

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE OR 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON

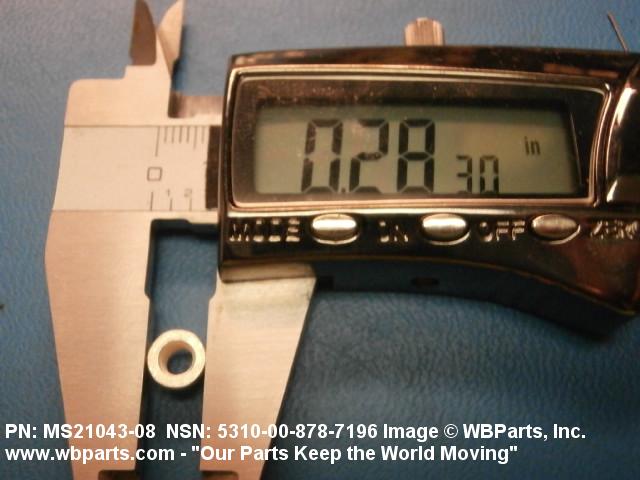

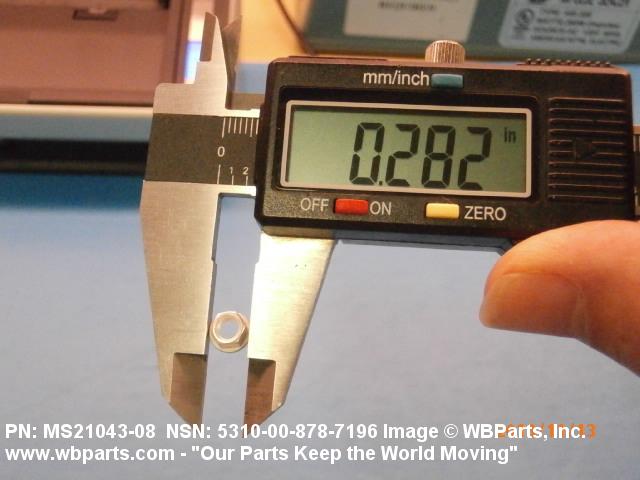

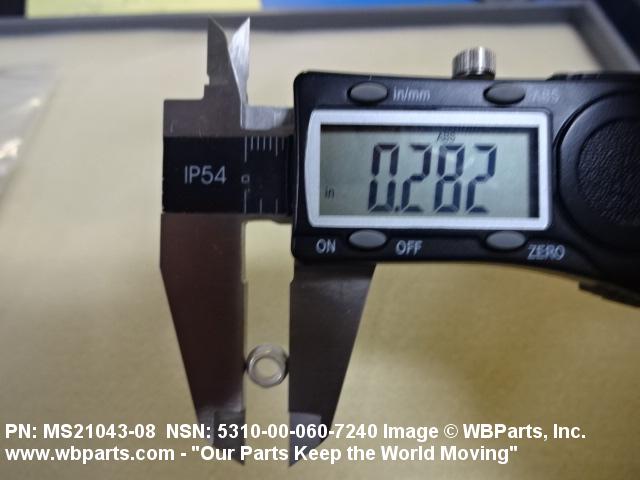

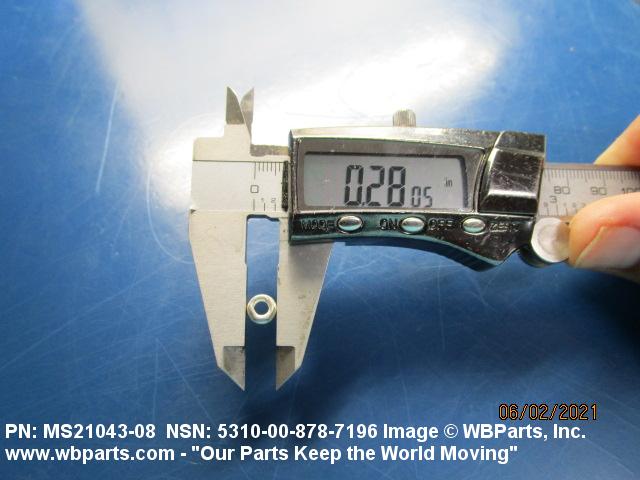

WASHER OUTSIDE DIAMETER	0.290 INCHES MAXIMUM

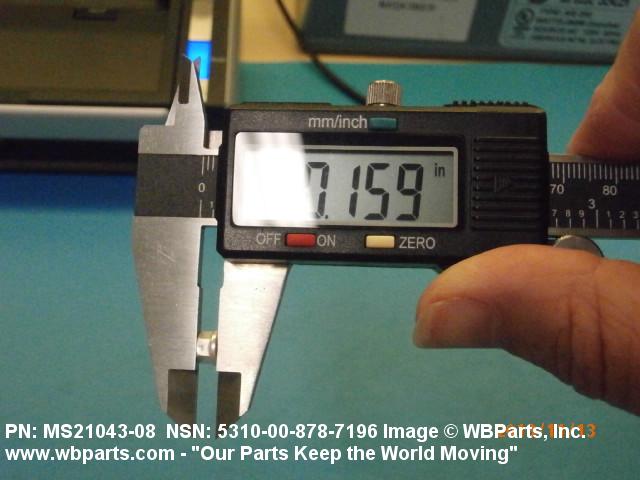

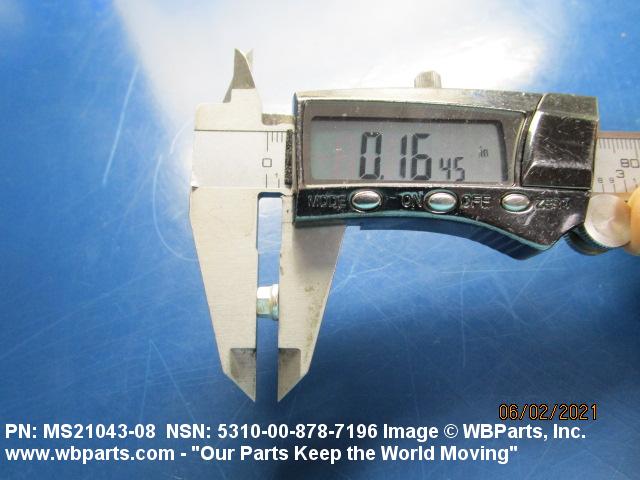

OVERALL HEIGHT	0.125 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
WASHER THICKNESS	0.015 INCHES MINIMUM

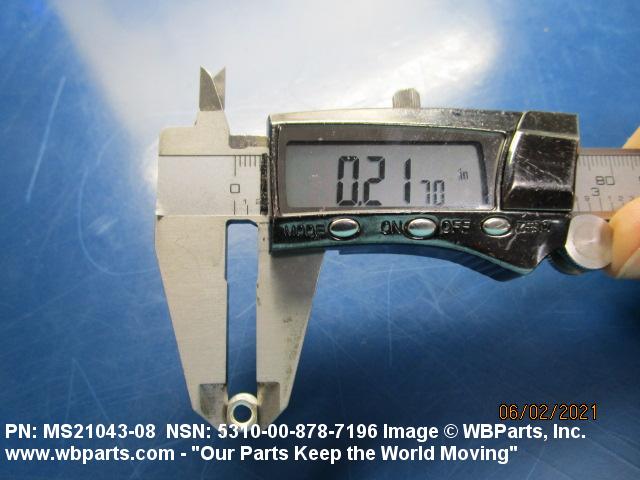

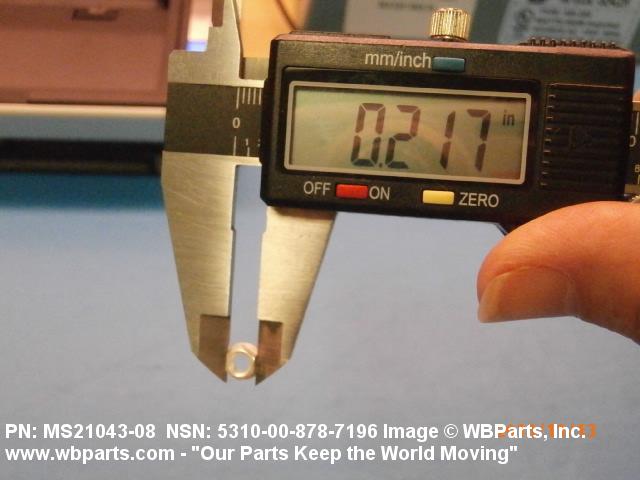

WIDTH ACROSS FLATS	0.213 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	800.0 DEG FAHRENHEIT NOMINAL
III PRECIOUS MATERIAL AND LOCATION	EXTERNAL SURFACE SILVER

Restrictions/Controls & Freight Information | NSN 5310-00-878-7196

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-878-7196

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	A	Item requires special handling/or condemnation procedures because of specific reasons (i.e., precious metal content, high dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
