NSN 5310-00-878-2585 A126B, 00-878-2585, 008782585
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-878-2585 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: A126B, 5310-00-878-2585, 00-878-2585, 5310008782585, 008782585
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-878-2585 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

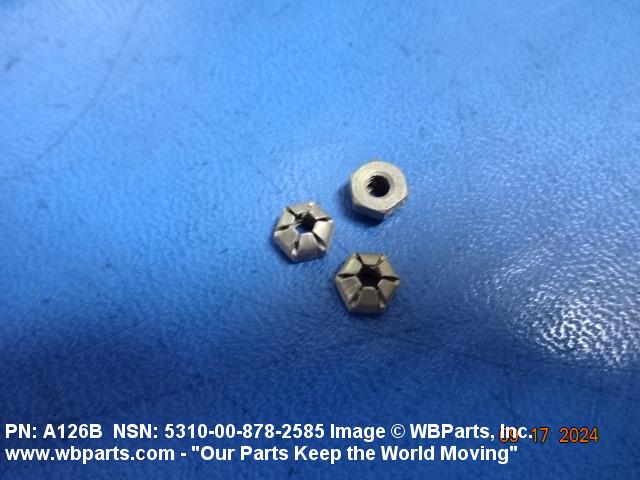

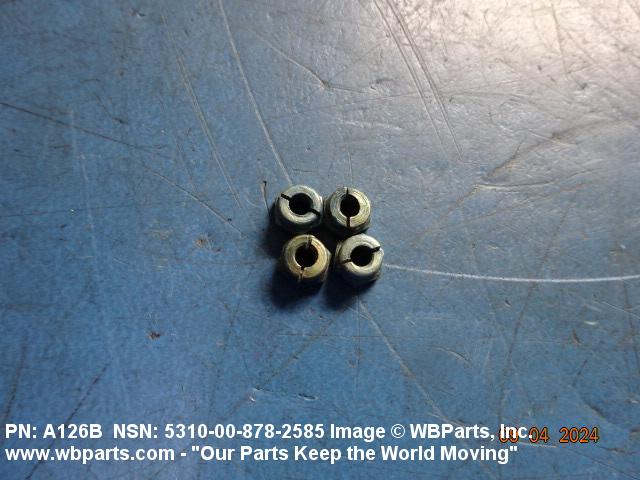

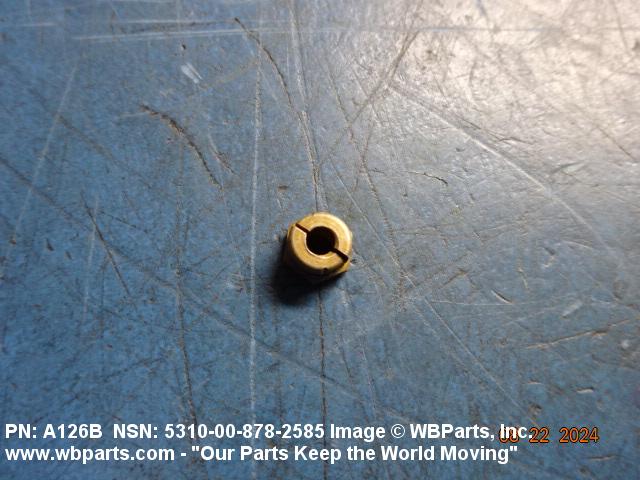

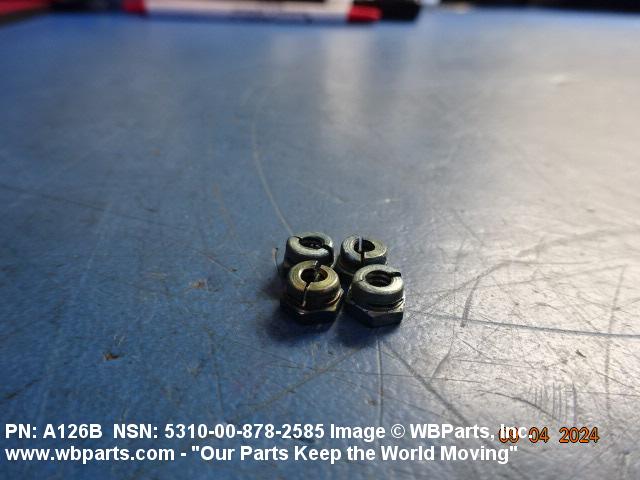

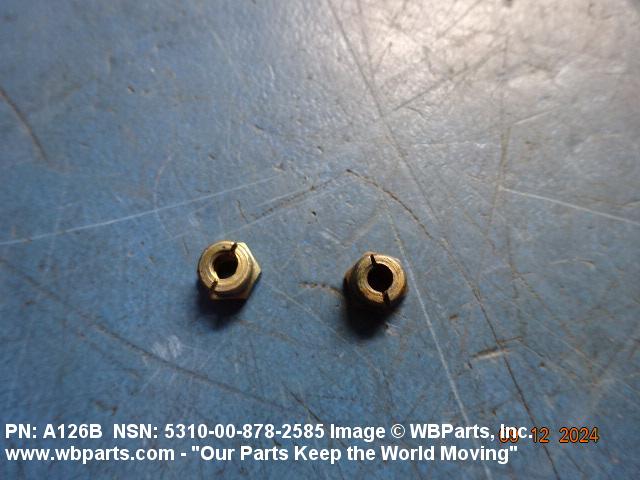

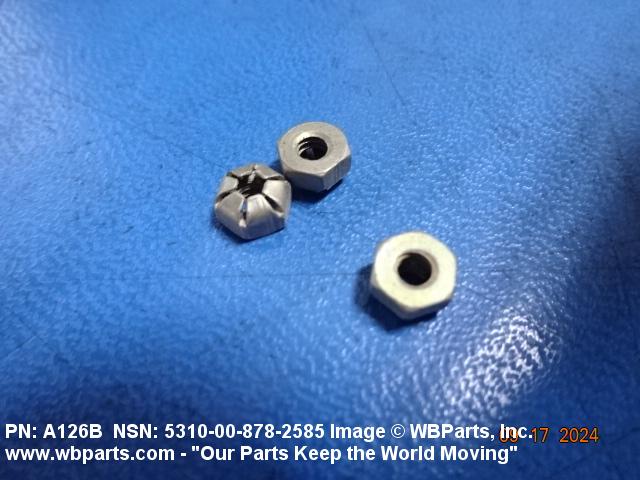

Drawings & Photos | NSN 5310-00-878-2585
Demand History | NSN 5310-00-878-2585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-878-2585 | 2024-11-306 | 50 | Taiwan |
| 5310-00-878-2585 | 2024-09-256 | 35 | Taiwan |
| 5310-00-878-2585 | 2024-07-199 | 50 | Taiwan |
| 5310-00-878-2585 | 2024-06-158 | 50 | Taiwan |
| 5310-00-878-2585 | 2024-04-115 | 50 | Taiwan |
Cross Reference | NSN 5310-00-878-2585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A126B | K7766 | BRITISH STANDARDS INSTITUTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-878-2585
Technical Data | NSN 5310-00-878-2585
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | FIBER LOCKING INSERT STEEL NUT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.179 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 352.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-878-2585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-00-878-2585
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
