NSN 5310-00-877-9298 MS2104206, MS21042-06, 721009664400

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-877-9298 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS2104206, MS21042-06, 721009664400 , 5310-00-877-9298, 00-877-9298, 5310008779298, 008779298

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	25 MAY 2001	00-877-9298	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

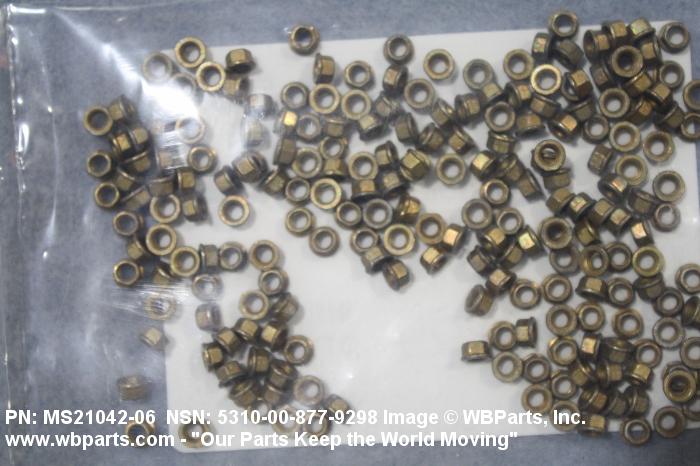

Drawings & Photos | NSN 5310-00-877-9298

Part Number	Request Date	QTY	Origin
MS2104206	2024-10-277	10	US
MS2104206	2022-12-346	6	United States
MS2104206	2022-07-192	68	South Africa
MS2104206	2020-06-163	100	US
MS2104206	2020-01-06	50	United States
MS2104206	2019-12-336	100	US
MS21042-06	2019-02-56	200	Turkey
MS2104206	2019-01-23	12	United States
MS2104206	2018-05-123	2310	China
MS21042-06	2018-01-29	22
5310-00-877-9298	2017-05-129	20	US
MS2104206	2017-01-11	1000	Turkey
MS2104206	2016-05-140	4	CN
MS2104206	2016-04-109	5	Indonesia
MS2104206	2016-04-96	23	US
MS21042-06	2015-07-182	67	UK
MS21042-06	2015-06-176	1500	Turkey
MS2104206	2014-09-253	6800	China
MS2104206	2014-07-195	1	US
MS2104206	2014-02-48	100	US
MS2104206	2014-02-43	200	US
MS2104206	2013-11-326	240	United States
MS2104206	2013-09-261	17	United States
MS2104206	2013-06-164	656	US
MS2104206	2013-04-119	990	United States
MS2104206	2013-04-112	50	United States
5310-00-877-9298	2012-10-285	35590	DIBBS
5310-00-877-9298	2012-10-277	35590	DIBBS
MS2104206	2012-04-94	25	US
5310-00-877-9298	2011-12-364	477	DIBBS
5310-00-877-9298	2011-08-227	1	US
MS2104206	2011-06-180	4	United States
MS2104206	2011-02-46	96	US
MS2104206	2011-01-14	300	United States
MS2104206	2011-01-13	300	US
MS2104206	2010-05-137	100	US
5310-00-877-9298	2010-04-116	478	DIBBS
5310-00-877-9298	2010-02-48	334	DIBBS
5310-00-877-9298	2009-09-256	60	DIBBS
5310-00-877-9298	2006-04-114	200	United States

Cross Reference | NSN 5310-00-877-9298

Part Number	Cage Code	Manufacturer
MS21042-06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-877-9298

Compare

Related Products | NSN 5310-00-877-9298

5310-00-877-9419, 5310-00-877-9491, 5310-00-877-9576, 5310-00-877-9577, 5310-00-877-9581

Technical Data | NSN 5310-00-877-9298

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON
WASHER OUTSIDE DIAMETER	0.214 INCHES MINIMUM AND 0.244 INCHES MAXIMUM
OVERALL HEIGHT	0.115 INCHES MINIMUM AND 0.141 INCHES MAXIMUM
WASHER THICKNESS	0.010 INCHES NOMINAL
WIDTH ACROSS FLATS	0.181 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
LOCKING FEATURE	ANY ACCEPTABLE
TEMP RATING	500.0 DEG FAHRENHEIT NOMINAL
SPECIAL FEATURES	FLEET BALLISTIC MISSILE QUALITY,AS IDENTIFIED BY QUALITY CONTROL NO. POSO911190
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21042-06

Restrictions/Controls & Freight Information | NSN 5310-00-877-9298

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	9Z	DLIS-K Battle Creek, MI 49037-3084
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-877-9298

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
