NSN 5310-00-850-8674 F22A27M2240, F22A27M22-40, 99813901

Product Details | PLATE SELF-LOCKING NUT

5310-00-850-8674 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: F22A27M2240, F22A27M22-40, 99813901, 998139-01, 222514-000, 22A27M2240, 22A27M22-40, 28001056, 4101191, 410119-1, 4176BK3, 4402072, 440207-2, 5250069009, 525-006-9009, 100011, 107140-116, 1140097001, 114-0097-001, 11830485, 11830485-1, 12477904, 124779-04, 124AS178, 132451, 13245-1, 137142, 1JA2716H11, 5310-00-850-8674, 00-850-8674, 5310008508674, 008508674, 107140116, 118304851, 222514000

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-850-8674	05280 ( NUT, SELF-LOCKING, PLATE )

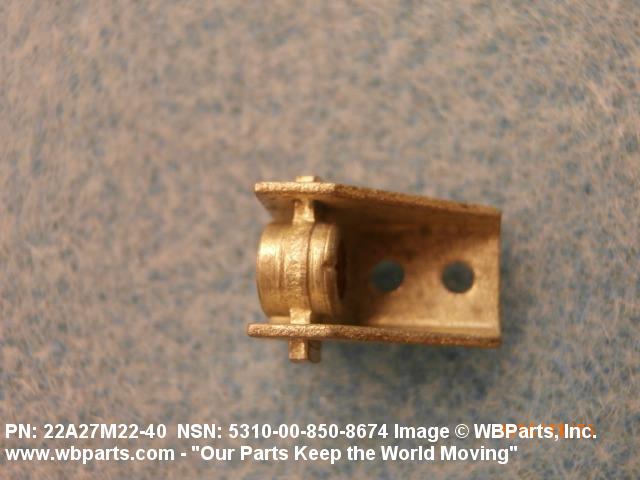

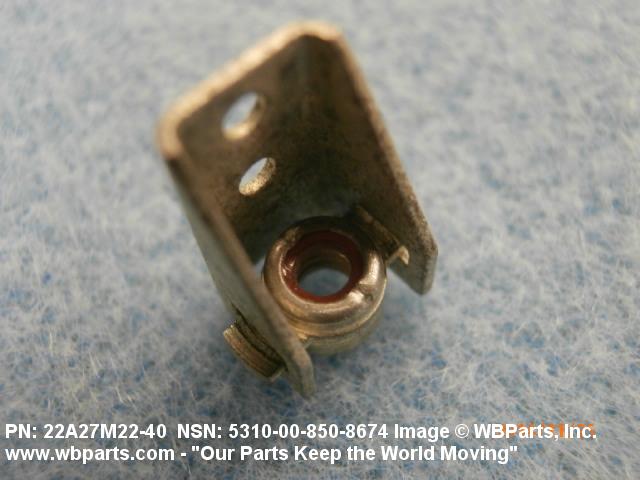

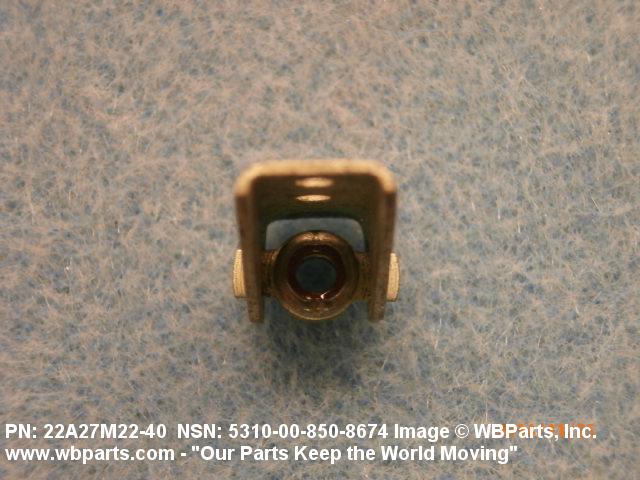

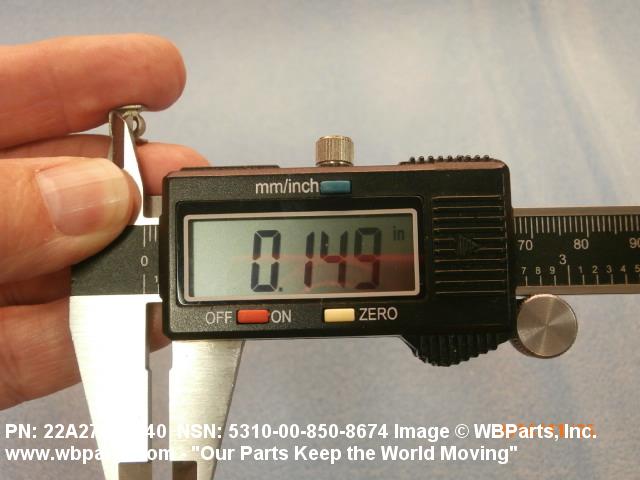

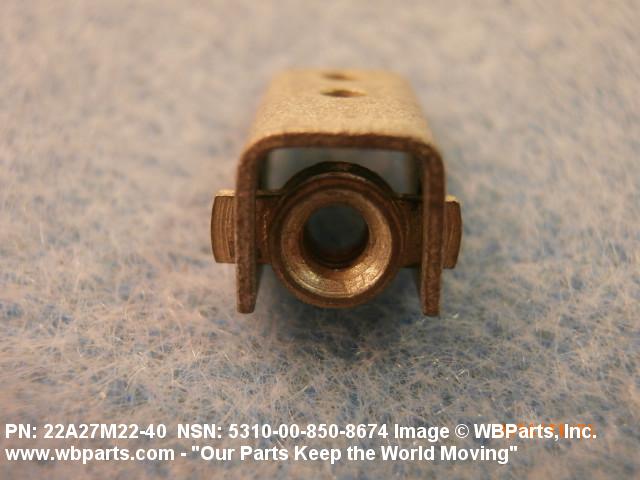

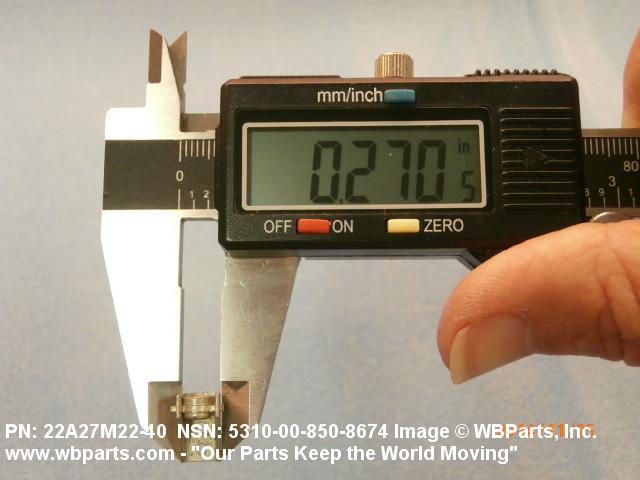

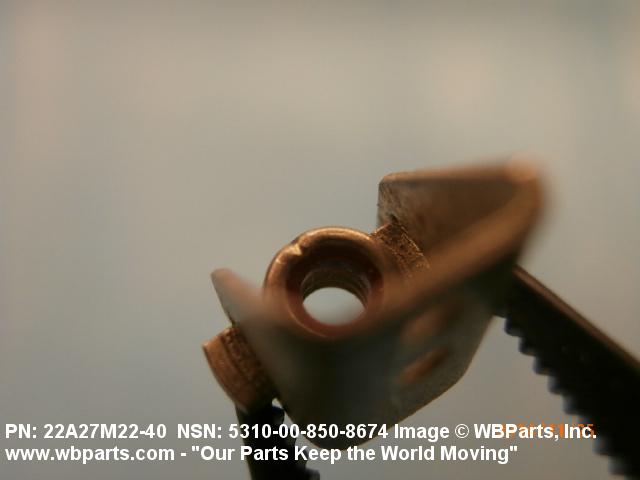

Drawings & Photos | NSN 5310-00-850-8674

Part Number	Request Date	QTY	Origin
5310-00-850-8674	2025-05-134	100	Singapore
5310-00-850-8674	2025-04-92	20	Singapore
5310-00-850-8674	2023-05-149	3000	IN
5310-00-850-8674	2022-07-206	100	United States
100011	2022-03-83	2	United States
22A27M2240	2020-07-196	1200	US
5310-00-850-8674	2019-11-311	35	UA
22A27M2240	2019-02-35	16	United States
5310-00-850-8674	2017-09-257	40	United States
5310-00-850-8674	2017-04-116	750	US
22A27M2240	2016-08-223	50	US
100011	2016-03-62	1	Brazil
22A27M2240	2015-12-357	85	United States
22A27M2240	2015-05-124	50	United States
22A27M2240	2014-11-309	50	United States
100011	2014-10-294	1	Malaysia
5310-00-850-8674	2014-07-212	3	MANUAL
F22A27M2240	2012-04-93	600	India
F22A27M2240	2012-02-53	1269	US
100011	2011-08-227	1	Malaysia
22A27M2240	2011-07-185	1000	us
22A27M2240	2011-06-164	500	US
5310-00-850-8674	2011-05-151	500	AZ
4402072	2011-05-144	1	United Arab Emirates
5310-00-850-8674	2011-05-144	1	United Arab Emirates
4402072	2011-05-137	200	IR
5310-00-850-8674	2011-05-133	500	United Arab Emirates
5310-00-850-8674	2011-04-117	150	IR
22A27M2240	2011-04-116	500	ID
107140116	2011-02-46	2	us
22A27M2240	2011-01-31	20	United States
22A27M2240	2010-09-270	400	Canada
F22A27M2240	2009-08-240	633	Singapore
F22A27M2240	2009-06-181	700	US
22A27M2240	2009-03-61	100	IL
F22A27M2240	2008-09-262	40	us
4101191	2008-06-155	50	United States
4101191	2007-10-289	30	us
5310-00-850-8674	2007-08-218	100	US

Cross Reference | NSN 5310-00-850-8674

Part Number	Cage Code	Manufacturer
100011	19565	SYMBOLIC DISPLAYS, INC.
107140-116	37695	RAYTHEON COMPANY DBA RAYTHEON
114-0097-001	94756	BOEING COMPANY, THE DBA BOEING
11830485	19200	US ARMY ARDEC RDECOM
11830485	19203	PICATINNY ARSENAL
11830485-1	19200	US ARMY ARDEC RDECOM
124779-04	35351	GE AVIATION SYSTEMS LLC
124AS178	30003	NAVAL AIR SYSTEMS COMMAND
13245-1	24384	SYPRIS ELECTRONICS, LLC
137142	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
1JA2716H11	79500	WESTINGHOUSE ELECTRIC CORP
1JA2716H11	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
222514-000	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
22A27M+22+40	22599	AMERACE CORP ESNA DIV
22A27M22-40	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
22A27M22-40	72962	HARVARD INDUSTRIES INC
28001056	08638	ALLIANT TECHSYSTEMS INC ORDNANCE SYSTEMS DIV
28001056	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
410119-1	96214	RAYTHEON COMPANY DBA RAYTHEON
4176BK3	K1066	SELEX ES LTD
440207-2	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
525-006-9009	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
998139-01	35351	GE AVIATION SYSTEMS LLC
F22A27M22-40	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F22A27M22-40	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-850-8674

Compare

Related Products | NSN 5310-00-850-8674

5310-00-850-8720, 5310-00-850-8786, 5310-00-850-9135, 5310-00-850-9142, 5310-00-850-9196

Technical Data | NSN 5310-00-850-8674

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1212 NUT STEEL COMP 1010 SHELL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD SINGLE MATERIAL RESPONSE NUT AISI ASSN STD SINGLE MATERIAL RESPONSE SHELL
SURFACE TREATMENT	CADMIUM NUT CADMIUM SHELL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TYPE2,CLASS3 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416 TYPE2,CLASS3 FED SPEC SINGLE TREATMENT RESPONSE SHELL
HARDNESS RATING	NOT RATED
NUT STYLE	A122 PLATE

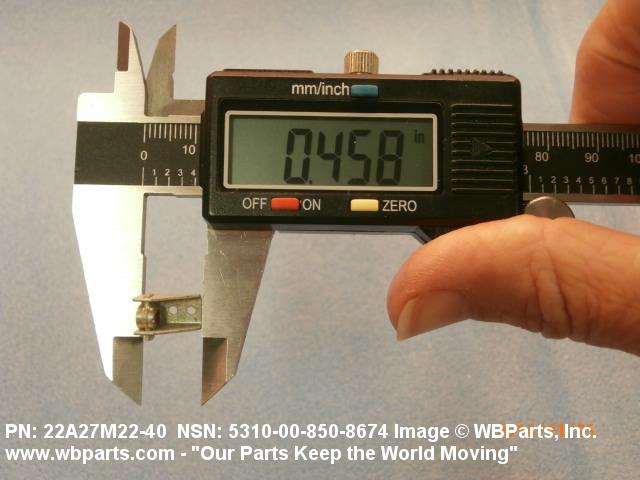

NUT LENGTH	0.471 INCHES MAXIMUM

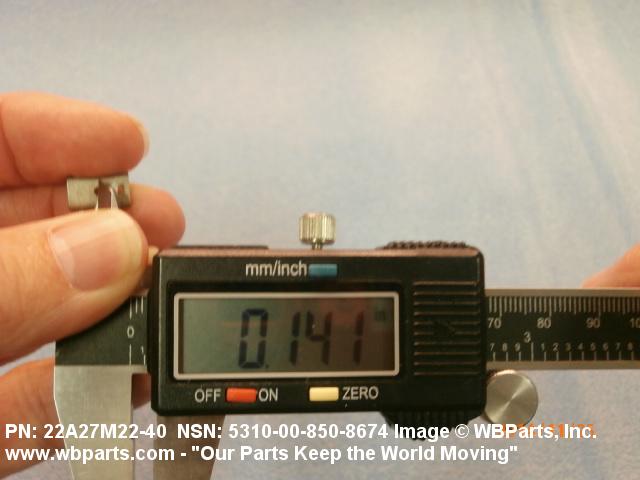

DISTANCE FROM BASE TO CENTER OF APERTURE	0.141 INCHES MINIMUM AND 0.171 INCHES MAXIMUM
NUT HEIGHT	0.136 INCHES MINIMUM AND 0.166 INCHES MAXIMUM

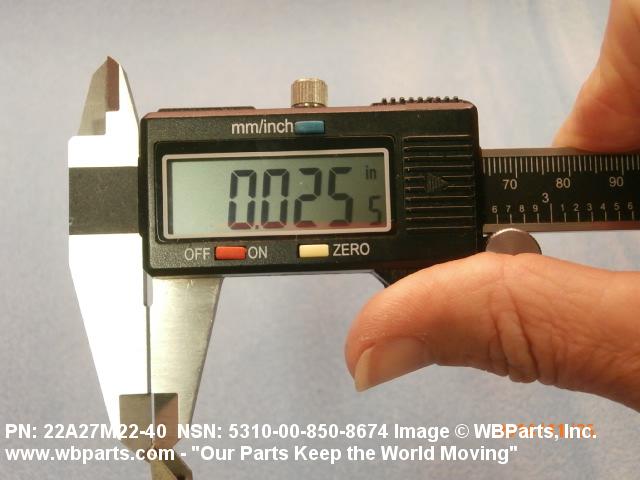

PLATE THICKNESS	0.010 INCHES MINIMUM AND 0.040 INCHES MAXIMUM
PLATE WIDTH	0.251 INCHES MINIMUM AND 0.281 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F3 2 HOLES

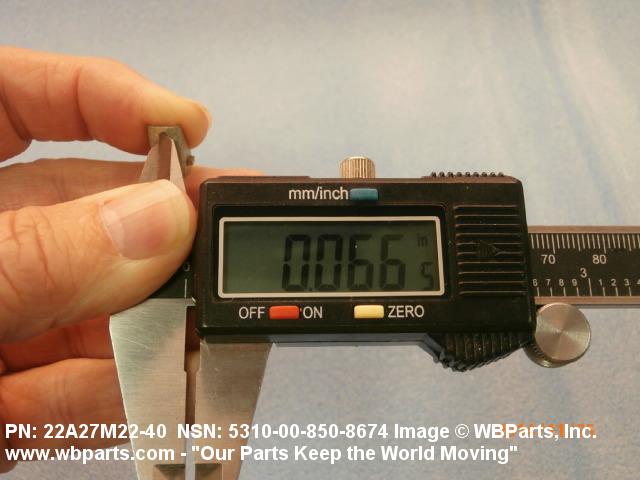

MOUNTING HOLE DIAMETER	0.066 INCHES MINIMUM AND 0.069 INCHES MAXIMUM
DISTANCE FROM MOUNTING HOLE CENTER TO BASE	0.215 INCHES MINIMUM AND 0.245 INCHES MAXIMUM

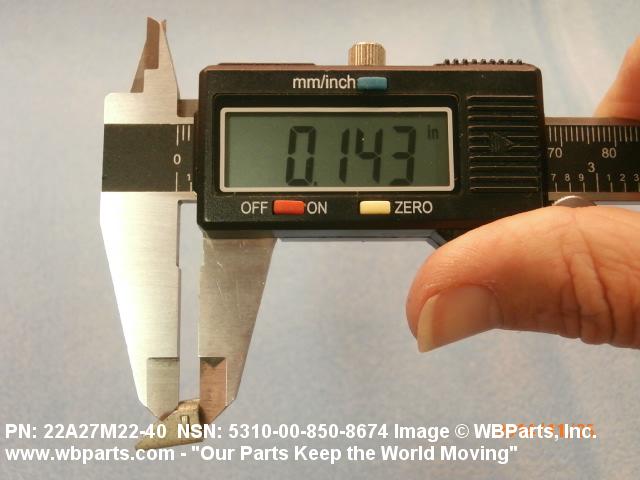

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.138 INCHES MINIMUM AND 0.142 INCHES MAXIMUM
TEMP RATING	120.0 DEG CELSIUS NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-850-8674

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-850-8674

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
