Product Details | PLATE SELF-LOCKING NUT

5310-00-849-7028 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NAS1473A08, Z00.N5427393175, Z00N5427393175, F196808, F1968-08, 5310-00-849-7028, 00-849-7028, 5310008497028, 008497028

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 11 JAN 1967 00-849-7028

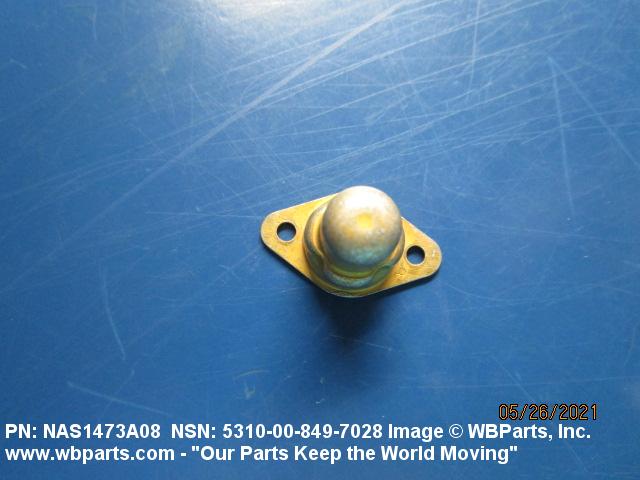

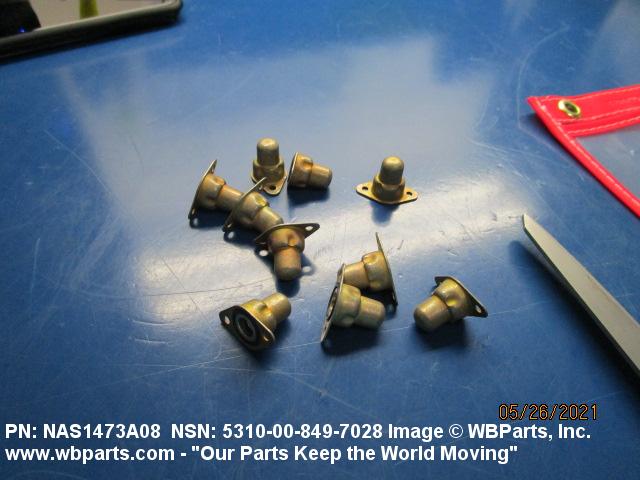

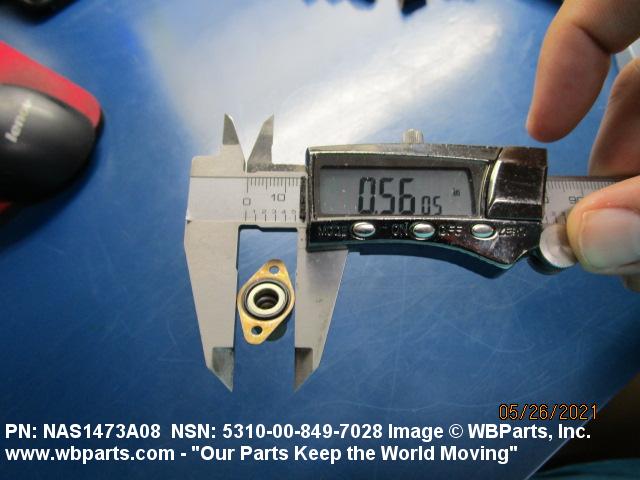

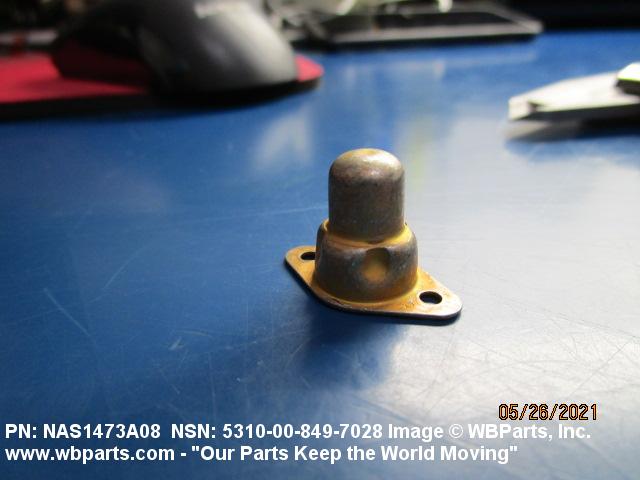

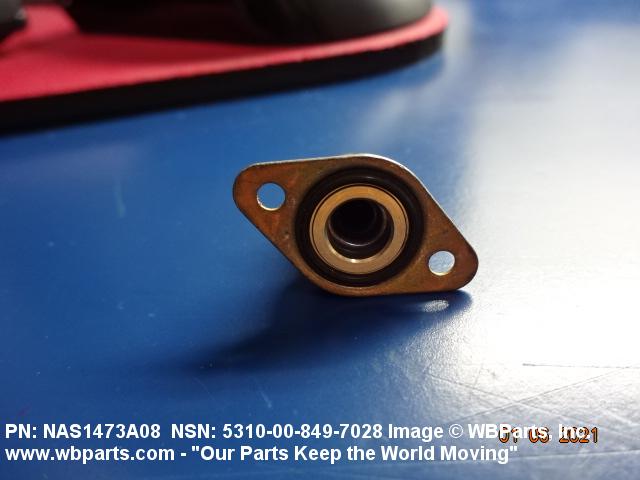

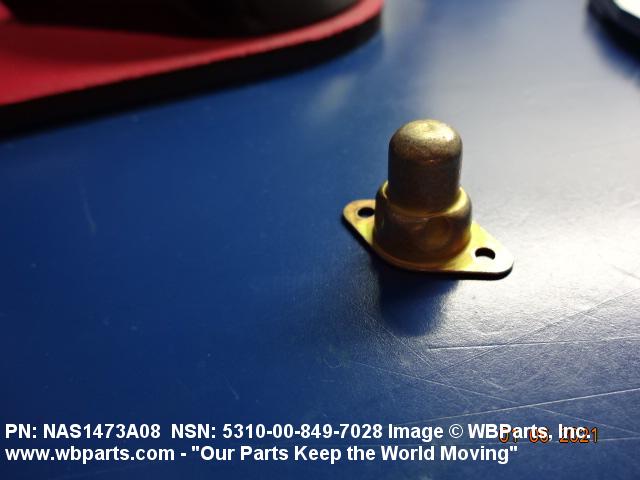

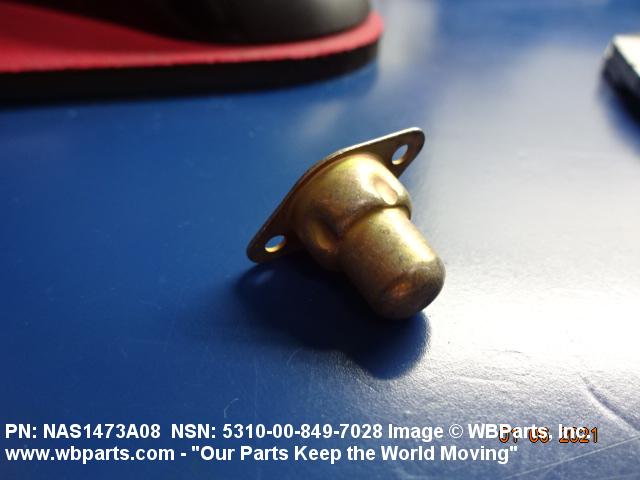

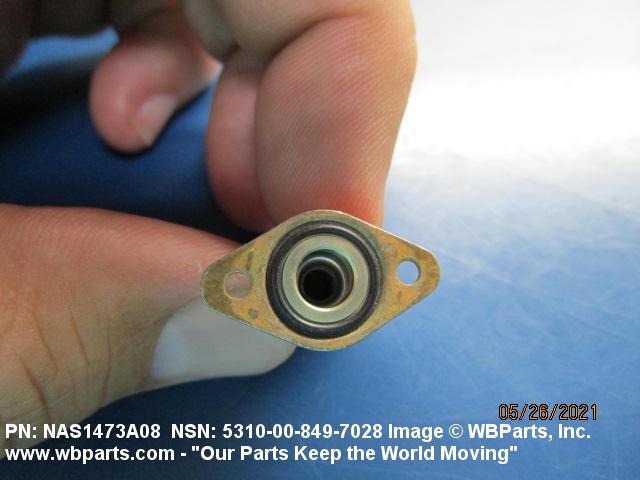

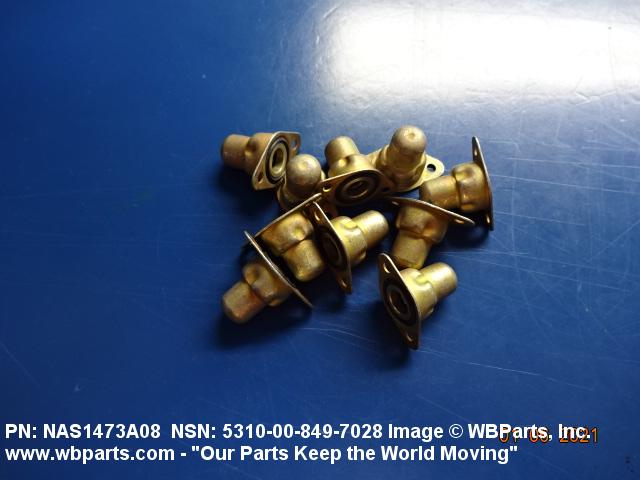

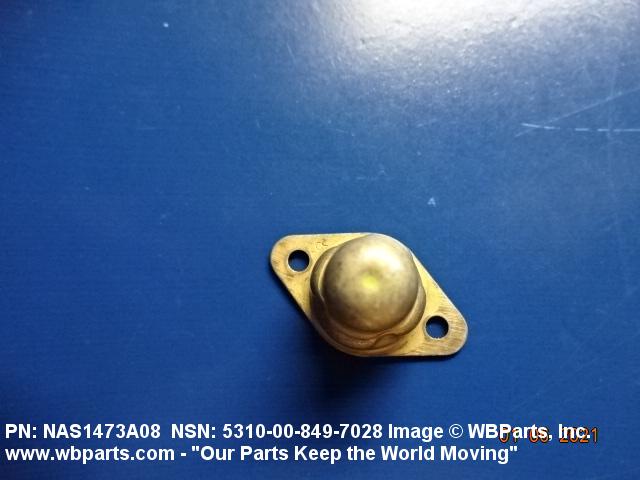

Drawings & Photos | NSN 5310-00-849-7028


Demand History | NSN 5310-00-849-7028

Part Number Request Date QTY Origin
NAS1473A08 2023-03-88 18960 US
NAS1473A08 2022-02-48 301 United States
NAS1473A08 2020-02-49 3400 FR
NAS1473A08 2020-01-07 5 US
NAS1473A08 2020-01-06 54 United States
NAS1473A08 2020-01-06 54 United States
NAS1473A08 2019-10-277 10 PR
NAS1473A08 2017-03-90 220 Thailand
F196808 2013-03-64 200 United Kingdom
NAS1473A08 2013-02-59 24 HK
NAS1473A08 2012-07-206 200 CN
NAS1473A08 2012-04-94 100 United States
5310-00-849-7028 2011-01-21 500 IN
NAS1473A08 2009-11-310 300 us
NAS1473A08 2009-11-310 100 France
NAS1473A08 2009-11-310 100 France
5310-00-849-7028 2009-10-294 50 US
NAS1473A08 2009-06-170 26 Australia
NAS1473A08 2009-06-153 35 US
5310-00-849-7028 2009-05-125 26 US
NAS1473A08 2007-10-277 110 US

Cross Reference | NSN 5310-00-849-7028

Part Number Cage Code Manufacturer
F1968-08 15653 ALCOA GLOBAL FASTENERS, INC.
F1968-08 75237 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
F1968-08 F7652 B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
NAS1473A08 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
Z00.N5427393175 F0086 SOCATA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-849-7028

Technical Data | NSN 5310-00-849-7028

Characteristic Specifications
THREAD SERIES UNJC
NOMINAL THREAD SIZE 0.164 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL NUT RUBBER SYNTHETIC SEAL STEEL SHELL STEEL OR ALUMINUM ALLOY WASHER
MATERIAL DOCUMENT AND CLASSIFICATION MIL-R-6855 CLASS 1 GRADE 60 MIL SPEC SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416 TYPE2,CLASS3 FED SPEC SINGLE TREATMENT RESPONSE SHELL MIL-A-8625 TYPE 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OR QQ-P-416 FED SPEC 3RD TREATMENT RESPONSE WASHER
HARDNESS RATING 60.0 SHORE DUROMETER A NOMINAL
NUT STYLE A116 PLATE

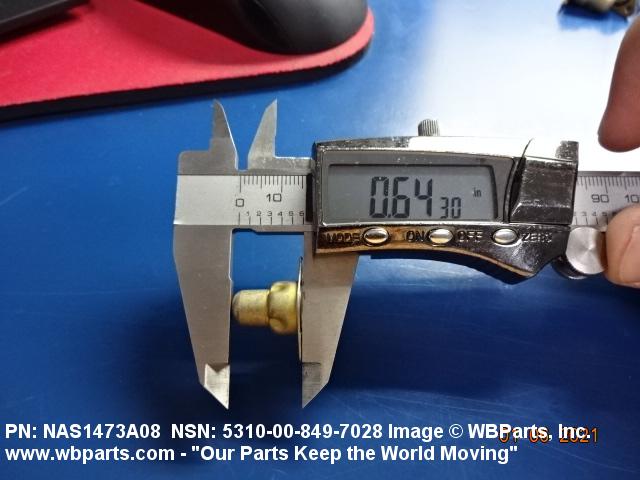

OVERALL HEIGHT 0.640 INCHES MAXIMUM

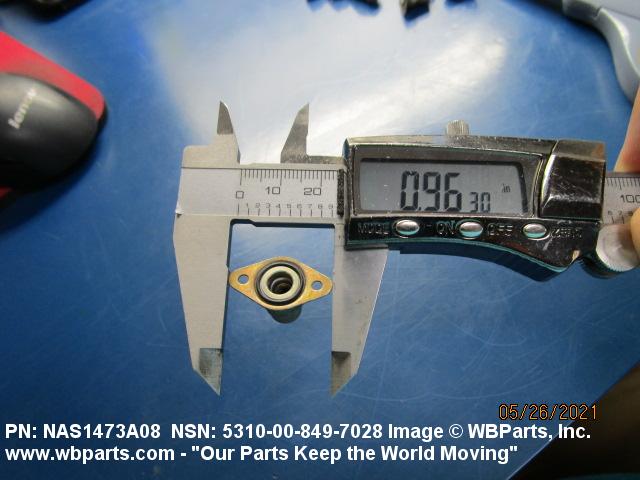

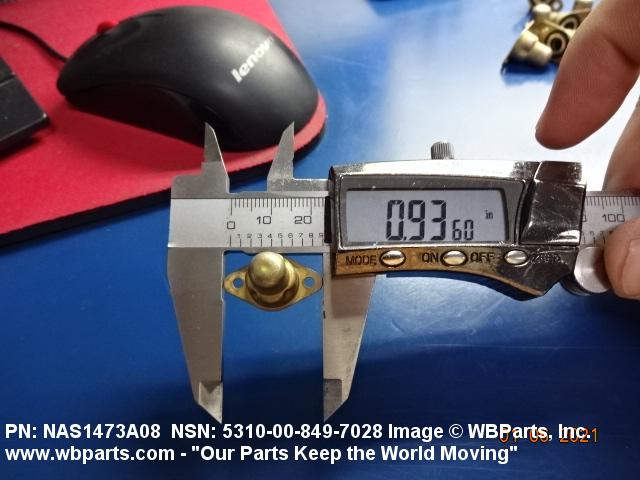

NUT LENGTH 0.989 INCHES MAXIMUM
NUT HEIGHT 0.313 INCHES MAXIMUM
PLATE THICKNESS 0.030 INCHES MAXIMUM

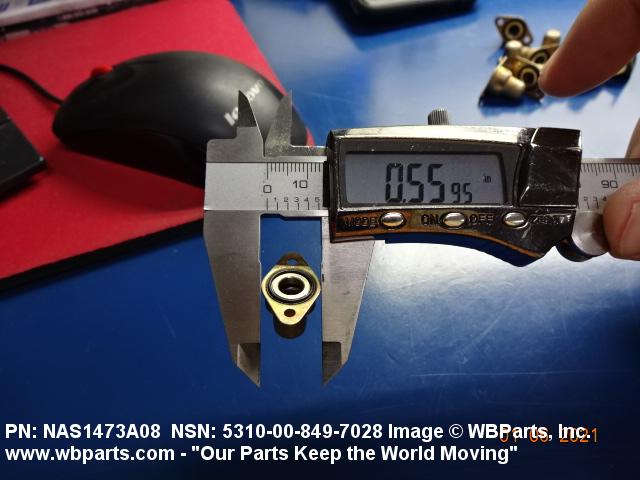

PLATE WIDTH 0.568 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION DRY FILM LUBRICANT
NUT MOUNTING PROVISION STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE F38 2 HOLES

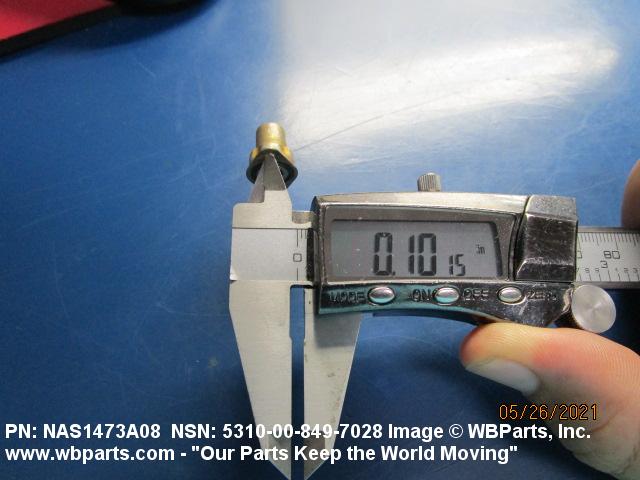

MOUNTING HOLE DIAMETER 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM

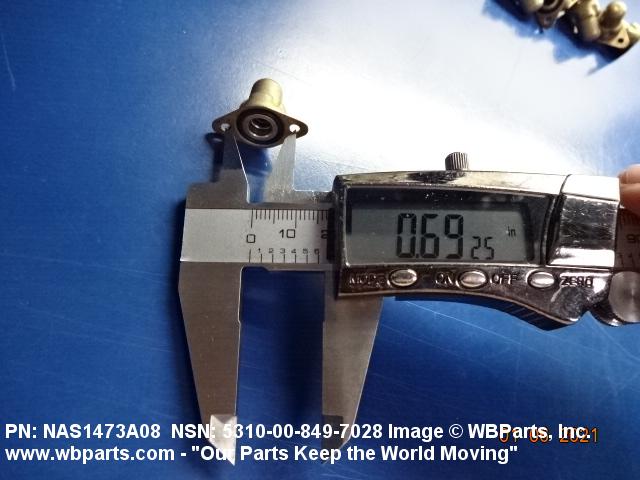

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
TEMP RATING -65.0 DEG FAHRENHEIT MINIMUM AND 225.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED FLOATING NUT
SPECIFICATION/STANDARD DATA 80205-NAS1473 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-849-7028

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-849-7028

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
