NSN 5310-00-841-5763 627773, 00-841-5763, 008415763
Product Details | BARREL PLAIN NUT
5310-00-841-5763 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. Excludes NUT (1), PLAIN, ROUND.
Part Alternates: 627773, 5310-00-841-5763, 00-841-5763, 5310008415763, 008415763
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1966 | 00-841-5763 | 21926 ( NUT, PLAIN, BARREL ) |

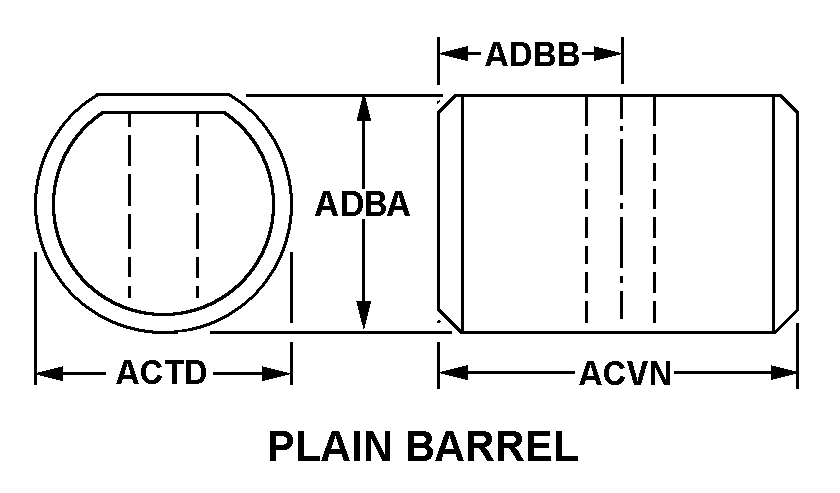

Drawings & Photos | NSN 5310-00-841-5763
Demand History | NSN 5310-00-841-5763
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-841-5763 | 2010-06-152 | 4 | United States |
| 5310-00-841-5763 | 2010-05-133 | 4 | US |
Cross Reference | NSN 5310-00-841-5763
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 627773 | 71379 | CESSNA AIRCRAFT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-841-5763
Technical Data | NSN 5310-00-841-5763
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A38 PLAIN BARREL |
| NUT DIAMETER | 0.740 INCHES NOMINAL |
| NUT LENGTH | 0.974 INCHES NOMINAL |
| BARREL HEIGHT | 0.576 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF THREADED HOLE TO END OF NUT | 0.487 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 71379 |
| DESIGN CONTROL REFERENCE | 627773 |
Restrictions/Controls & Freight Information | NSN 5310-00-841-5763
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
