NSN 5310-00-834-4875 NAS1033N3, F22NA272202, F22NA27-22-02
Product Details | PLATE SELF-LOCKING NUT

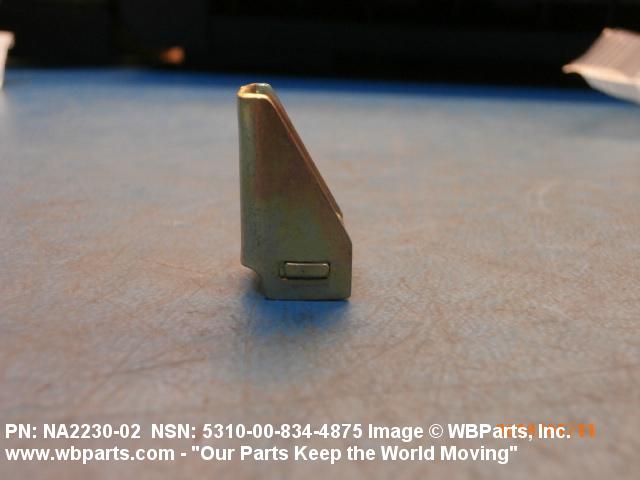

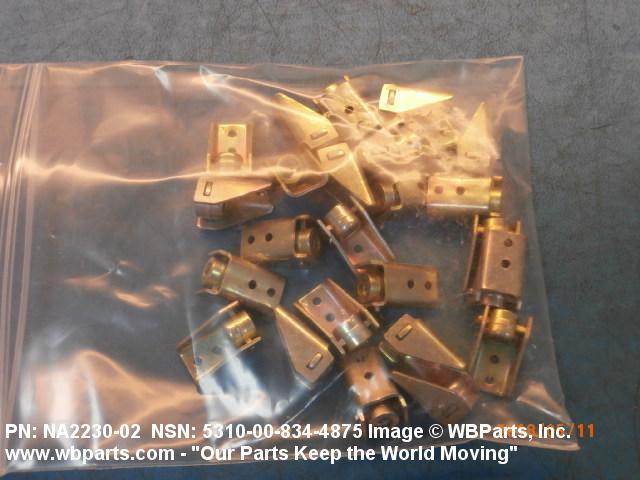

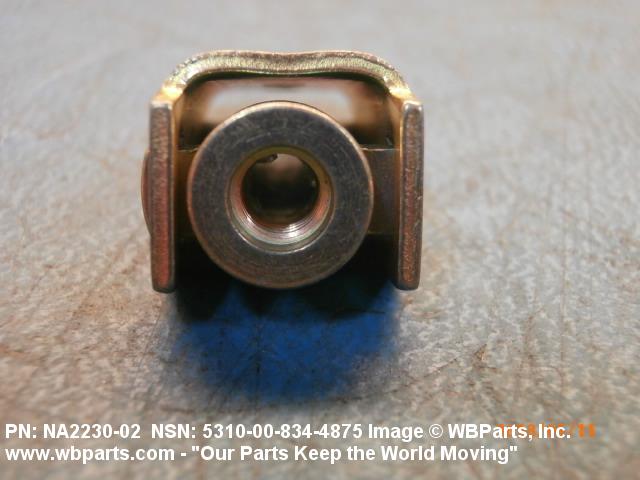

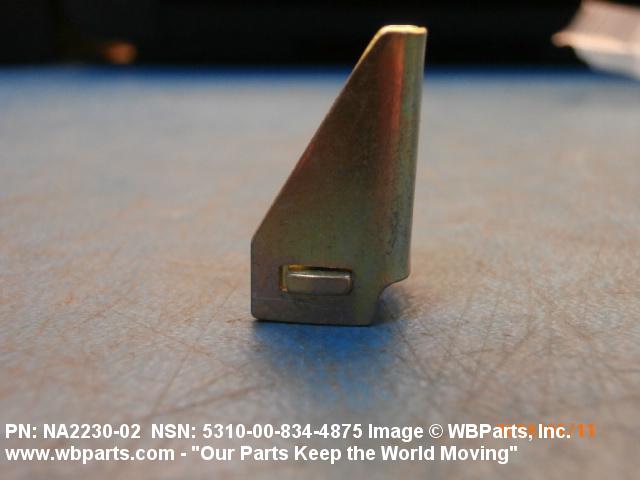

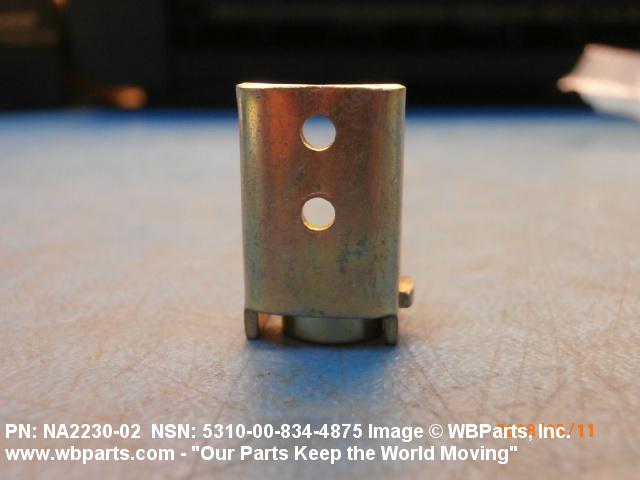

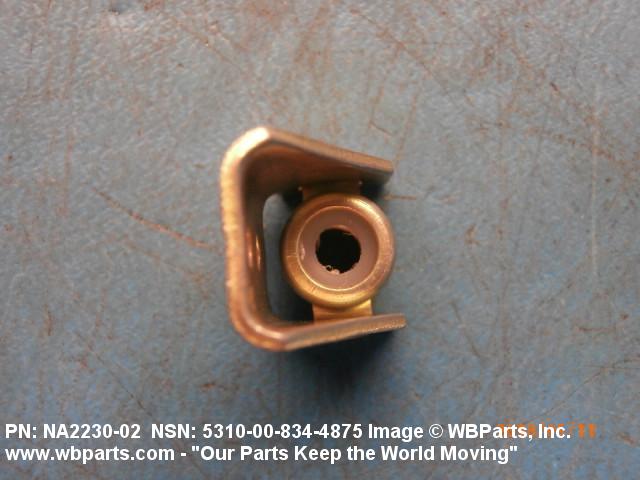

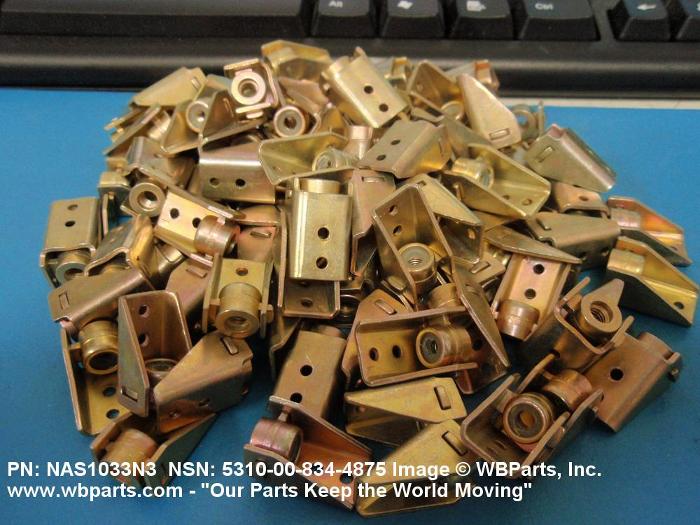

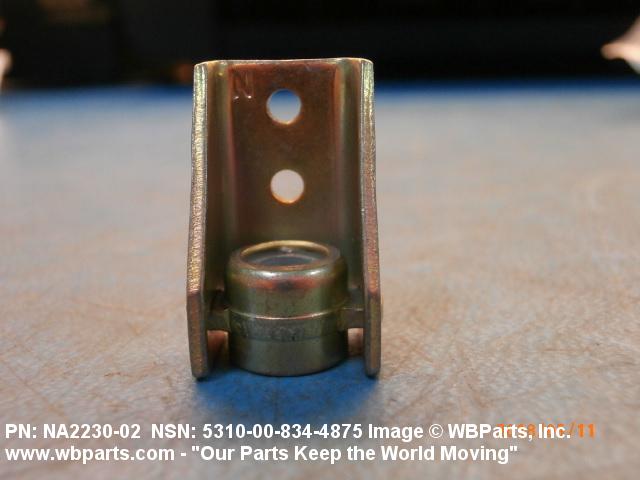

5310-00-834-4875 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1033N3, F22NA272202, F22NA27-22-02, 1819510003, 1819510-003, 22NA272202, 22NA27-22-02, 5165566, 5310-00-834-4875, 00-834-4875, 5310008344875, 008344875
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-834-4875 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

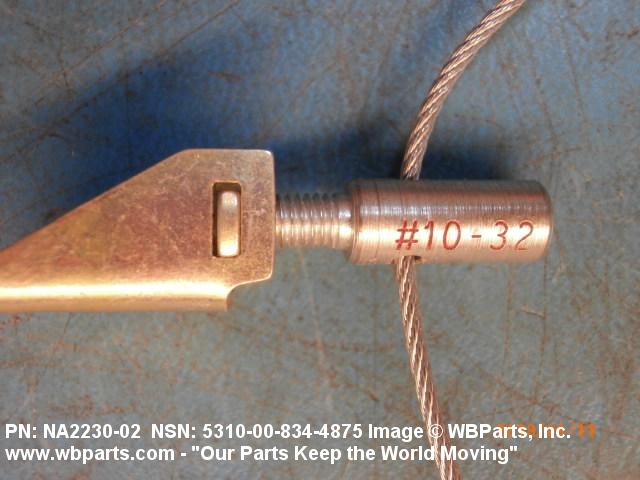

Drawings & Photos | NSN 5310-00-834-4875
Demand History | NSN 5310-00-834-4875
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-834-4875 | 2023-08-227 | 430 | DIBBS |
| 5310-00-834-4875 | 2023-08-219 | 430 | DIBBS |
| 5310-00-834-4875 | 2021-05-138 | 500 | US |
| NAS1033N3 | 2021-04-105 | 25 | United States |
| NAS1033N3 | 2018-04-120 | 25 | United States |
| 5310-00-834-4875 | 2018-02-59 | 8 | US |
| 5310-00-834-4875 | 2012-11-313 | 60 | United States |
| 22NA272202 | 2011-10-278 | 25 | US |
| 22NA272202 | 2011-10-278 | 50 | US |
| 22NA272202 | 2011-10-278 | 80 | US |
| NAS1033N3 | 2011-10-278 | 100 | US |
| NAS1033N3 | 2011-05-137 | 50 | United States |
| NAS1033N3 | 2011-03-88 | 100 | United States |
| 22NA272202 | 2011-02-45 | 100 | United States |
| NAS1033N3 | 2008-04-119 | 8 | United States |
| 22NA272202 | 2007-05-150 | 100 | US |
| NAS1033N3 | 2007-03-60 | 1000 | US |
Cross Reference | NSN 5310-00-834-4875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1819510-003 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 22NA27-22-02 | 22599 | AMERACE CORP ESNA DIV |
| 22NA27-22-02 | 72962 | HARVARD INDUSTRIES INC |
| 5165566 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| F22NA27-22-02 | 72962 | HARVARD INDUSTRIES INC |
| NAS1033N3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-834-4875
Related Products | NSN 5310-00-834-4875
Technical Data | NSN 5310-00-834-4875
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL OVERALL EXCEPT INSERT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-N-25027 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A122 PLATE |

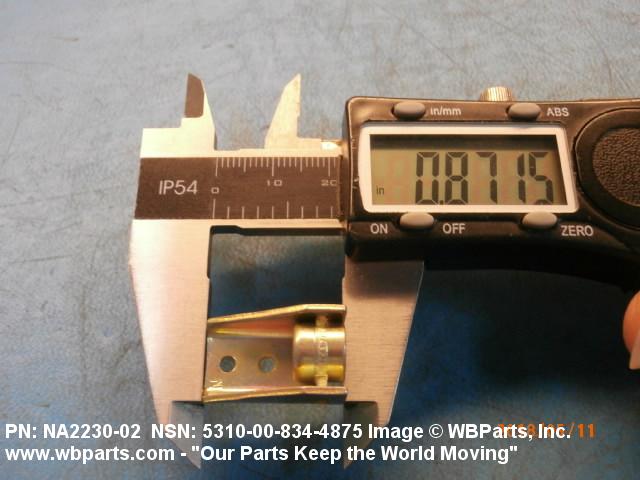

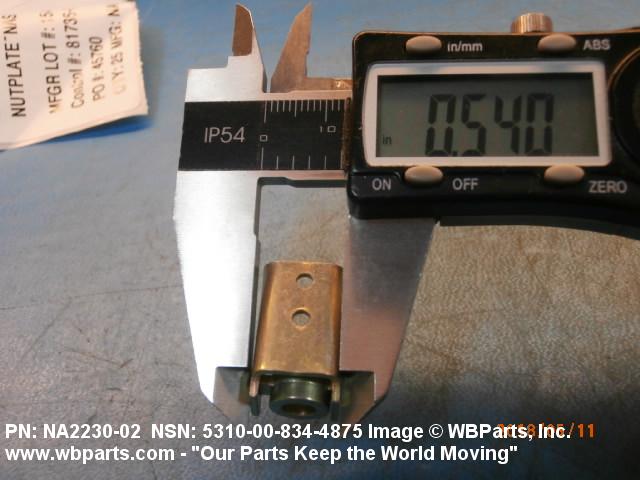

| NUT LENGTH | 0.906 INCHES MAXIMUM |

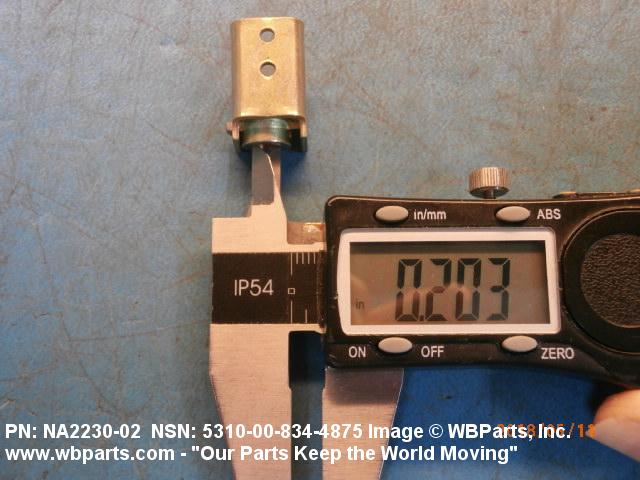

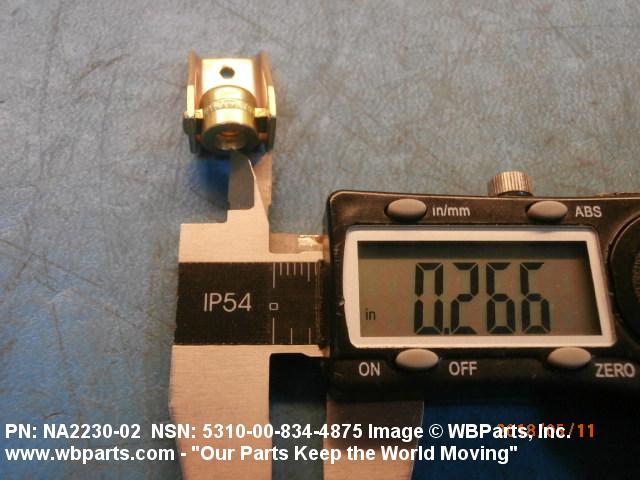

| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.266 INCHES MINIMUM AND 0.296 INCHES MAXIMUM |
| NUT HEIGHT | 0.343 INCHES MAXIMUM |

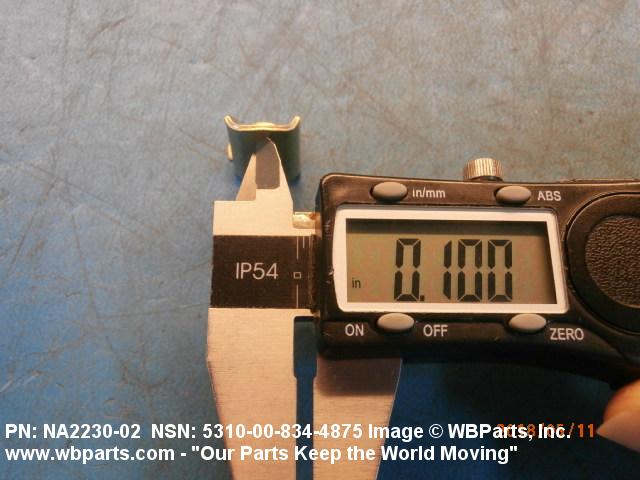

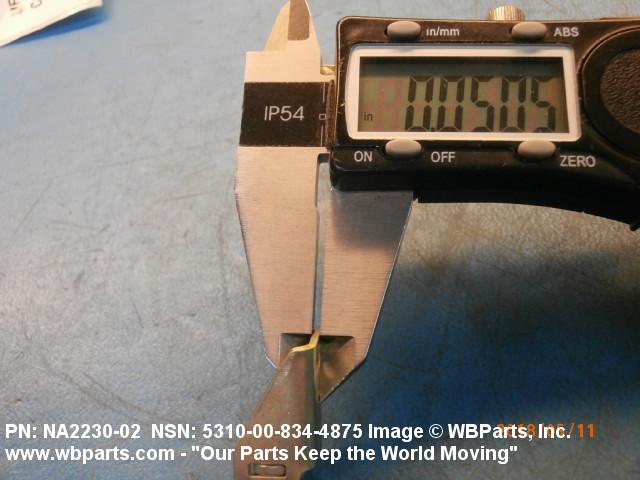

| PLATE THICKNESS | 0.075 INCHES MAXIMUM |
| PLATE WIDTH | 0.619 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.055 INCHES MINIMUM AND 0.085 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.193 INCHES MINIMUM AND 0.208 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F3 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.469 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.248 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-00-834-4875
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
