NSN 5310-00-834-0467 MS35690830, MS35690-830, 00-834-0467
Product Details | HEXAGON PLAIN NUT
5310-00-834-0467 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: MS35690830, MS35690-830, 5310-00-834-0467, 00-834-0467, 5310008340467, 008340467
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-834-0467 | 01857 ( NUT, PLAIN, HEXAGON ) |

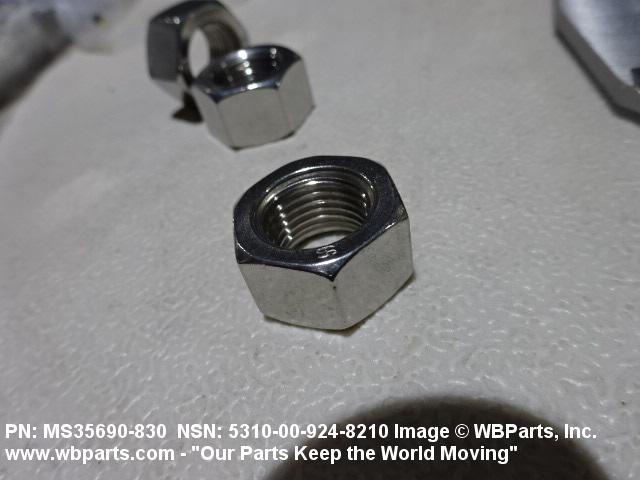

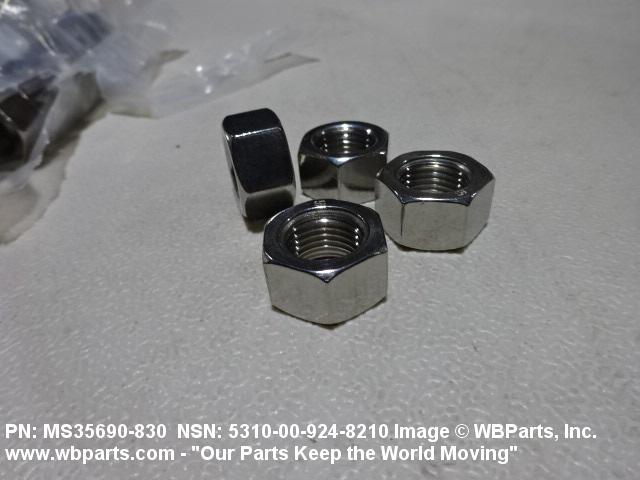

Drawings & Photos | NSN 5310-00-834-0467
Demand History | NSN 5310-00-834-0467
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS35690830 | 2024-05-143 | 460 | us |
| MS35690830 | 2024-05-127 | 460 | us |
| MS35690830 | 2024-03-65 | 460 | us |
| MS35690830 | 2023-03-69 | 100 | United States |
| MS35690830 | 2012-07-201 | 7 | US |
Cross Reference | NSN 5310-00-834-0467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35690-830 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-834-0467
Technical Data | NSN 5310-00-834-0467
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 410 OR STEEL COMP 416 OR STEEL COMP 430 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

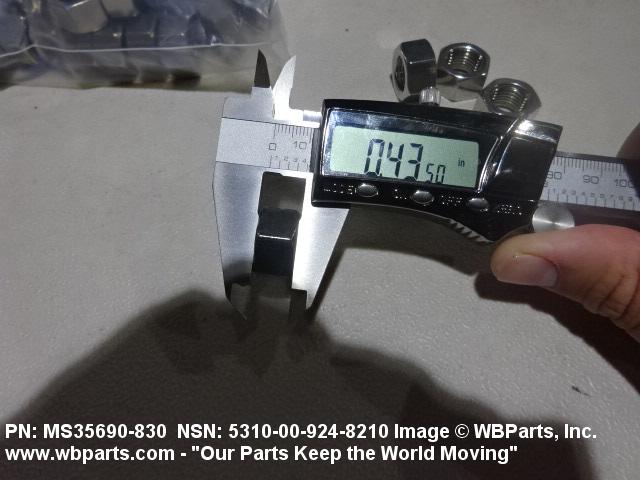

| NUT HEIGHT | 0.427 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |

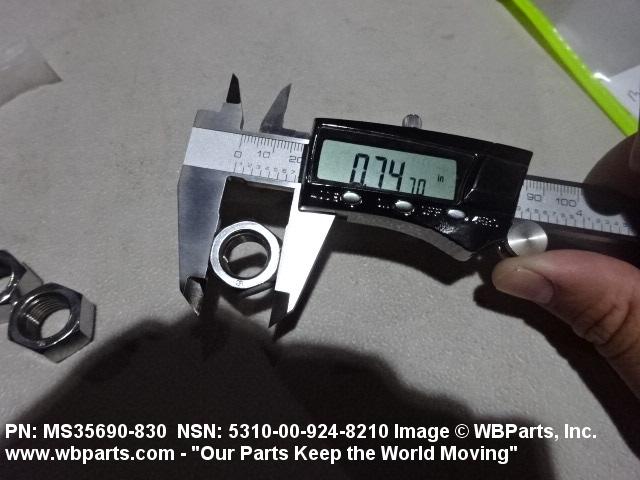

| WIDTH ACROSS FLATS | 0.736 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35690-830 |
Restrictions/Controls & Freight Information | NSN 5310-00-834-0467
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-834-0467
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
