NSN 5310-00-810-1786 MS210426, MS21042-6, NAS1291X6
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-810-1786 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210426, MS21042-6, NAS1291X6, NAS679X6, H10X6, H146CW, H14-6CW, JL6S6248, JL6S624B, F52LH3324064, F52LH3324-064, FN12A064, FN12A-064, T98624CPC, T98S624CPF, 1321816, 13-21816, 3342737010, 334-2737-010, 525 628 90334, 52562890334, 6749115624, 6749115-624, 5310-00-810-1786, 00-810-1786, 5310008101786, 008101786
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-810-1786 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

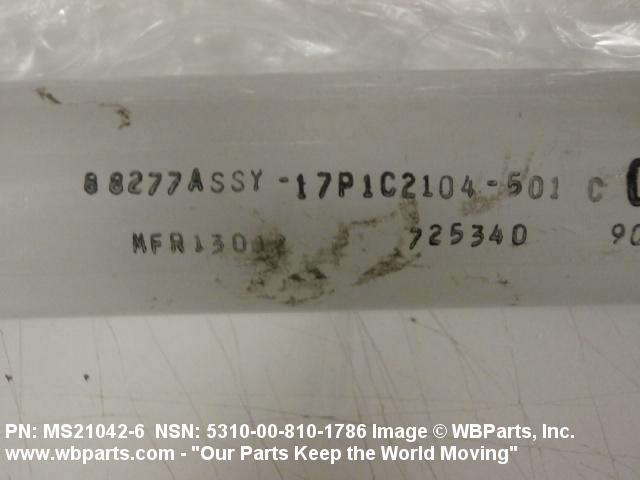

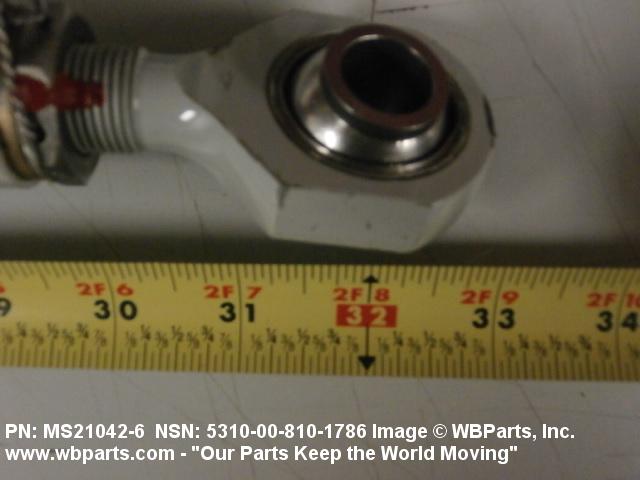

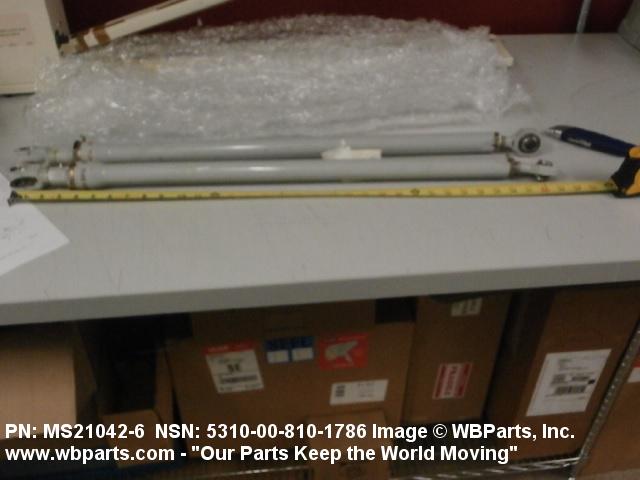

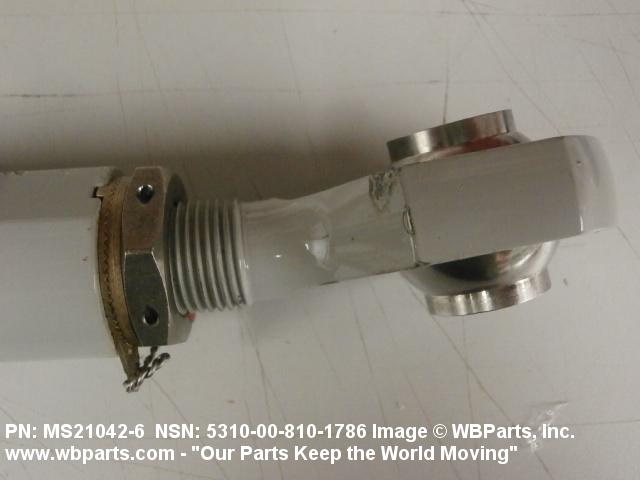

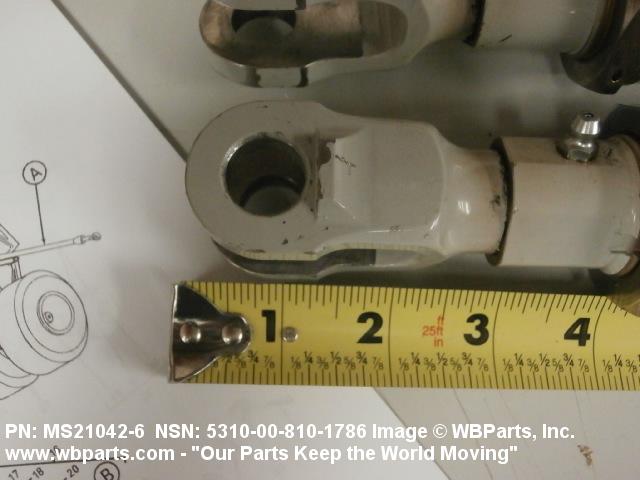

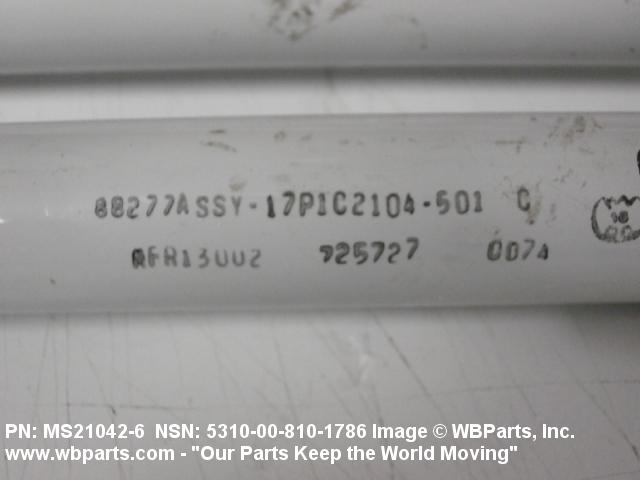

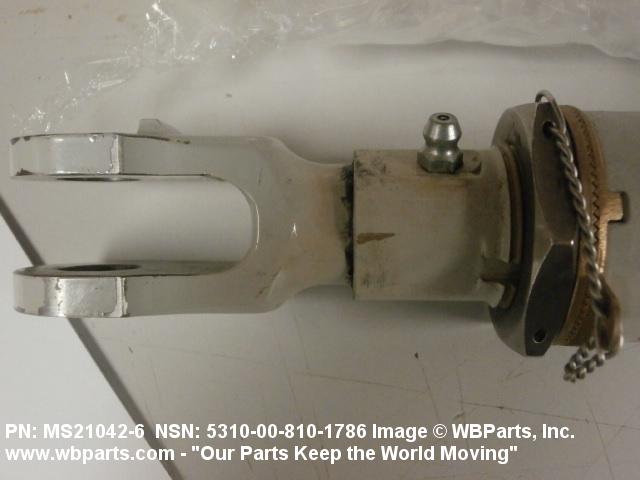

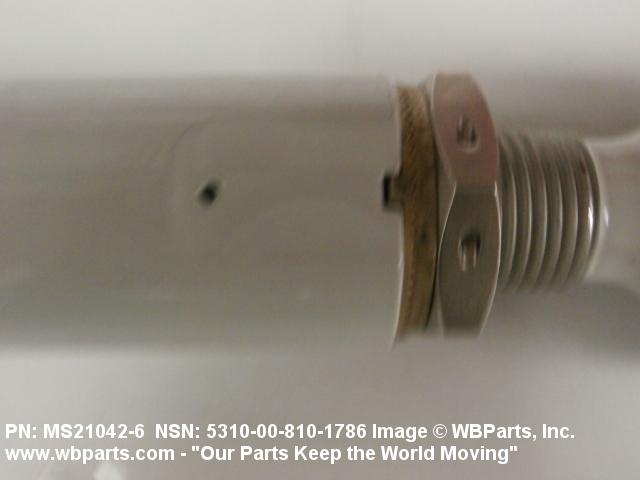

Drawings & Photos | NSN 5310-00-810-1786
Demand History | NSN 5310-00-810-1786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS210426 | 2024-05-149 | 6 | United States |
| MS210426 | 2024-04-115 | 160 | US |
| MS210426 | 2023-02-38 | 4 | Israel |
| 5310-00-810-1786 | 2022-04-115 | 160 | TW |
| 5310-00-810-1786 | 2022-04-112 | 10000 | Singapore |
| MS210426 | 2022-04-108 | 200 | United States |
| MS210426 | 2022-04-97 | 10 | Germany |
| MS21042-6 | 2022-01-06 | 100 | IN |
| 5310-00-810-1786 | 2021-07-209 | 1 | US |
| MS210426 | 2021-06-167 | 150 | US |
| 5310-00-810-1786 | 2021-05-151 | 44 | Malaysia |
| MS210426 | 2021-05-144 | 44 | Malaysia |
| MS210426 | 2021-04-98 | 10 | BZ |
| 5310-00-810-1786 | 2021-03-88 | 7 | TW |
| 5310-00-810-1786 | 2021-03-84 | 700 | Taiwan |
| MS210426 | 2021-01-27 | 4 | United States |
| 5310-00-810-1786 | 2020-07-196 | 32 | United States |
| 5310-00-810-1786 | 2020-07-189 | 32 | us |
| 5310-00-810-1786 | 2020-05-142 | 400 | Taiwan |
| 5310-00-810-1786 | 2020-05-139 | 400 | TW |
| 5310-00-810-1786 | 2020-04-105 | 25 | United States |
| MS210426 | 2020-01-06 | 50 | United States |
| MS210426 | 2019-07-196 | 25 | United States |
| MS210426 | 2019-06-157 | 87 | United States |
| MS210426 | 2019-05-141 | 20 | US |
| 5310-00-810-1786 | 2019-05-136 | 541 | KR |
| 5310-00-810-1786 | 2019-05-122 | 2 | GR |
| MS210426 | 2019-01-23 | 32 | United States |
| 5310-00-810-1786 | 2018-11-305 | 850 | United States |
| 5310-00-810-1786 | 2018-08-222 | 46 | United States |
| 5310-00-810-1786 | 2018-08-218 | 46 | United States |
| 5310-00-810-1786 | 2018-02-37 | 395 | DIBBS |
| 5310-00-810-1786 | 2018-01-09 | 197 | DIBBS |
| 5310-00-810-1786 | 2017-02-53 | 90 | MANUAL |
| MS210426 | 2016-09-260 | 600 | United States |
| MS210426 | 2016-05-133 | 30 | Egypt |
| MS210426 | 2016-01-29 | 20 | United States |
| MS210426 | 2015-08-226 | 2 | Spain |
| 5310-00-810-1786 | 2015-06-177 | 50 | United States |
| MS210426 | 2015-03-65 | 6 | us |
| MS210426 | 2015-01-12 | 120 | US |
| 5310-00-810-1786 | 2015-01-09 | 25 | US |
| MS210426 | 2014-12-342 | 160 | United States |
| MS210426 | 2014-11-309 | 1500 | Ukraine |
| MS21042-6 | 2014-11-308 | 5000 | United States |
| MS210426 | 2014-08-223 | 48 | US |
| MS210426 | 2014-08-216 | 68 | United States |
| NAS1291X6 | 2014-07-211 | 1700 | DE |
| 5310-00-810-1786 | 2013-09-263 | 60 | United States |
| 5310-00-810-1786 | 2013-09-263 | 90 | United States |
| 5310-00-810-1786 | 2013-09-263 | 180 | United States |
| 5310-00-810-1786 | 2013-09-263 | 360 | United States |
| MS210426 | 2013-07-190 | 25 | United States |
| MS210426 | 2013-03-81 | 10 | US |
| MS21042-6 | 2013-02-38 | 264 | United States |
| MS21042-6 | 2013-01-30 | 26400 | United States |
| MS210426 | 2013-01-15 | 2 | ZA |
| 5310-00-810-1786 | 2012-10-297 | 3000 | DIBBS |
| 5310-00-810-1786 | 2012-10-290 | 1300 | DIBBS |
| 5310-00-810-1786 | 2012-10-278 | 1410 | DIBBS |
| 5310-00-810-1786 | 2012-07-202 | 2700 | Singapore |
| 5310-00-810-1786 | 2012-05-150 | 25 | US |
| 5310-00-810-1786 | 2012-05-150 | 25 | US |
| MS210426 | 2011-11-334 | 140 | United States |
| MS210426 | 2011-10-304 | 3 | United States |
| 5310-00-810-1786 | 2011-09-258 | 1550 | DIBBS |
| MS210426 | 2011-07-200 | 4 | United States |
| MS21042-6 | 2011-06-180 | 3 | MX |
| MS21042-6 | 2011-06-180 | 1 | MX |
| MS21042-6 | 2011-06-180 | 3 | MX |
| MS21042-6 | 2011-06-180 | 1 | MX |
| MS210426 | 2011-06-160 | 12 | US |
| MS210426 | 2011-02-54 | 1000 | US |
| MS210426 | 2010-11-328 | 36 | UK |
| 5310-00-810-1786 | 2010-11-313 | 200 | United States |
| MS210426 | 2010-11-305 | 160 | US |
| 5310-00-810-1786 | 2010-06-167 | 5 | US |
| MS210426 | 2010-01-06 | 200 | US |
| MS210426 | 2009-10-293 | 64 | United States |
| 5310-00-810-1786 | 2009-09-272 | 64 | United States |
| MS210426 | 2009-09-258 | 10 | US |
| 5310-00-810-1786 | 2009-08-238 | 53 | Philippines |
| MS210426 | 2009-07-189 | 20 | US |
| 5310-00-810-1786 | 2009-06-169 | 64 | US |
| 5310-00-810-1786 | 2009-06-153 | 4 | United States |
| MS210426 | 2009-05-138 | 1000 | US |
| 5310-00-810-1786 | 2009-02-35 | 30 | IT |
| MS210426 | 2008-12-357 | 120 | US |
| 5310-00-810-1786 | 2008-09-268 | 3300 | DIBBS |
| MS210426 | 2008-09-259 | 200 | us |
| 5310-00-810-1786 | 2008-09-255 | 3100 | DIBBS |
| MS210426 | 2008-07-198 | 1300 | India |
| MS210426 | 2008-07-196 | 250 | United States |
| 5310-00-810-1786 | 2008-05-127 | 1250 | India |
| 5310-00-810-1786 | 2008-05-127 | 1250 | India |
| MS210426 | 2008-04-106 | 16 | DE |
Cross Reference | NSN 5310-00-810-1786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12387354 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12387354-6 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 13-21816 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 334-2737-010 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 525 628 90334 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 5310008101786 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6749115-624 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| F52LH3324-064 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52LH3324-064 | 72962 | HARVARD INDUSTRIES INC |
| FN12A-064 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| H10X6 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H10X6 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| H10X6 | R1120 | SATAIR A/S |
| H14-6CW | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H14-6CW | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| H14-6CW | F6033 | TECNOTEC SARL |
| H14-6CW | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| H14-6CW | R1120 | SATAIR A/S |
| JL6S6248 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| JL6S624B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21042-6 | 2N335 | PATTONAIR USA, INC. DBA PATTONAIR |
| MS21042-6 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| MS21042-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21042-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21042-6 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1291X6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS679X6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| T98624CPC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| T98S624CPF | 05693 | CHERRY TEXTRON INC CHERRY COMMERCIAL FASTENERS PRODUCTS |
| T98S624CPF | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-810-1786
Related Products | NSN 5310-00-810-1786
Technical Data | NSN 5310-00-810-1786
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.620 INCHES MAXIMUM |

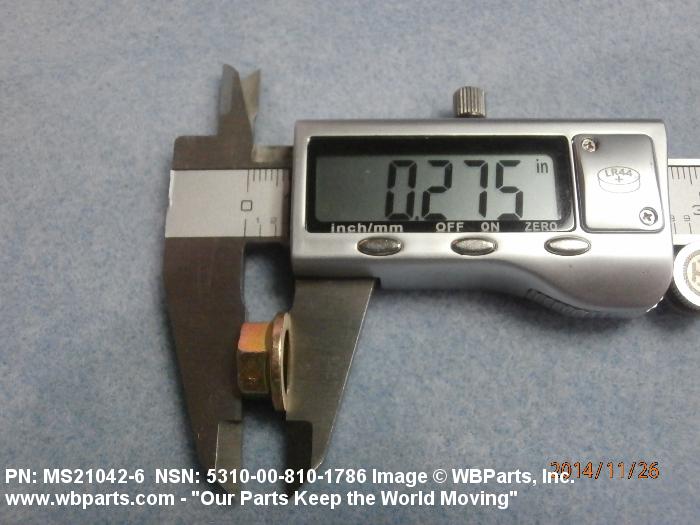

| OVERALL HEIGHT | 0.267 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |
| WASHER THICKNESS | 0.030 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-810-1786
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
