NSN 5310-00-809-9514 10910174-9 , 00-809-9514, 109101749
Product Details | FLAT WASHER
5310-00-809-9514 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 10910174-9 , 5310-00-809-9514, 00-809-9514, 5310008099514, 109101749, 008099514
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-809-9514 | 13393 ( WASHER, FLAT ) |

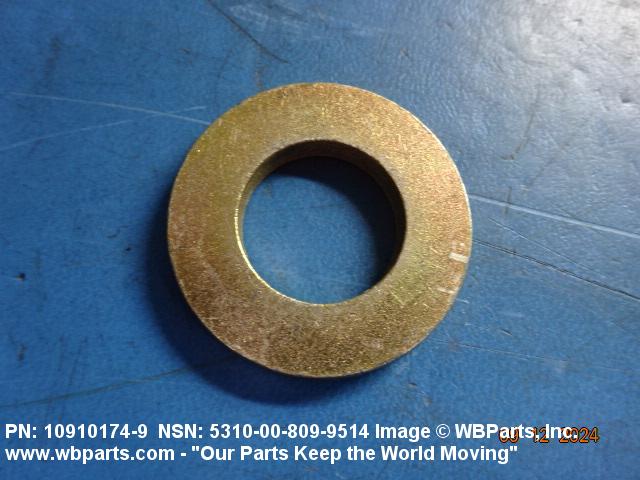

Drawings & Photos | NSN 5310-00-809-9514
Demand History | NSN 5310-00-809-9514
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-809-9514 | 2024-08-229 | 2 | Germany |
| 5310-00-809-9514 | 2022-05-122 | 11750 | DIBBS |
| 5310-00-809-9514 | 2022-04-111 | 11750 | DIBBS |
| 109101749 | 2021-04-103 | 1376 | US |
| 5310-00-809-9514 | 2019-12-346 | 7100 | DIBBS |
| 5310-00-809-9514 | 2019-09-265 | 5287 | DIBBS |
| 5310-00-809-9514 | 2019-07-203 | 25300 | DIBBS |
| 5310-00-809-9514 | 2019-07-192 | 25300 | DIBBS |
| 5310-00-809-9514 | 2019-05-127 | 10940 | DIBBS |
| 5310-00-809-9514 | 2018-10-275 | 10971 | DIBBS |
| 5310-00-809-9514 | 2018-09-267 | 10971 | DIBBS |
| 5310-00-809-9514 | 2017-09-263 | 13934 | DIBBS |
| 5310-00-809-9514 | 2017-09-251 | 13934 | DIBBS |
| 5310-00-809-9514 | 2017-08-243 | 13934 | DIBBS |
| 5310-00-809-9514 | 2016-10-304 | 18057 | DIBBS |
| 5310-00-809-9514 | 2016-08-236 | 10501 | DIBBS |
| 5310-00-809-9514 | 2016-06-180 | 10501 | DIBBS |
| 5310-00-809-9514 | 2015-10-287 | 10501 | DIBBS |
| 5310-00-809-9514 | 2015-10-274 | 10501 | DIBBS |
| 5310-00-809-9514 | 2010-07-204 | 21310 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-809-9514
Related Products | NSN 5310-00-809-9514
Technical Data | NSN 5310-00-809-9514
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8640 OR STEEL COMP 8740 OR STEEL COMP 1050 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-626 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-627 FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-624 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-627 FED SPEC 2ND MATERIAL RESPONSE AND QQ-S-624 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-626 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-627 FED SPEC 3RD MATERIAL RESPONSE AND QQ-S-624 FED SPEC 4TH MATERIAL RESPONSE OR QQ-S-626 FED SPEC 4TH MATERIAL RESPONSE OR QQ-S-627 FED SPEC 4TH MATERIAL RESPONSE AND SAE ASSN STD 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |
| HOLE DIAMETER | 0.928 INCHES MINIMUM AND 0.948 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |
| OVERALL DIAMETER | 1.771 INCHES MINIMUM AND 1.791 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |
| THICKNESS | 0.187 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |
| III HEAT TREATMENT | QUENCHED AND TEMPERED |
Restrictions/Controls & Freight Information | NSN 5310-00-809-9514
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-809-9514
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JT | Recovery Vehicle, M51/M74/M88 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
