NSN 5310-00-809-8546 MS 27183-8, MS15795108, MS15795-108

Product Details | FLAT WASHER

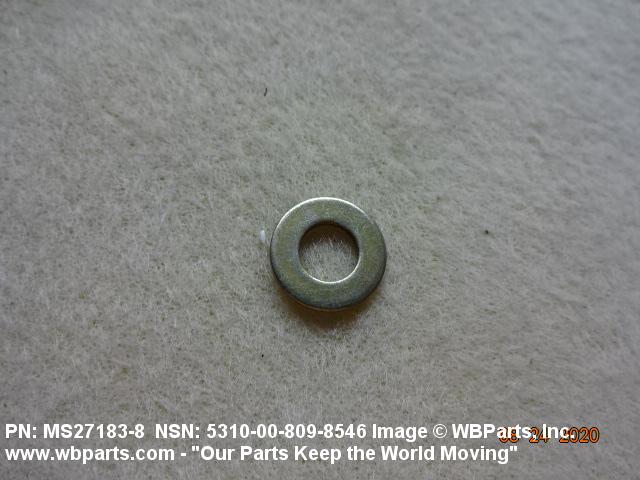

5310-00-809-8546 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: MS 27183-8, MS15795108, MS15795-108, MS15795208, MS15795-208, MS157958, MS15795-8, MS15975208, MS15975-208, MS2718308, MS27183-08, MS271838, MS27183-8, A10643, A20489, B452530723, B4525-307-23, STR0NGH0LDWASHER8, STR0NGH0LDWASHER-8, TIP00021, X2549, X25-49, XX0020529, XX002-0529, D301079 FIND NO 43, D301079FINDNO43, D301080 FIND NO 39, D301080FINDNO39, D301087 FIND NO 43, D301087FINDNO43, LS109113918, LS10911391-8 , LS1091391 , 10121721, 1018985008, 1018985-008, 12Z303536, 12Z3035-36, 35361, 4197500032, 4197500-032, 4197515007, 4197515-007, 446160, 4B4274, 53006, 5310PL0721194, 8836830130, 88-368-30-130, 5310-00-809-8546, 00-809-8546, 5310008098546, 008098546

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-809-8546	13393 ( WASHER, FLAT )

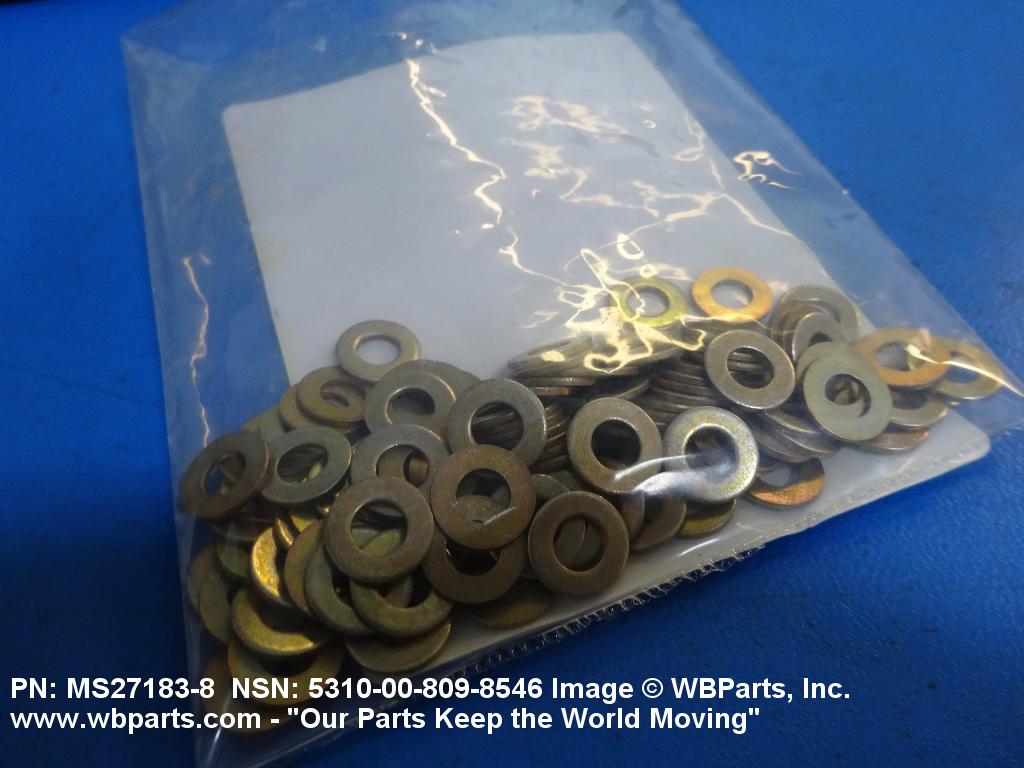

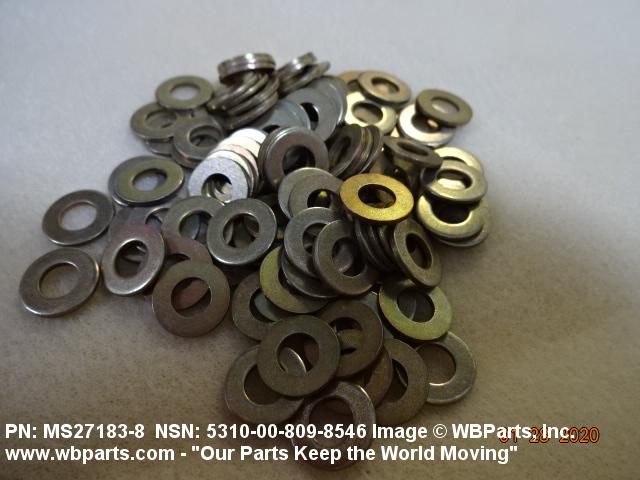

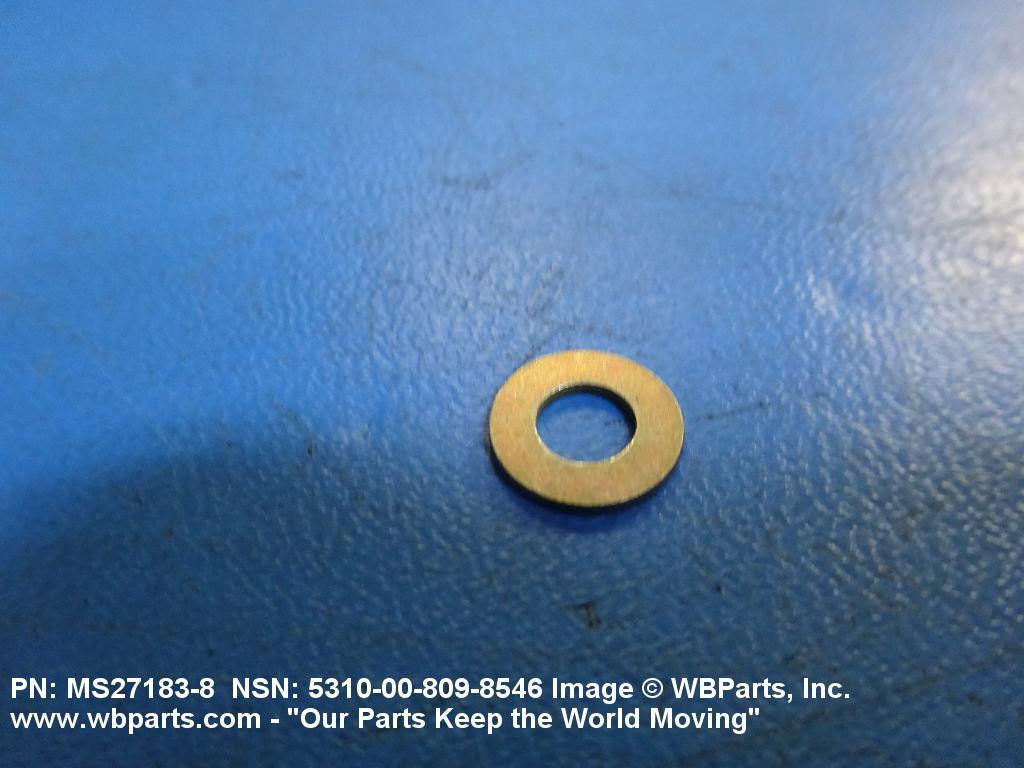

Drawings & Photos | NSN 5310-00-809-8546

Part Number	Request Date	QTY	Origin
MS271838	2024-09-249	1	Japan
5310-00-809-8546	2024-08-239	360	United States
MS271838	2024-08-234	1	Japan
MS271838	2024-05-137	4	United States
5310-00-809-8546	2023-06-163	1329	US
5310-00-809-8546	2023-06-163	1390	US
5310-00-809-8546	2023-06-163	4541	US
5310-00-809-8546	2023-04-96	100	Poland
5310-00-809-8546	2023-04-93	100	Poland
5310-00-809-8546	2023-03-90	12	Poland
5310-00-809-8546	2022-11-314	454	DIBBS
5310-00-809-8546	2022-09-271	454	DIBBS
5310-00-809-8546	2022-09-262	1380	DIBBS
MS271838	2022-09-249	6	Taiwan
5310-00-809-8546	2022-09-249	1380	DIBBS
5310-00-809-8546	2022-08-237	1380	DIBBS
5310-00-809-8546	2022-07-205	1212	DIBBS
5310-00-809-8546	2022-04-104	2126	DIBBS
5310-00-809-8546	2022-03-75	2216	DIBBS
5310-00-809-8546	2022-03-73	172	DIBBS
5310-00-809-8546	2022-03-61	172	DIBBS
5310-00-809-8546	2022-02-37	140	DIBBS
5310-00-809-8546	2021-12-357	1310	DIBBS
5310-00-809-8546	2021-12-340	1310	DIBBS
5310-00-809-8546	2021-11-312	1009	DIBBS
5310-00-809-8546	2021-10-301	1009	DIBBS
5310-00-809-8546	2021-03-83	490	DIBBS
5310-00-809-8546	2021-03-67	276	US
5310-00-809-8546	2021-02-53	490	DIBBS
5310-00-809-8546	2020-10-299	455	DIBBS
5310-00-809-8546	2020-10-294	1669	DIBBS
MS271838	2020-10-290	1300	United States
5310-00-809-8546	2020-08-230	226	DIBBS
5310-00-809-8546	2020-08-222	226	DIBBS
5310-00-809-8546	2019-12-354	50	United States
MS157958	2019-12-336	100	United States
MS15795208	2019-10-275	1000	United States
MS271838	2018-10-276	72	United States
MS271838	2018-09-249	300	United States
5310-00-809-8546	2018-08-221	6016	DIBBS
5310-00-809-8546	2018-03-85	6016	DIBBS
5310-00-809-8546	2018-03-77	6016	DIBBS
5310-00-809-8546	2018-01-25	100	United States
5310-00-809-8546	2018-01-12	6016	DIBBS
5310-00-809-8546	2018-01-04	6016	DIBBS
MS271838	2017-09-257	1400	United States
MS271838	2017-09-256	111	United States
MS271838	2015-08-226	210	South Korea
MS271838	2015-07-189	138	South Korea
MS271838	2015-07-182	86	South Korea
MS27183-8	2014-03-71	299	United States
5310-00-809-8546	2014-02-36	52	MANUAL
MS15795-208	2014-02-36	52	US
MS271838	2013-11-316	254	United States
MS271838	2013-09-260	125	UM
MS15795108	2013-08-220	1	United Kingdom
MS271838	2013-01-18	2	US
MS271838	2013-01-11	36	US
MS271838	2012-12-352	64	US
MS15795208	2012-12-342	2000	United States
MS271838	2012-04-102	500	US
MS271838	2011-12-343	6	US
5310-00-809-8546	2011-05-137	6	Italy
5310-00-809-8546	2011-05-137	100	Italy
5310-00-809-8546	2011-04-117	200	United States
MS271838	2011-02-47	500	US
5310-00-809-8546	2010-01-27	192	US
MS271838	2009-12-338	1272	US
5310-00-809-8546	2009-12-338	1272	US
5310-00-809-8546	2009-06-176	10	US
5310-00-809-8546	2009-05-138	12367	DIBBS
5310-00-809-8546	2009-04-98	130	US
MS271838	2008-10-302	10000	US
5310-00-809-8546	2008-04-119	3202	DIBBS
5310-00-809-8546	2008-04-112	100	United States
MS271838	2007-12-353	500	United States
MS15795208	2007-07-184	400	Canada

Cross Reference | NSN 5310-00-809-8546

Part Number	Cage Code	Manufacturer
1018985-008	05037	ANACOMP, INC.
1018985-008	0HBH2	LEXEL IMAGING SYSTEMS, INC.
12Z3035-36	94135	NAVAL ORDNANCE STANDARDS
35361	05463	WHEELABRATOR-FRYE INC BALCRANK PRODUCTS
4197500-032	05869	RAYTHEON COMPANY DBA RAYTHEON
4197500-032	82577	RAYTHEON COMPANY DBA RAYTHEON
4197515-007	05869	RAYTHEON COMPANY DBA RAYTHEON
446160	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
4B4274	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
53006	96046	CRANE PUMPS & SYSTEMS, INC.
5310008098546	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310PL0721194	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
88-368-30-130	79092	REED INDUSTRIES INC VICTOR PRODUCTS DIV
A10643	U4574	MANROY ENGINEERING LTD
A20489	U4574	MANROY ENGINEERING LTD
B4525-307-23	60532	TRANE U.S. INC. DBA TRANE
D301079 FIND NO 43	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
D301080 FIND NO 39	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
D301087 FIND NO 43	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
LS10911391-8	01417	GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS
LS1091391	01417	GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS
MS 27183-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS15795-108	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS15795-108	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15795-208	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS15795-208	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15795-8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS15795-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15975-208	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS27183-08	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS27183-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
STR0NGH0LDWASHER-8	74323	STRONGHOLD SCREW PRODUCTS
TIP00021	97403	CECOM LR CENTER
X25-49	55469	ESSEX INDUSTRIES, INC.
XX002-0529	H2229	RDM TECHNOLOGY B.V.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-809-8546

Compare

Related Products | NSN 5310-00-809-8546

5310-00-809-8591, 5310-00-809-8836, 5310-00-809-8888, 5310-00-809-9111, 5310-00-809-9285

Technical Data | NSN 5310-00-809-8546

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

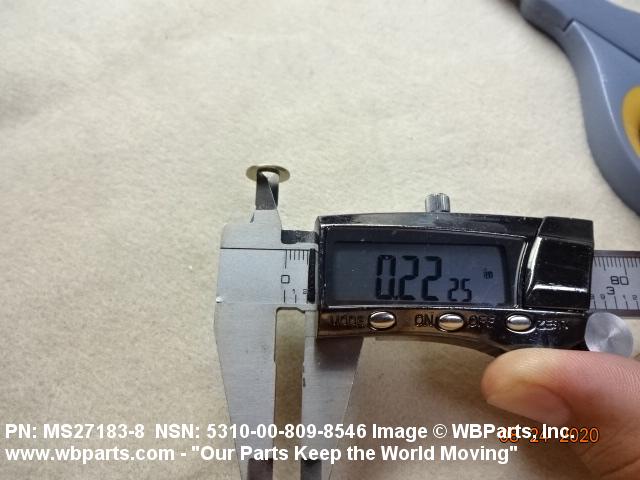

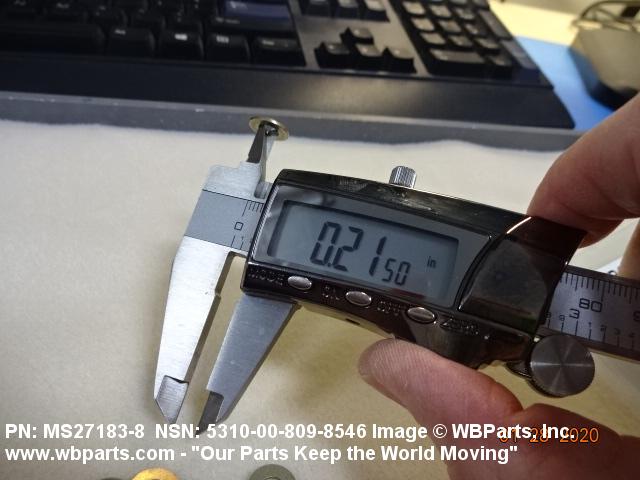

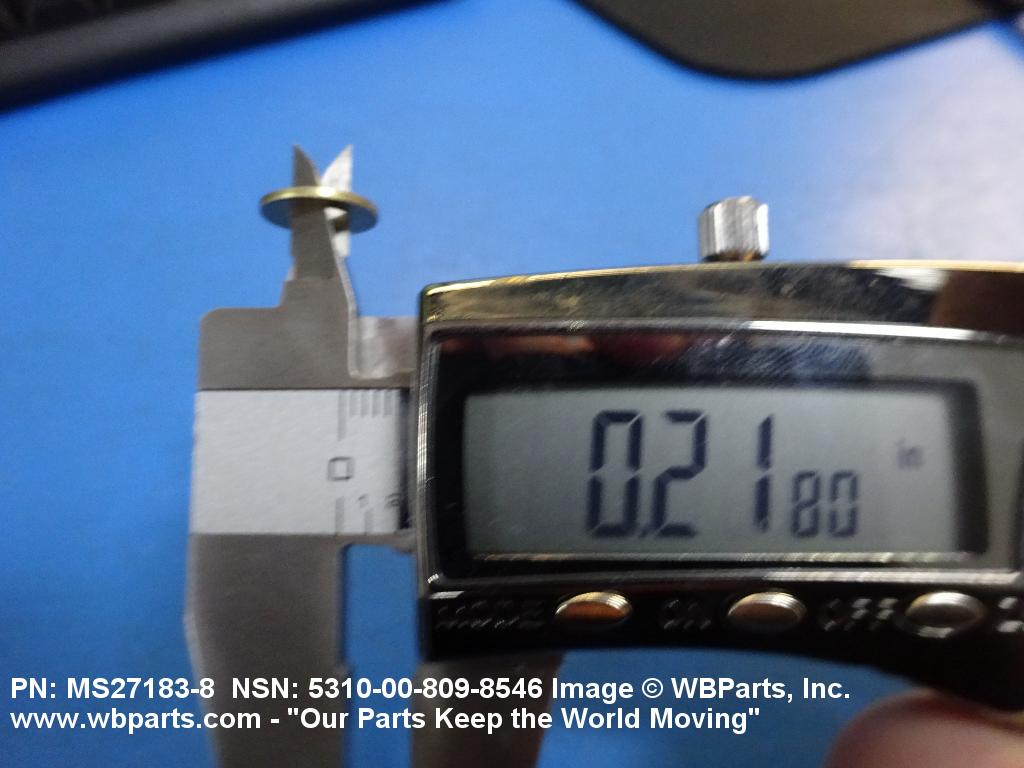

HOLE DIAMETER	0.214 INCHES MINIMUM AND 0.227 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

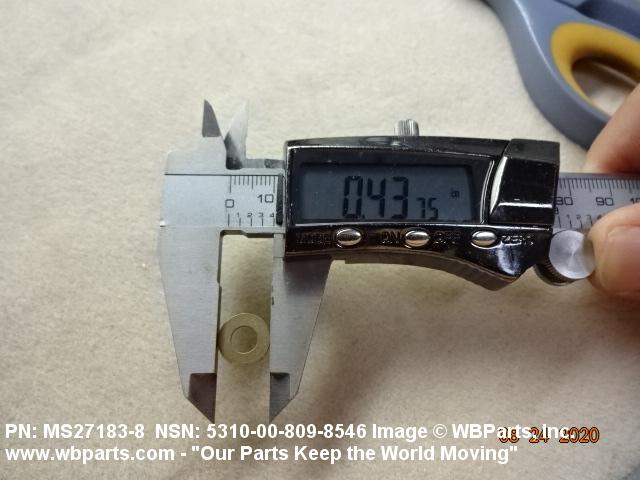

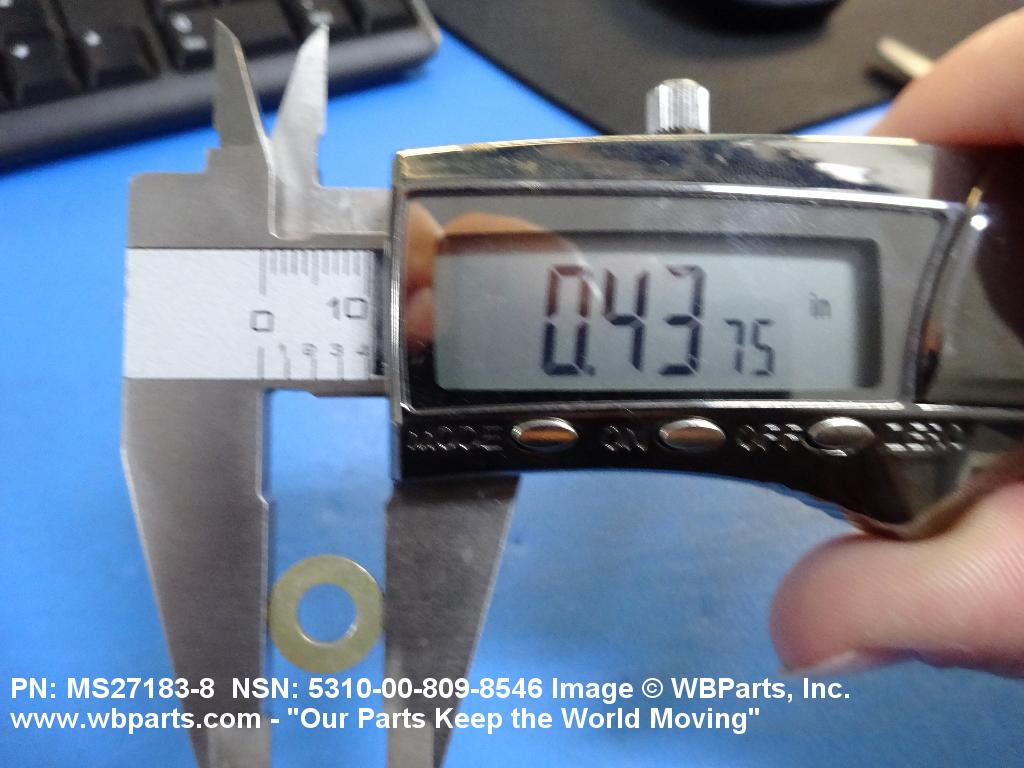

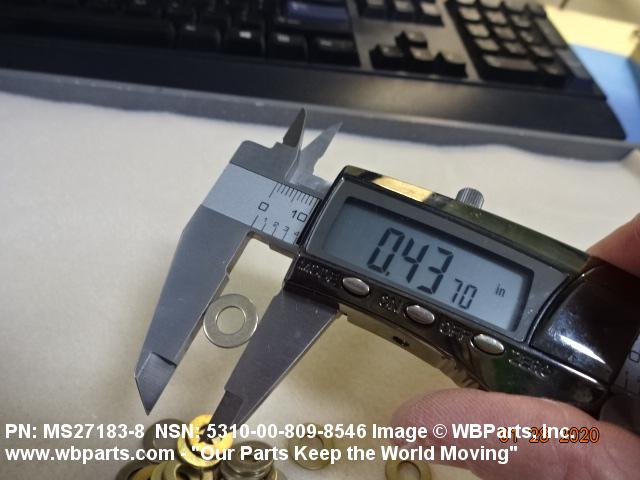

OVERALL DIAMETER	0.433 INCHES MINIMUM AND 0.453 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

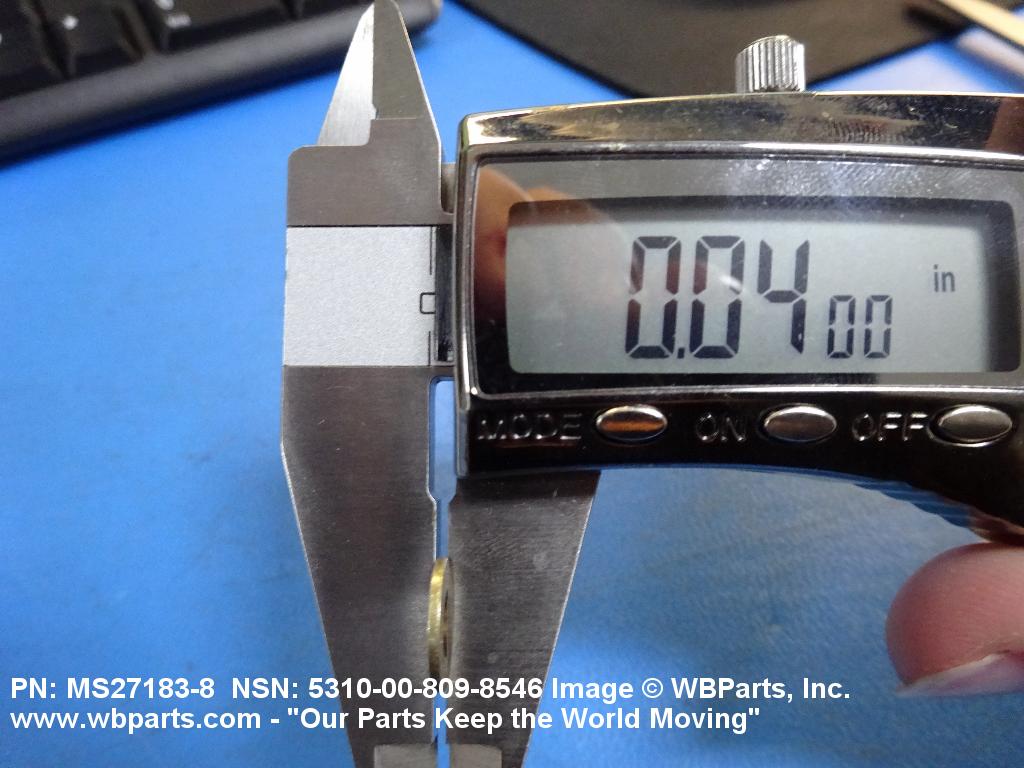

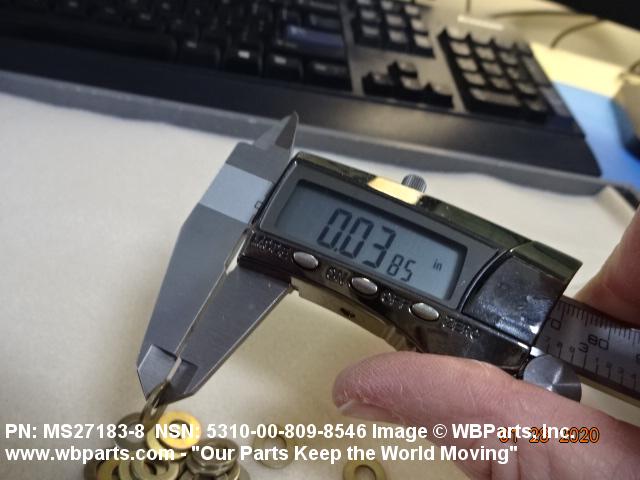

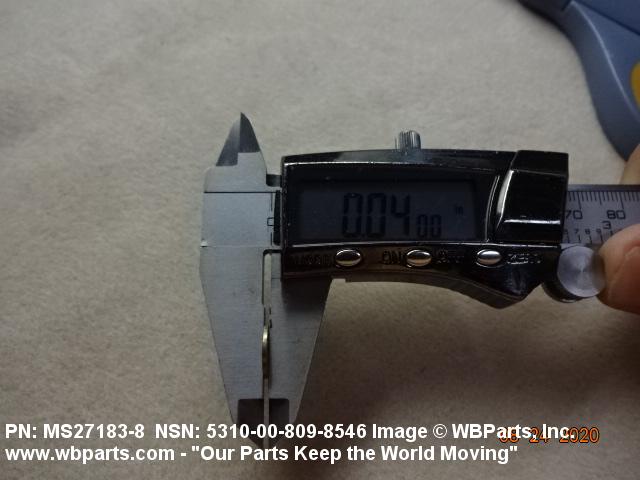

THICKNESS	0.036 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	A TYPE AND 1 GRADE AND A CLASS
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27183-8

Restrictions/Controls & Freight Information | NSN 5310-00-809-8546

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-809-8546

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 MX : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 MX : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 MX : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 MX : Each
