NSN 5310-00-809-3078 MS1579511, MS15795-11, MS15795211

Product Details | FLAT WASHER

5310-00-809-3078 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: MS1579511, MS15795-11, MS15795211, MS15795-211, MS2718311, MS27183-11, AN9454P, AN945-4P, SK600310, SK-6003-10, PC106261, D17000A, FFW92, FF-W-92, 5118-103-15, 526130, 526-130, 5261513, 526-1513, 0912464, 10082605 , 10344, 106261, 1201103, 120110-3, 120196, 120393, 2164IDSCP, 299010, 299-010, 2AF292, 34515, 34705S, 5310PL0656734, 7344632, 734463-2, 85368900, 853689-00, 85816, 912464, 91324, 9454P, 945-4P, 5310-00-809-3078, 00-809-3078, 5310008093078 , 008093078, 511810315

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-809-3078	13393 ( WASHER, FLAT )

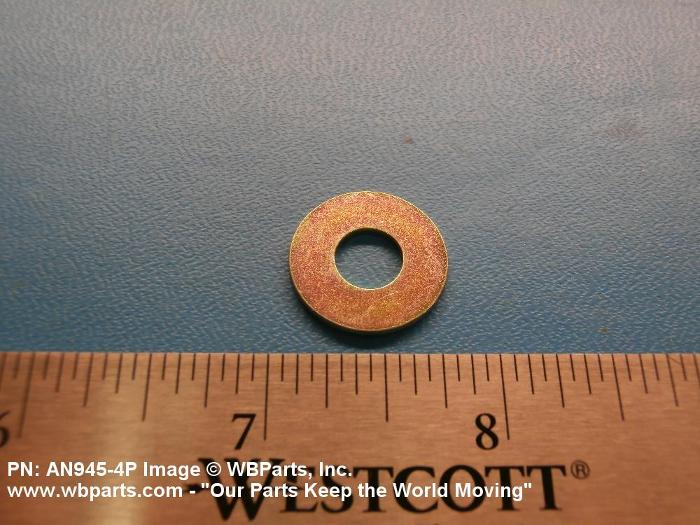

Drawings & Photos | NSN 5310-00-809-3078

Part Number	Request Date	QTY	Origin
5310-00-809-3078	2024-10-298	1181	DIBBS
FF-W-92	2023-01-18	60	Saudi Arabia
5310-00-809-3078	2022-08-243	312	DIBBS
MS2718311	2020-05-141	520	US
106261	2019-12-349	70	CA
5310-00-809-3078	2019-06-178	200	United States
5310-00-809-3078	2018-12-345	1701	DIBBS
FFW92	2018-07-207	2	United States
MS2718311	2016-12-347	100	United States
5310-00-809-3078	2016-11-330	100	United States
FFW92	2016-08-217	21	US
MS2718311	2014-12-356	15	US
85816	2014-09-254	1	Singapore
MS27183-11	2014-03-71	396	United States
AN945-4P	2012-04-115	40	IN
MS2718311	2011-11-308	200	United States
FFW92	2011-10-304	495	United States
85816	2011-09-256	3	Indonesia
106261	2011-01-24	20	US
MS2718311	2010-03-61	1000	US
5310-00-809-3078	2010-02-48	10000	DIBBS
5310-00-809-3078	2009-09-265	5500	DIBBS
5310-00-809-3078	2009-08-238	100	US
5310-00-809-3078	2008-09-255	11200	DIBBS
5310-00-809-3078	2008-03-69	3628	US

Cross Reference | NSN 5310-00-809-3078

Part Number	Cage Code	Manufacturer
0912464	92392	ALLIS-CHALMERS CORP
10344	64829	ARVINMERITOR INC
106261	12204	DAIMLER CHRYSLER
106261	17733	DIEBOLD, INCORPORATED DIV GSA SECURITY CONTRACTS GROUP
106261	18876	U S ARMY AVIATION AND MISSILE COMMAND
106261	24617	GENERAL MOTORS CORP
106261	72582	MTU AMERICA INC.
120110-3	24821	ROSEMOUNT ANALYTICAL, INC. DIV PROCESS ANALYTICAL DIVISION
120196	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
120393	16004	DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
120393	29215	JENNY PRODUCTS, INC.
21&64IDSCP	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS
299-010	72741	DORMAN PRODUCTS, INC. DBA MOTORMITE DIVISION
2AF292	45152	OSHKOSH CORPORATION
34515	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
34705S	23040	FORD MOTOR CO FORD PARTS AND SERVICE DIV
5118-103-15	79466	AESYS TECHNOLOGIES, L.L.C. DBA JACKSON & CHURCH HVAC GLOBAL
5118-103-15	80372	MARINE CORPS
526-130	44940	CUMMINS POWER GENERATION INC.
526-1513	44940	CUMMINS POWER GENERATION INC.
5310008093078	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310PL0656734	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
734463-2	80045	L-3 COMMUNICATIONS CINCINNATI ELECTRONICS CORPORATION
853689-00	32345	DEFENSE REDUCTION AGENCY
85816	08683	BROCKWAY MOTOR TRUCKS DIV OF MACK TRUCKS INC
912464	92392	ALLIS-CHALMERS CORP
91324	08645	BRIGGS AND STRATTON CORP
945-4P	78385	MEGGITT (TROY), INC. DIV MEGGITT PLC
AN945-4P	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
D17000A	04773	GTE COMMUNICATION SYSTEMS CORP
FF-W-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS15795-11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15795-211	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27183-11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PC106261	C7432	POWER COMPONENTS (DEUTSCHLAND) GMBH
SK-6003-10	0EAK3	GSE MANAGEMENT CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-809-3078

Compare

Related Products | NSN 5310-00-809-3078

5310-00-809-3079, 5310-00-809-3225, 5310-00-809-3266, 5310-00-809-3360, 5310-00-809-3365

Technical Data | NSN 5310-00-809-3078

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HOLE DIAMETER	0.307 INCHES MINIMUM AND 0.327 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	0.727 INCHES MINIMUM AND 0.749 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR
THICKNESS	0.051 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	A TYPE AND 1 GRADE AND A CLASS
DEPARTURE FROM CITED DOCUMENT	AS MODIFIED BY THE FINISH
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-W-92
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27183-11

Restrictions/Controls & Freight Information | NSN 5310-00-809-3078

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-809-3078

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
