NSN 5310-00-800-6994 SL3C428, SL3C-428, E0104428
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-800-6994 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: SL3C428, SL3C-428, E0104428, E0104-428, 6749294428, 6749294-428, 5310-00-800-6994, 00-800-6994, 5310008006994, 008006994
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-800-6994 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

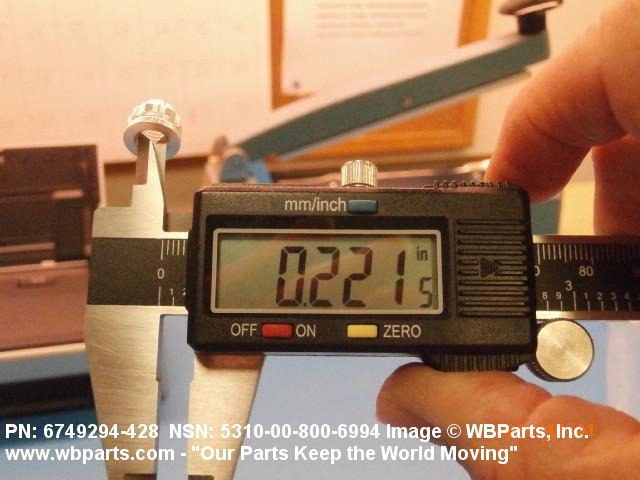

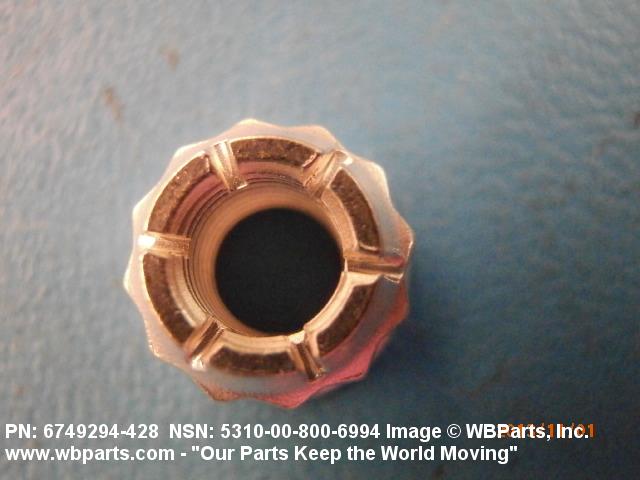

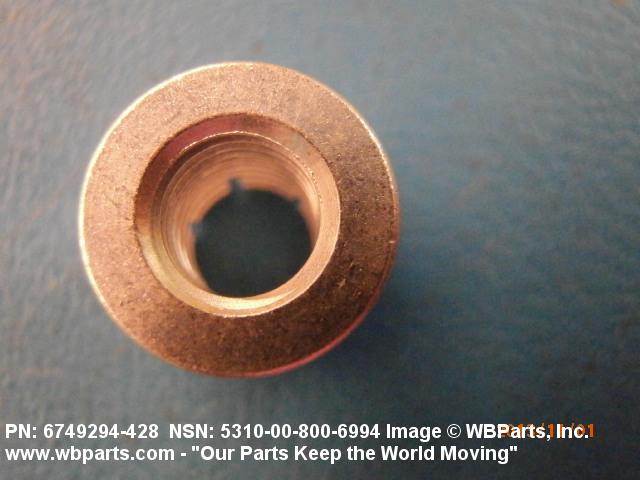

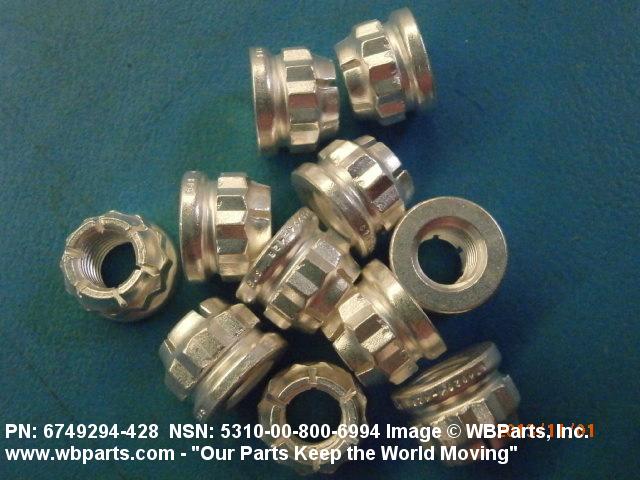

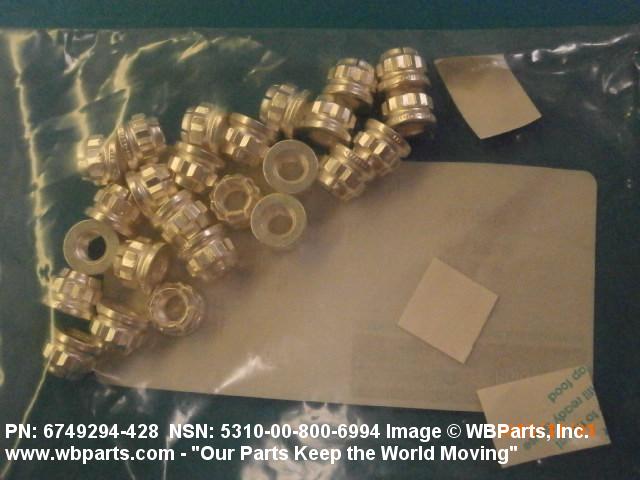

Drawings & Photos | NSN 5310-00-800-6994
Demand History | NSN 5310-00-800-6994
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6749294-428 63005 | 2024-03-85 | 5593 | DIBBS |
| E0104-428 | 2024-03-85 | 5593 | DIBBS |
| SL3C-428 | 2024-03-85 | 5593 | DIBBS |
| 6749294-428 63005 | 2024-03-78 | 2001 | DIBBS |
| E0104-428 | 2024-03-78 | 2001 | DIBBS |
| SL3C-428 | 2024-03-78 | 2001 | DIBBS |
| 6749294-428 63005 | 2024-03-70 | 2001 | DIBBS |
| E0104-428 | 2024-03-70 | 2001 | DIBBS |
| SL3C-428 | 2024-03-70 | 2001 | DIBBS |
| 6749294-428 63005 | 2023-11-309 | 1911 | DIBBS |
| 6749294-428 63005 | 2023-11-309 | 107 | DIBBS |
| E0104-428 | 2023-11-309 | 1911 | DIBBS |
| E0104-428 | 2023-11-309 | 107 | DIBBS |
| SL3C-428 | 2023-11-309 | 1911 | DIBBS |
| SL3C-428 | 2023-11-309 | 107 | DIBBS |
| E0104-428 | 2022-11-310 | 1541 | DIBBS |
| SL3C-428 | 2022-11-310 | 1541 | DIBBS |
| E0104-428 | 2022-05-137 | 836 | DIBBS |
| SL3C-428 | 2022-05-137 | 836 | DIBBS |
| E0104-428 | 2022-03-86 | 5480 | DIBBS |
| SL3C-428 | 2022-03-86 | 5480 | DIBBS |
| E0104-428 | 2022-03-72 | 3788 | DIBBS |
| SL3C-428 | 2022-03-72 | 3788 | DIBBS |
| E0104-428 | 2021-12-336 | 1692 | DIBBS |
| SL3C-428 | 2021-12-336 | 1692 | DIBBS |
| E0104-428 | 2021-12-335 | 491 | DIBBS |
| SL3C-428 | 2021-12-335 | 491 | DIBBS |
| E0104-428 | 2021-11-307 | 914 | DIBBS |
| SL3C-428 | 2021-11-307 | 914 | DIBBS |
| E0104-428 | 2021-10-286 | 287 | DIBBS |
| SL3C-428 | 2021-10-286 | 287 | DIBBS |
| E0104-428 | 2021-09-266 | 322 | DIBBS |
| SL3C-428 | 2021-09-266 | 322 | DIBBS |
| E0104-428 | 2021-07-186 | 305 | DIBBS |
| SL3C-428 | 2021-07-186 | 305 | DIBBS |
| 5310-00-800-6994 | 2021-02-50 | 1 | DIBBS-RFPs |
| 5310-00-800-6994 | 2016-06-181 | 1101 | DIBBS |
| 5310-00-800-6994 | 2016-02-56 | 1 | DIBBS-RFPs |
| 6749294428 | 2015-06-154 | 20 | us |
| 5310-00-800-6994 | 2013-10-275 | 50 | United States |
| 5310-00-800-6994 | 2013-08-231 | 50 | United States |
| 5310-00-800-6994 | 2011-05-124 | 928 | DIBBS |
| 5310-00-800-6994 | 2008-08-240 | 100 | United States |
Cross Reference | NSN 5310-00-800-6994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6749294-428 | 24617 | GENERAL MOTORS CORP |
| 6749294-428 | 63005 | ROLLS-ROYCE CORPORATION |
| 6749294-428 | 73342 | ALLISON TRANSMISSION, INC. |
| E0104-428 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SL3C-428 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| SL3C428 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-800-6994
Related Products | NSN 5310-00-800-6994
Technical Data | NSN 5310-00-800-6994
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5637 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 34.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A293 DOUBLE HEXAGON |

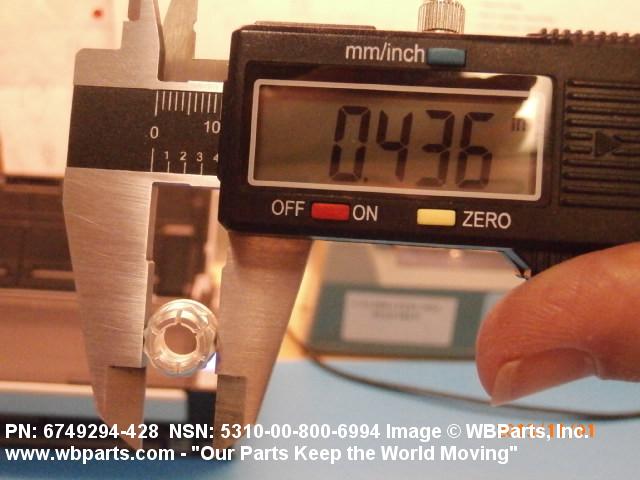

| WASHER OUTSIDE DIAMETER | 0.438 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |

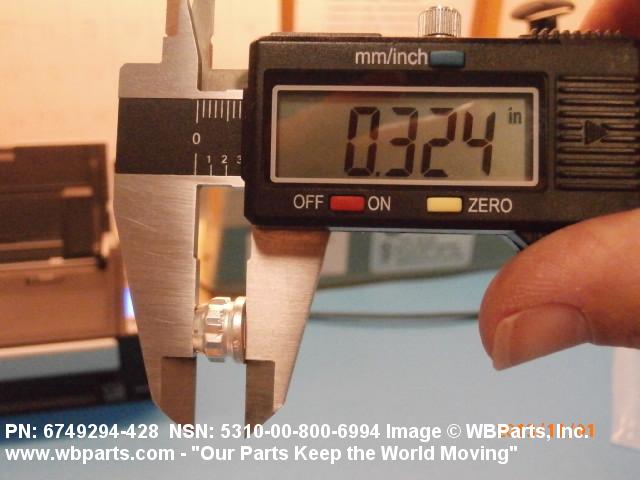

| OVERALL HEIGHT | 0.294 INCHES MINIMUM AND 0.329 INCHES MAXIMUM |
| WASHER THICKNESS | 0.065 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |

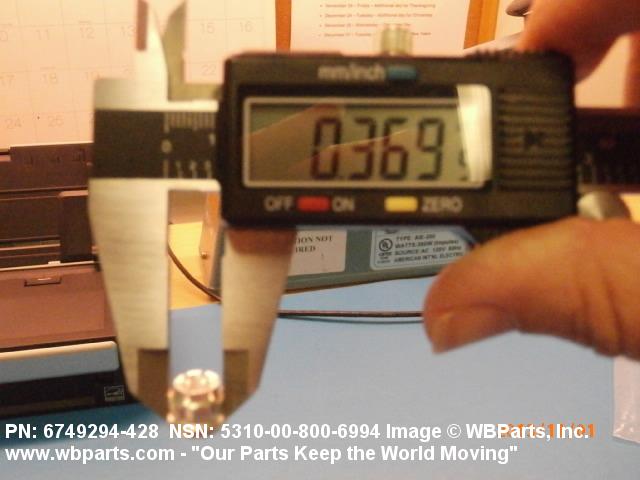

| WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL NUT |
| TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | OVERALL SILVER |
| MANUFACTURERS CODE | 63005 |
| MFR SOURCE CONTROLLING REFERENCE | 6749294-428 |
Restrictions/Controls & Freight Information | NSN 5310-00-800-6994
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-800-6994
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
