NSN 5310-00-796-7369 MS90342, H10441, H1044-1

Product Details | WING SELF-LOCKING NUT

5310-00-796-7369 A nut having wings designed for manual turning without driver or wrench with an integral feature incorporated for locking on the threads of a mating member.

Part Alternates: MS90342, H10441, H1044-1, 2673731501, 2673731-501, 5310-00-796-7369, 00-796-7369, 5310007967369, 007967369

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-796-7369	05283 ( NUT, SELF-LOCKING, WING )

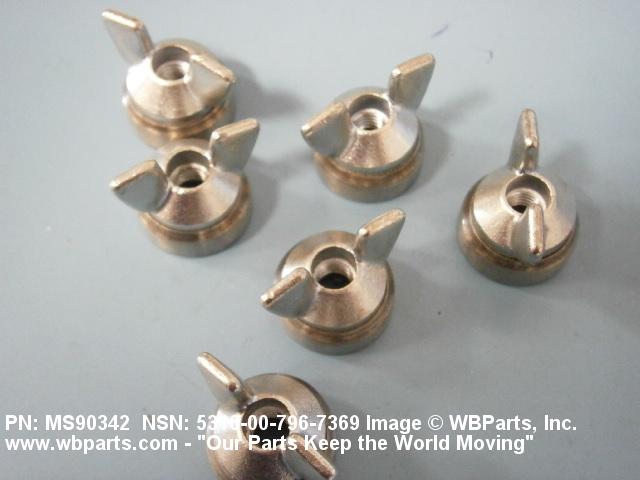

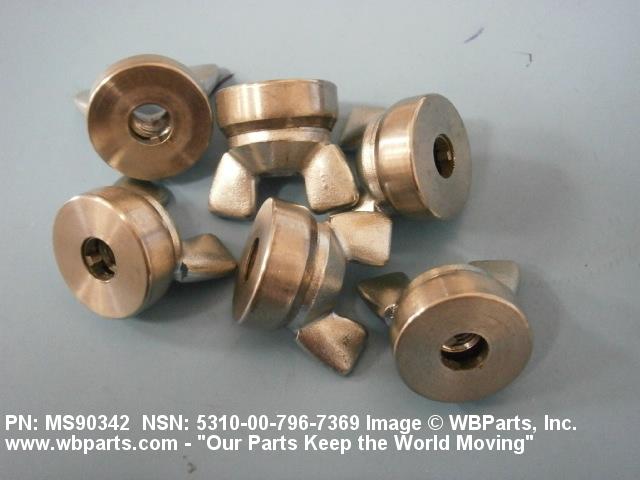

Drawings & Photos | NSN 5310-00-796-7369

Part Number	Request Date	QTY	Origin
5310-00-796-7369	2021-06-174	100	UK
5310-00-796-7369	2021-05-124	40	AU
MS90342	2021-03-88	25	United States
5310-00-796-7369	2020-06-156	25	United States
5310-00-796-7369	2020-06-156	50	United States
5310-00-796-7369	2019-10-295	10	BR
MS90342	2019-06-156	1	US
5310-00-796-7369	2018-11-311	200	US
5310-00-796-7369	2018-05-130	1	DIBBS-RFPs
5310-00-796-7369	2018-02-44	100	US
MS90342	2017-08-227	25	US
MS90342	2015-09-251	4	us
MS90342	2014-03-63	11	US
MS90342	2013-11-308	140	United States
MS90342	2013-11-306	140	US
5310-00-796-7369	2012-09-265	90	United States
5310-00-796-7369	2012-02-60	10	United States
MS90342	2012-01-13	6	United States
MS90342	2011-07-207	12	Colombia
5310-00-796-7369	2011-01-12	268	DIBBS
MS90342	2010-07-182	10	Colombia
5310-00-796-7369	2010-04-93	282	DIBBS
5310-00-796-7369	2010-02-36	254	DIBBS
5310-00-796-7369	2009-09-252	341	DIBBS
5310-00-796-7369	2009-06-180	195	DIBBS
MS90342	2008-11-324	100	US
MS90342	2008-11-324	250	US
5310-00-796-7369	2008-08-232	100	US
5310-00-796-7369	2008-08-232	250	US
5310-00-796-7369	2008-08-232	500	US
MS90342	2007-10-276	120	US
MS90342	2007-10-276	250	US
MS90342	2007-10-276	500	US

Cross Reference | NSN 5310-00-796-7369

Part Number	Cage Code	Manufacturer
2673731-501	18355	BOEING COMPANY, THE DBA BOEING
2673731-501	88277	BOEING COMPANY, THE DBA BOEING
H1044-1	80206	NAVAL AIR DEVELOPMENT CENTER WARMINSTER
MS90342	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-796-7369

Compare

Related Products | NSN 5310-00-796-7369

5310-00-796-7460, 5310-00-796-7582, 5310-00-796-7919, 5310-00-796-7921, 5310-00-796-8203

Technical Data | NSN 5310-00-796-7369

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 4130 NUT
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758,COND D-1 MIL SPEC SINGLE MATERIAL RESPONSE NUT
SURFACE TREATMENT	CHROMATE NUT
HARDNESS RATING	NOT RATED

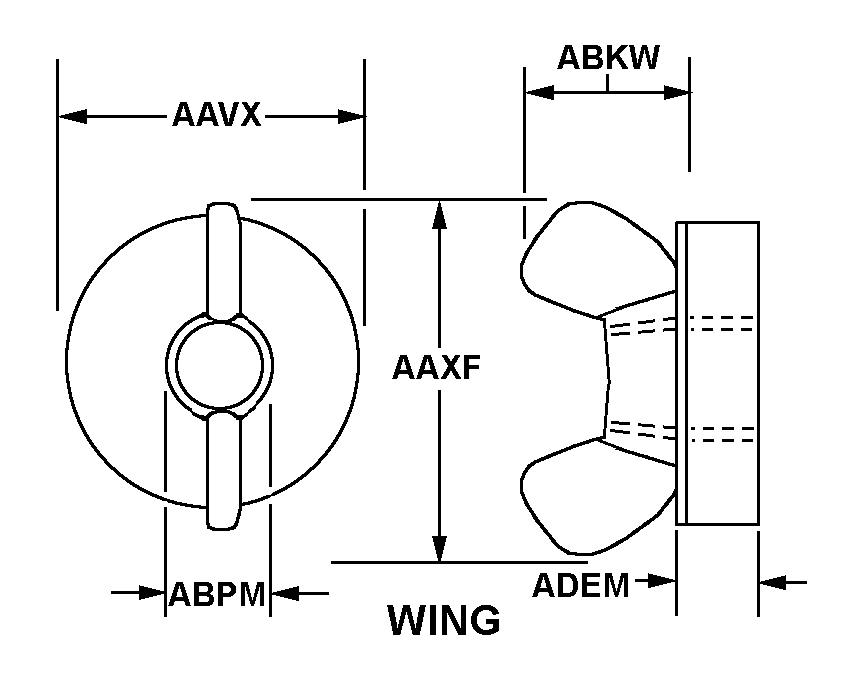

NUT STYLE	A268 WING
WASHER OUTSIDE DIAMETER	0.695 INCHES MINIMUM AND 0.705 INCHES MAXIMUM
WING SPREAD WIDTH	0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM
OVERALL HEIGHT	0.656 INCHES NOMINAL
BODY DIAMETER	0.312 INCHES NOMINAL
WASHER THICKNESS	0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
FABRICATION METHOD	FORGED OR MACHINED
TEMP RATING	NOT RATED
SPECIAL FEATURES	NUT ASSEMBLY INCLUDES 2 SPRINGS,MATT STEEL,CADMIUM PLATE;GROOVED WASHER,MATT CORROSION STEEL AND RETAINER,MATT CORROSION STEEL;2 HOLES IN NUT DIA. 0.128 IN.,0.335 IN. DEEP FOR SPRINGS
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS90342

Restrictions/Controls & Freight Information | NSN 5310-00-796-7369

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-796-7369

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
