NSN 5310-00-784-1215 MS21051L06K, RM52LHTA5762BC, RM52LHTA57-62BC
Product Details | PLATE SELF-LOCKING NUT
5310-00-784-1215 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21051L06K, RM52LHTA5762BC, RM52LHTA57-62BC, 1261062BC, 12610-62BC, 5310-00-784-1215, 00-784-1215, 5310007841215, 007841215
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-784-1215 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

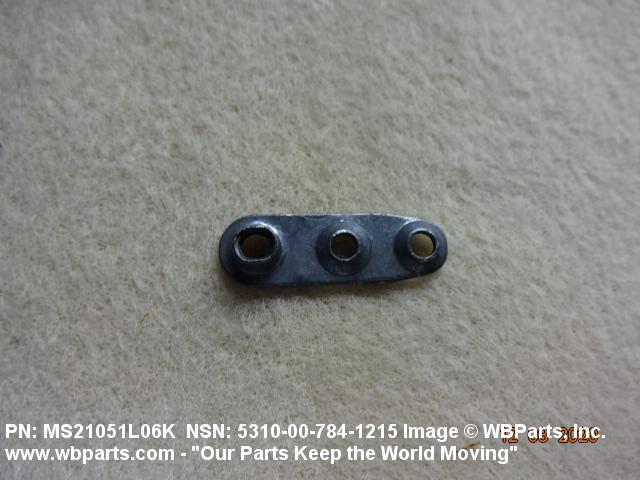

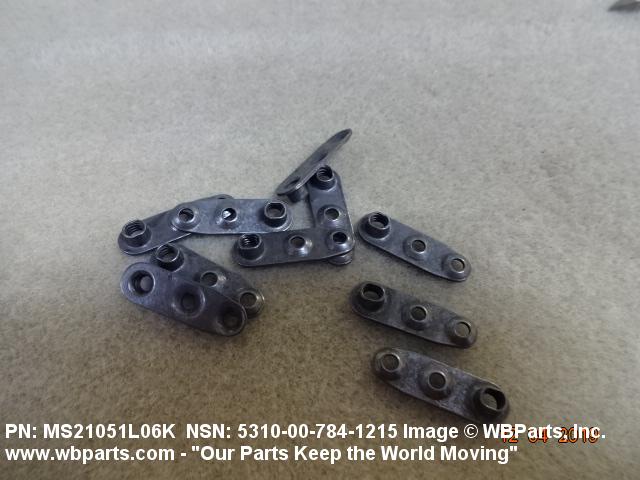

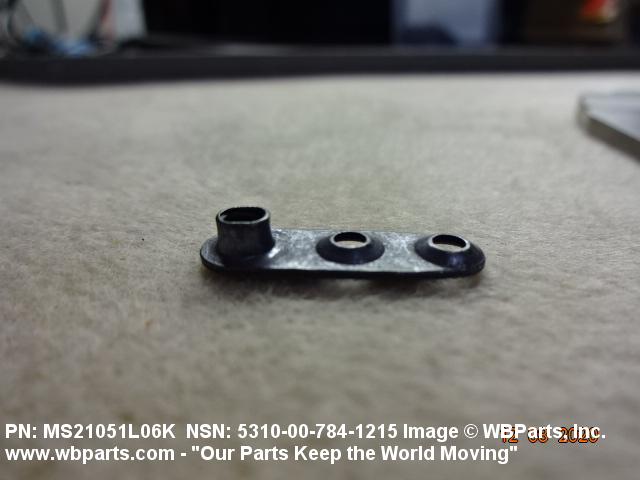

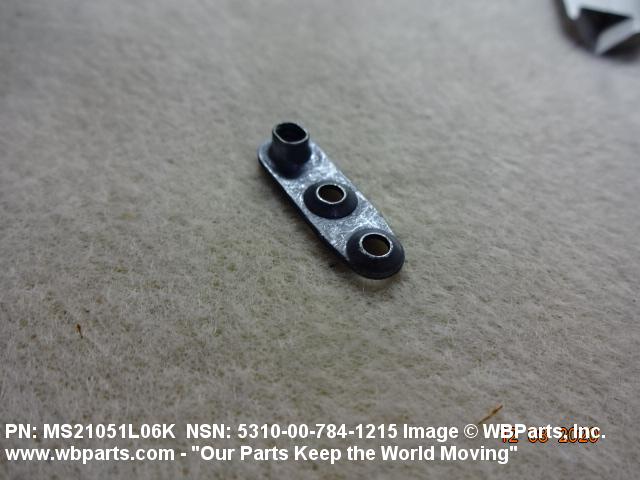

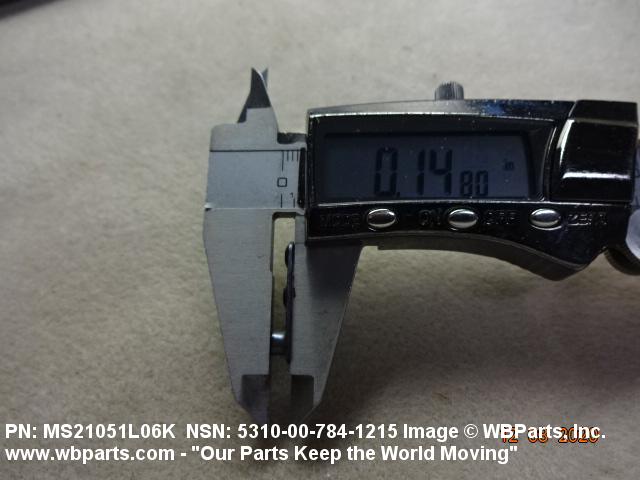

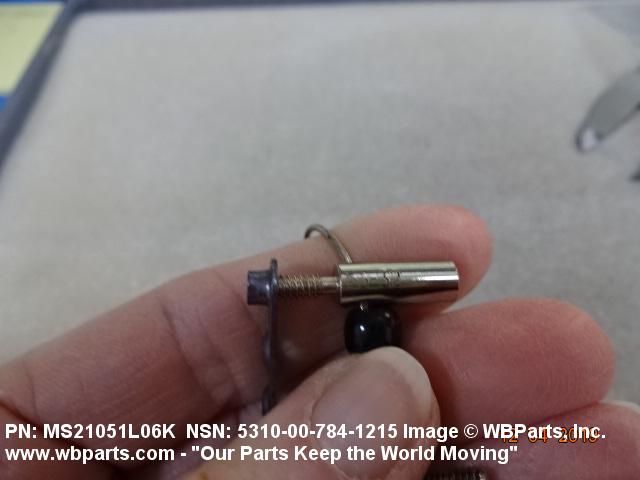

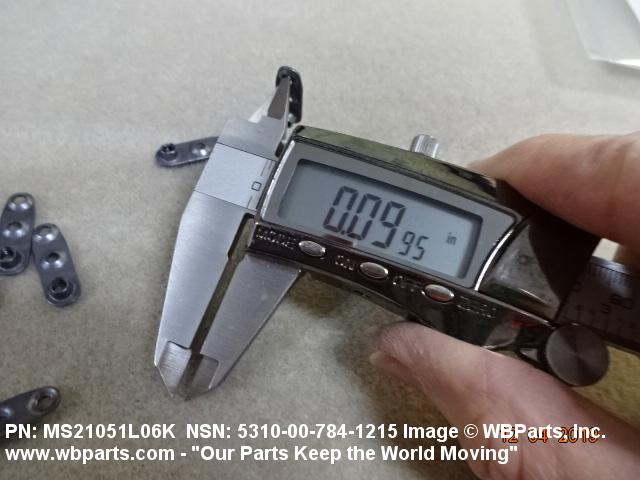

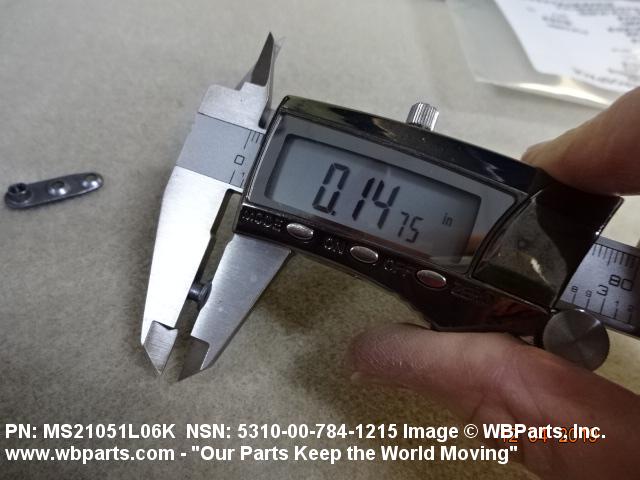

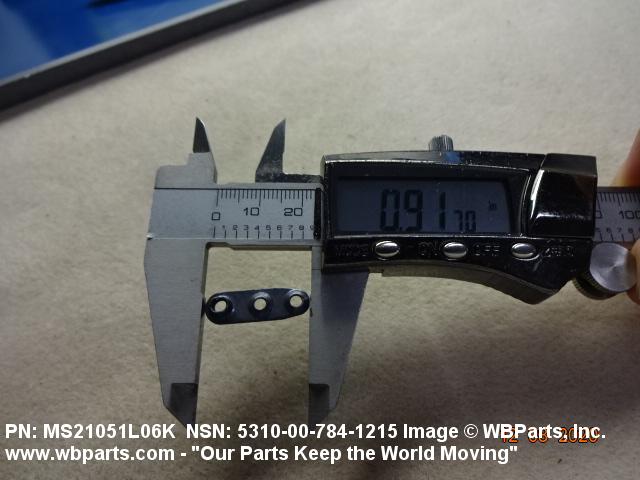

Drawings & Photos | NSN 5310-00-784-1215
Demand History | NSN 5310-00-784-1215
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21051L06K | 2014-06-157 | 50 | United States |
| 5310-00-784-1215 | 2010-08-238 | 2 | DIBBS |
| 5310-00-784-1215 | 2009-09-268 | 8 | DIBBS |
Cross Reference | NSN 5310-00-784-1215
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-784-1215
Related Products | NSN 5310-00-784-1215
Technical Data | NSN 5310-00-784-1215
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A124 PLATE |
| NUT LENGTH | 0.935 INCHES MAXIMUM |
| NUT HEIGHT | 0.171 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |

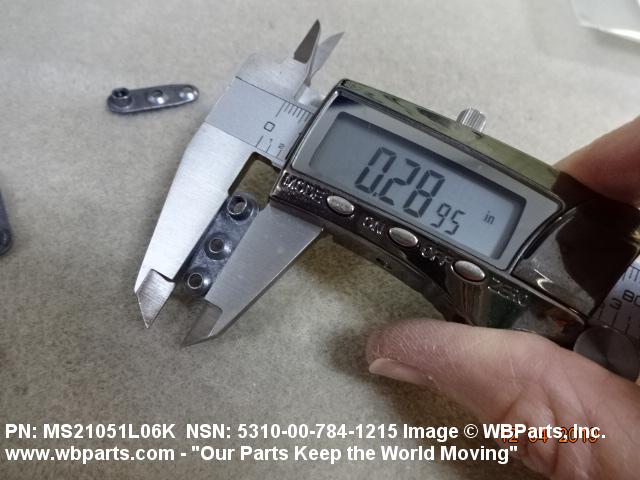

| PLATE WIDTH | 0.239 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | COUNTERSUNK HOLES |
| MOUNTING HOLE COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| MOUNTING PROVISION LOCATION | OPPOSITE NUT PROJECTION SIDE |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |

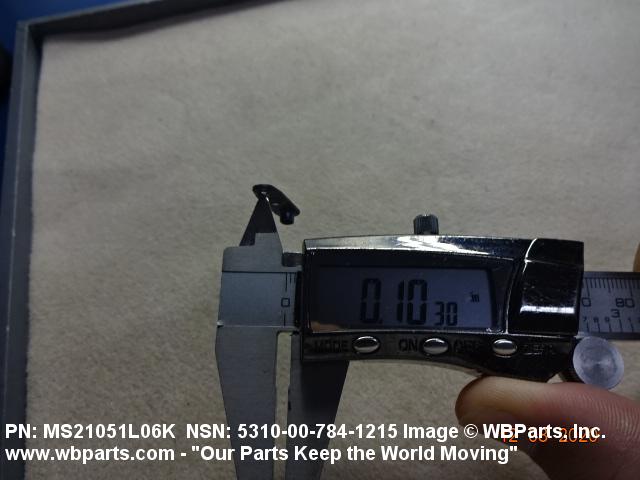

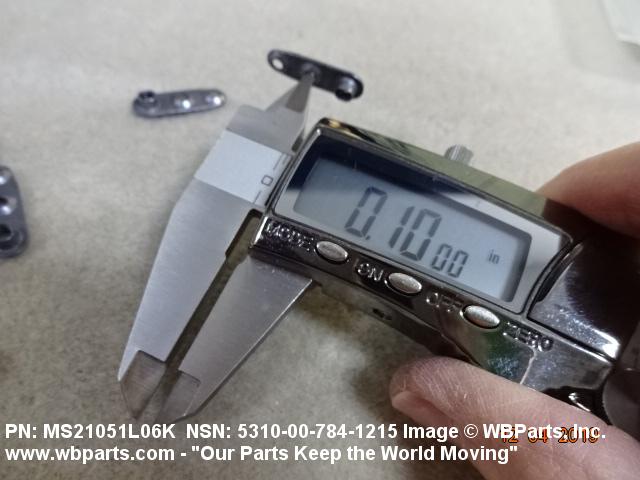

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |

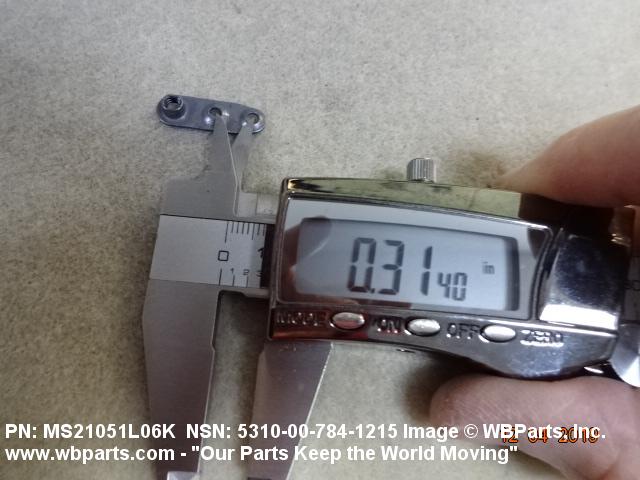

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21051L06K |
Restrictions/Controls & Freight Information | NSN 5310-00-784-1215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-784-1215
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
