NSN 5310-00-783-4174 MS210603, MS21060-3, P9511
Product Details | PLATE SELF-LOCKING NUT
5310-00-783-4174 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210603, MS21060-3, P9511 , R410P1, RF200C3, T65C1032C, EF50313, EF5031-3, 938.42.31.135, 9384231135, 1370502, 13705-02, 5310-00-783-4174, 00-783-4174, 5310007834174, 007834174
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-783-4174 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

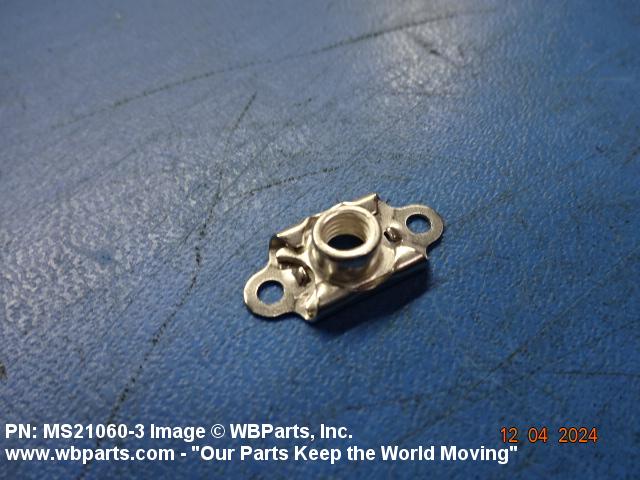

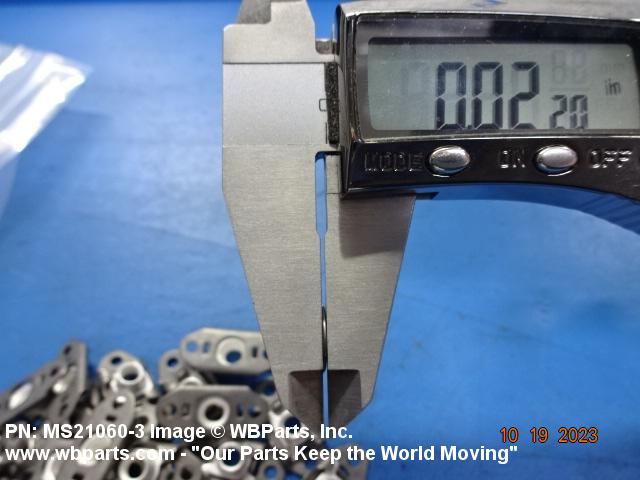

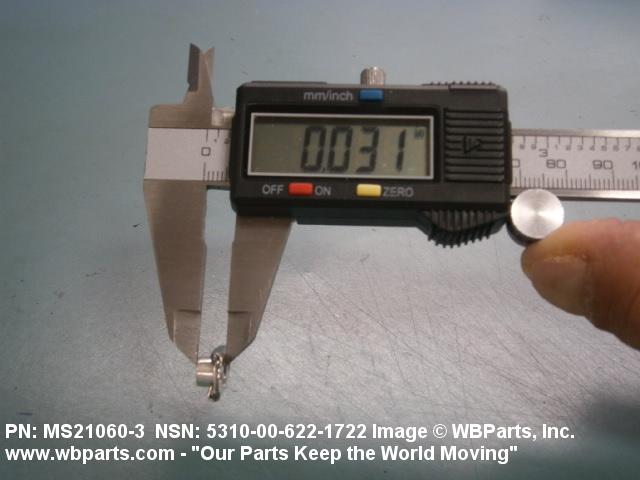

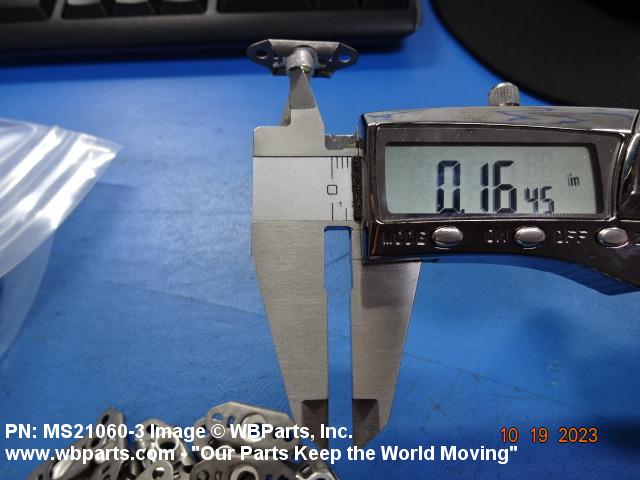

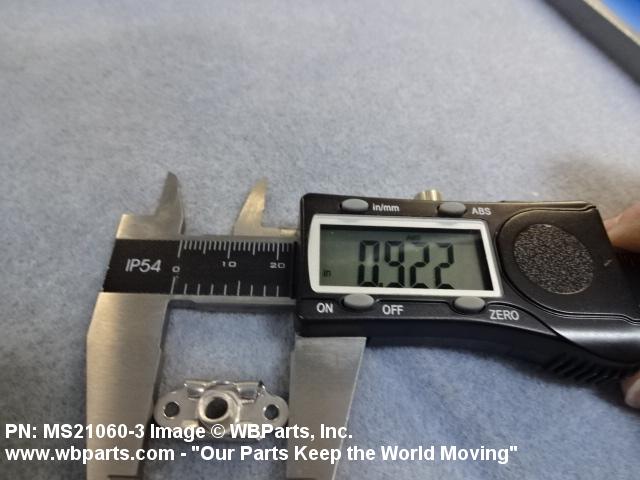

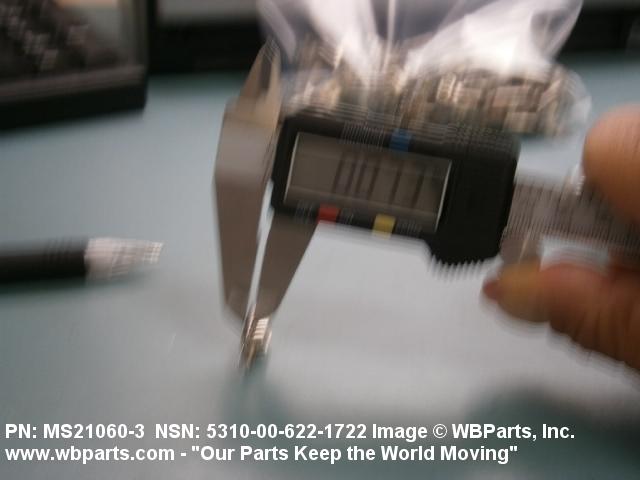

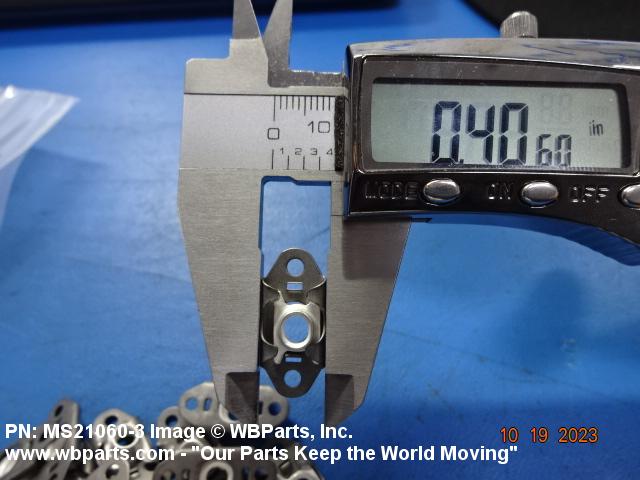

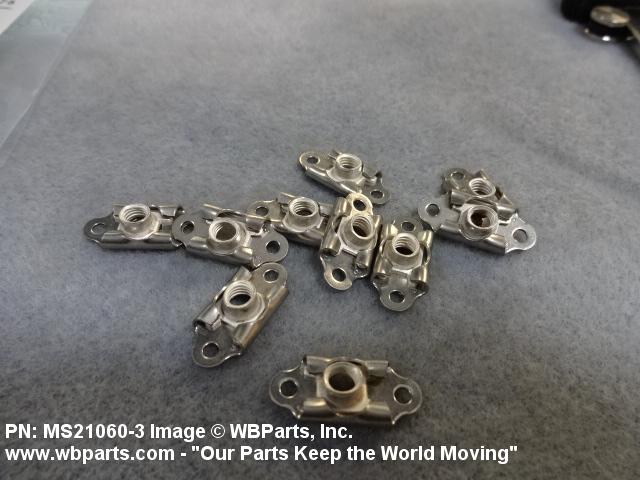

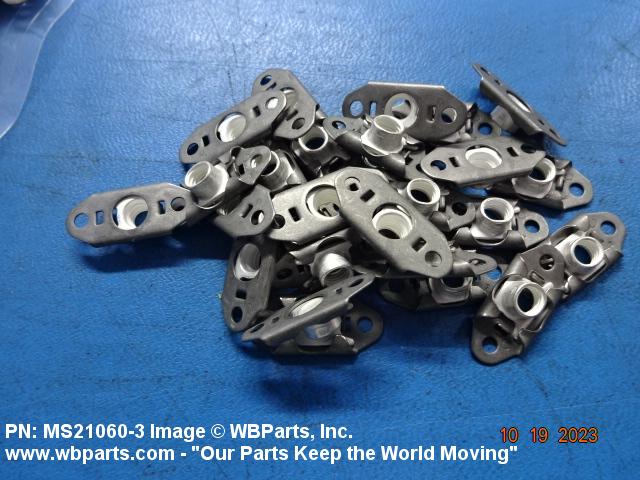

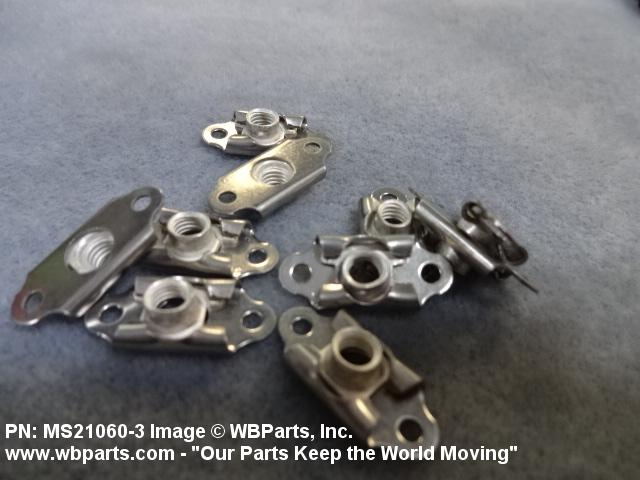

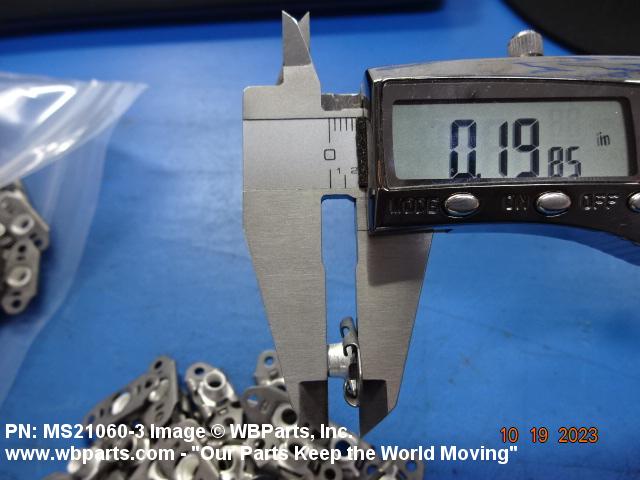

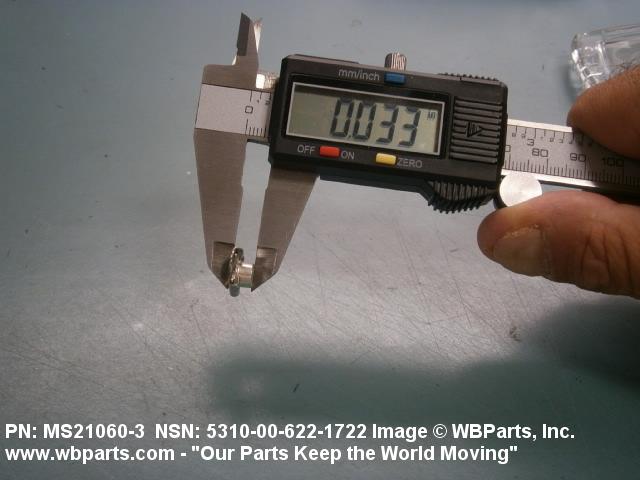

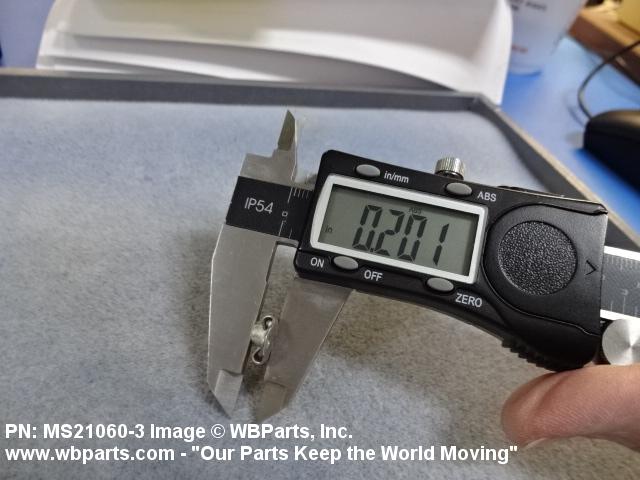

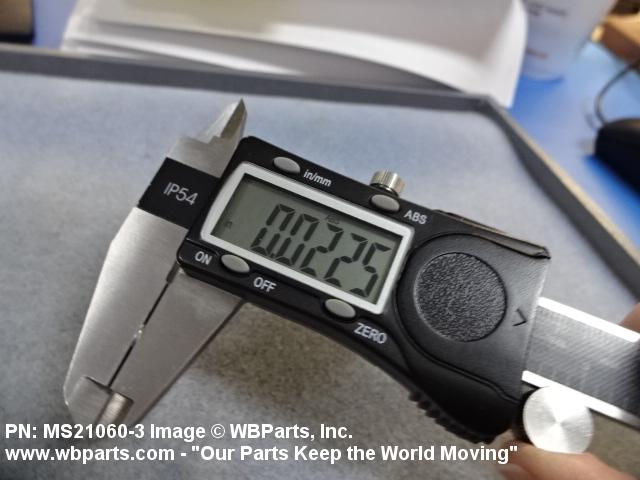

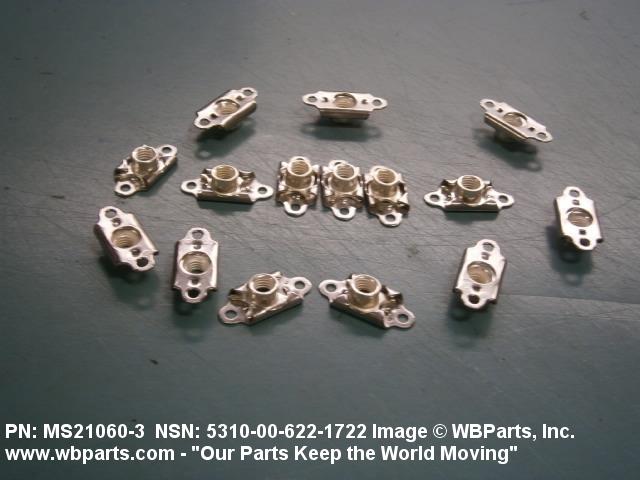

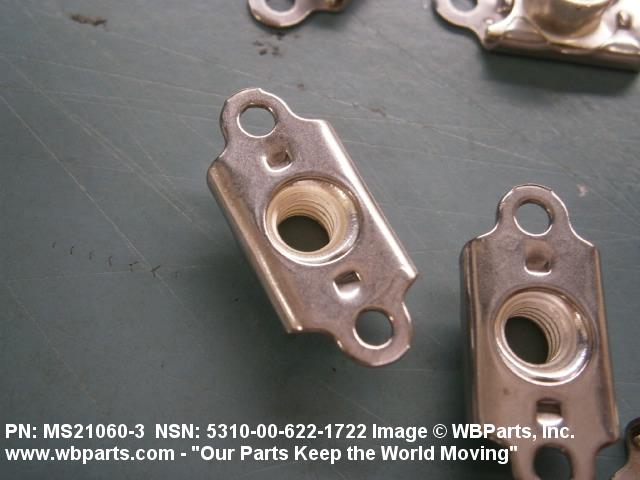

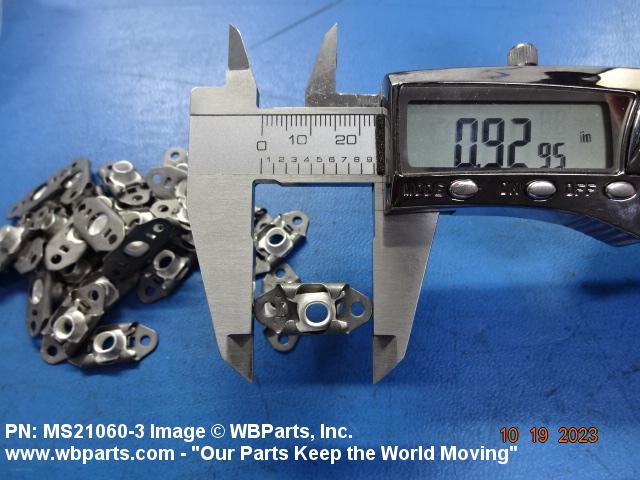

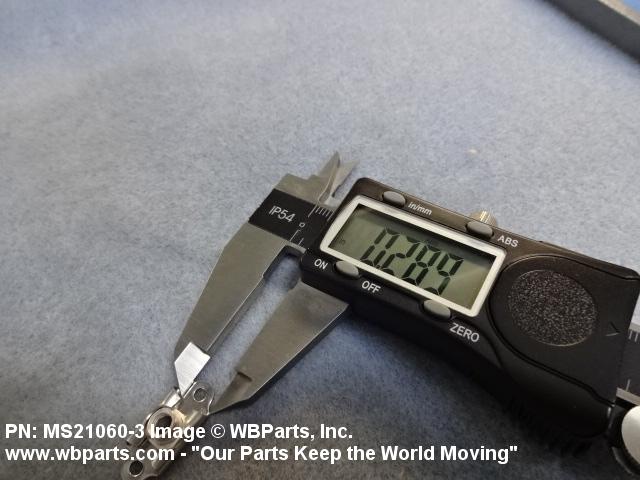

Drawings & Photos | NSN 5310-00-783-4174
Demand History | NSN 5310-00-783-4174
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-783-4174 | 2024-11-319 | 9921 | DIBBS |
| MS210603 | 2024-09-271 | 20 | Japan |
| 5310-00-783-4174 | 2024-09-246 | 10141 | DIBBS |
| 5310-00-783-4174 | 2024-06-168 | 617 | DIBBS |
| MS210603 | 2024-06-158 | 51 | United Kingdom |
| 5310-00-783-4174 | 2024-03-63 | 3005 | DIBBS |
| 5310-00-783-4174 | 2023-11-323 | 7932 | DIBBS |
| MS210603 | 2023-10-286 | 800 | United States |
| 5310-00-783-4174 | 2023-09-261 | 7564 | DIBBS |
| 5310-00-783-4174 | 2023-06-176 | 1492 | DIBBS |
| 5310-00-783-4174 | 2023-05-122 | 2017 | DIBBS |
| 5310-00-783-4174 | 2023-03-75 | 3169 | DIBBS |
| MS210603 | 2022-10-276 | 2244 | TR |
| MS210603 | 2022-08-236 | 100 | South Africa |
| MS210603 | 2021-06-174 | 192 | United States |
| 5310-00-783-4174 | 2021-03-84 | 1300 | United States |
| 5310-00-783-4174 | 2020-05-142 | 23224 | DIBBS |
| 1370502 | 2018-01-26 | 4 | US |
| MS210603 | 2018-01-25 | 40 | US |
| MS210603 | 2018-01-25 | 80 | US |
| MS210603 | 2017-05-131 | 50 | US |
| MS210603 | 2017-02-58 | 200 | US |
| MS210603 | 2017-01-04 | 1 | Malaysia |
| MS210603 | 2016-05-137 | 100 | US |
| 5310-00-783-4174 | 2016-04-97 | 500 | ES |
| MS210603 | 2015-09-252 | 200 | United Kingdom |
| MS210603 | 2015-02-51 | 115 | United States |
| 5310-00-783-4174 | 2014-09-247 | 6231 | DIBBS |
| MS210603 | 2014-07-191 | 90 | United States |
| MS210603 | 2014-03-62 | 70 | United States |
| MS210603 | 2013-08-242 | 25 | US |
| MS210603 | 2013-08-239 | 100 | TR |
| MS21060-3 | 2013-05-134 | 50 | CZ |
| MS210603 | 2013-03-85 | 14 | US |
| 5310-00-783-4174 | 2013-02-38 | 72 | US |
| 5310-00-783-4174 | 2013-02-38 | 1 | US |
| MS210603 | 2012-12-348 | 40 | US |
| MS210603 | 2012-12-348 | 45 | US |
| 5310-00-783-4174 | 2012-10-299 | 50 | United States |
| 5310-00-783-4174 | 2012-08-221 | 13695 | DIBBS |
| 5310-00-783-4174 | 2012-07-205 | 0 | DIBBS |
| 5310-00-783-4174 | 2012-05-150 | 4750 | DIBBS |
| 5310-00-783-4174 | 2012-04-114 | 0 | DIBBS |
| MS210603 | 2012-01-27 | 500 | United States |
| MS210603 | 2012-01-03 | 500 | United States |
| MS210603 | 2011-01-24 | 170 | United States |
| MS210603 | 2010-08-243 | 10000 | US |
| 5310-00-783-4174 | 2010-06-158 | 8819 | DIBBS |
| 5310-00-783-4174 | 2010-04-100 | 5869 | DIBBS |
| MS210603 | 2009-10-280 | 100 | US |
| MS210603 | 2009-09-266 | 280 | United States |
| MS210603 | 2009-09-266 | 280 | United States |
| 5310-00-783-4174 | 2009-04-111 | 9399 | DIBBS |
| MS210603 | 2008-11-309 | 40 | United States |
| 5310-00-783-4174 | 2008-09-248 | 340 | US |
| 5310-00-783-4174 | 2008-07-183 | 400 | us |
| 5310-00-783-4174 | 2008-06-169 | 200 | Canada |
| 5310-00-783-4174 | 2008-05-151 | 250 | US |
| 5310-00-783-4174 | 2008-05-151 | 500 | US |
| MS210603 | 2008-03-88 | 250 | United States |
| MS210603 | 2008-03-88 | 500 | United States |
| MS210603 | 2008-03-88 | 1000 | United States |
| 5310-00-783-4174 | 2008-01-30 | 628 | RO |
| MS210603 | 2008-01-30 | 200 | US |
| 5310-00-783-4174 | 2008-01-23 | 500 | US |
| 5310-00-783-4174 | 2008-01-18 | 1000 | us |
| MS210603 | 2008-01-11 | 1000 | US |
| 5310-00-783-4174 | 2008-01-11 | 1000 | US |
| 5310-00-783-4174 | 2007-12-347 | 1000 | AR |
| MS210603 | 2007-12-341 | 250 | United Kingdom |
| MS210603 | 2007-11-312 | 100 | United States |
| 5310-00-783-4174 | 2007-10-274 | 25 | US |
| 1370502 | 2007-09-268 | 2300 | US |
| MS210603 | 2007-04-116 | 2000 | Italy |
| 5310-00-783-4174 | 2007-03-60 | 700 | US |
Cross Reference | NSN 5310-00-783-4174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13705-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 13705-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 938.42.31.135 | S4080 | PILATUS AIRCRAFT LTD |
| EF5031-3 | K6405 | KAYNAR MICRODOT AEROSPACE |
| MS21060-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R410P1 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| RF200C3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T65C1032C | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| T65C1032C | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-783-4174
Related Products | NSN 5310-00-783-4174
Technical Data | NSN 5310-00-783-4174
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.948 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| III PRECIOUS MATERIAL | SILVER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21060-3 |
Restrictions/Controls & Freight Information | NSN 5310-00-783-4174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-00-783-4174
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
