NSN 5310-00-782-7094 MS21048L3, NAS680C3M, NASM21048L3

Product Details | PLATE SELF-LOCKING NUT

5310-00-782-7094 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21048L3, NAS680C3M, NASM21048L3, NS103202SE02, NS103202SE-02, NS10371402, NS103714-02, BACN10JR3CM, BR2000C3M, K10013BAC, K1001-3BAC, K495873, K49587-3, R2000C3M, RMLHTA51286002, RMLHTA51-2860-02, T2C1032M, T8089C1032, VN102D102, VN102D1-02, Z00.N5421378225, Z00N5421378225, 109A92013, 109A9201-3, 12700E02, 3BC, 41844873, 418448-73, 5310-00-782-7094, 00-782-7094, 5310007827094, 12700E-02, 007827094

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-782-7094	05280 ( NUT, SELF-LOCKING, PLATE )

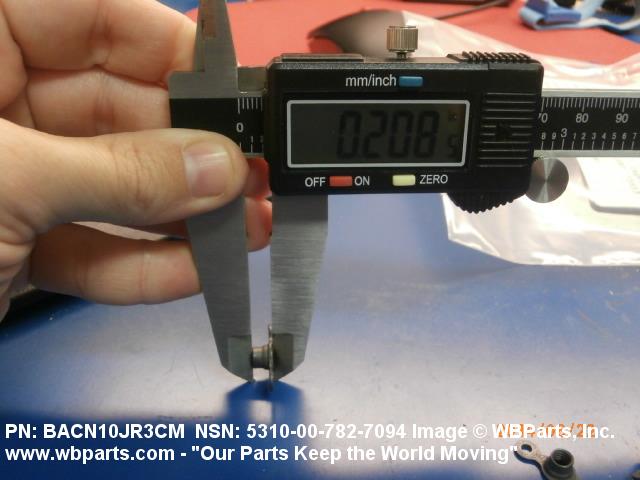

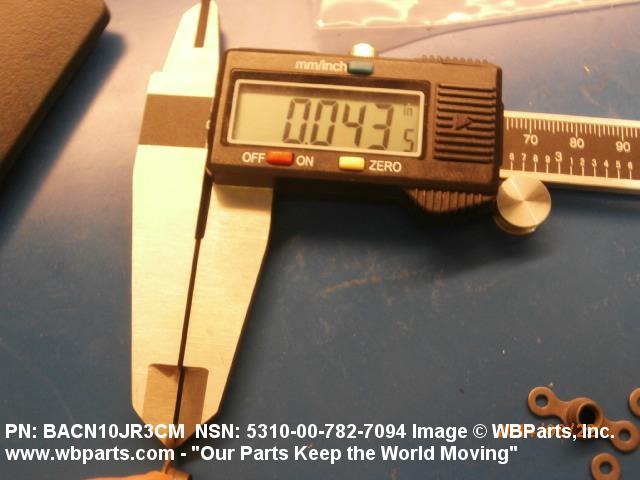

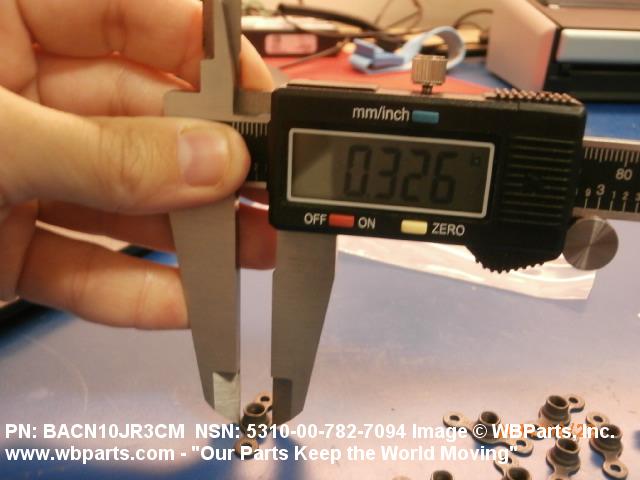

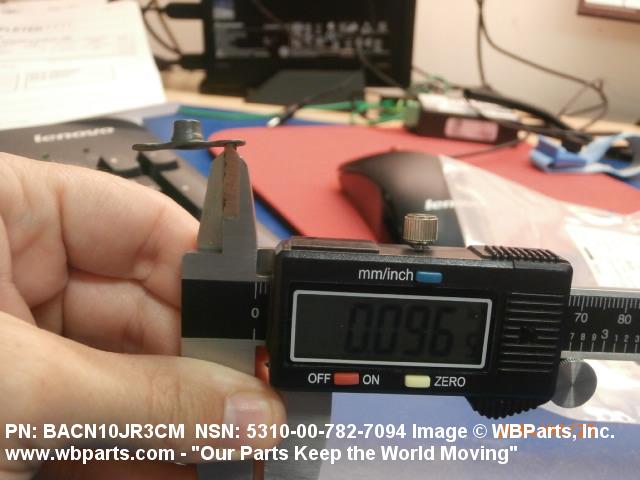

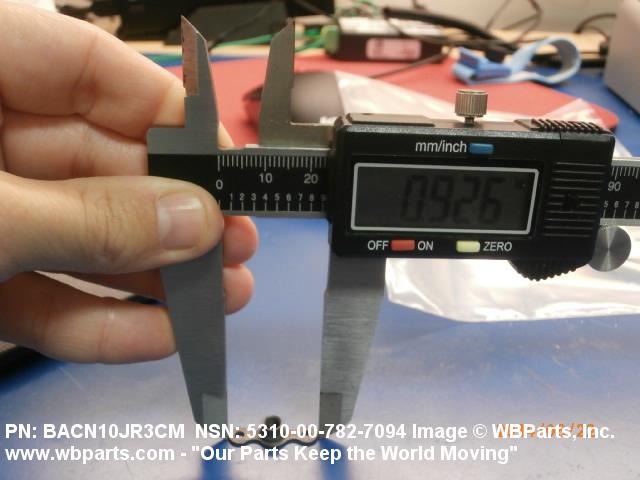

Drawings & Photos | NSN 5310-00-782-7094

Part Number	Request Date	QTY	Origin
NASM21048L3	2020-02-50	3187	DIBBS
RMLHTA51-2860-02	2020-02-50	3187	DIBBS
NASM21048L3	2019-08-219	6531	DIBBS
RMLHTA51-2860-02	2019-08-219	6531	DIBBS
5310-00-782-7094	2018-11-311	6618	DIBBS
5310-00-782-7094	2018-09-255	5654	DIBBS
5310-00-782-7094	2017-10-291	5	United States
MS21048L3	2015-11-329	104	US
5310-00-782-7094	2015-10-285	618	DIBBS
5310-00-782-7094	2015-06-165	618	DIBBS
5310-00-782-7094	2015-01-11	1944	DIBBS
MS21048L3	2014-11-325	250	US
BACN10JR3CM	2014-08-227	25	United States
BACN10JR3CM	2014-08-227	50	United States
BACN10JR3CM	2014-08-227	100	United States
BACN10JR3CM	2014-08-226	25	United States
BACN10JR3CM	2014-08-226	50	United States
BACN10JR3CM	2014-08-226	100	United States
BACN10JR3CM	2014-07-212	25	United States
BACN10JR3CM	2014-07-212	50	United States
BACN10JR3CM	2014-07-212	100	United States
MS21048L3	2013-03-64	270	China
MS21048L3	2013-02-42	1000	US
MS21048L3	2013-02-42	50	US
MS21048L3	2011-11-312	100	United Kingdom
MS21048L3	2011-11-308	1	United Kingdom
NASM21048L3	2009-09-265	1	US
5310-00-782-7094	2009-04-111	60	US
5310-00-782-7094	2009-03-82	7988	DIBBS
5310-00-782-7094	2008-12-350	6	PT
5310-00-782-7094	2007-02-59	5	US

Cross Reference | NSN 5310-00-782-7094

Part Number	Cage Code	Manufacturer
109A9201-3	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
109A9201-3	72962	HARVARD INDUSTRIES INC
12700E-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
12700E-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
3BC	K7252	DENIS FERRANTI METERS LIMITED
418448-73	96214	RAYTHEON COMPANY DBA RAYTHEON
BACN10JR3CM	81205	THE BOEING COMPANY DBA BOEING
BR2000C3M	52828	REPUBLIC FASTENER MFG. CORP.
K1001-3BAC	15653	ALCOA GLOBAL FASTENERS, INC.
K1001-3BAC	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
K1001-3BAC	R1120	SATAIR A/S
K49587-3	15653	ALCOA GLOBAL FASTENERS, INC.
K49587-3	R1120	SATAIR A/S
MS21048L3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS680C3M	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NASM21048L3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NS103202SE-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
NS103714-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
NS103714-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
R2000C3M	52828	REPUBLIC FASTENER MFG. CORP.
RMLHTA51-2860-02	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMLHTA51-2860-02	72962	HARVARD INDUSTRIES INC
T2C1032M	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T2C1032M	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
T8089C1032	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN102D1-02	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN102D1-02	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
Z00.N5421378225	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-782-7094

Compare

Related Products | NSN 5310-00-782-7094

5310-00-782-7207, 5310-00-782-7213, 5310-00-782-7228, 5310-00-782-7342, 5310-00-782-7343

Technical Data | NSN 5310-00-782-7094

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	0.948 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.047 INCHES MAXIMUM
PLATE WIDTH	0.308 INCHES MINIMUM AND 0.328 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21048L3

Restrictions/Controls & Freight Information | NSN 5310-00-782-7094

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013540	ALUM NUTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-782-7094

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	FX	TG:F-15 EAGLE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
