NSN 5310-00-781-9493 MS16535219, MS16535-219 , MS20450C912

Product Details | PLATE SELF-LOCKING NUT

5310-00-781-9493 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS16535219, MS16535-219 , MS20450C912, MS20450C9-12 , MS21075L06, MS21075L06N, MTPHL65S632S, MA 13600-62, MA1360062, MF100006T2, MF1000-06T2, MF500006, MF5000-06, AN450C912, AN450C9-12 , N35001004, N35-001-004, RFM20A06, Z00.N5455385130, Z00N5455385130, FFR556, FF-R-556 , 0214051A02, 02-14051A02, 10121697 , 1018953001, 1018953-001, 16X0.375 , 16X0375, 5310-00-781-9493, 00-781-9493, 5310007819493, 007819493

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-781-9493	05280 ( NUT, SELF-LOCKING, PLATE )

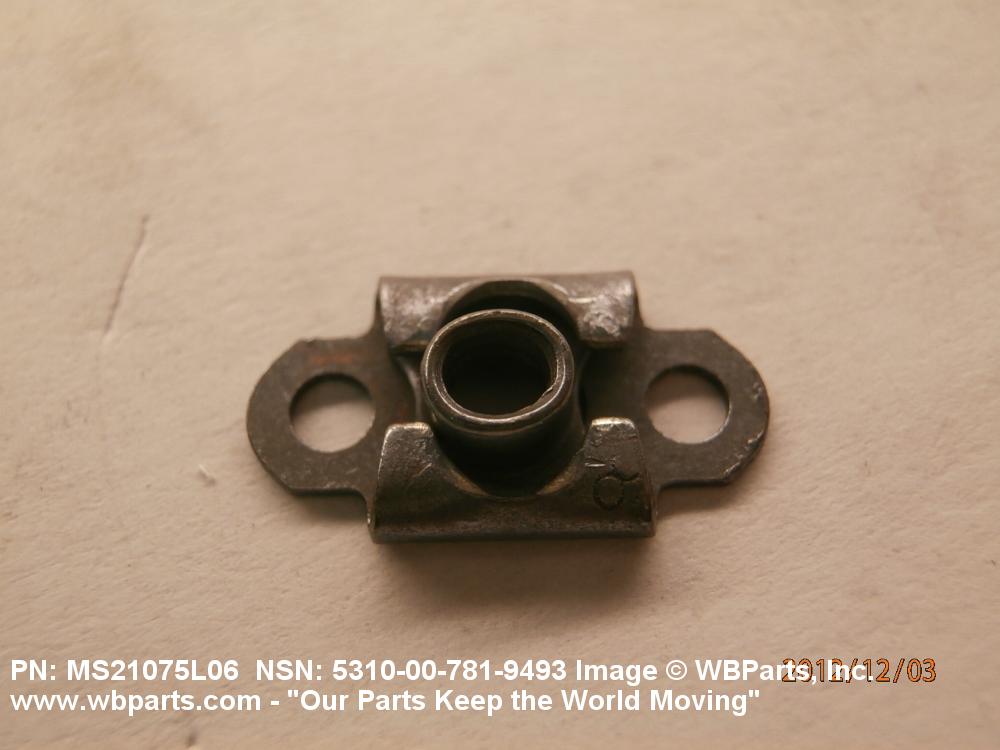

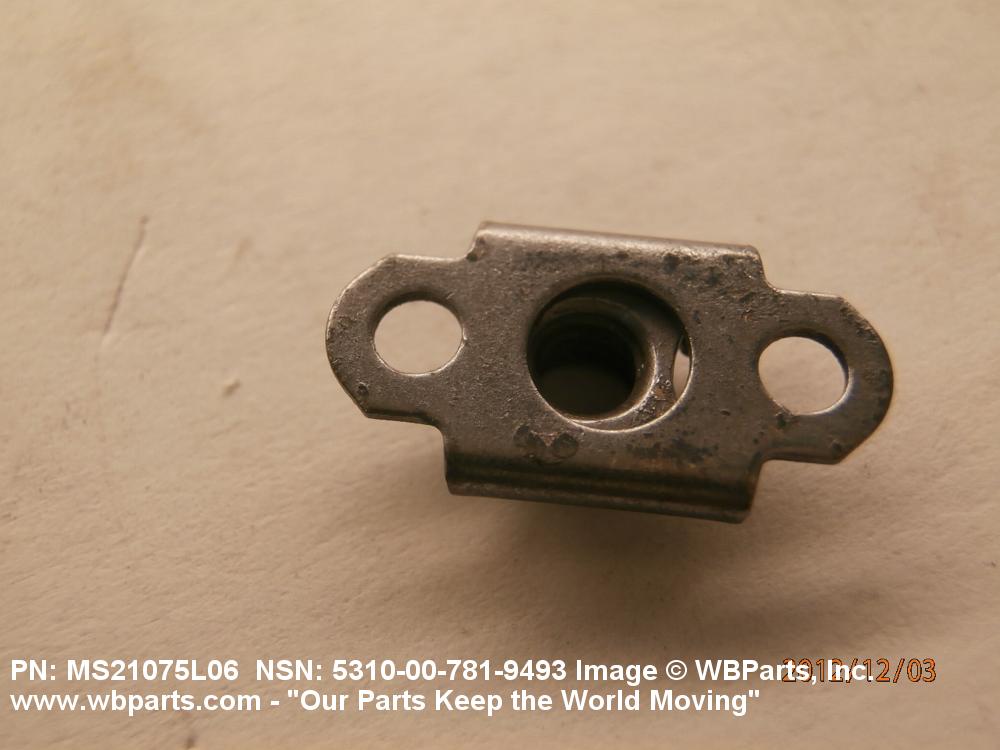

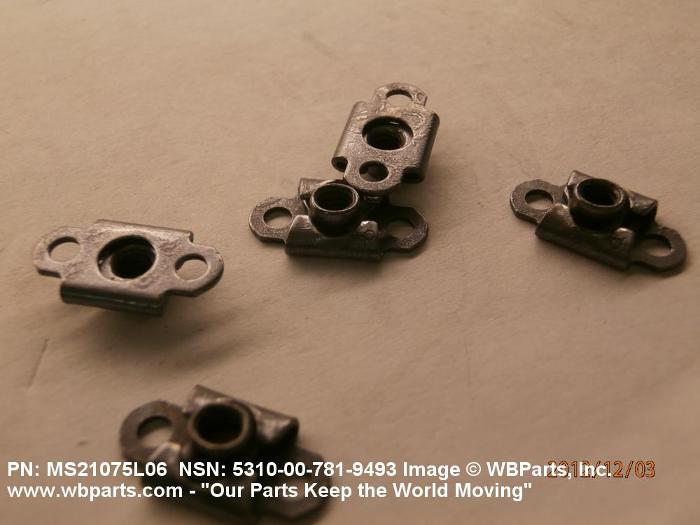

Drawings & Photos | NSN 5310-00-781-9493

Part Number	Request Date	QTY	Origin
MS21075L06N	2024-04-117	100	United States
MS21075L06N	2023-08-216	250	United States
5310-00-781-9493	2023-07-198	2000	TR
MS21075L06N	2022-09-252	294	United States
5310-00-781-9493	2022-03-72	7322	DIBBS
MS21075L06	2022-02-48	150	United States
MS21075L06N	2022-02-46	1	US
MS21075L06N	2021-08-232	100	United States
5310-00-781-9493	2021-06-154	200	MANUAL
MS21075L06	2021-03-60	10	Canada
MS21075L06N	2020-09-274	2	United States
5310-00-781-9493	2020-01-17	40	US
MS21075L06N	2019-04-112	250	Turkey
MS21075L06N	2019-04-106	15	United States
5310-00-781-9493	2018-09-259	13677	DIBBS
5310-00-781-9493	2017-10-274	3747	DIBBS
5310-00-781-9493	2017-09-271	4	US
5310-00-781-9493	2017-09-269	6263	DIBBS
MS21075L06N	2017-07-187	20	United States
5310-00-781-9493	2017-02-53	76	MANUAL
MS21075L06N	2016-12-348	112	US
MS21075L06N	2016-04-117	20	United States
MS21075L06	2015-08-226	121	United States
MS21075L06	2015-05-142	125	United States
MS21075L06N	2015-03-71	40000	TH
MS21075L06N	2014-08-240	11000	NL
MS21075L06N	2014-07-209	200	US
5310-00-781-9493	2014-04-93	40	US
5310-00-781-9493	2013-11-311	10	United States
5310-00-781-9493	2013-11-311	100	United States
MS21075L06N	2013-04-115	200	United States
MS21075L06N	2013-04-105	100	IL
MS21075L06N	2013-04-92	500	United States
MS21075L06N	2013-01-04	10	Indonesia
5310-00-781-9493	2012-11-318	500	United States
MS21075L06	2012-11-311	16	Taiwan
5310-00-781-9493	2012-10-283	1200	United States
5310-00-781-9493	2012-10-278	1200	United States
MS21075L06	2012-09-258	50	Taiwan
MS21075L06	2012-09-257	10	Taiwan
MS21075L06N	2012-08-237	560	United States
MS21075L06	2012-03-73	20	Taiwan
MS21075L06	2011-07-182	1000	US
FFR556	2011-05-123	1	US
MS16535219	2011-04-92	50	CN
MS21075L06	2011-03-76	20	ES
MS21075L06	2010-10-277	100	US
5310-00-781-9493	2010-09-257	300	United States
5310-00-781-9493	2010-06-170	2150	Turkey
MS21075L06	2010-06-167	300	US
MS21075L06	2010-06-167	1000	US
5310-00-781-9493	2010-03-77	16	US
5310-00-781-9493	2009-12-343	36900	DIBBS
5310-00-781-9493	2009-10-285	1300	Australia
5310-00-781-9493	2009-09-267	100	United States
MS16535219	2009-09-244	8	Taiwan
MS16535219	2009-08-233	8	Taiwan
5310-00-781-9493	2009-07-209	100	US
MS21075L06	2009-06-160	4000	IL
MS21075L06	2009-04-107	500	US
MS21075L06N	2009-02-35	2880	US
5310-00-781-9493	2009-01-25	100	IL
5310-00-781-9493	2008-10-294	41685	DIBBS
MS21075L06N	2008-09-252	110	Canada
5310-00-781-9493	2008-08-220	500	United States
5310-00-781-9493	2008-07-197	3	US
5310-00-781-9493	2008-06-178	500	Colombia
MS21075L06N	2008-05-126	500	US
MS21075L06	2008-04-99	100	US
5310-00-781-9493	2008-03-67	36870	DIBBS
5310-00-781-9493	2008-02-39	50	United States
MS21075L06	2008-01-24	1100	US
5310-00-781-9493	2006-11-324	1000	US

Cross Reference | NSN 5310-00-781-9493

Part Number	Cage Code	Manufacturer
02-14051A02	1VPW8	GENERAL DYNAMICS C4 SYSTEMS, INC.
02-14051A02	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
1018953-001	05037	ANACOMP, INC.
1018953-001	0HBH2	LEXEL IMAGING SYSTEMS, INC.
MA 13600-62	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
MA 13600-62	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
MF1000-06T2	15653	ALCOA GLOBAL FASTENERS, INC.
MF5000-06	15653	ALCOA GLOBAL FASTENERS, INC.
MF5000-06	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MF5000-06	R1120	SATAIR A/S
MS21075L06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21075L06N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075L06N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MTPHL65S632S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MTPHL65S632S	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
N35-001-004	27777	L-3 COMMUNICATIONS CORPORATION DBA WARRIOR SYSTEMS DIVISION
RFM20A06	52828	REPUBLIC FASTENER MFG. CORP.
Z00.N5455385130	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-781-9493

Compare

Related Products | NSN 5310-00-781-9493

5310-00-781-9494, 5310-00-781-9507, 5310-00-781-9758, 5310-00-781-9759, 5310-00-781-9760

Technical Data | NSN 5310-00-781-9493

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	0.682 INCHES MAXIMUM
NUT HEIGHT	0.171 INCHES MAXIMUM
PLATE THICKNESS	0.140 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.357 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.435 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-781-9493

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-781-9493

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
