NSN 5310-00-779-3601 MS210623, MS21062-3, NS103085S02
Product Details | PLATE SELF-LOCKING NUT
5310-00-779-3601 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210623, MS21062-3, NS103085S02, NS103085S-02, BACN10KB3CF, BRF100C3, F20313BAC, F2031-3BAC, RF100C3, T66C1032C, T8112C1032C, VN151B102, VN151B1-02, 10121686 , 101F92073, 101F9207-3, 1371502, 13715-02, 5310-00-779-3601, 00-779-3601, 5310007793601, 007793601
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-779-3601 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

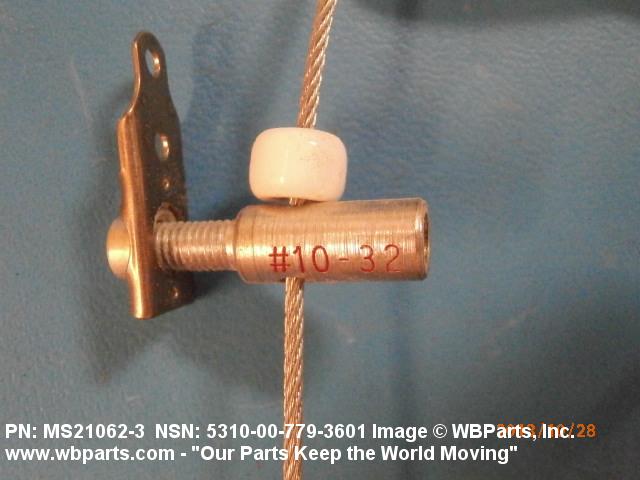

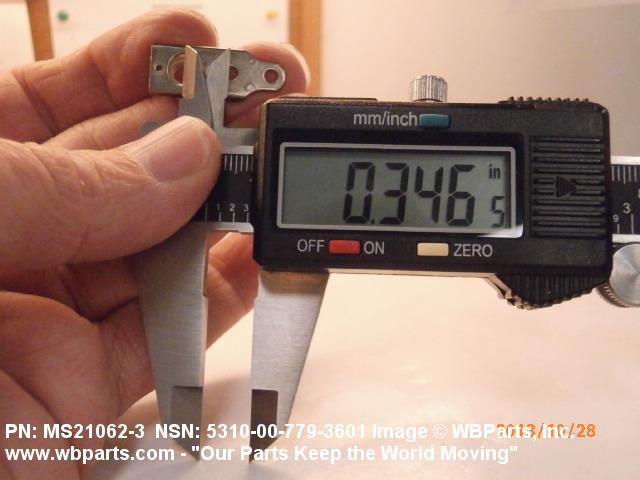

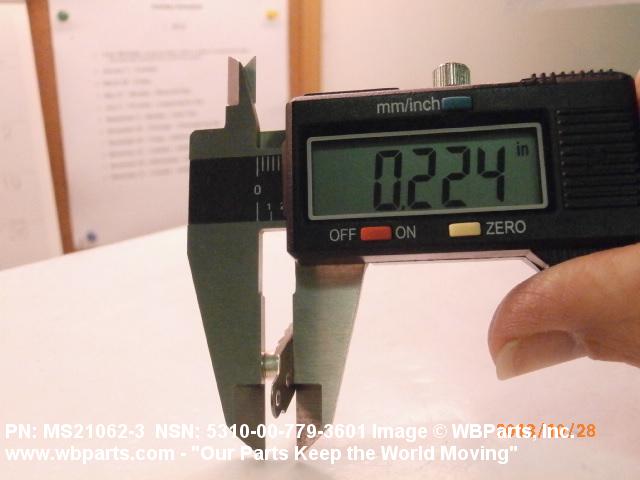

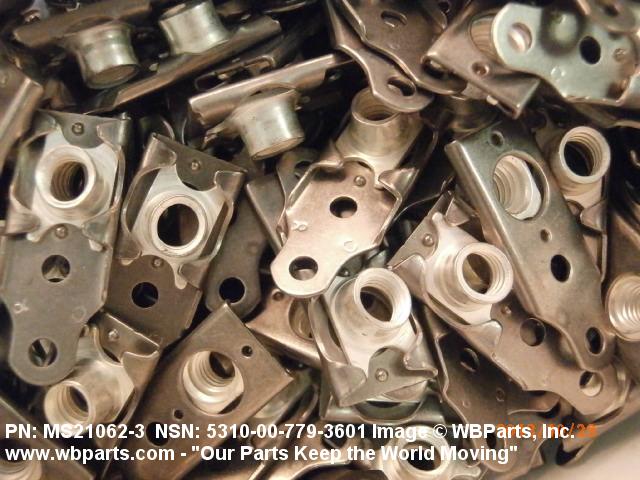

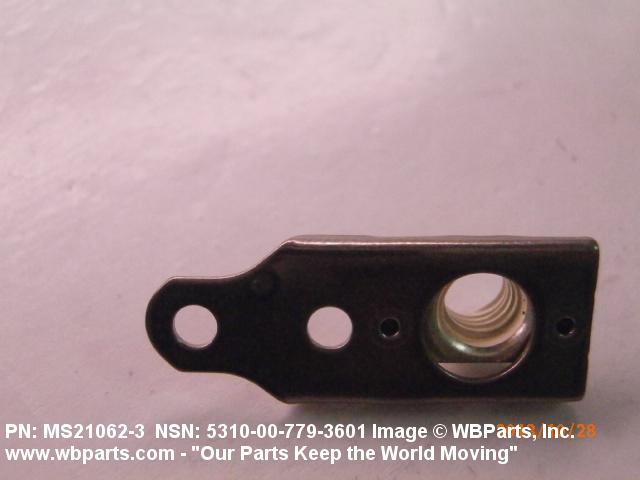

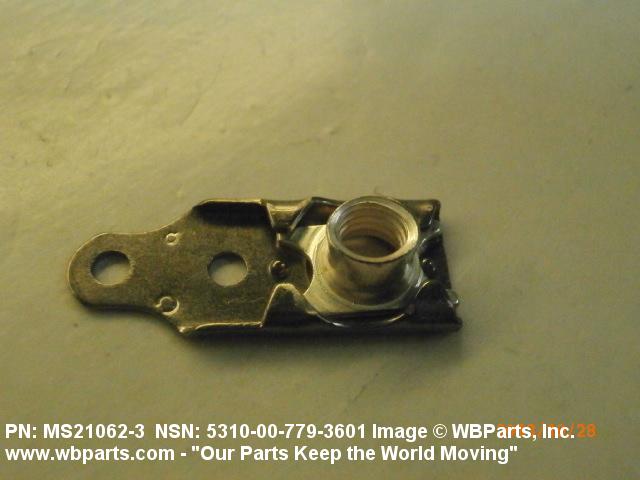

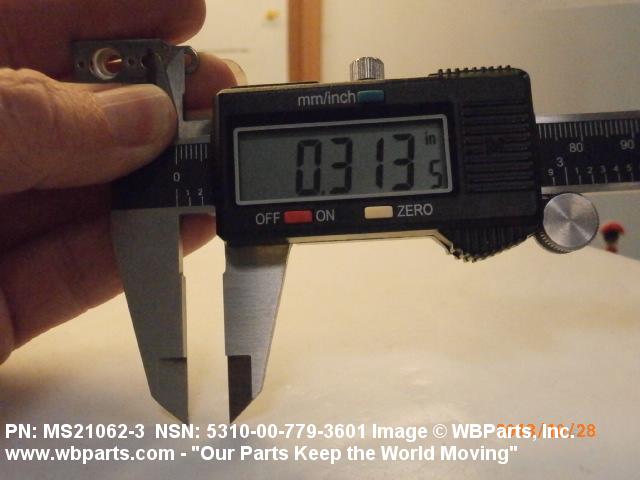

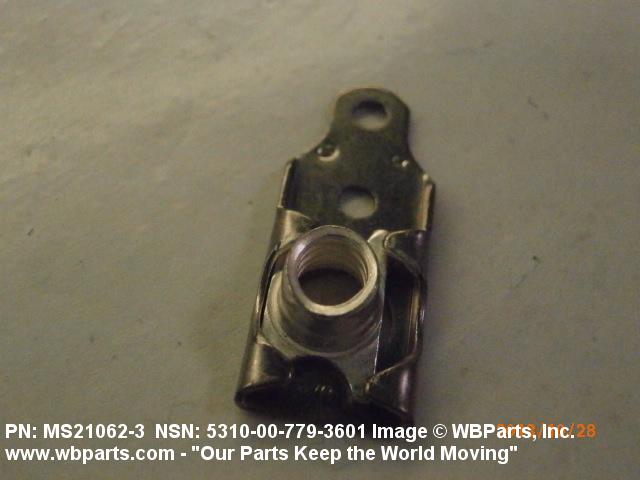

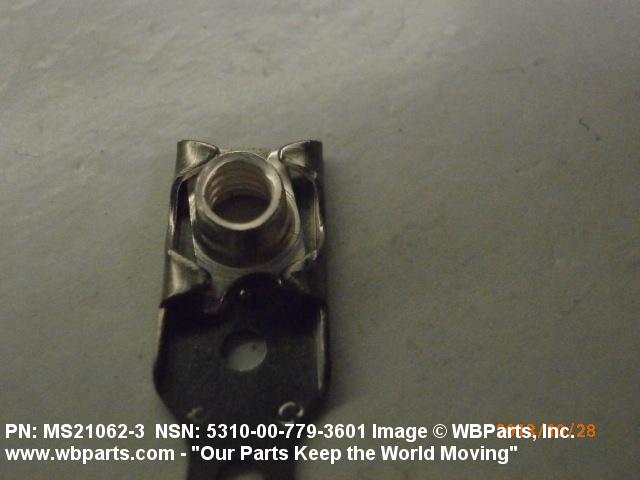

Drawings & Photos | NSN 5310-00-779-3601
Demand History | NSN 5310-00-779-3601
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-779-3601 | 2024-10-303 | 7267 | DIBBS |
| 5310-00-779-3601 | 2024-10-291 | 7267 | DIBBS |
| 5310-00-779-3601 | 2024-10-276 | 315 | DIBBS |
| MS210623 | 2024-09-260 | 150 | Japan |
| 5310-00-779-3601 | 2024-07-186 | 3609 | DIBBS |
| 5310-00-779-3601 | 2024-04-120 | 1224 | DIBBS |
| 5310-00-779-3601 | 2024-01-01 | 4417 | DIBBS |
| MS210623 | 2022-10-290 | 30 | United States |
| MS210623 | 2021-08-229 | 50 | Canada |
| MS210623 | 2021-08-223 | 50 | Canada |
| 5310-00-779-3601 | 2018-06-173 | 15 | United States |
| 5310-00-779-3601 | 2018-01-10 | 42 | US |
| MS210623 | 2016-05-124 | 42 | US |
| BACN10KB3CF | 2014-08-226 | 50 | United States |
| BACN10KB3CF | 2014-08-226 | 100 | United States |
| BACN10KB3CF | 2014-07-212 | 50 | United States |
| BACN10KB3CF | 2014-07-212 | 100 | United States |
| BACN10KB3CF | 2013-09-261 | 400 | United States |
| 5310-00-779-3601 | 2013-02-35 | 475 | United States |
| 5310-00-779-3601 | 2010-06-179 | 14 | US |
| 5310-00-779-3601 | 2010-03-89 | 8 | United States |
| MS210623 | 2009-05-139 | 20 | Canada |
| MS210623 | 2009-05-139 | 100 | Canada |
| 5310-00-779-3601 | 2009-03-77 | 100 | US |
| MS210623 | 2009-03-72 | 4 | United States |
| MS210623 | 2008-11-309 | 20 | United States |
| MS210623 | 2008-02-35 | 100 | US |
| 5310-00-779-3601 | 2007-08-213 | 14 | United States |
| 5310-00-779-3601 | 2007-03-67 | 120 | US |
| 5310-00-779-3601 | 2007-01-16 | 48 | US |
Cross Reference | NSN 5310-00-779-3601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101F9207-3 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 101F9207-3 | 72962 | HARVARD INDUSTRIES INC |
| 13715-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 13715-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACN10KB3CF | 82918 | THE BOEING COMPANY DBA BOEING |
| BRF100C3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| F2031-3BAC | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F2031-3BAC | F6033 | TECNOTEC SARL |
| F2031-3BAC | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| F2031-3BAC | R1120 | SATAIR A/S |
| MS21062-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21062-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NS103085S-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| RF100C3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T66C1032C | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| T66C1032C | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
| T8112C1032C | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| VN151B1-02 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-779-3601
Related Products | NSN 5310-00-779-3601
Technical Data | NSN 5310-00-779-3601
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A124 PLATE |

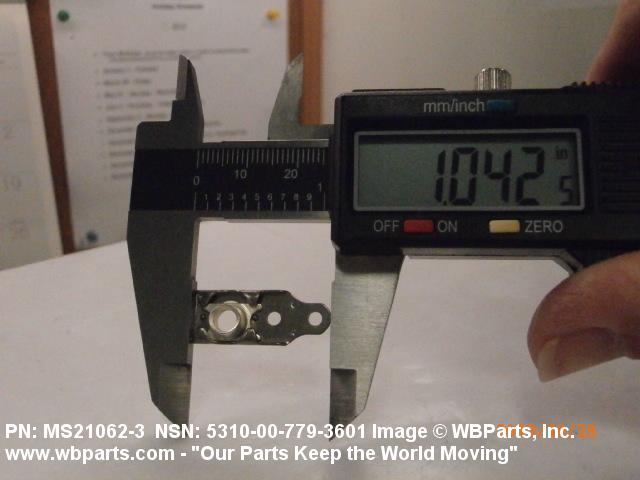

| NUT LENGTH | 1.051 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |

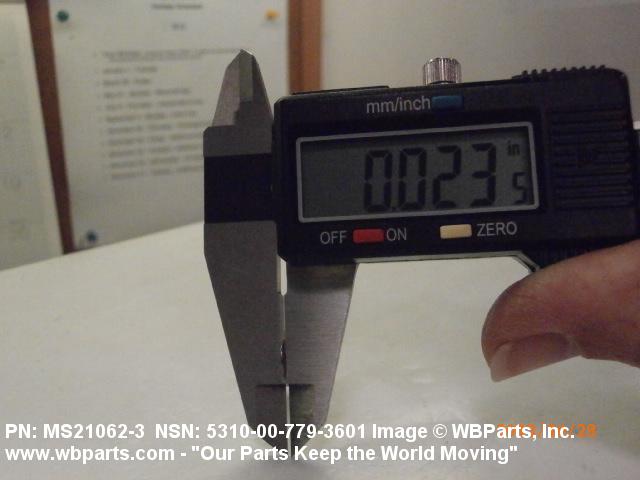

| PLATE THICKNESS | 0.032 INCHES MAXIMUM |

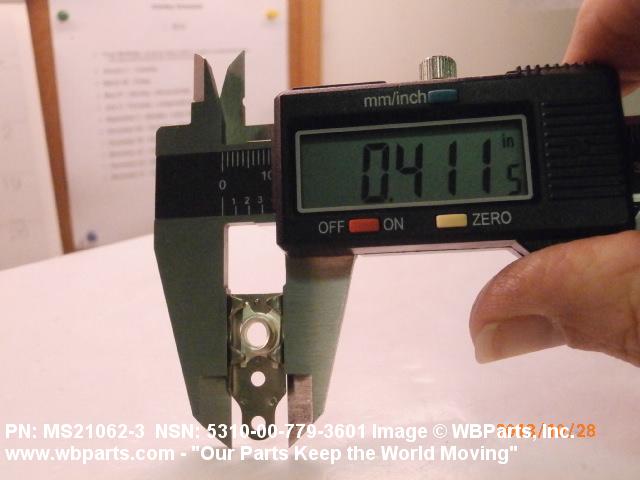

| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |

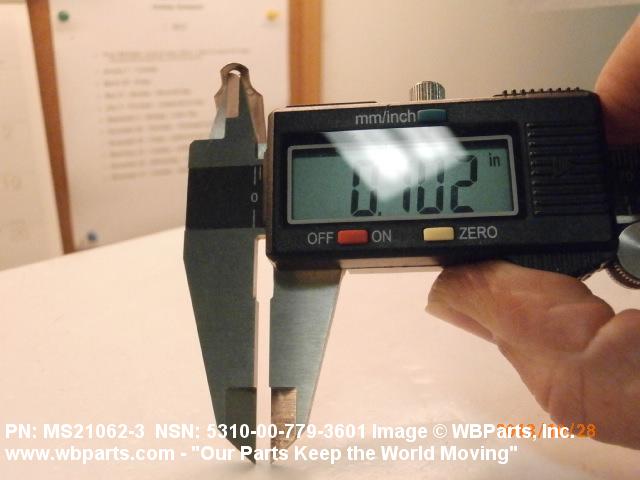

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-779-3601
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
