NSN 5310-00-779-3513 MS210553, MS21055-3, R3000X3
Product Details | PLATE SELF-LOCKING NUT

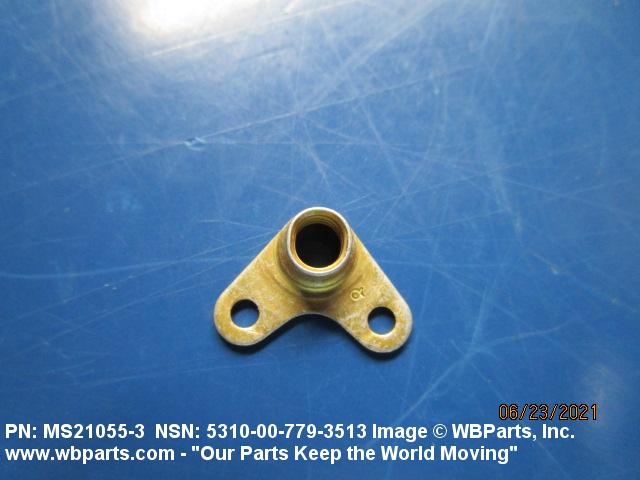

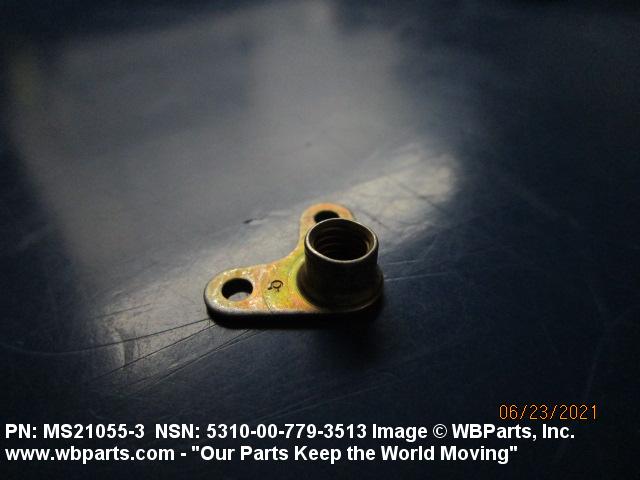

5310-00-779-3513 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210553, MS21055-3, R3000X3, T7S1032CPC, F2LHTA5502, F2LHTA55-02, 12620NM02, 12620NM-02, 5310-00-779-3513, 00-779-3513, 5310007793513, 007793513
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-779-3513 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

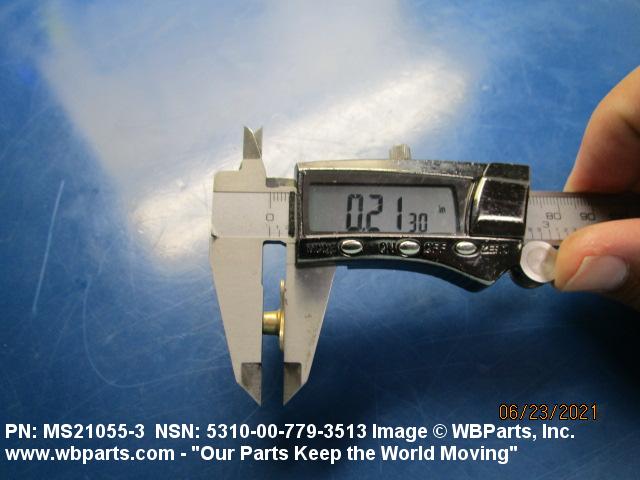

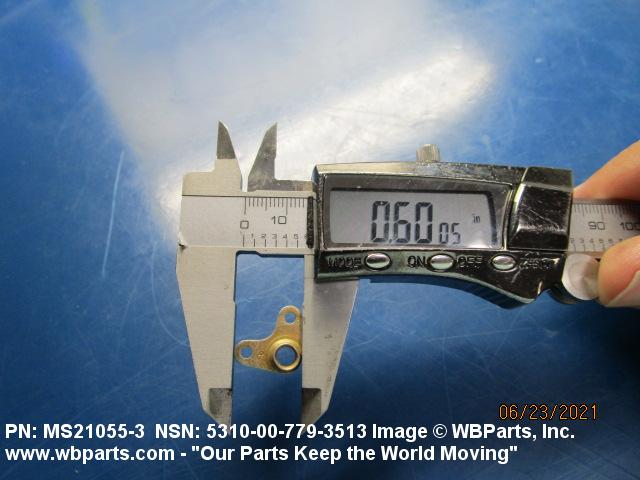

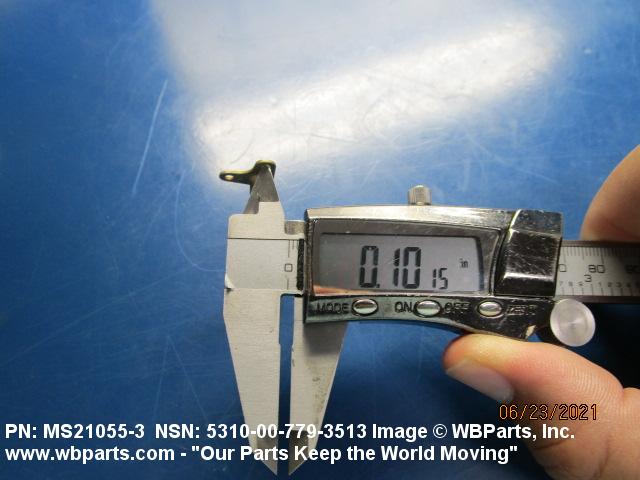

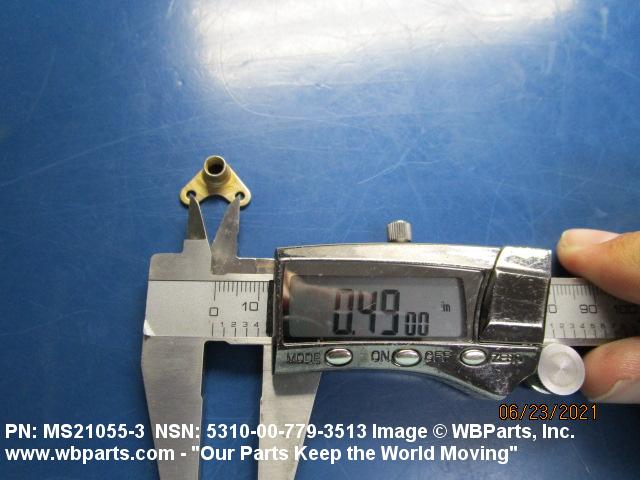

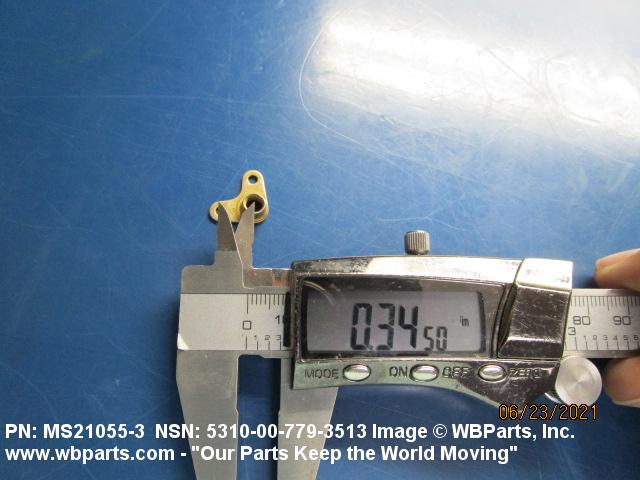

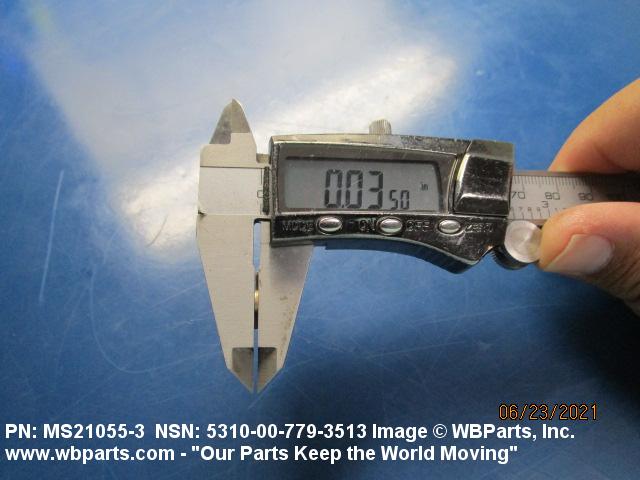

Drawings & Photos | NSN 5310-00-779-3513
Demand History | NSN 5310-00-779-3513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 007793513 | 2021-08-230 | 2 | AE |
| 5310-00-779-3513 | 2021-08-230 | 10 | AE |
| MS210553 | 2016-08-228 | 7 | PH |
| 5310-00-779-3513 | 2016-03-84 | 3968 | DIBBS |
| MS210553 | 2013-08-239 | 100 | TR |
Cross Reference | NSN 5310-00-779-3513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12620NM-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 12620NM-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F2LHTA55-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F2LHTA55-02 | 72962 | HARVARD INDUSTRIES INC |
| MS21055-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21055-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R3000X3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T7S1032CPC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| T7S1032CPC | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
