NSN 5310-00-778-9511 MS21061L08, NS10318582, NS103185-82

Product Details | PLATE SELF-LOCKING NUT

5310-00-778-9511 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21061L08, NS10318582, NS103185-82, BACN10KB08F, BRF100A08, F200008, F2000-08, F200008BAC, F2000-08BAC, F200008T2, F2000-08T2, GN10AA832, MILN25027, RF100A08, RMF920782, RMF9207-82, T66S832S, T8114S832S, VN151A182, VN151A1-82, 10121684 , 1361582, 13615-82, 2JC2772H07, 3341081000, 334-1081-000, 8526346, 5310-00-778-9511, 00-778-9511, 5310007789511, 007789511

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-778-9511	05280 ( NUT, SELF-LOCKING, PLATE )

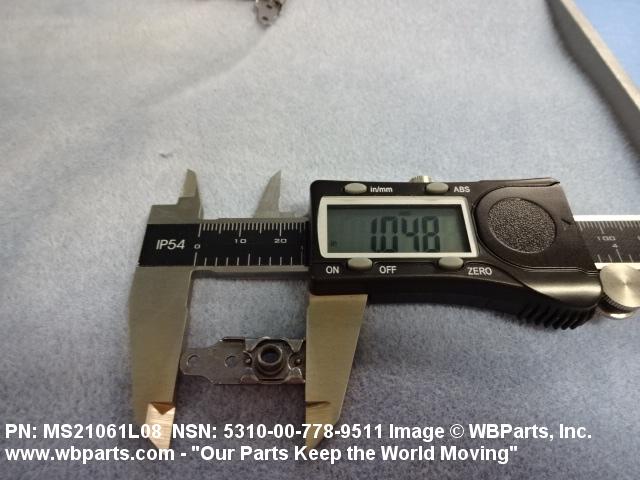

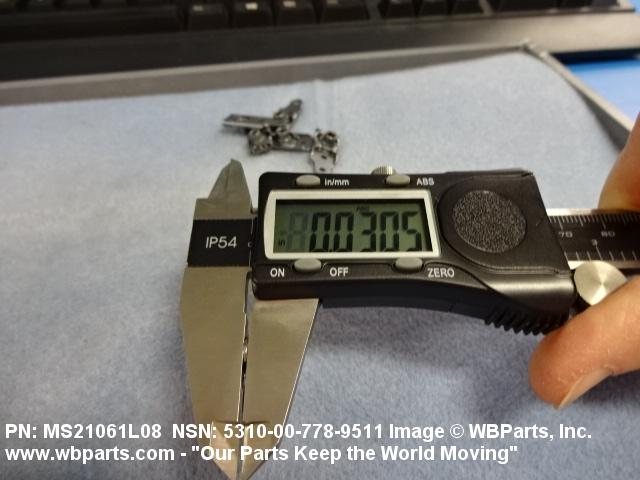

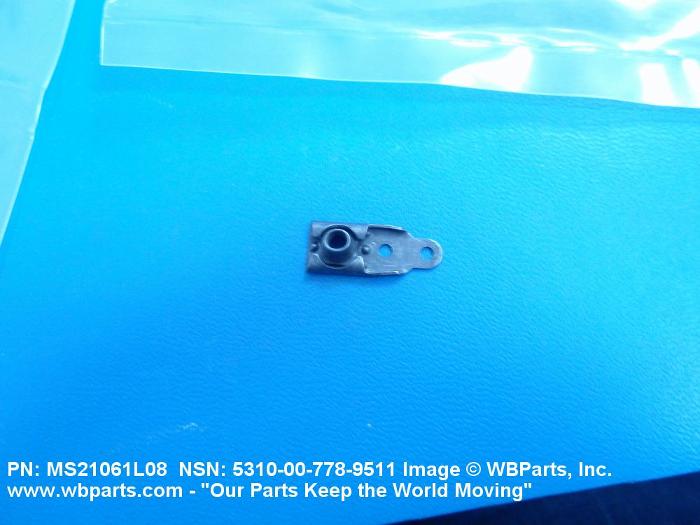

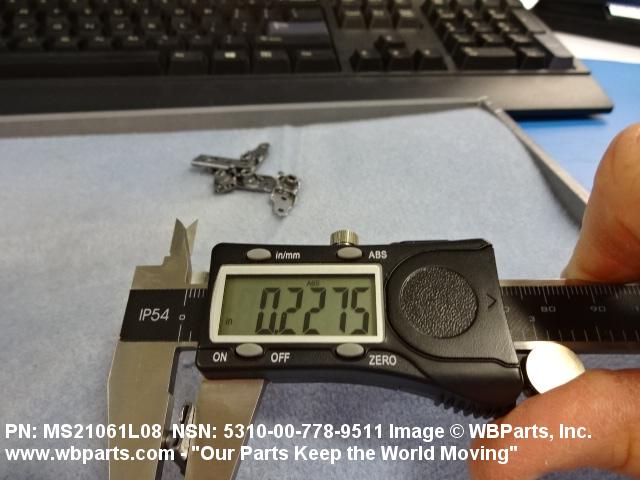

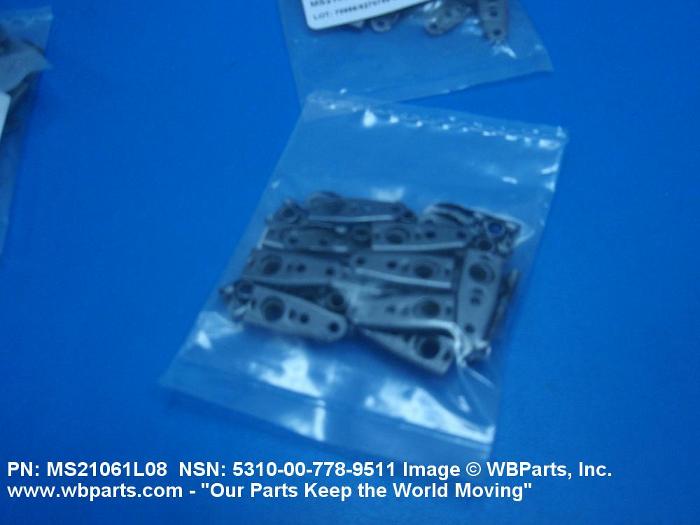

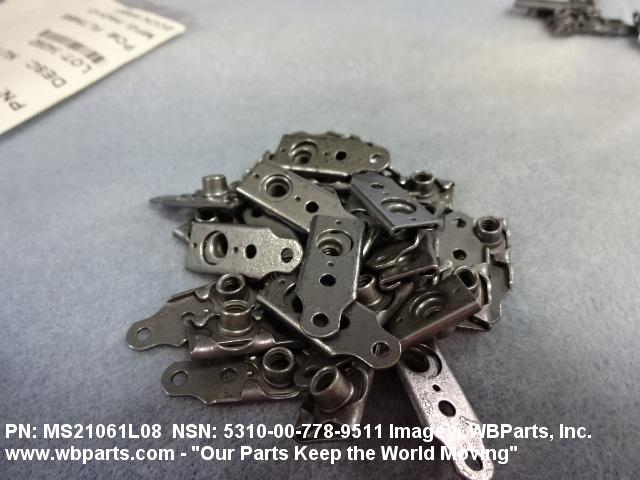

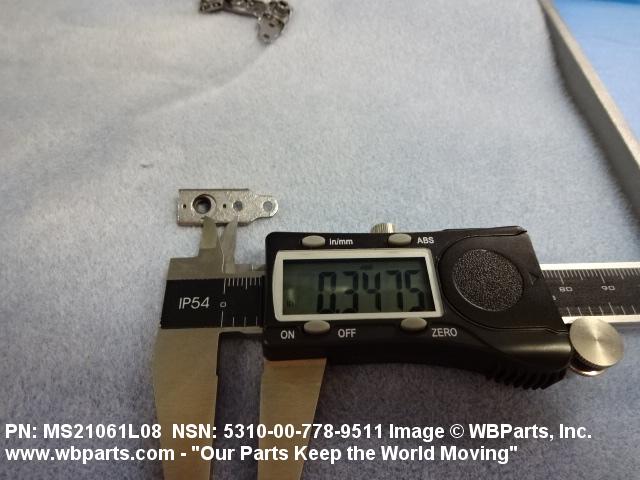

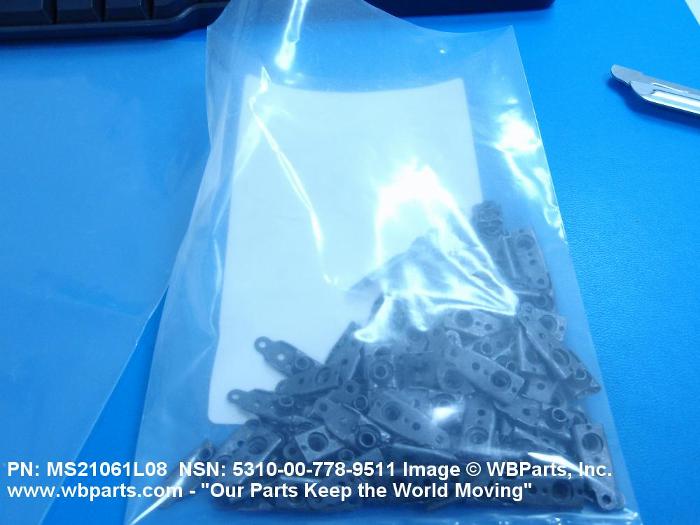

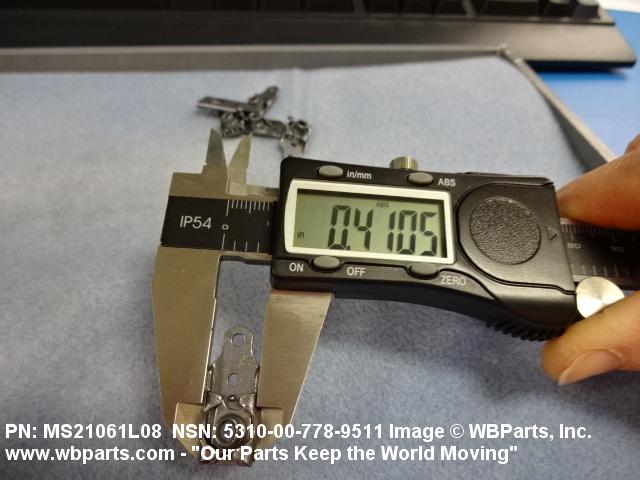

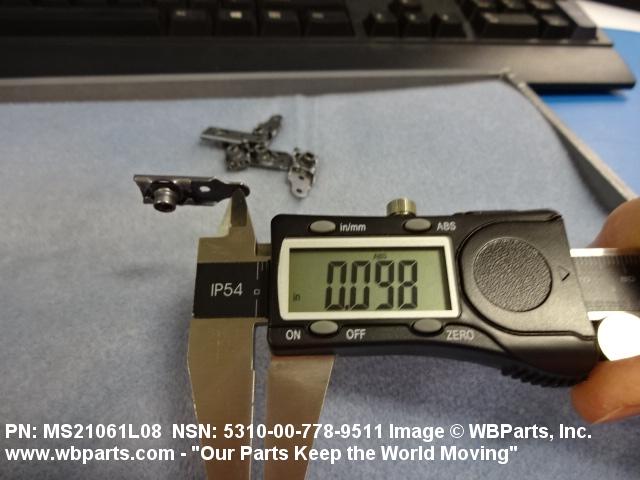

Drawings & Photos | NSN 5310-00-778-9511

Part Number	Request Date	QTY	Origin
MS21061L08	2024-02-46	300	US
MILN25027	2023-08-236	54	US
MILN25027	2020-09-262	156	US
MS21061L08	2017-05-129	25	United States
5310-00-778-9511	2017-02-53	4	MANUAL
MS21061L08	2016-10-291	3	United States
MS21061L08	2015-09-259	1	United States
MS21061L08	2015-06-152	16	United States
MS21061L08	2014-03-79	357	United States
MS21061L08	2013-08-239	100	TR
MS21061L08	2012-11-310	145
MS21061L08	2012-10-293	100	Poland
MILN25027	2012-06-157	16	United States
MILN25027	2012-05-139	15	United States
MILN25027	2011-09-265	28	US
MILN25027	2011-09-264	25	Canada
MS21061L08	2011-09-257	100	United States
5310-00-778-9511	2011-03-81	50	Australia
MS21061L08	2011-03-60	20	BR
MS21061L08	2011-02-54	3	US
MILN25027	2011-02-49	5	US
MILN25027	2011-02-49	10	US
MILN25027	2011-02-49	40	US
MILN25027	2010-06-181	50	United States
MILN25027	2010-04-111	5000	US
5310-00-778-9511	2010-04-97	100	MX
5310-00-778-9511	2010-02-34	6	US
MILN25027	2009-11-321	560	US
MS21061L08	2009-10-285	730	US
MILN25027	2009-10-281	8	Canada
MS21061L08	2009-05-147	100	DE
5310-00-778-9511	2009-02-36	3800	DIBBS
5310-00-778-9511	2009-01-27	3800	DIBBS
MS21061L08	2008-12-346	50	United States
MS21061L08	2008-12-346	100	United States
MS21061L08	2008-12-346	200	United States
MS21061L08	2008-11-323	100	United States
5310-00-778-9511	2008-11-317	2369	DIBBS
MS21061L08	2008-10-284	100	United States
MILN25027	2008-09-270	50	Italy
5310-00-778-9511	2008-09-270	3450	DIBBS
5310-00-778-9511	2008-08-221	9450	DIBBS
5310-00-778-9511	2007-12-352	50	us

Cross Reference | NSN 5310-00-778-9511

Part Number	Cage Code	Manufacturer
13615-82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13615-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
2JC2772H07	79500	WESTINGHOUSE ELECTRIC CORP
2JC2772H07	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
334-1081-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
8526346	18876	U S ARMY AVIATION AND MISSILE COMMAND
BACN10KB08F	81205	THE BOEING COMPANY DBA BOEING
BRF100A08	52828	REPUBLIC FASTENER MFG. CORP.
F2000-08	15653	ALCOA GLOBAL FASTENERS, INC.
F2000-08	F6033	TECNOTEC SARL
F2000-08	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
F2000-08	R1120	SATAIR A/S
F2000-08BAC	15653	ALCOA GLOBAL FASTENERS, INC.
F2000-08BAC	R1120	SATAIR A/S
F2000-08T2	15653	ALCOA GLOBAL FASTENERS, INC.
F2000-08T2	R1120	SATAIR A/S
GN10AA832	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MILN25027	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21061L08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21061L08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NS103185-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
RF100A08	52828	REPUBLIC FASTENER MFG. CORP.
RMF9207-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMF9207-82	72962	HARVARD INDUSTRIES INC
T66S832S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T66S832S	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
T8114S832S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN151A1-82	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN151A1-82	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-778-9511

Compare

Related Products | NSN 5310-00-778-9511

5310-00-778-9512, 5310-00-778-9514, 5310-00-778-9664, 5310-00-778-9750, 5310-00-778-9752

Technical Data | NSN 5310-00-778-9511

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A124 PLATE
NUT LENGTH	1.051 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.032 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.422 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F44 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILN25027

Restrictions/Controls & Freight Information | NSN 5310-00-778-9511

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-778-9511

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
