NSN 5310-00-778-2655 MS210593, MS21059-3, NAS686X3
Product Details | PLATE SELF-LOCKING NUT
5310-00-778-2655 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210593, MS21059-3, NAS686X3, RF200X3, T65S1032SCPC, F50003CW, F5000-3CW, F52LHTA52102, F52LHTA521-02, 13605NM02, 13605NM-02, 335C704H09, 52LHTA52102, 52LHTA521-02 , 5310-00-778-2655, 00-778-2655, 5310007782655, 007782655
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-778-2655 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

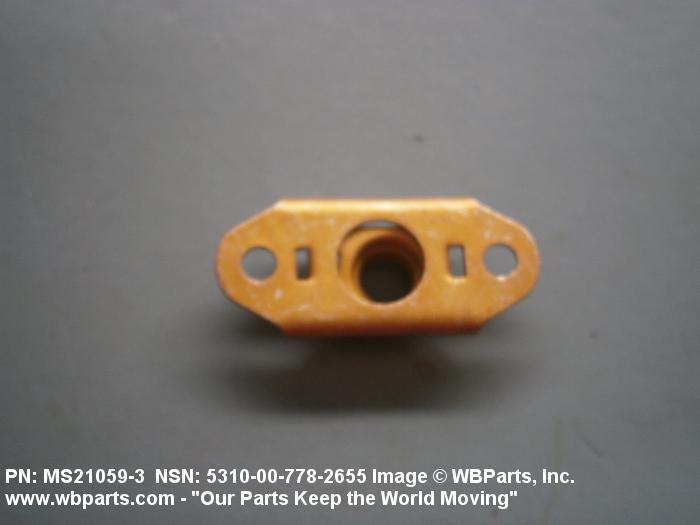

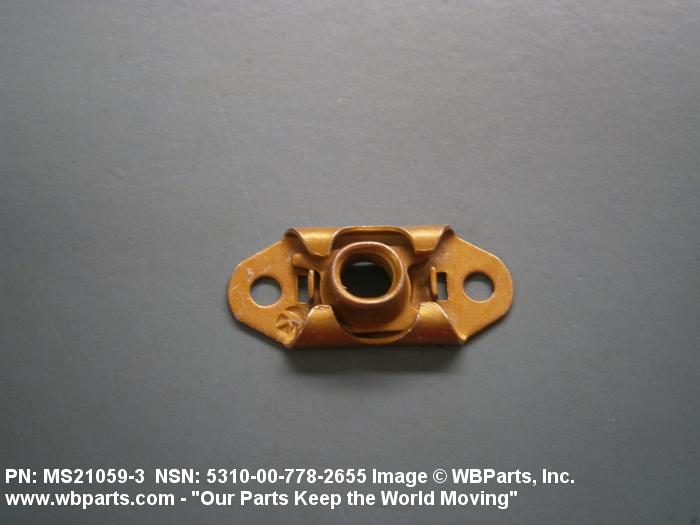

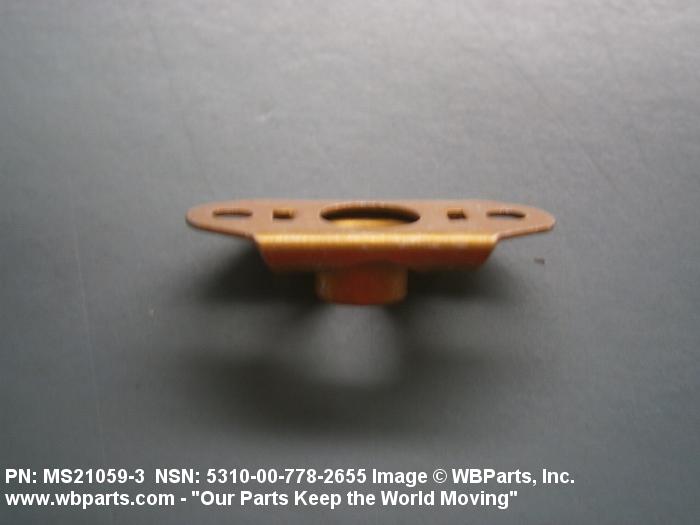

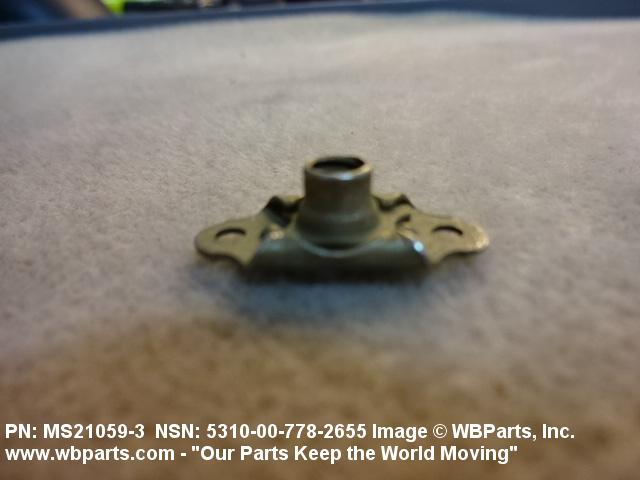

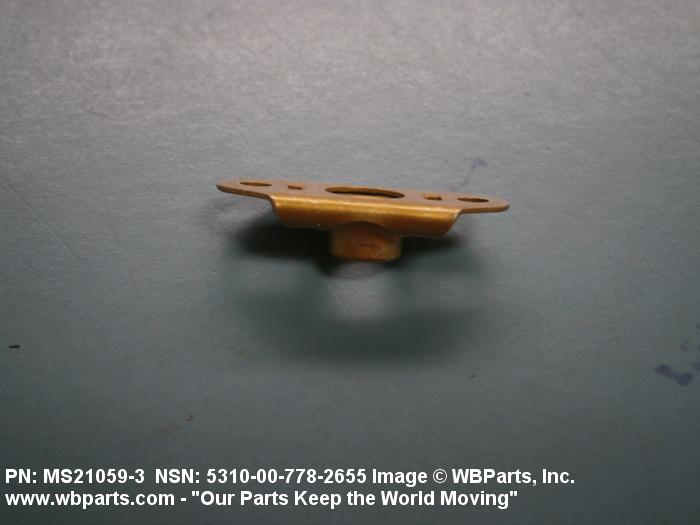

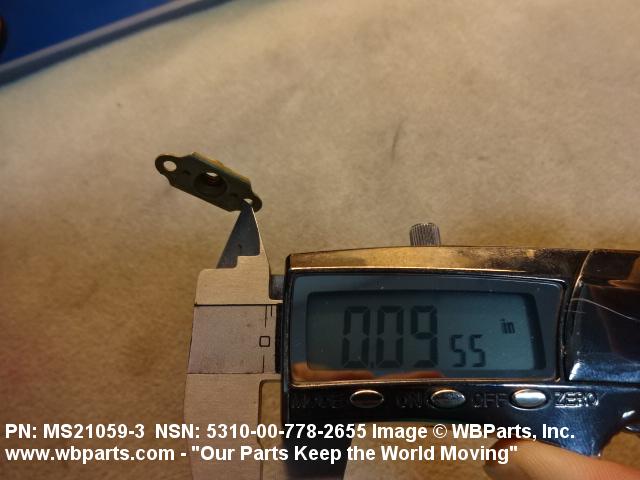

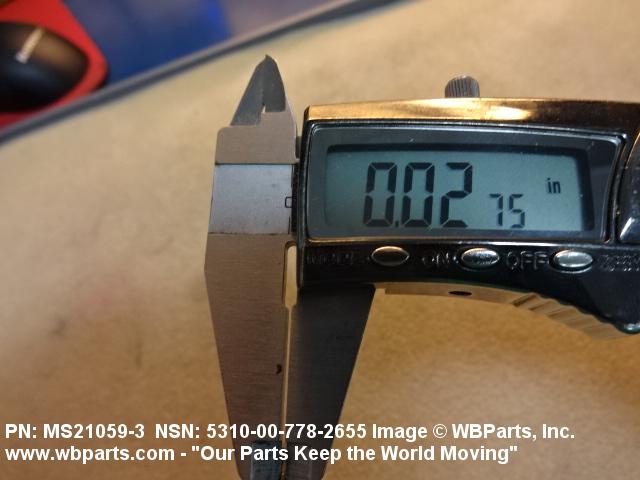

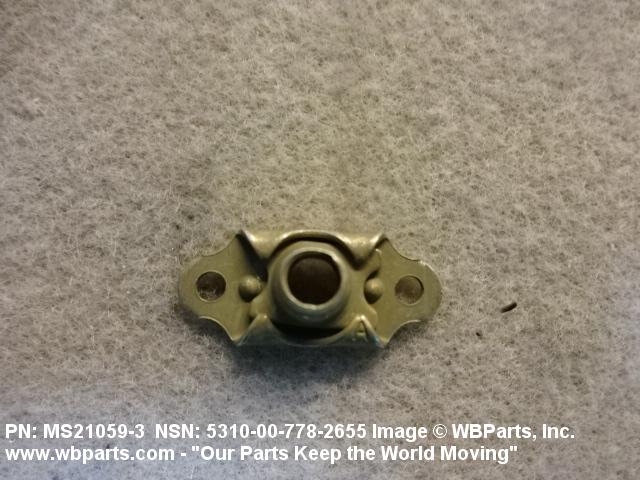

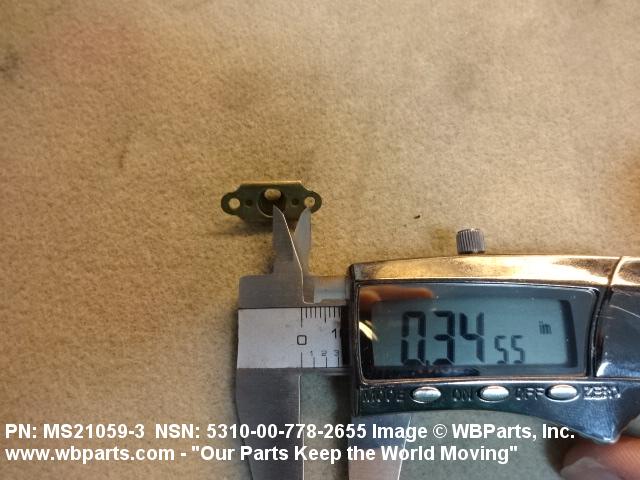

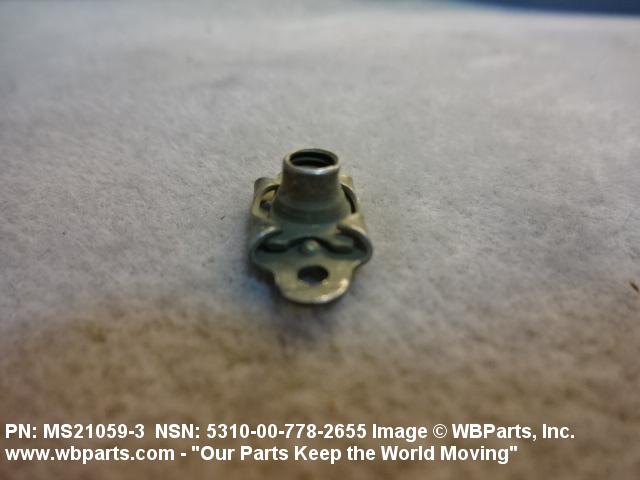

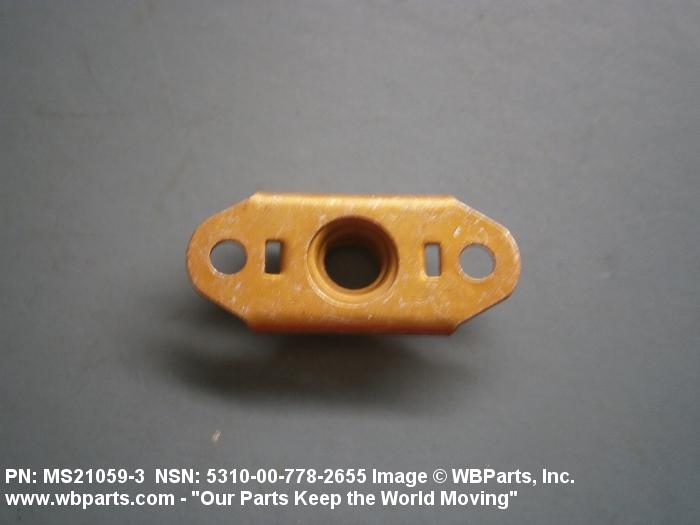

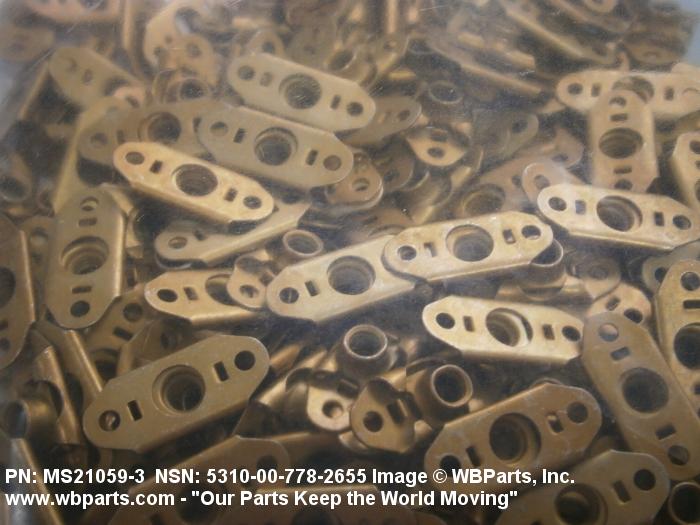

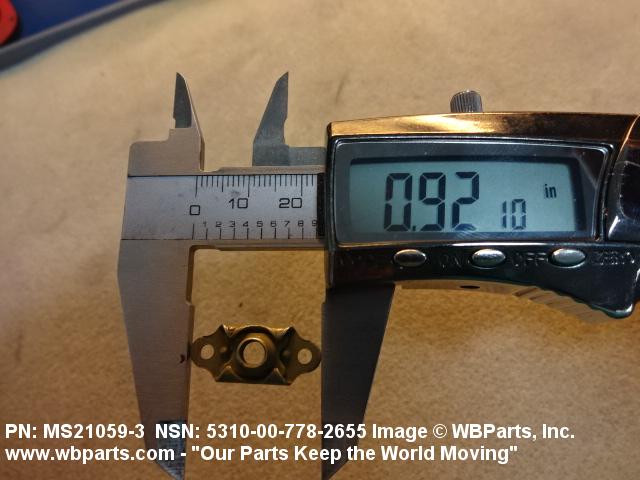

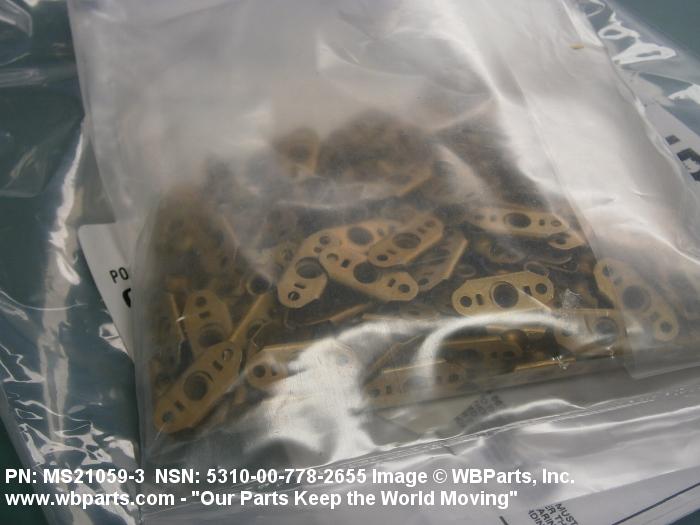

Drawings & Photos | NSN 5310-00-778-2655
Demand History | NSN 5310-00-778-2655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-778-2655 | 2023-06-170 | 6474 | DIBBS |
| 5310-00-778-2655 | 2023-03-75 | 786 | DIBBS |
| 5310-00-778-2655 | 2022-03-62 | 350 | US |
| MS210593 | 2022-02-40 | 20 | United States |
| 5310-00-778-2655 | 2021-12-341 | 300 | United States |
| MS210593 | 2021-09-257 | 100 | United States |
| MS210593 | 2021-06-159 | 100 | Singapore |
| 5310-00-778-2655 | 2021-06-157 | 50 | Singapore |
| MS210593 | 2021-01-13 | 50 | United States |
| MS210593 | 2020-10-290 | 3600 | United States |
| MS210593 | 2019-04-112 | 750 | Turkey |
| MS210593 | 2018-07-186 | 200 | Thailand |
| 5310-00-778-2655 | 2018-04-108 | 1000 | MANUAL |
| MS21059-3 | 2018-04-108 | 1000 | United Arab Emirates |
| MS210593 | 2018-04-103 | 2000 | United States |
| 5310-00-778-2655 | 2017-09-262 | 57350 | DIBBS |
| 5310-00-778-2655 | 2017-09-257 | 900 | United States |
| MS210593 | 2016-11-321 | 150 | United States |
| 5310-00-778-2655 | 2016-09-273 | 38773 | DIBBS |
| 5310-00-778-2655 | 2016-09-272 | 38773 | DIBBS |
| MS210593 | 2016-08-228 | 3 | PH |
| MS210593 | 2016-08-228 | 7 | PH |
| MS210593 | 2016-07-188 | 30 | Thailand |
| MS210593 | 2016-04-95 | 100 | United States |
| MS210593 | 2016-02-43 | 57 | United States |
| MS210593 | 2015-04-92 | 5000 | US |
| MS21059-3 | 2015-03-78 | 3000 | United States |
| MS21059-3 | 2015-03-71 | 15000 | TH |
| MS210593 | 2014-07-204 | 15 | United States |
| MS210593 | 2014-06-164 | 3 | Singapore |
| MS210593 | 2014-02-56 | 12000 | US |
| MS210593 | 2014-02-56 | 18000 | US |
| MS210593 | 2014-01-27 | 2010 | ES |
| 5310-00-778-2655 | 2013-10-283 | 1 | Brazil |
| MS210593 | 2013-08-239 | 100 | TR |
| MS210593 | 2013-06-157 | 225 | United States |
| MS210593 | 2013-02-52 | 224 | United States |
| MS210593 | 2012-05-122 | 500 | ID |
| MS210593 | 2012-04-102 | 500 | US |
| MS210593 | 2012-04-96 | 672 | United States |
| 5310-00-778-2655 | 2012-02-46 | 100 | Malaysia |
| 5310-00-778-2655 | 2012-02-46 | 250 | Malaysia |
| 5310-00-778-2655 | 2012-02-46 | 500 | Malaysia |
| MS210593 | 2011-12-347 | 2 | US |
| MS210593 | 2011-11-314 | 15 | United States |
| MS210593 | 2011-06-181 | 14 | United States |
| MS210593 | 2011-05-138 | 6 | United States |
| MS210593 | 2011-05-137 | 100 | US |
| MS210593 | 2011-05-124 | 6 | United States |
| MS210593 | 2011-05-122 | 2 | United States |
| MS210593 | 2011-05-122 | 6 | United States |
| MS210593 | 2011-05-122 | 14 | United States |
| MS210593 | 2011-02-47 | 1515 | United States |
| 5310-00-778-2655 | 2011-02-34 | 400 | KW |
| MS210593 | 2010-07-197 | 5000 | United States |
| MS210593 | 2010-06-174 | 50 | United States |
| 5310-00-778-2655 | 2010-06-165 | 8 | US |
| 5310-00-778-2655 | 2010-05-133 | 56079 | DIBBS |
| MS210593 | 2010-05-132 | 40 | US |
| 5310-00-778-2655 | 2010-05-121 | 54501 | DIBBS |
| 5310-00-778-2655 | 2010-04-97 | 100 | MX |
| MS210593 | 2009-10-278 | 500 | United States |
| MS210593 | 2009-07-187 | 10 | France |
| MS210593 | 2009-02-54 | 350 | Greece |
| 5310-00-778-2655 | 2008-05-143 | 16 | US |
| 5310-00-778-2655 | 2008-04-116 | 250 | United States |
| 5310-00-778-2655 | 2007-11-324 | 500 | US |
| MS210593 | 2007-11-316 | 1000 | us |
| 52LHTA52102 | 2007-08-221 | 6 | Canada |
| MS210593 | 2007-07-183 | 300 | US |
| 5310-00-778-2655 | 2006-10-295 | 44 | Turkey |
| 5310-00-778-2655 | 2006-10-294 | 44 | Turkey |
| 5310-00-778-2655 | 2006-10-294 | 44 | Turkey |
| 5310-00-778-2655 | 2006-09-257 | 12 | United States |
Cross Reference | NSN 5310-00-778-2655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13605NM-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 13605NM-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 335C704H09 | 72962 | HARVARD INDUSTRIES INC |
| 52LHTA521-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 52LHTA521-02 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 52LHTA521-02 | R1120 | SATAIR A/S |
| F5000-3CW | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F52LHTA521-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52LHTA521-02 | 72962 | HARVARD INDUSTRIES INC |
| MS21059-3 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| MS21059-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21059-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS686X3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| RF200X3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T65S1032SCPC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-778-2655
Related Products | NSN 5310-00-778-2655
Technical Data | NSN 5310-00-778-2655
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.948 INCHES MAXIMUM |

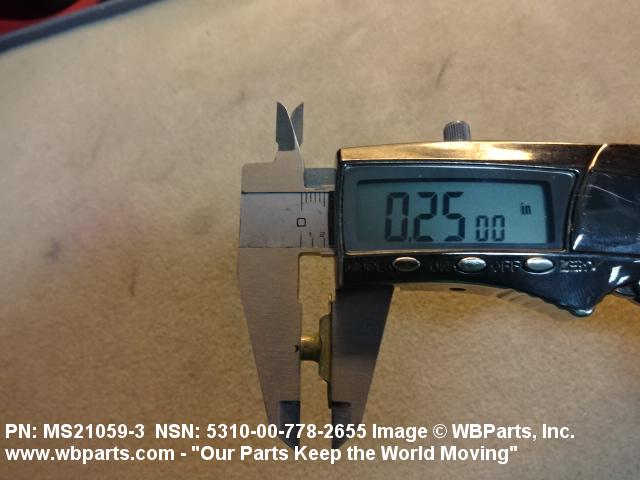

| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |

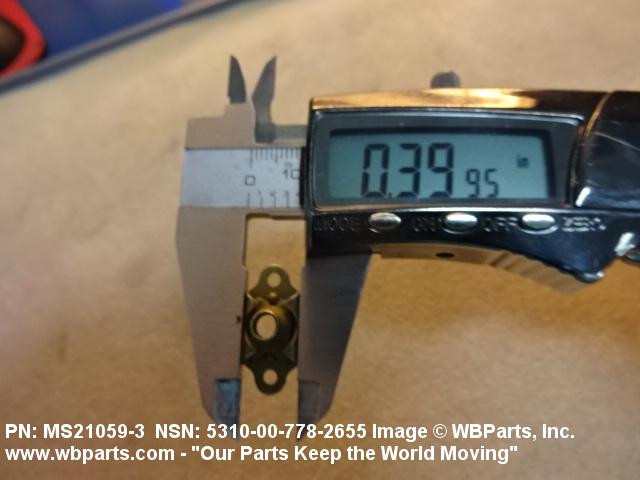

| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | SOLUBLE LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |

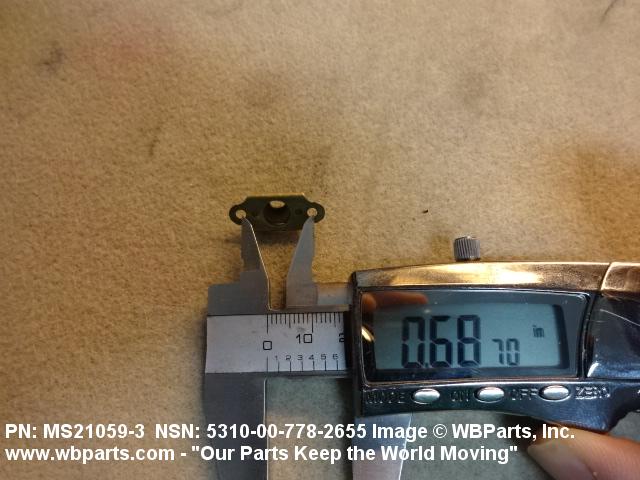

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-00-778-2655
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
