NSN 5310-00-777-5794 MS21059L08K , MS21059L4K, NS103203048BC
Product Details | PLATE SELF-LOCKING NUT

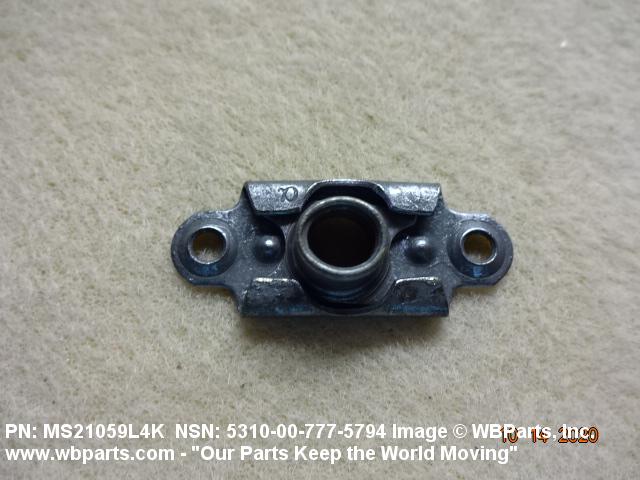

5310-00-777-5794 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21059L08K , MS21059L4K, NS103203048BC, NS103203-048BC, BACN10JR4FR, BRF200A4K, F500008BC, F5000-08BC , F500010832BC100, F5000-10-832BC100 , F50004BCBAC, F5000-4BCBAC, RF200A08K , RF200A4K, RM52LHTA521048BC, RM52LHTA521-048BC, RM52LHTA52182BC, RM52LHTA521-82BC , RMF92014BC, RMF9201-4BC, T65S428SBC, T65S832SBC, T8091S428BC, VN152A2048, VN152A2-048, Z00.N5426387305, Z00N5426387305, C, 13605048BC, 13605-048BC, 1360582BC, 13605-82BC , 5310-00-777-5794, 00-777-5794, 5310007775794, 007775794
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-777-5794 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-00-777-5794
Demand History | NSN 5310-00-777-5794
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21059L08K | 2024-06-175 | 200 | AE |
| MS21059L08K | 2021-04-102 | 7 | Malaysia |
| C | 2017-06-170 | 0 | BR |
| MS21059L08K | 2016-12-336 | 40 | AW |
| 5310-00-777-5794 | 2014-09-247 | 3733 | DIBBS |
| 5310-00-777-5794 | 2012-08-220 | 1417 | DIBBS |
| F500008BC | 2009-11-328 | 30 | Italy |
| MS21059L08K | 2007-11-318 | 500 | United States |
Cross Reference | NSN 5310-00-777-5794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13605-048BC | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 13605-048BC | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACN10JR4FR | 81205 | THE BOEING COMPANY DBA BOEING |
| BRF200A4K | 52828 | REPUBLIC FASTENER MFG. CORP. |
| C | 72962 | HARVARD INDUSTRIES INC |
| F5000-4BCBAC | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F5000-4BCBAC | F6033 | TECNOTEC SARL |
| F5000-4BCBAC | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| MS21059L4K | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21059L4K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NS103203-048BC | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| RF200A4K | 52828 | REPUBLIC FASTENER MFG. CORP. |
| RM52LHTA521-048BC | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RM52LHTA521-048BC | 72962 | HARVARD INDUSTRIES INC |
| RMF9201-4BC | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RMF9201-4BC | 72962 | HARVARD INDUSTRIES INC |
| T65S428SBC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| T8091S428BC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| VN152A2-048 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| Z00.N5426387305 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-777-5794
Related Products | NSN 5310-00-777-5794
Technical Data | NSN 5310-00-777-5794
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |

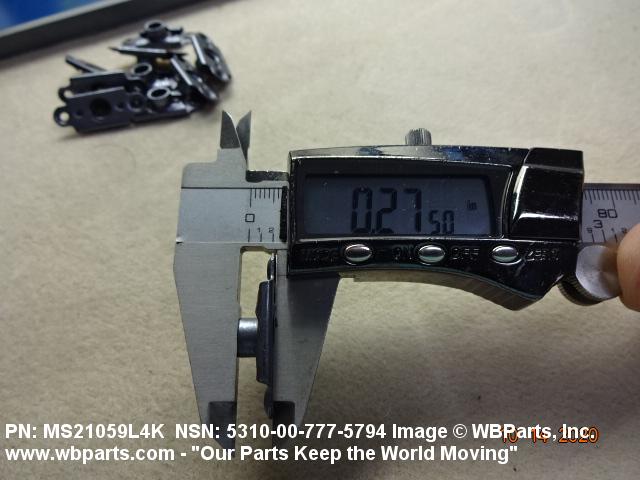

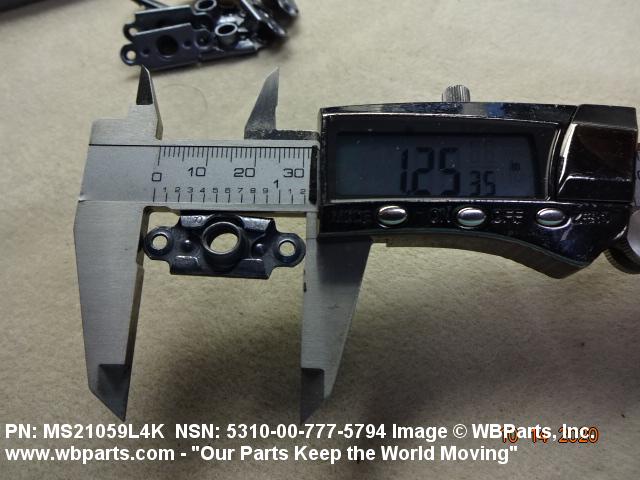

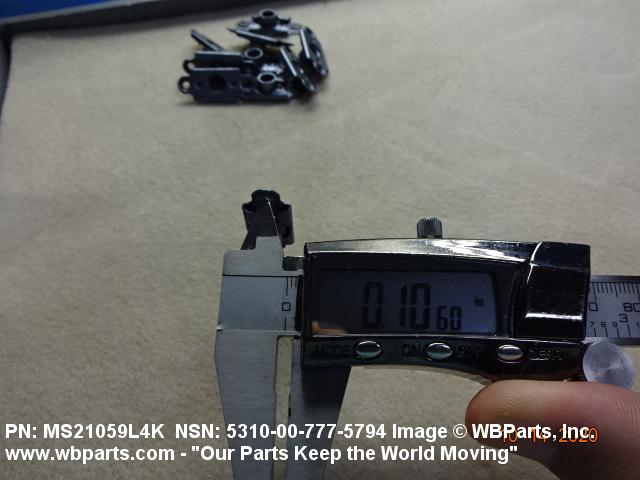

| NUT LENGTH | 1.292 INCHES MAXIMUM |
| NUT HEIGHT | 0.281 INCHES MAXIMUM |

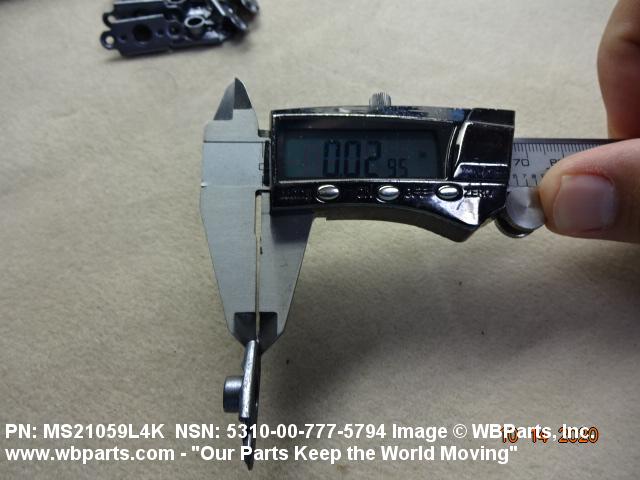

| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.350 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.032 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.310 INCHES MINIMUM AND 0.330 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | COUNTERSUNK HOLES |
| MOUNTING HOLE COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| MOUNTING PROVISION LOCATION | OPPOSITE NUT PROJECTION SIDE |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
