NSN 5310-00-775-2567 MS210763, MS21076-3, MS210763N
Product Details | PLATE SELF-LOCKING NUT
5310-00-775-2567 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210763, MS21076-3, MS210763N, MS21076-3N, MT65C1032C, MA 13700-02, MA1370002, MF50313, MF5031-3, RFM20C3, 54062ALTB , 99029334, 990293-34, 5310-00-775-2567, 00-775-2567, 5310007752567, 007752567
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-775-2567 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

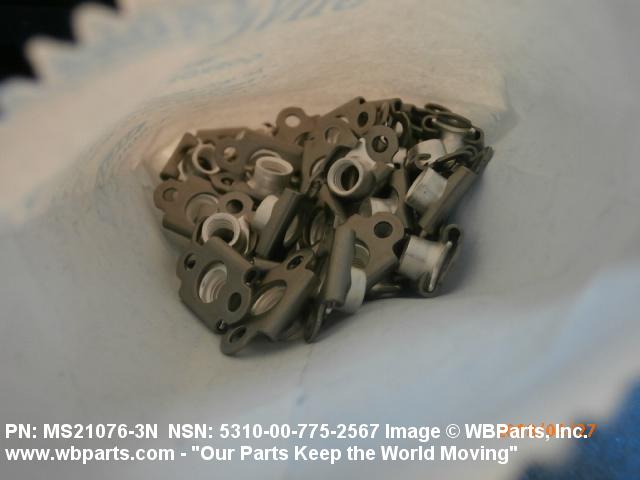

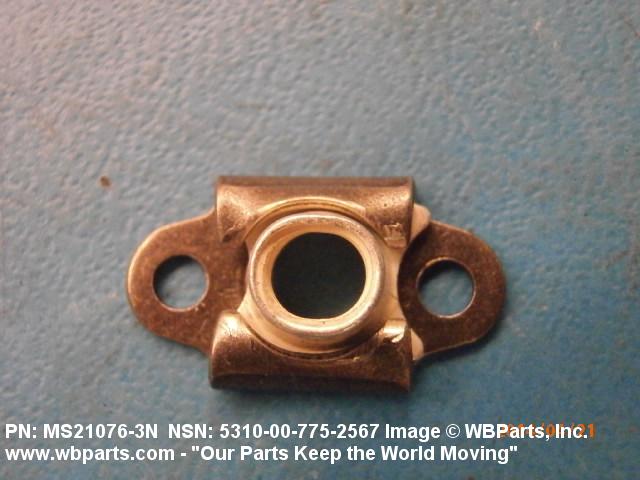

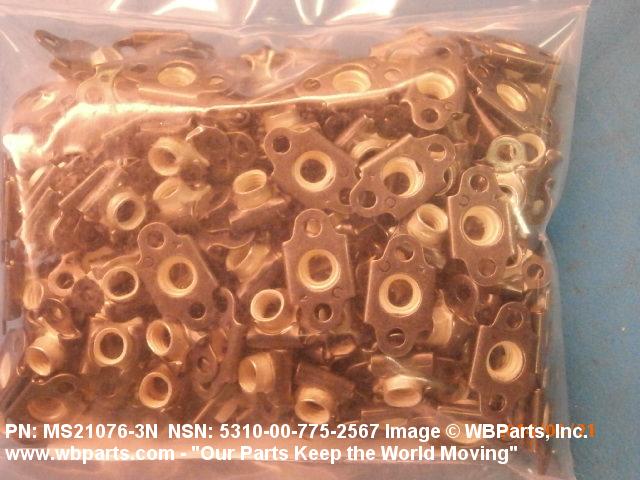

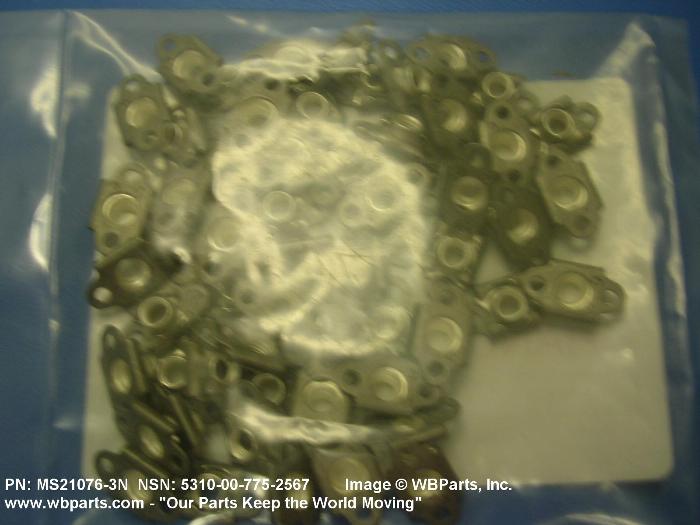

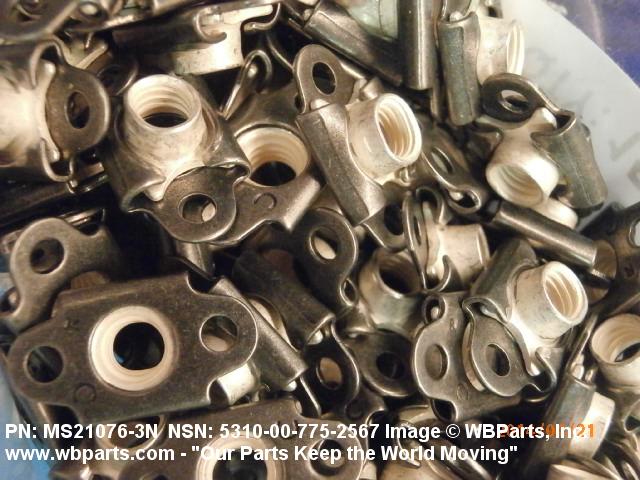

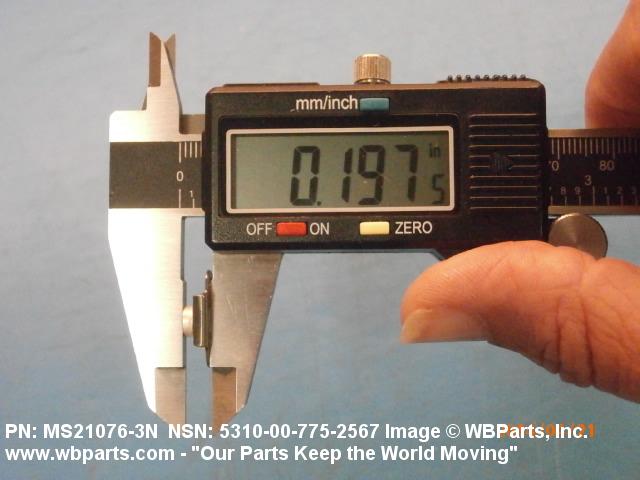

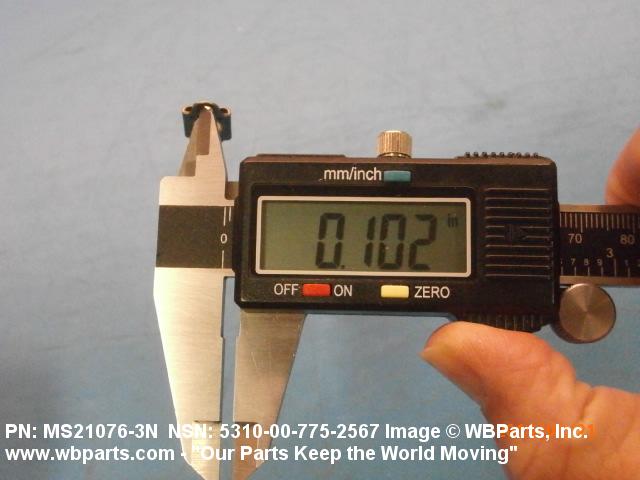

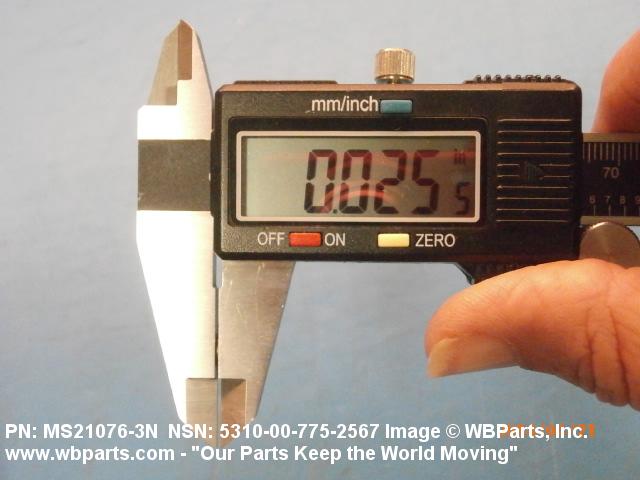

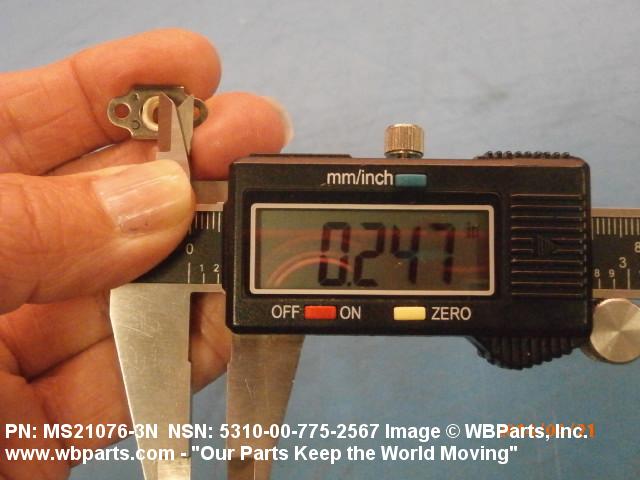

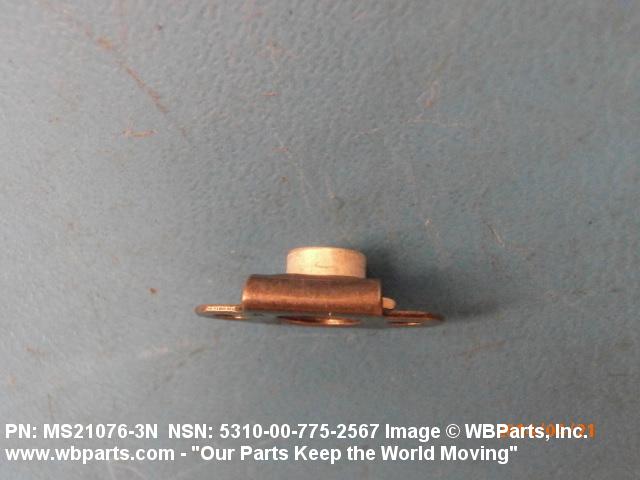

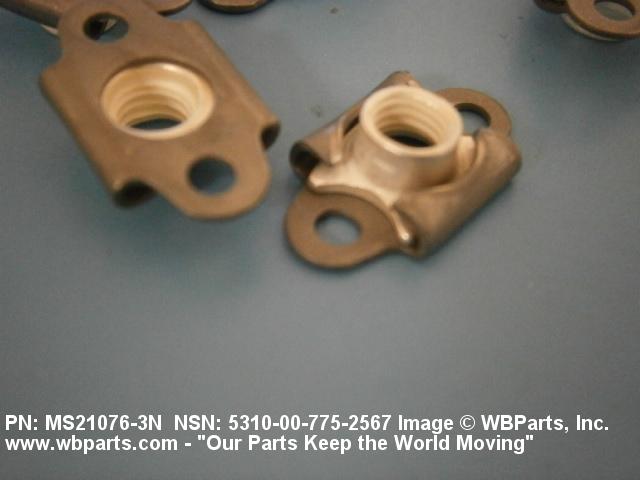

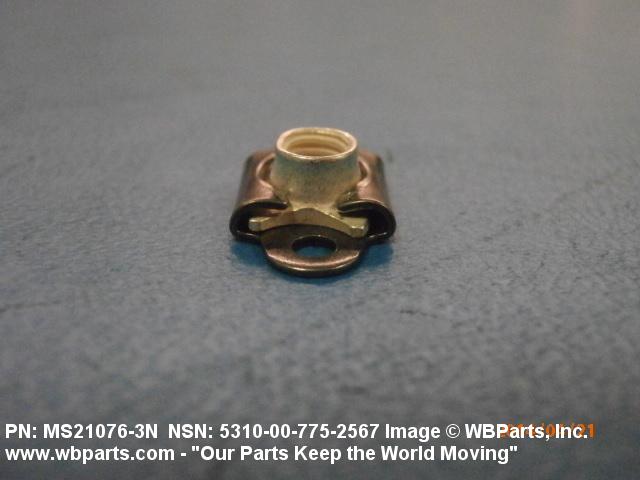

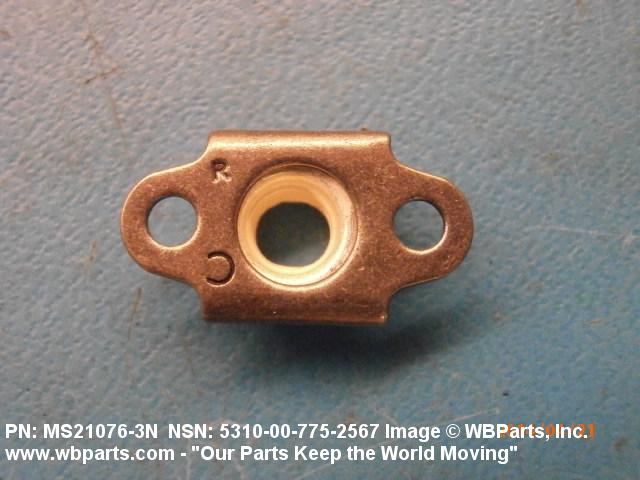

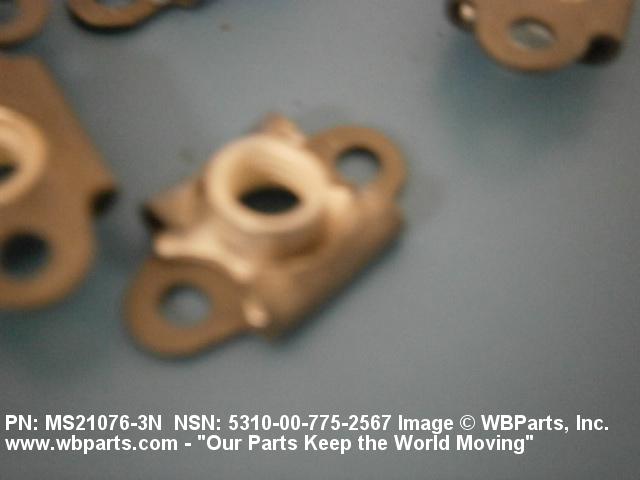

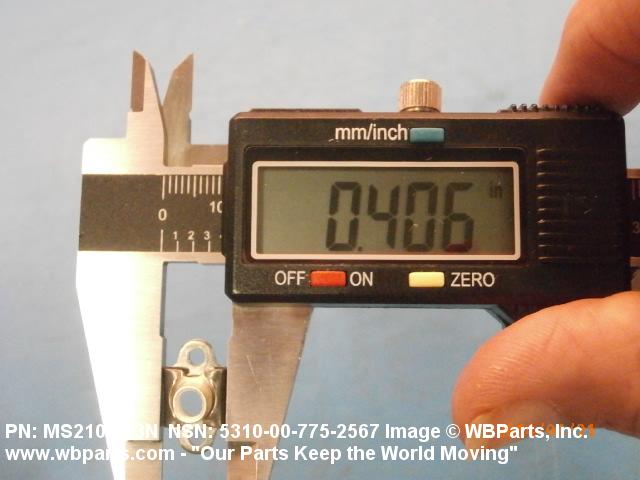

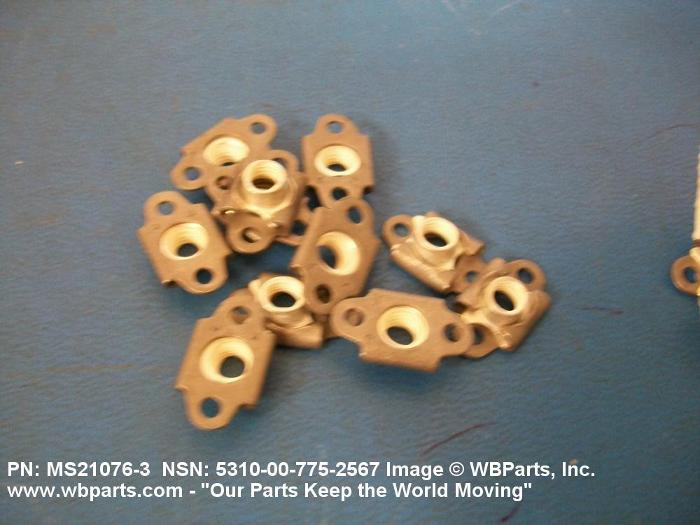

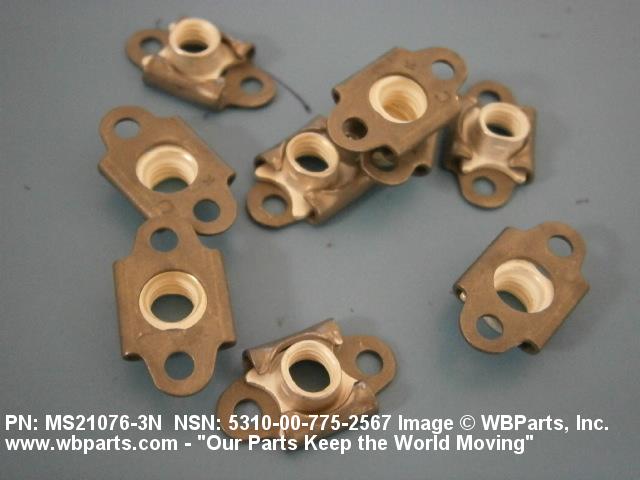

Drawings & Photos | NSN 5310-00-775-2567
Demand History | NSN 5310-00-775-2567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS210763 | 2024-10-305 | 30 | US |
| MS210763N | 2024-05-142 | 1250 | us |
| MS210763 | 2022-10-276 | 1496 | TR |
| 5310-00-775-2567 | 2022-07-195 | 72 | Malaysia |
| 5310-00-775-2567 | 2022-02-46 | 32 | US |
| MS210763N | 2020-11-309 | 140 | United States |
| 5310-00-775-2567 | 2020-10-296 | 84 | Taiwan |
| 5310-00-775-2567 | 2020-10-296 | 5000 | Taiwan |
| MS210763 | 2020-09-261 | 25 | US |
| MS210763N | 2020-09-248 | 300 | US |
| MS210763 | 2019-12-339 | 47 | United States |
| MS210763N | 2018-05-145 | 20 | United States |
| MS210763N | 2018-04-96 | 72 | United States |
| 5310-00-775-2567 | 2018-01-10 | 40 | US |
| MS210763N | 2017-12-353 | 40 | United States |
| 5310-00-775-2567 | 2015-03-60 | 18640 | DIBBS |
| 5310-00-775-2567 | 2015-01-28 | 10221 | DIBBS |
| MS210763 | 2015-01-09 | 1 | US |
| 5310-00-775-2567 | 2015-01-01 | 29052 | DIBBS |
| MS210763N | 2014-11-322 | 250 | US |
| MS210763N | 2014-07-192 | 342 | US |
| MS21076-3N | 2014-04-97 | 100 | UK |
| 5310-00-775-2567 | 2014-03-78 | 300 | United States |
| MS210763 | 2014-03-78 | 300 | United States |
| MS210763N | 2014-01-27 | 36 | IL |
| 5310-00-775-2567 | 2013-11-325 | 1 | DIBBS-RFPs |
| 5310-00-775-2567 | 2013-10-291 | 1 | DIBBS-RFPs |
| MS210763N | 2013-09-261 | 650 | IL |
| MS210763 | 2013-09-260 | 500 | US |
| 5310-00-775-2567 | 2013-09-246 | 1 | DIBBS-RFPs |
| MS210763 | 2013-08-239 | 100 | TR |
| 5310-00-775-2567 | 2013-08-231 | 17 | US |
| 5310-00-775-2567 | 2013-08-231 | 15 | US |
| MS210763N | 2013-07-197 | 400 | China |
| MS210763N | 2013-07-197 | 400 | Taiwan |
| MS210763N | 2013-06-156 | 20 | US |
| MS210763N | 2013-05-133 | 50 | United States |
| MS210763N | 2013-05-133 | 250 | United States |
| MS210763N | 2013-05-133 | 1000 | United States |
| MS210763 | 2013-04-98 | 610 | IL |
| 5310-00-775-2567 | 2013-03-85 | 21 | United States |
| 5310-00-775-2567 | 2013-01-31 | 70 | US |
| 5310-00-775-2567 | 2012-11-335 | 10 | US |
| MS210763 | 2012-11-331 | 500 | United States |
| 5310-00-775-2567 | 2012-05-151 | 100 | United States |
| MS210763N | 2012-05-132 | 240 | China |
| 5310-00-775-2567 | 2012-04-117 | 120 | TW |
| MS210763 | 2012-03-82 | 100 | US |
| MS210763 | 2012-02-40 | 200 | Canada |
| MS210763N | 2012-01-24 | 230 | US |
| 5310-00-775-2567 | 2012-01-11 | 1000 | IT |
| MS210763 | 2011-12-363 | 144 | CN |
| MS210763N | 2011-12-363 | 42616 | CN |
| MS210763N | 2011-12-341 | 45 | United States |
| MS210763N | 2011-12-336 | 20 | US |
| MS210763N | 2011-11-319 | 300 | United States |
| MS210763N | 2011-10-300 | 500 | United States |
| 5310-00-775-2567 | 2011-06-157 | 340 | United States |
| 5310-00-775-2567 | 2011-02-47 | 1000 | US |
| 5310-00-775-2567 | 2010-02-40 | 800 | Netherlands |
| MS210763N | 2010-02-33 | 80 | United States |
| MS210763N | 2009-11-334 | 1200 | Italy |
| 5310-00-775-2567 | 2009-09-261 | 500 | US |
| MS210763 | 2009-08-223 | 65 | Spain |
| MS210763N | 2009-08-217 | 50 | United States |
| MS210763N | 2009-07-198 | 100 | France |
| 5310-00-775-2567 | 2009-04-112 | 18 | US |
| MS210763 | 2009-03-72 | 8 | United States |
| MS210763N | 2009-03-70 | 25 | us |
| 5310-00-775-2567 | 2008-10-289 | 40 | US |
| MS210763N | 2008-08-233 | 50 | United States |
| MS210763N | 2008-08-232 | 50 | US |
| 5310-00-775-2567 | 2008-08-227 | 500 | US |
| MS210763N | 2008-07-203 | 1000 | US |
| MS210763N | 2008-07-192 | 1000 | Canada |
| 5310-00-775-2567 | 2008-05-137 | 10 | US |
| 5310-00-775-2567 | 2008-05-128 | 60 | United States |
| 5310-00-775-2567 | 2008-05-128 | 20000 | us |
| MS210763N | 2008-05-127 | 900 | US |
| MS210763 | 2008-05-123 | 50 | US |
| 5310-00-775-2567 | 2008-04-120 | 7 | US |
| 5310-00-775-2567 | 2008-04-100 | 400 | US |
| MS210763N | 2008-03-81 | 6 | United States |
| 5310-00-775-2567 | 2006-10-303 | 50 | US |
| MS210763 | 2006-07-212 | 80 | Canada |
| MS210763N | 2006-03-60 | 150 | Turkey |
Cross Reference | NSN 5310-00-775-2567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 990293-34 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| MA 13700-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MA 13700-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MF5031-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF5031-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MF5031-3 | R1120 | SATAIR A/S |
| MS21076-3 | 1CY13 | QUESTRON AEROSPACE / FAS-TRONICS DIV. |
| MS21076-3 | 51792 | COLUMBIA NUT & BOLT LLC |
| MS21076-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21076-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21076-3N | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21076-3N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MT65C1032C | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| MT65C1032C | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
| RFM20C3 | 14711 | RSA ENGINEERED PRODUCTS, LLC |
| RFM20C3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-775-2567
Related Products | NSN 5310-00-775-2567
Technical Data | NSN 5310-00-775-2567
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |

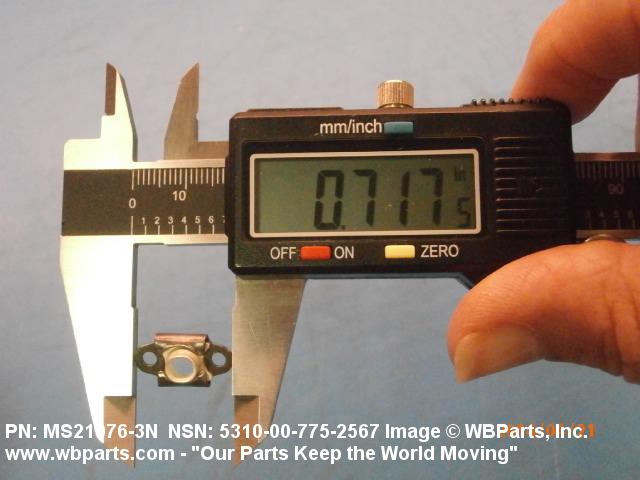

| NUT LENGTH | 0.739 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |

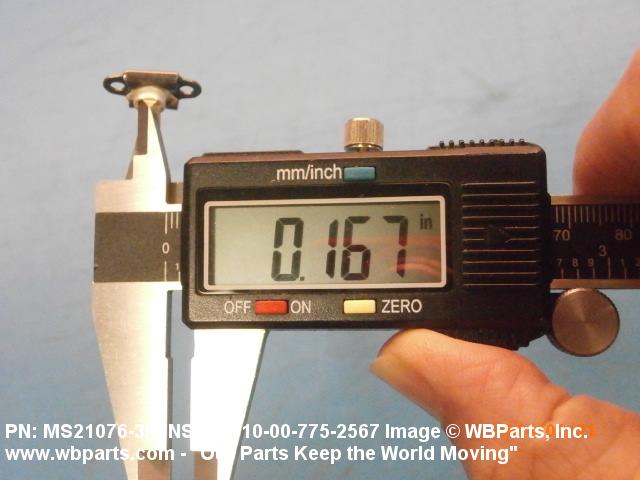

| PLATE THICKNESS | 0.140 INCHES MAXIMUM |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |

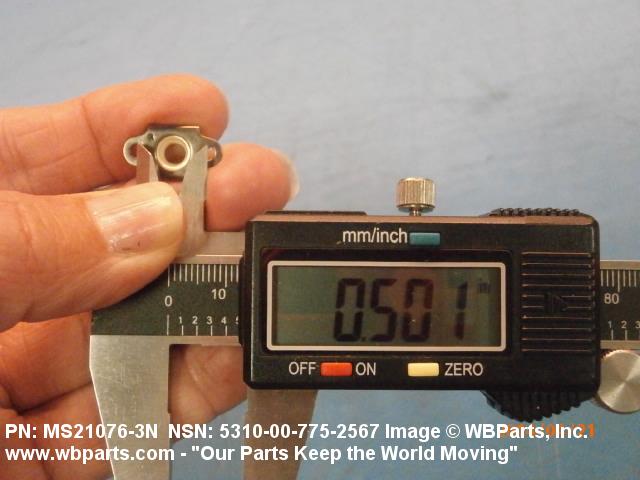

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| III PRECIOUS MATERIAL | SILVER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21076-3 |
Restrictions/Controls & Freight Information | NSN 5310-00-775-2567
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-775-2567
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
